MG MS-06FS Zaku II Garma Zabi Use English Manual & Color Guide

MG MS-06FS Zaku II Garma Zabi Use Construction Manual & Color Guide

Another Bandai Hobby Shop exclusive is the 1/100 Master Grade MS-06FS Zaku II Garma Zabi Use. Piloted by Garma Zabi, a member of the ruling Zabi family that governed Zeon during the One Year War as seen in the original Mobile Suit Gundam anime series.

Manual of the MG Zaku II is included which will be the basis of the build, but some custom parts are included which are covered by the translated manual below.

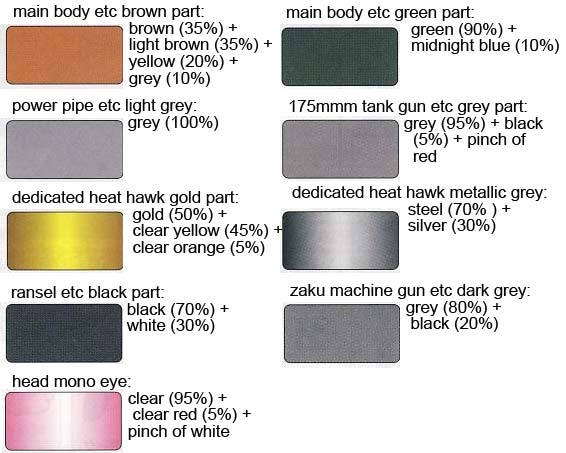

Color Guide DescriptionPaint Ratios
main body etc brown partBrown (H7)(35%) + Light Brown/Tan (H27)(35%) + Yellow (H4)(20%) + Gray/Nezumi (H22)(10%)
power pipe etc light gray partGray/Nezumi (H22)(100%)
dedicated heat hawk gold partGold (H9)(50%) + Clear Yellow (H91)(45%) + Clear Orange (H92)(5%)
ransel(backpack) etc black partBlack (H2)(70%) + White (H1)(30%)
head mono eyeClear (H30)(95%) + Clear Red (H90)(5%) + White (H1)(small dose)
main body etc green partGreen (H6)(90%) + Midnight Blue (H55)(10%)
175mm tank gun etc gray partGray/Nezumi (H22)(95%) + Black (H2)(5%) + Red (H3)(small dose)
dedicated heat hawk metallic gray partSteel (H18)(70%) + Silver (H8)(30%)
zaku machine gun etc dark gray partGray/Nezumi (H22)(80%) + Black (H2)(20%)
Disclaimer






Construction Manual & Color Guide for the 1/100 Master Grade MS-06FS Zaku II of Garma Zabi was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.

MG MS-06FS Zaku II Garma Zabi Use Construction Manual & Color Guide

Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Brown (H7)Brown (C7)Brown (X9)Chocolate Brown (70.872)Burnt Umber (71.040)OLD RUST (A.MIG-0042)----Dark Brown (32181)Service Brown (Gloss) (10)------Flat Leather (4674AP)
Light Brown/Tan (H27)Tan (C44)Buff (XF57)Green Brown (70.879)German Yellow Brown (71.272)GELBBRAUN (A.MIG-0013)Gelbraun – Yellow Brown (RC063)Green Brown (HTK-_303)Ochre Brown (solid matt) (32188)Brown Yellow (Matte) (94)Africa Grunbraun RAL 8000 (F) (2099)RAL8000 Grunbraun (X803)Grunbraun/Gelbbraun RAL 8000 (UA203)Flat US Army/Mar.Gulf Arm Sand (4812AP)
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)------Flat Dark Gray (4754AP)
Gold (H9)Gold (C9)Gold Leaf (X12)Gold (Metallic) (70.996)Gold (Metallic) (71.066)GOLD (A.MIG-0198)----gold (solid metallic) (32194)Gold (metallic) (16)------Metal. Gloss Gold (4671AP)
Clear Yellow (H91)Clear Yellow (C48)Clear Yellow (X24)------Clear Yellow (RC507)--------------
Clear Orange (H92)Clear Orange (C49)Clear Orange (X26)Clear Orange (70.956)--CRYSTAL ORANGE (A.MIG-0097)Clear Orange (RC506)--Orange (clear) (32730)Orange (Clear) (1322)--------
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Clear (H30)Clear (C46)Clear (X22)Glossy Varnish (70.510)--GLOSSY VARNISH (A.MIG-0091)Gloss Varnish (RC502)Gloss Lacquer Clear Coat (HTK-XP09)Clear (solid gloss) (32101)Varnish (Gloss) (35)Gloss Clear Acrylic (2017)--Gloss Clear (LC73)Gloss Clear Acryl 35 ml (4638AP)
Clear Red (H90)Clear Red (C47)Clear Red (X27)Transparent Red (Transparent) (70.934)--CRYSTAL RED (A.MIG-0093)Clear Red (RC503)--red (clear) (32731)Red (Clear) (1321)------Gloss Red (4605AP)
Green (H6)Green (C6)Green (X5)Black Green (70.980)--------sea green (solid matt) (32162)Brunswick Green (Gloss) (3)--------
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Steel (H18)Steel (C28)--Oily Steel (Metallic) (70.865)Steel (Metallic) (71.065)STEEL (A.MIG-0191)----steel (solid metallic) (32191)Polished Steel (metalcote) (27003)------Metal. Flat Steel (4679AP)
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
