HG Zaku II + Big Gun Set English Manual & Color Guide

HG Zaku II + Big Gun Thunderbolt Ver Construction Manual & Color Guide

Released a while back by Bandai was the Gundam Thunderbolt version of the Zaku II together with the Big Gun. This was released as a 1/144 High Grade model kit. I always loved the Gundam Thunderbolt versions released by Bandai, because for a High Grade, the level of detail is just astounding.

Color Guide DescriptionPaint Ratios
Zaku II main body etcWhite (H1)(85%) + Yellow (H4)(10%) + Black (H2)(5%) + Bright Green/Daytona Green (H26)(small dose)
Zaku II chest etcKhaki Green (H80)(60%) + White (H1)(30%) + Bright Green/Daytona Green (H26)(10%)
Zaku II joints cylinder partGray/Nezumi (H22)(80%) + Dark Green (H36)(20%)
Zaku II chest, knee etcMidnight Blue (H55)(100%)
Zaku II weapons, ransel (backpack) etc gray partGray/Nezumi (H22)(85%) + Black (H2)(10%) + Cocoa Brown (H17)(5%)
Zaku II weapons, ransel (backpack) etc light gray partNeutral Gray (H53)(60%) + White (H1)(40%)
Zaku II vernierGold (H9)(50%) + Clear Yellow (H91)(40%) + Black (H2)(10%)
Zaku II sub arm base white partWhite (H1)(100%) + Navy Blue (H54)(small dose)
Zaku II mono eye, scopePink (H19)(100%)
Zaku II heat hawk bladeWhite (H1)(80%) + Yellow (H4)(20%) + Yellow Green/Roman Green/Le Mans Green (H16)(small dose)

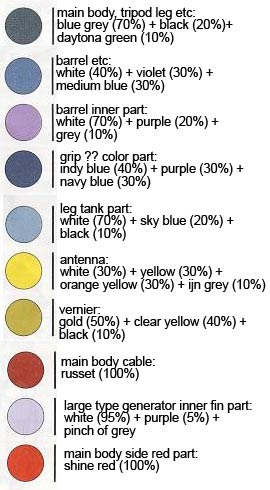

Big Gun main body, tripod leg etcBlue Gray (H42)(70%) + Black (H2)(20%) + Bright Green/Daytona Green (H26)(10%)
Big Gun barrel etcWhite (H1)(40%) + Violet (H49)(30%) + Medium Blue/Intermediate Blue (H56)(30%)
Big Gun barrel inner partWhite (H1)(70%) + Purple (H39)(20%) + Gray/Nezumi (H22)(10%)
Big Gun grip color partBright Blue/Indy Blue (H15)(40%) + Purple (H39)(30%) + Navy Blue (H54)(30%)
Big Gun leg tank partWhite (H1)(70%) + Sky Blue (H25)(20%) + Black (H2)(10%)
Big Gun antennaWhite (H1)(30%) + Yellow (H4)(30%) + Orange Yellow (H24)(30%) + IJN Gray (H61)(10%)
Big Gun vernierGold (H9)(50%) + Clear Yellow (H91)(40%) + Black (H2)(10%)
Big Gun main body cableRusset / Azuki (H33)(100%)
Big Gun large type generator inner fin partWhite (H1)(95%) + Purple (H39)(5%) + Gray/Nezumi (H22)(small dose)
Big Gun main body side red partShine Red (H23)(100%)
