MG MS-06F Zaku II ver 2.0 English Manual and Color Guide

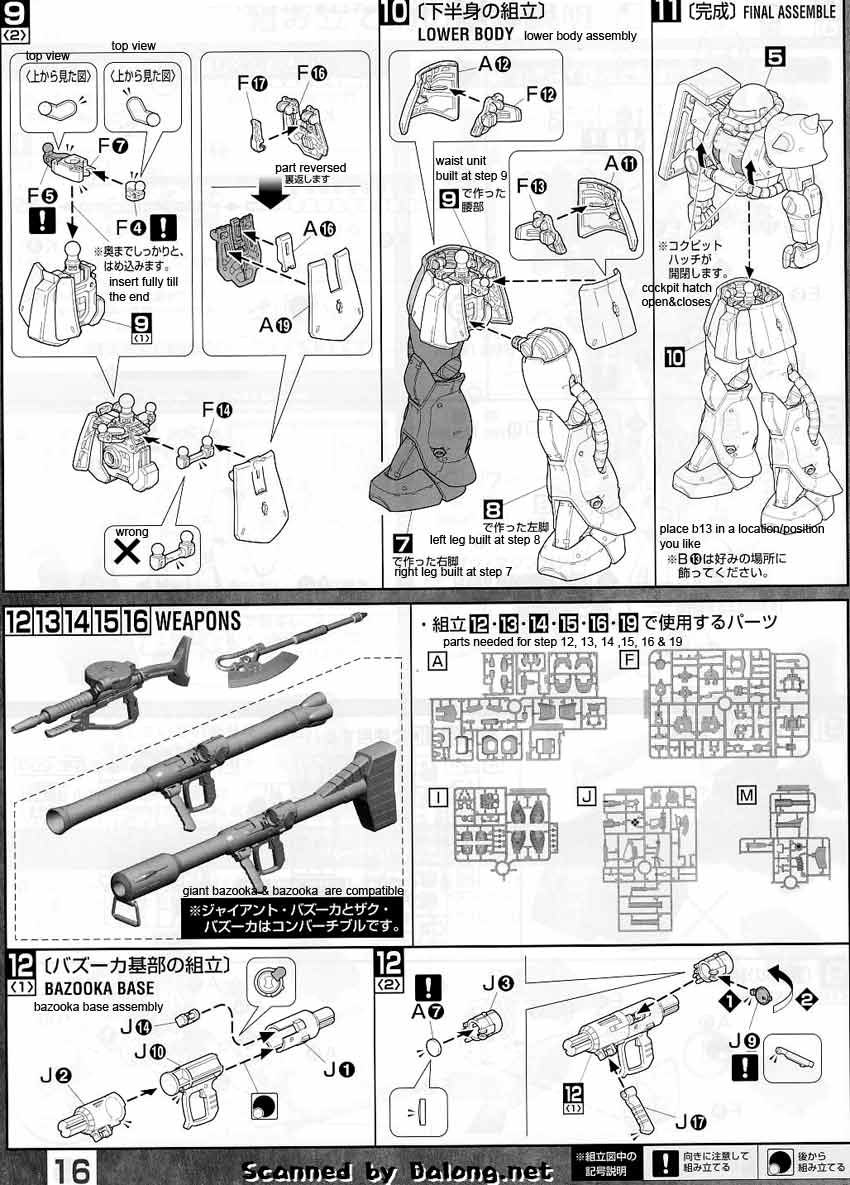

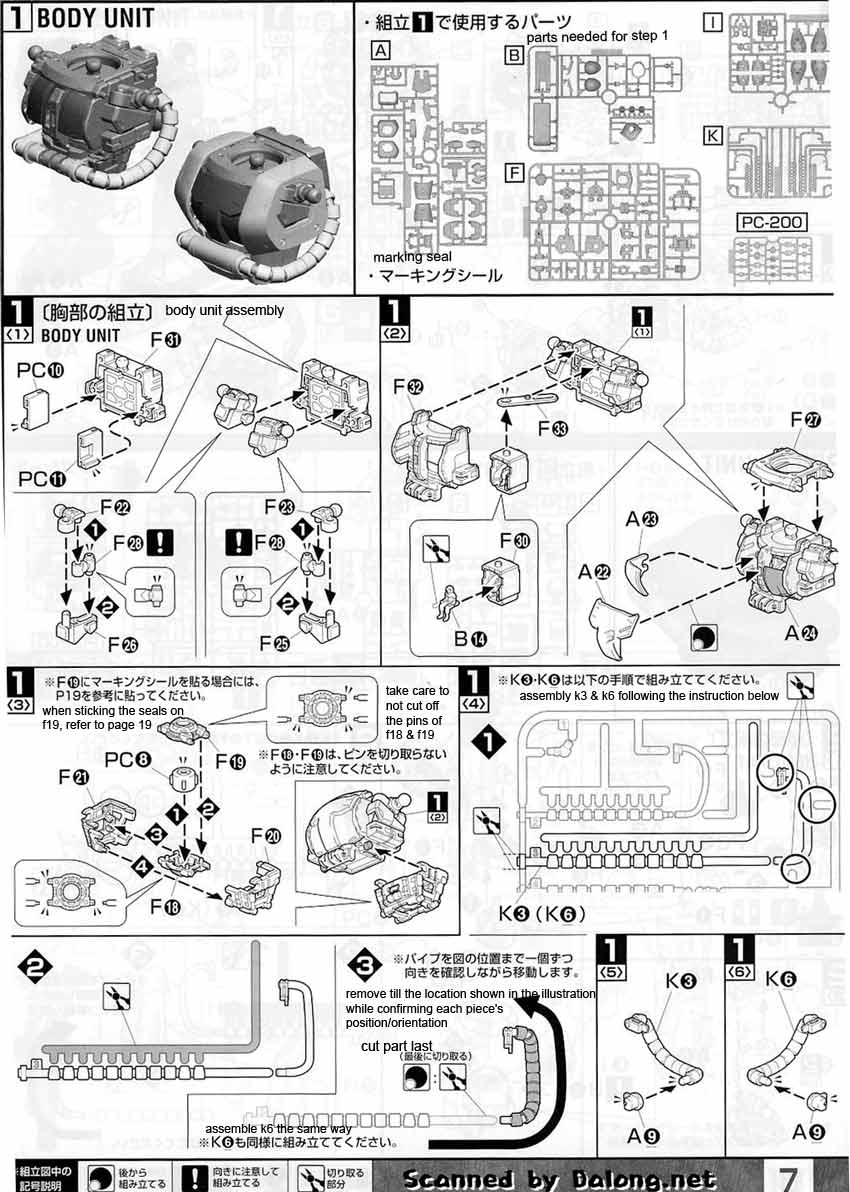

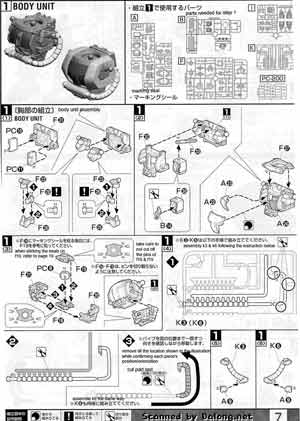

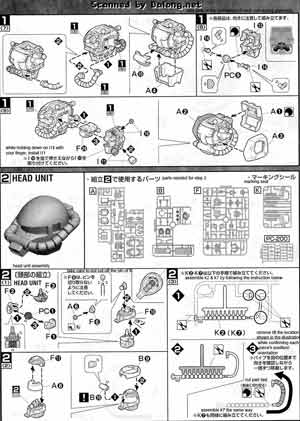

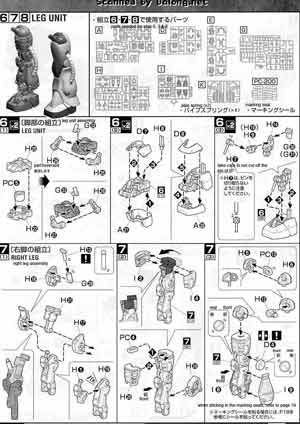

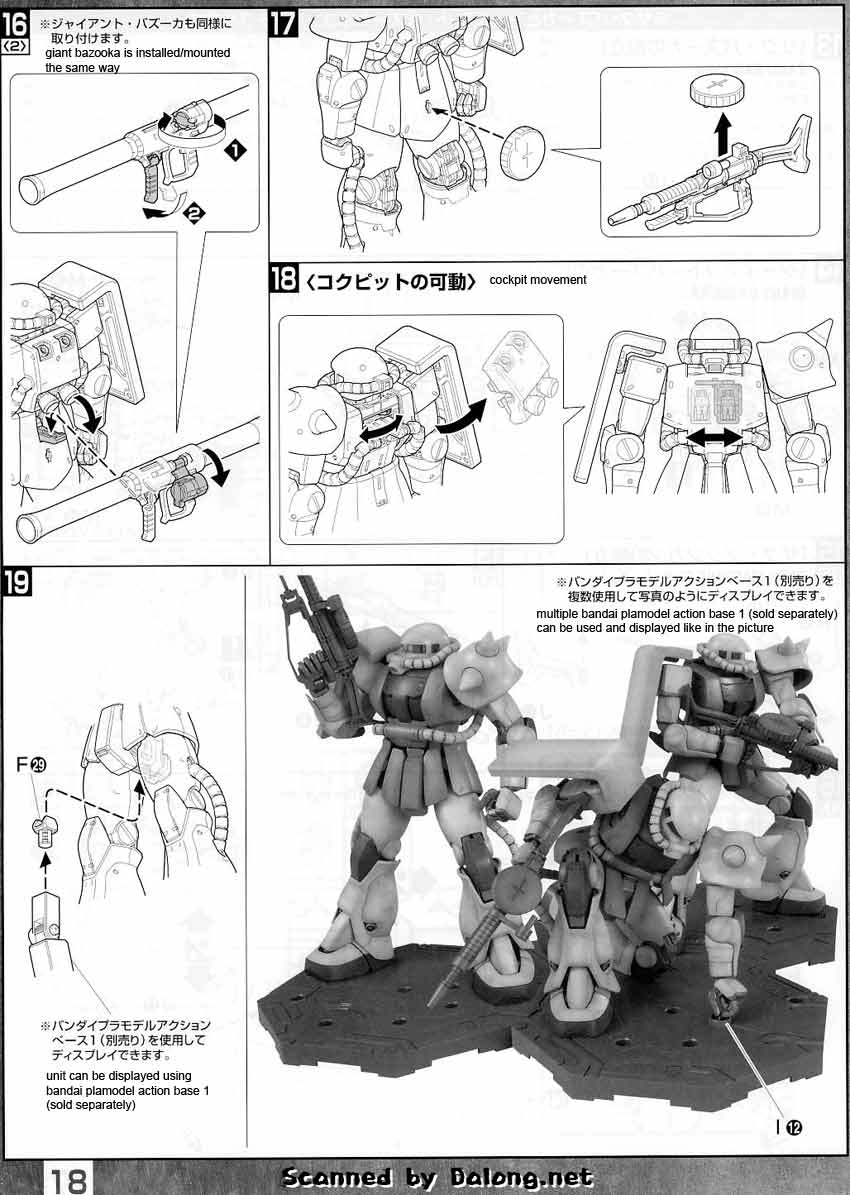

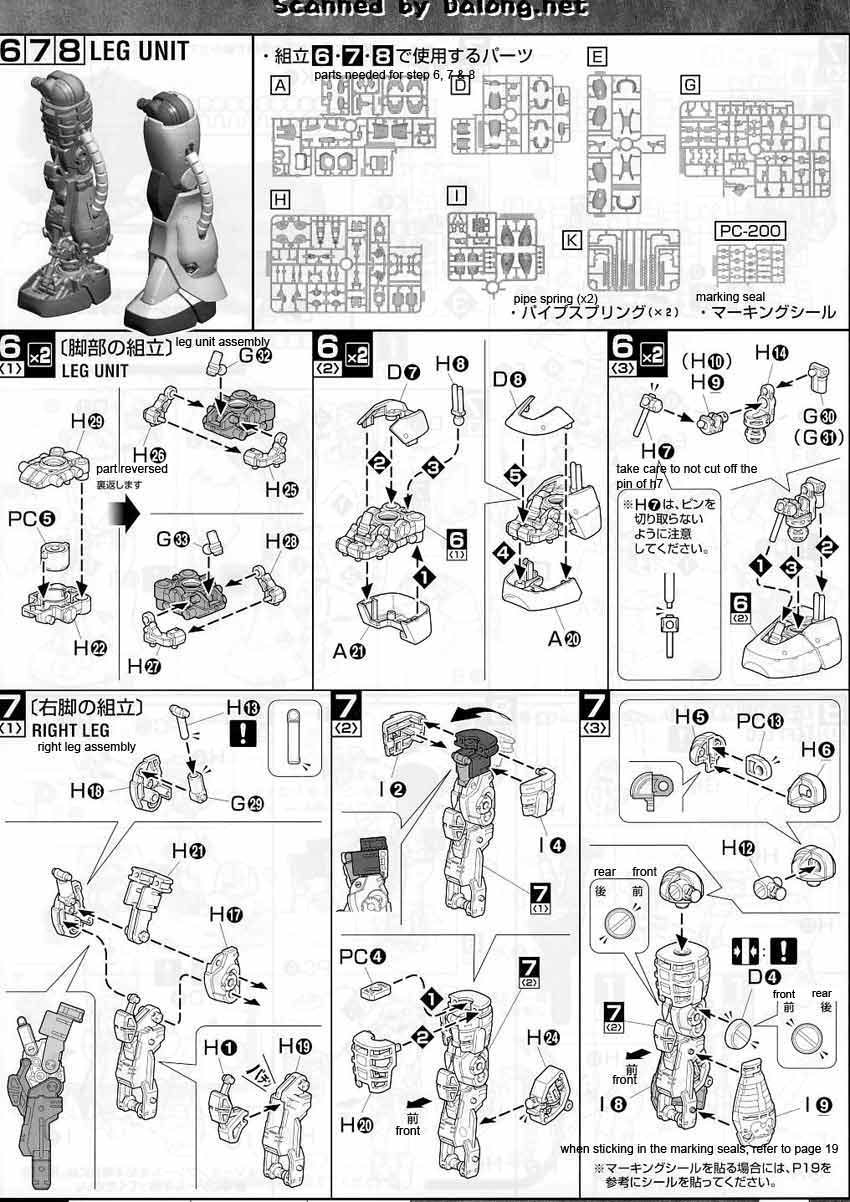

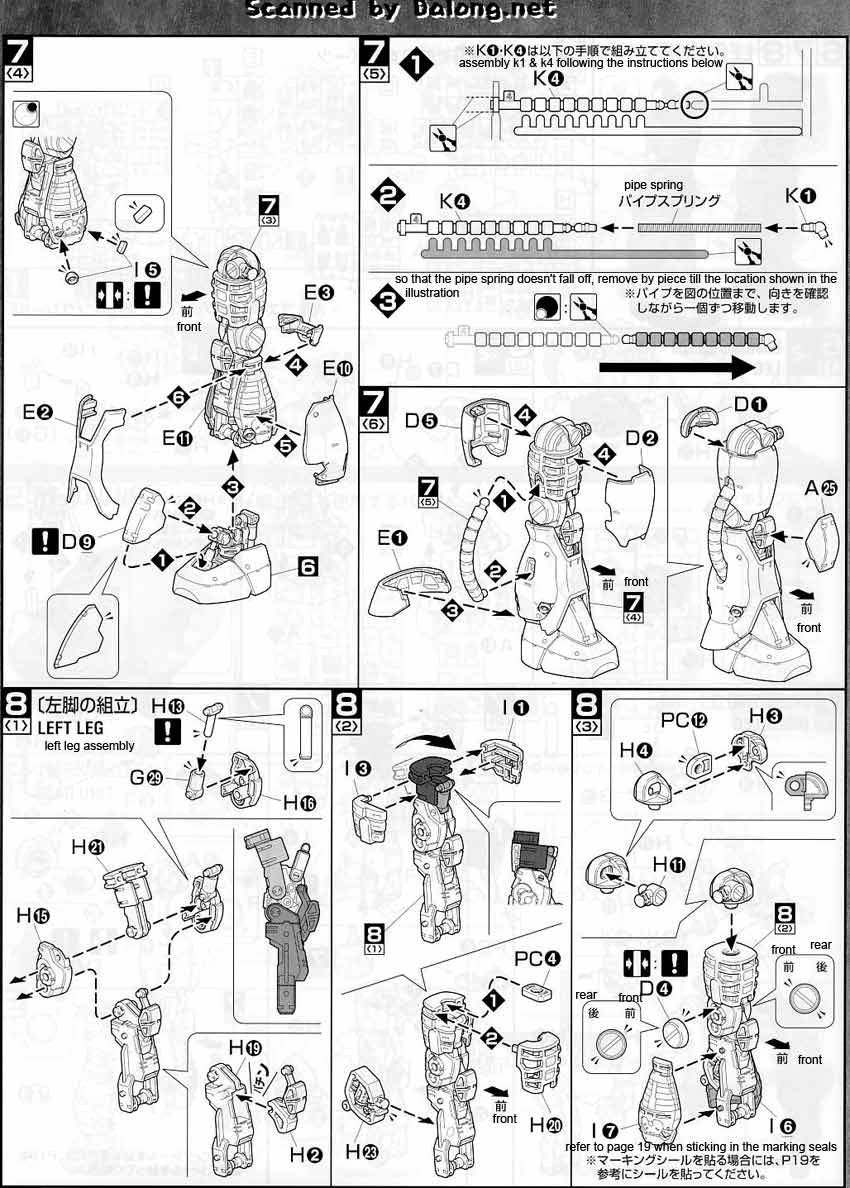

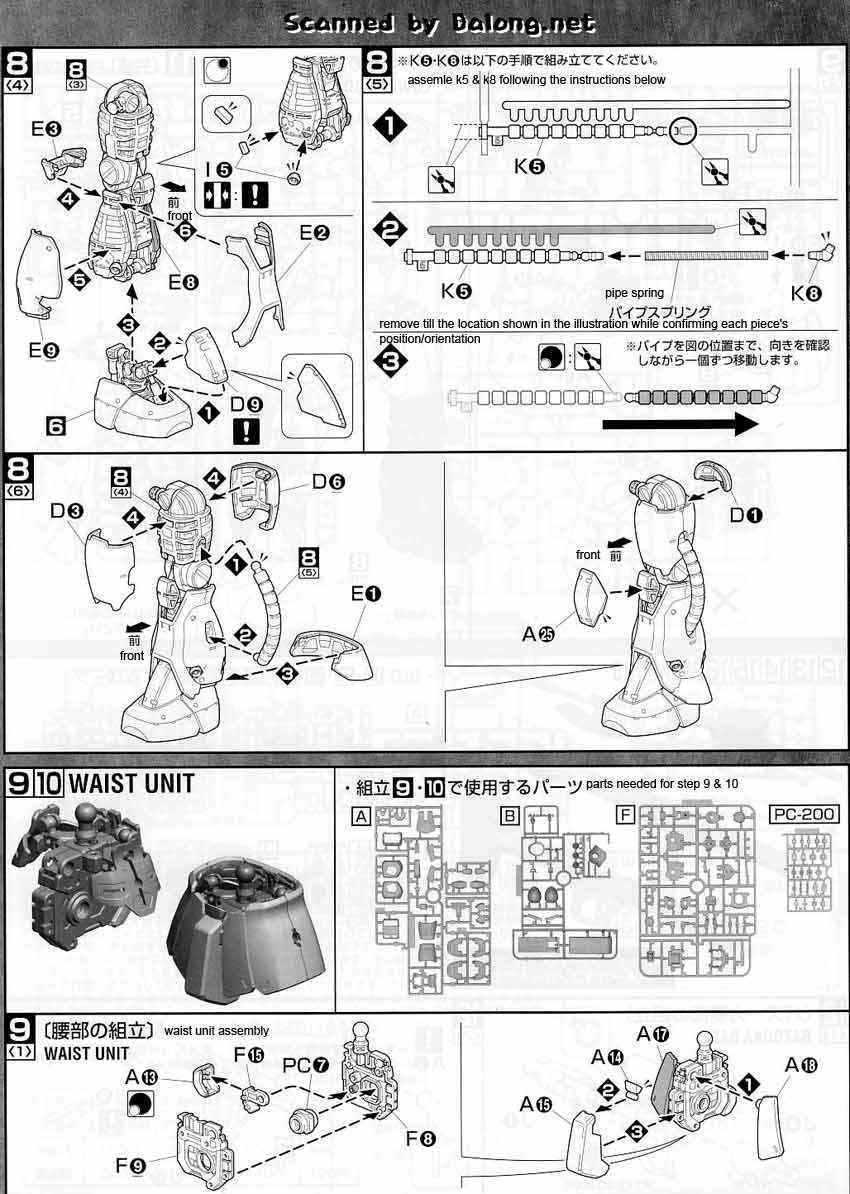

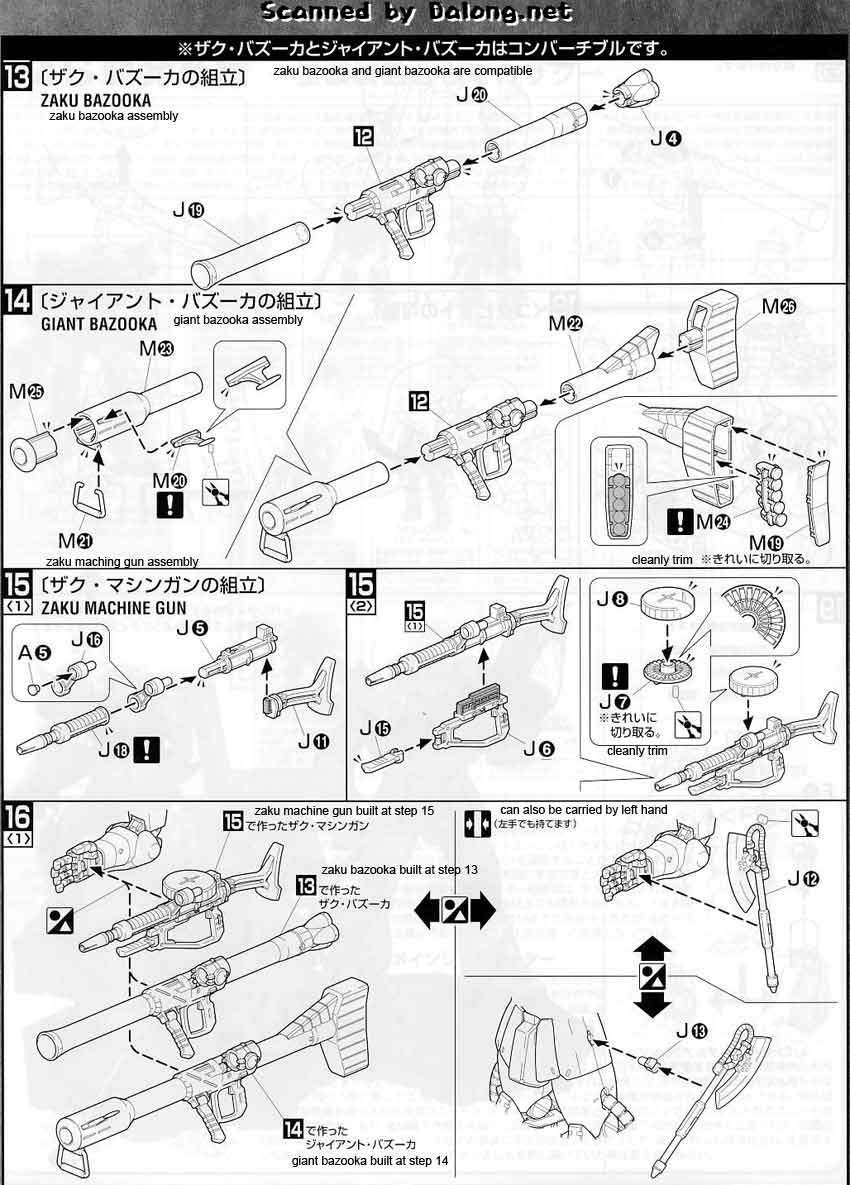

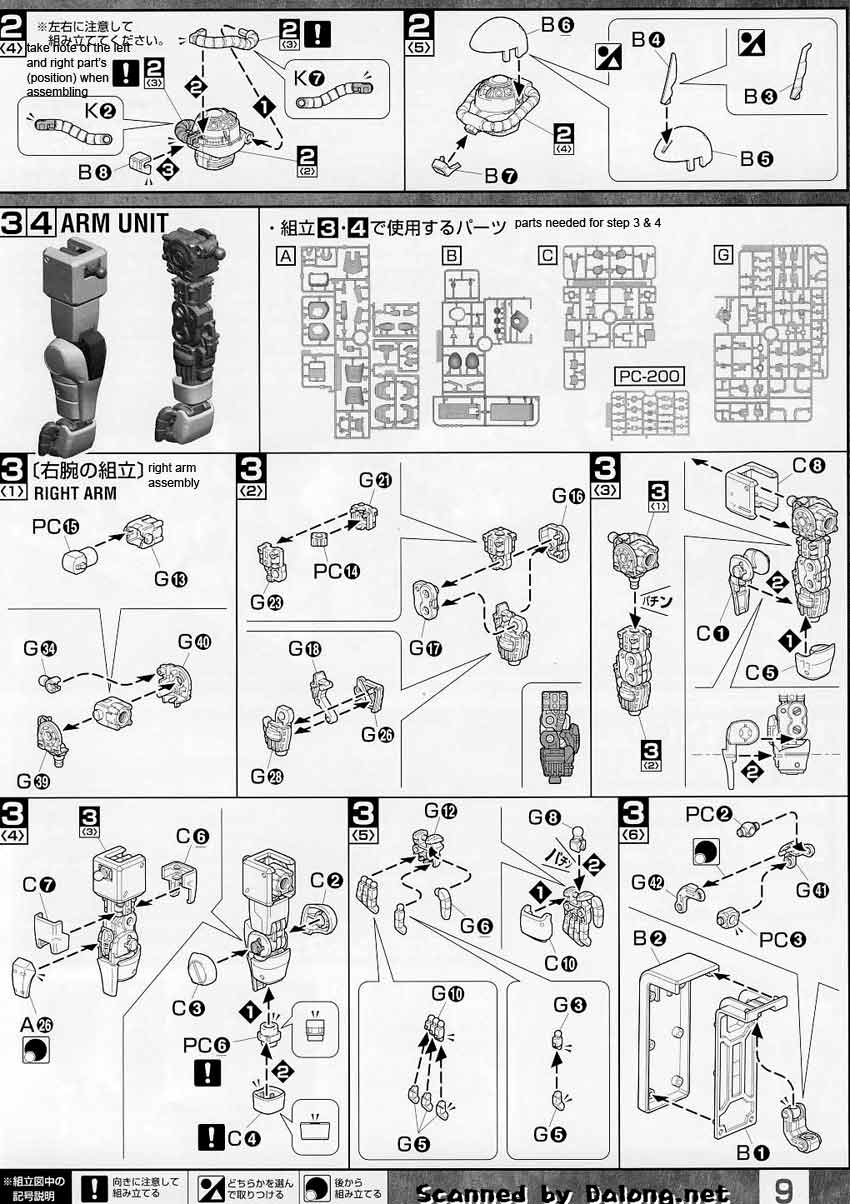

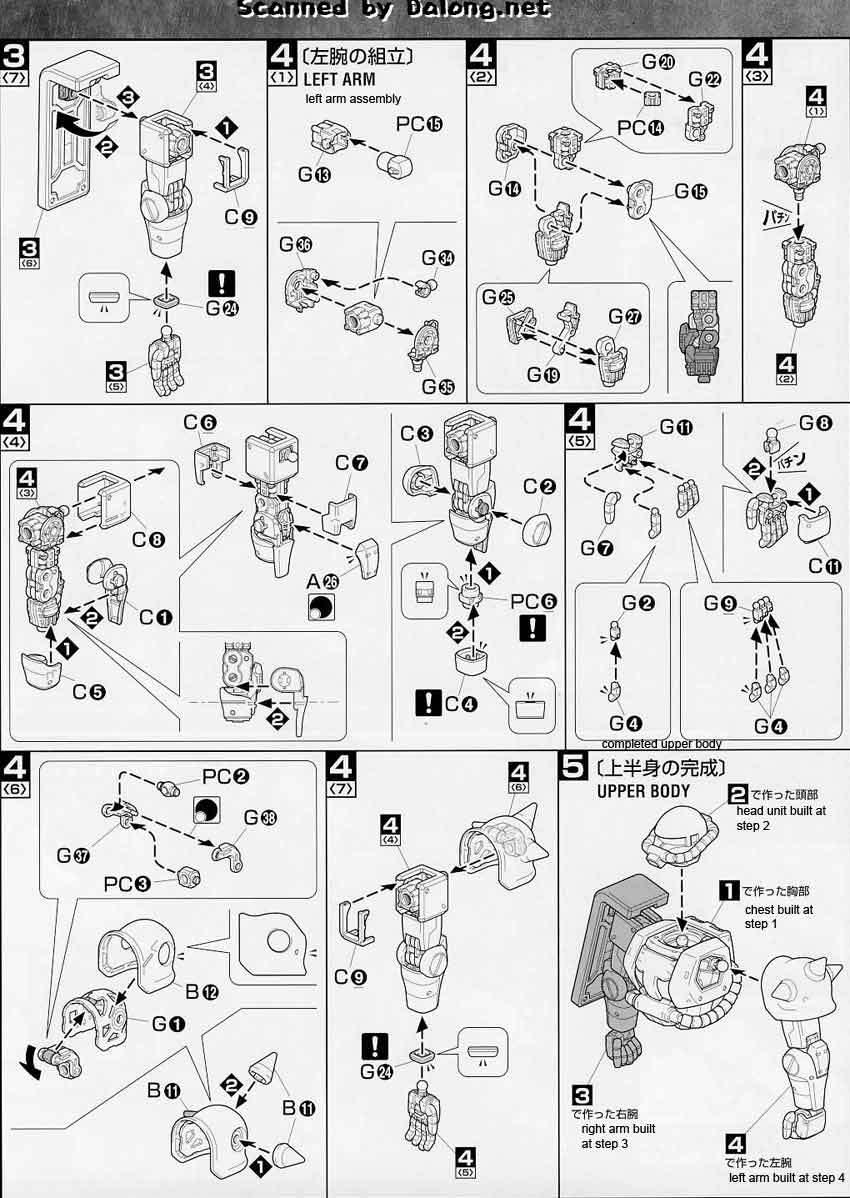

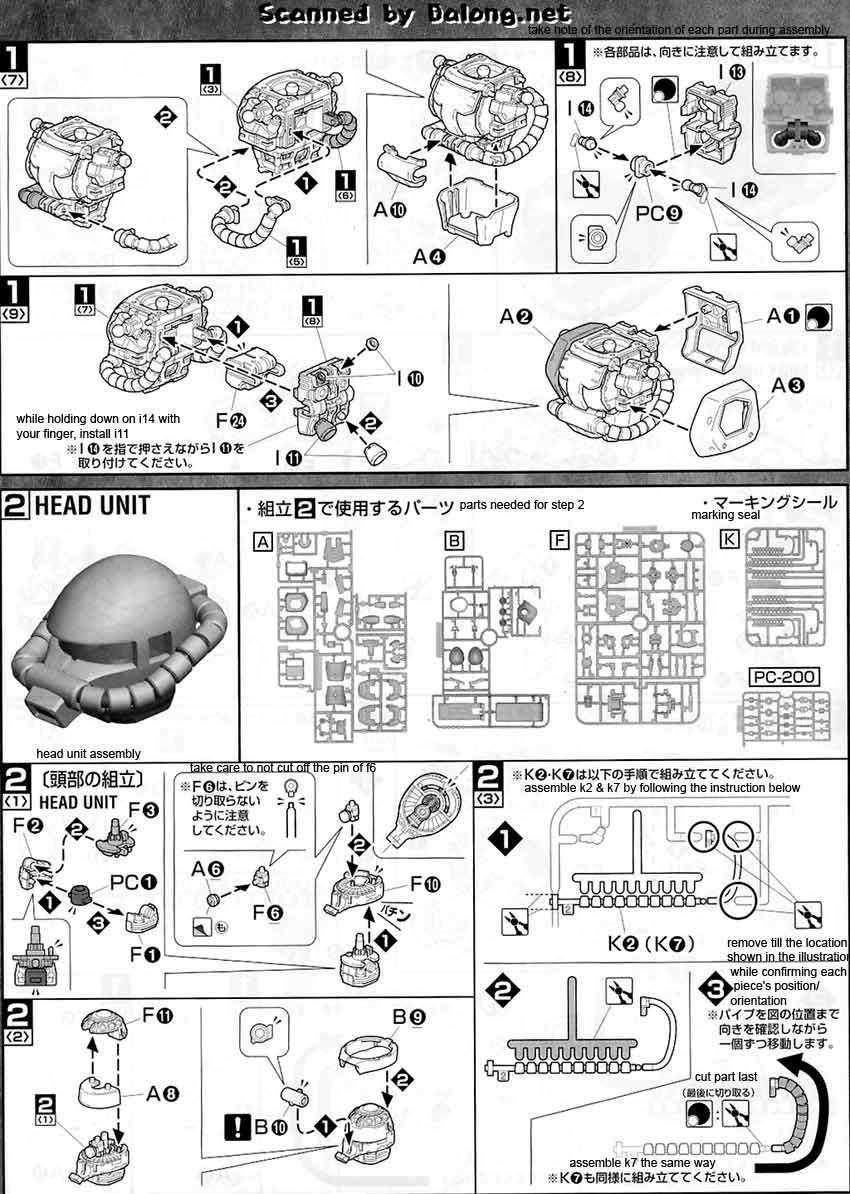

MG MS-06F Zaku II F Construction Manual and Color Guide

The 1/100 Master Grade MS-06F Zaku II ver 2.0. The iconic Zaku is the cannon fodder unit of the antagonist, Principality of Zeon, in the first Mobile Suit Gundam anime series. Its great that Bandai decided to make a version 2 of this model kit that had better features and details than the original version 1.0.

Compared to Amuro Ray's RX-78-2 Mobile Suit Gundam I prefer the design of the Zaku. I started watching the first few episodes of Mobile Suit Gundam this year then suddenly dropped off. I should really try watching it for the sake building up my "street cred" on Gundam history *snicker*

According to the literature included in the manual, the fictional actual size of the Zaku is 17.5 m, weighs 58.1 tons bare and 73.3 tons loaded. Its power plant generates about 950kw of energy. Fans will probably be very familiar with its weapons load, which is the Zaku Machine Gun, Zaku Bazooka and of course the Heat Hawk for up-close and personal work.

The Master Grade MS-06F Zaku II ver 2.0 is selling for 2565 yen at Amiami, 3500 yen at Hobby Link Japan, 2450 yen at HWJapan.

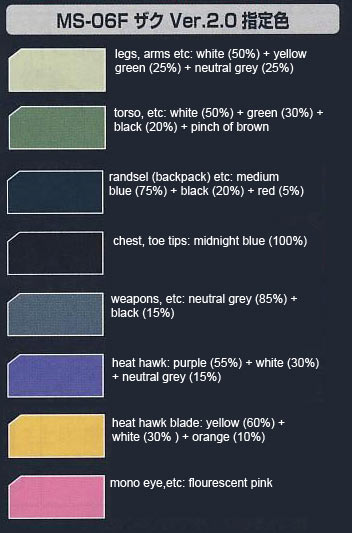

Color Guide DescriptionPaint Ratios
MG Zaku Ver 2.0 legs, arms etcWhite (H1)(50%) + Neutral Gray (H53)(25%) + Yellow Green/Roman Green/Le Mans Green (H16)(25%)
MG Zaku Ver 2.0 torso etcWhite (H1)(50%) + Green (H6)(30%) + Brown (H7)(small dose) + Black (H2)(20%)
MG Zaku Ver 2.0 ransel (backpack) etcMedium Blue/Intermediate Blue (H56)(75%) + Black (H2)(20%) + Red (H3)(5%)
MG Zaku Ver 2.0 chest, toe tipsMidnight Blue (H55)(100%)
MG Zaku Ver 2.0 weapons etcNeutral Gray (H53)(85%) + Black (H2)(15%)
MG Zaku Ver 2.0 heat hawkPurple (H39)(55%) + White (H1)(30%) + Neutral Gray (H53)(15%)
MG Zaku Ver 2.0 heat hawk bladeYellow (H4)(60%) + White (H1)(30%) + Orange (H14)(10%)
MG Zaku Ver 2.0 mono eye etcFlourescent Pink (C174)(100%)

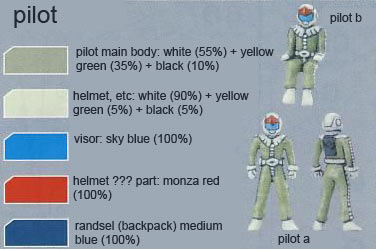

pilot's main bodyWhite (H1)(55%) + Yellow Green/Roman Green/Le Mans Green (H16)(35%) + Black (H2)(10%)
pilot's helmet etcWhite (H1)(90%) + Yellow Green/Roman Green/Le Mans Green (H16)(5%) + Black (H2)(5%)
pilot's visorSky Blue (H25)(100%)
pilot's helmet forehead partMonza Red/Red Madder (H86)(100%)
pilot's ransel (back pack)Medium Blue/Intermediate Blue (H56)(100%)
