MG RX-178B Build Gundam Mk-II English Manual & Color Guide

MG RX-178B Build Gundam Mk-II Construction Manual & Color Guide

Released this March by Bandai was the 1/100 Master Grade RX-178B Build Gundam Mk II of Reiji from Gundam Build Fighters anime series. The Build Gundam Mk II was designed by series protagonist Sei Iori but used by Reiji. It's a variation of the iconic Mk II from the Z Gundam series. I haven't gotten time to watch the Gundam Build Fighters series but judging from the quality of the mobile suit designs coming out of the show it makes me want to wish to have time to watch it.


The MG RX-178B Build Gundam Mk II is selling for $ at Amazon, 3730 yen at Amiami, 4250 yen at HobbyLink Japan

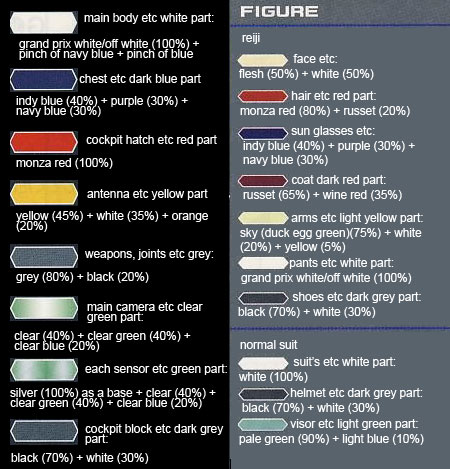

Color Guide DescriptionPaint Ratios
MG RX-178B Build Gundam Mk-II main body etc white partOff White / Grand Prix White (H21)(100%0 + Navy Blue (H54)(small dose) + Blue (H5)(small dose)
MG RX-178B Build Gundam Mk-II chest etc dark blue partBright Blue/Indy Blue (H15)(40%) + Purple (H39)(30%) + Navy Blue (H54)(30%)
MG RX-178B Build Gundam Mk-II cockpit hatch etc red partMonza Red/Red Madder (H86)(100%)
MG RX-178B Build Gundam Mk-II antenna etc yellow partYellow (H4)(45%) + White (H1)(35%) + Orange (H14)(20%)
MG RX-178B Build Gundam Mk-II weapons, joints etc gray partGray/Nezumi (H22)(80%) + Black (H2)(20%)
MG RX-178B Build Gundam Mk-II main camera etc clear green partClear (H30)(40%) + Clear Green (H94)(40%) + Clear Blue (H93)(20%)
MG RX-178B Build Gundam Mk-II sensor etc green partSilver (H8)(100%) as a base and as a top coat Clear (H30)(40%) + Clear Green (H94)(40%) + Clear Blue (H93)(20%)
MG RX-178B Build Gundam Mk-II cockpit block etc dark gray partBlack (H2)(70%) + White (H1)(30%)
reiji face etcFlesh/Pale Brown (H44)(50%) + White (H1)(50%)
reiji hair etc red partMonza Red/Red Madder (H86)(80%) + Russet / Azuki (H33)(20%)
reiji sun glasses etcBright Blue/Indy Blue (H15)(40%) + Purple (H39)(30%) + Navy Blue (H54)(30%)
reiji coat dark red partRusset / Azuki (H33)(65%) + Wine Red/Maroon (H43)(35%)
reiji arms etc light yellow partSky (Duck Egg Green) (H74)(75%) + White (H1)(20%) + Yellow (H4)(5%)
reiji pants etc white partOff White / Grand Prix White (H21)(100%)
reiji shoes etc dark gray partBlack (H2)(70%) + White (H1)(30%)
reiji normal suits etc white partWhite (H1)(100%)
reiji helmet etc dark gray partBlack (H2)(70%) + White (H1)(30%)
reiji visor etc light green partPale Green (H41)(90%) + Light Blue/mizu (H45)(10%)
Disclaimer






Construction Manual & Color Guide for the MG RX-178B Build Gundam Mk II was translated to English from the Japanase manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.

MG RX-178B Build Gundam Mk-II Construction Manual & Color Guide MG RX-178B Build Gundam Mk-II Construction Manual & Color Guide MG RX-178B Build Gundam Mk-II Construction Manual & Color Guide MG RX-178B Build Gundam Mk-II Construction Manual & Color Guide MG RX-178B Build Gundam Mk-II Construction Manual & Color Guide

MG RX-178B Build Gundam Mk-II Construction Manual & Color Guide MG RX-178B Build Gundam Mk-II Construction Manual & Color Guide MG RX-178B Build Gundam Mk-II Construction Manual & Color Guide MG RX-178B Build Gundam Mk-II Construction Manual & Color Guide

MG RX-178B Build Gundam Mk-II Construction Manual & Color Guide MG RX-178B Build Gundam Mk-II Construction Manual & Color Guide MG RX-178B Build Gundam Mk-II Construction Manual & Color Guide MG RX-178B Build Gundam Mk-II Construction Manual & Color Guide MG RX-178B Build Gundam Mk-II Construction Manual & Color Guide

MG RX-178B Build Gundam Mk-II Construction Manual & Color Guide

Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Off White / Grand Prix White (H21)Off White/Grand Prix White (C69)--Ivory (70.918)Off-White (71.270)CREMEWEISS (A.MIG-0017)Off White (RC013)----Ivory (Gloss) (41)--------
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)--------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)------Flat Dark Gray (4754AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Clear (H30)Clear (C46)Clear (X22)Glossy Varnish (70.510)--GLOSSY VARNISH (A.MIG-0091)Gloss Varnish (RC502)Gloss Lacquer Clear Coat (HTK-XP09)Clear (solid gloss) (32101)Varnish (Gloss) (35)Gloss Clear Acrylic (2017)--Gloss Clear (LC73)Gloss Clear Acryl 35 ml (4638AP)
Clear Green (H94)Clear Green (C138)Clear Green (X25)Transparent Green (Transparent) (70.936)--CRYSTAL GREEN (A.MIG-0092)Clear Green (RC505)----Green (Clear) (1325)--------
Clear Blue (H93)Clear Blue (C50)Clear Blue (X23)Transparent Blue (Transparent) (70.938)--CRYSTAL LIGHT BLUE (A.MIG-0098)Clear Blue (RC504)--blue (clear) (32752)--------Gloss Light Blue (4650AP)
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Flesh/Pale Brown (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)SAND BROWN (A.MIG-0026)----brown (solid silk matt) (32185)Flesh (Matte) (61)------Flat Light Flesh (4390AP)
Russet / Azuki (H33)Russet/Azuki (C81)--------------Brown (Satin) (133)------Flat Wood (4673AP)
Wine Red/Maroon (H43)Wine Red/Maroon (C100)--Red (70.926)--------Red (32132)Crimson (Gloss) (20)--------
Sky (Duck Egg Green) (H74)Duck Egg Green (C26)Sky (XF21)Pastel Green (70.885)Sky Type S (71.302)SKY TYPE S (A.MIG-0243)APC Interior Green (RC078)Seafoam Green (HTK-_239)--Duck Egg Blue (Matte) (23)--------
Pale Green (H41)--------------------------
Light Blue/mizu (H45)----Sky Blue (70.961)AII SV. Gol Light Blue (71.317)SKY LINE BLUE A II (A.MIG-0224)Air Superiority Blue (RC239)Air Superiority Blue (HTK-_155)--Sea Blue (Gloss) (47)----Air Superiority Blue FS35450 (UA037)Gloss Light Blue (4650AP)
