PG RX-178 Gundam Mk II Titans ver English Color Guide & Paint Conversion CHart

Bandai PG Perfect Grade 1/60 Gundam Mk II (Titans Version) English Color Guide & Paint Conversion Chart
Update: Translated Construction Manual for the RX-178 Gundam Mk II ver 2.0 can be found here.

The first time I saw the Gundam Mk II in Zeta Gundam I thought that it was an interesting and unique color scheme for the Gundam. In the anime, Zeta Gundam, the Gundam Mk II was hijacked by protagonist Kamille Bidan from the Titans organization which therefore facilitated his entry into the AEUG. I know they got more than 2 Gundam Mk II's during this hi-jack operation but in the series you can only see one in operation. I am assuming that they were using the other for spare parts.

Color Guide DescriptionPaint Ratios
main body blue etcBright Blue/Indy Blue (H15)(50%) + Black (H2)(30%) + Red (H3)(20%)
chest etc dark gray partMidnight Blue (H55)(100%)
cockpit hatch etcMonza Red/Red Madder (H86)(100%)
intake etc yellow partYellow (H4)(80%) + Orange (H14)(20%)
joints etc gray partMedium Blue/Intermediate Blue (H56)(50%) + Red (H3)(30%) + White (H1)(20%)
leg, vernier etc orange partOrange (H14)(60%) + White (H1)(40%) + Black (H2)(small dose)

Paints Used & Paint Conversion Equivalents:

Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelLife ColorItaleri
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)------
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)----Gloss Black (4695AP)
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)------
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)Non Specular Sea Blue FS35042 (UA044)--
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)----------------------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)----Gloss Yellow (4642AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)Non Specular Intermediate Blue FS 35164 (UA045)--
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)----Gloss White (4696AP)

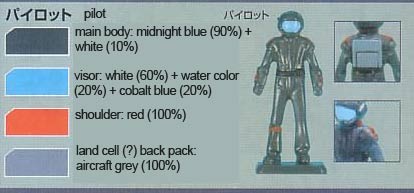

Scans of the manual were taken from dalong.
