MG RX-178 Gundam Mk-II (Titans) ver 2.0 English Manual & Color Guide

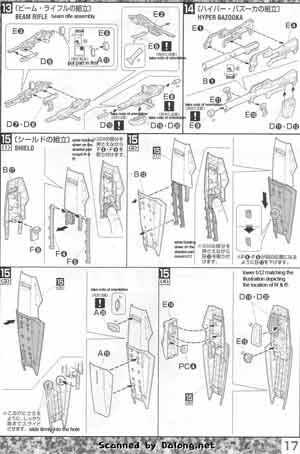

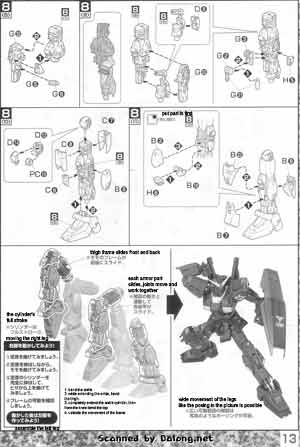

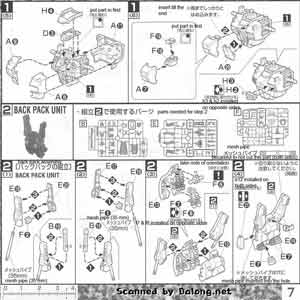

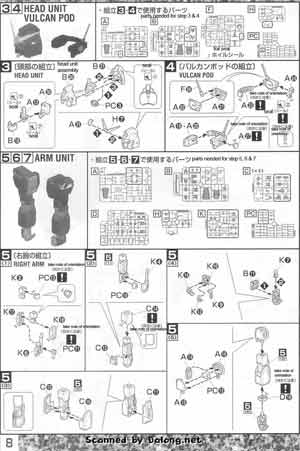

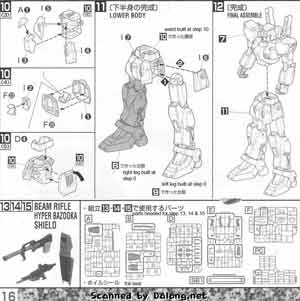

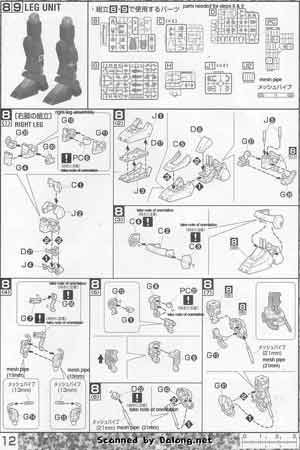

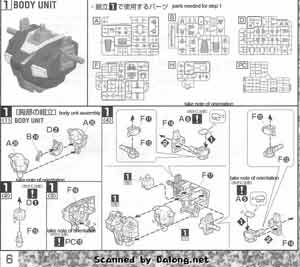

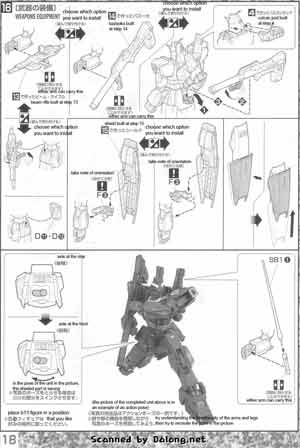

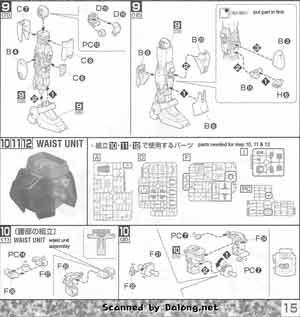

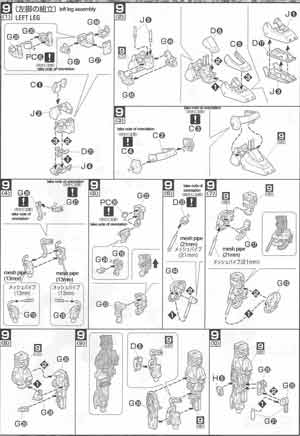

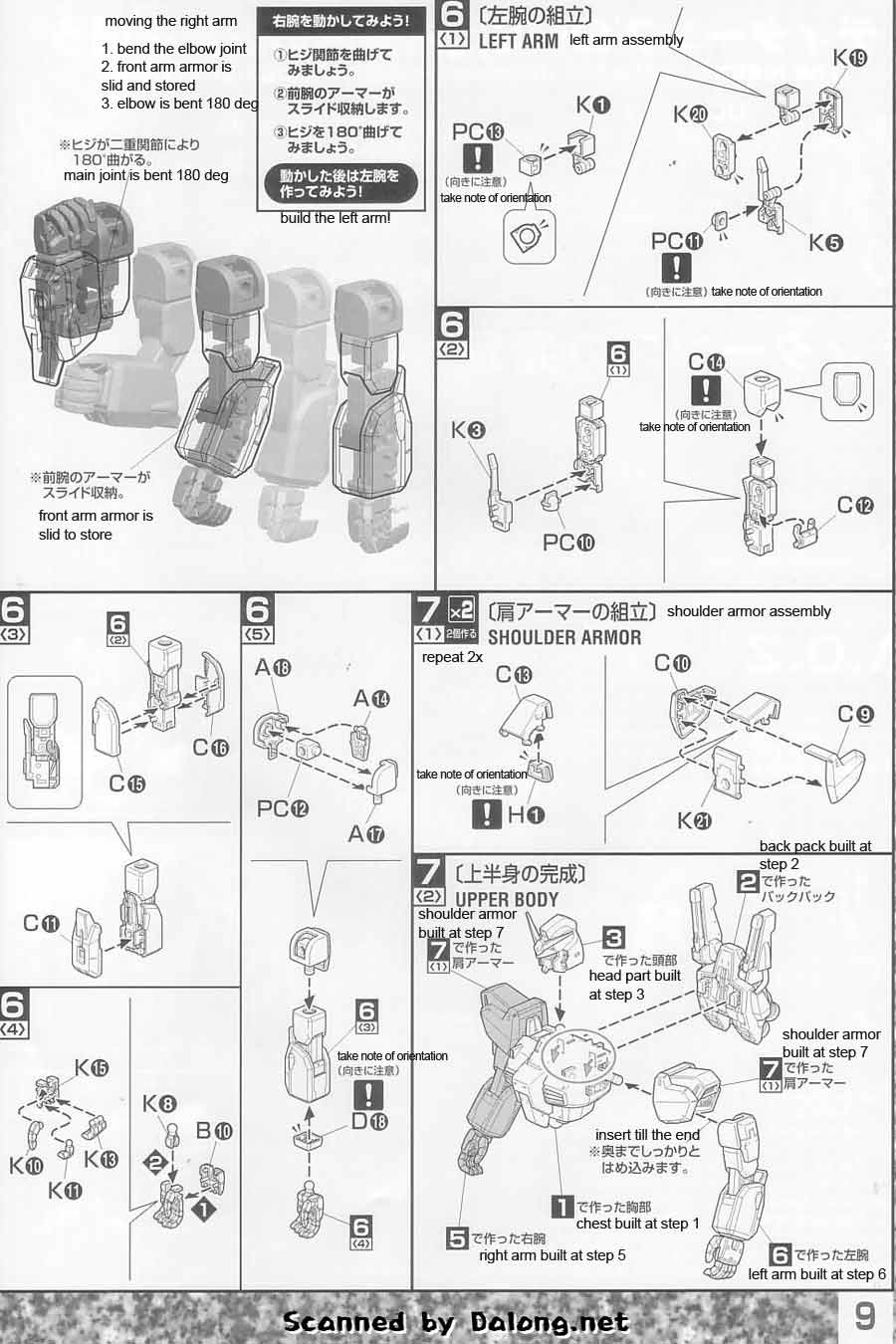

MG RX-178 Gundam Mk-II (Titans) ver 2.0 Construction Manual

The Gundam Mk II was made famous in the second anime series of the Gundam Franchise, Zeta Gundam. At the beginning of the series AEUG was interested in obtaining it after they learned it was being developed in one of the space colonies by the Titans paramilitary organization. With the reluctant help of NewType Kamille Bidan they were able to obtain more than one Gundam Mk II's during their raid. His help and skill level also ensured his place as the pilot of the Gundam Mk II.

Manual was translated to English from the Japanese manual posted at Dalong. Color Guide for the MG RX-178 Gundam Mk II Titans version can be found here.

Color Guide DescriptionPaint Ratios
MG Gundam Mk II Titans Ver main body etcBright Blue/Indy Blue (H15)(60%) + Red (H3)(15%) + White (H1)(5%)
MG Gundam Mk II Titans Ver chest etcMidnight Blue (H55)(100%)
MG Gundam Mk II Titans Ver cockpit hatch etcMonza Red/Red Madder (H86)(100%)
MG Gundam Mk II Titans Ver chest intake etcYellow (H4)(70%) + White (H1)(20%) + Orange (H14)(10%)
MG Gundam Mk II Titans Ver inner mecha parts etcMedium Blue/Intermediate Blue (H56)(50%) + Black (H2)(30%) + White (H1)(20%)
MG Gundam Mk II Titans Ver eyes etcClear Green (H94)(100%)
MG Gundam Mk II Titans Ver forehead sensorClear Blue (H93)(100%)
pilot figure main bodyMidnight Blue (H55)(90%) + White (H1)(10%)
pilot figure visorWhite (H1)(60%) + Light Blue/mizu (H45)(20%) + Cobalt Blue (H35)(20%)
pilot figure shoulderRed (H3)(100%)
pilot figure ransel(backpack)Aircraft Gray (H57)(100%)
Disclaimer




Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelLife ColorItaleri
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)------
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)----Gloss White (4696AP)
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)Non Specular Sea Blue FS35042 (UA044)--
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)----------------------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)----Gloss Yellow (4642AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)Non Specular Intermediate Blue FS 35164 (UA045)--
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)----Gloss Black (4695AP)
Clear Green (H94)Clear Green (C138)Clear Green (X25)Transparent Green (Transparent) (70.936)--CRYSTAL GREEN (A.MIG-0092)Clear Green (RC505)----Green (Clear) (1325)------
Clear Blue (H93)Clear Blue (C50)Clear Blue (X23)Transparent Blue (Transparent) (70.938)--CRYSTAL LIGHT BLUE (A.MIG-0098)Clear Blue (RC504)--blue (clear) (32752)------Gloss Light Blue (4650AP)
Light Blue/mizu (H45)----Sky Blue (70.961)AII SV. Gol Light Blue (71.317)SKY LINE BLUE A II (A.MIG-0224)Air Superiority Blue (RC239)Air Superiority Blue (HTK-_155)--Sea Blue (Gloss) (47)--Air Superiority Blue FS35450 (UA037)Gloss Light Blue (4650AP)
Cobalt Blue (H35)Cobalt Blue (C80)----------------------
Aircraft Gray (H57)Aircraft Gray (C73)J.A. Gray (XF14)------------Light Grey (Matte) (147)------

The MG RX-178 Gundam Mark II Titans color ver 2.0 costs 2800 yen at Hobby Link Japan, 2450 yen at HWJapan, 2568 yen at Amiami.
