RG Gundam Mk-II AEUG English Manual & Color Guide

RG Gundam Mk-II AEUG Color Guide & Manual

Together with the 1/144 Real Grade Gundam Mk-II Titans, Bandai released this, the AEUG version. It differs with the white color scheme. The Gundam Mk-II was piloted by Kamile Bidan for the AEUG in the Zeta Gundam Anime series.

In the opening story of Zeta Gundam, Kamile is a willing party to the hijacking of the Gundam Mk-II by a crew from the AEUG that was led by Quattro Bajeena (a disguised Char Aznable.) Afterwards, the AEUG repainted the Mk-II to white and made it part of their mobile suit inventory.

I'm thinking that the changing of the color of the Mk II to a white one is a coincidence. In World War II however it was common for armies to expropriate captured enemy equipment for their own use as long as they added their insignia on it so that it can be easily identified by the other side as an enemy craft already. Not really sure if there is a definite rule on that in the Geneva Convention or they just did that so their allies in turn wouldn't shoot them *snicker*

The 1/144 RG Gundam Mk-II AEUG version is selling for $ at Amazon, 1820 yen at Amiami, 2000 yen at HobbyLink Japan, 2125 yen at Hobby Search

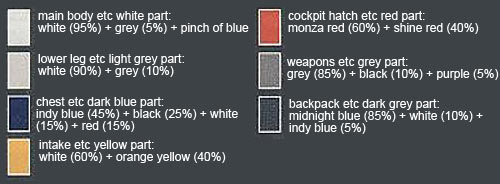

Color Guide DescriptionPaint Ratios
RG Gundam Mk-II AEUG main body etc white partWhite (H1)(95%) + Gray/Nezumi (H22)(5%) + Blue (H5)(small dose)
RG Gundam Mk-II AEUG lower leg etc light gray partWhite (H1)(90%) + Gray/Nezumi (H22)(10%)
RG Gundam Mk-II AEUG chest etc dark blue partBright Blue/Indy Blue (H15)(45%) + Black (H2)(25%) + White (H1)(15%) + Red (H3)(15%)
RG Gundam Mk-II AEUG intake etc yellow partWhite (H1)(60%) + Orange Yellow (H24)(40%)
RG Gundam Mk-II AEUG cockpit hatch etc red partMonza Red/Red Madder (H86)(60%) + Shine Red (H23)(40%)
RG Gundam Mk-II AEUG weapons etc gray partGray/Nezumi (H22)(85%) + Black (H2)(10%) + Purple (H39)(5%)
RG Gundam Mk-II AEUG backpack etc dark gray partMidnight Blue (H55)(85%) + White (H1)(10%) + Bright Blue/Indy Blue (H15)(5%)

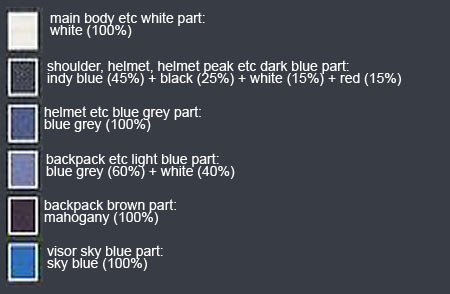

Kamile Bidan main body etc white partWhite (H1)(100%)
Kamile Bidan shoulder, helmet, helmet peak etc dark blue partBright Blue/Indy Blue (H15)(45%) + Black (H2)(25%) + White (H1)(15%) + Red (H3)(15%)
Kamile Bidan helmet etc blue gray partBlue Gray (H42)(100%)
Kamile Bidan backpack etc light blue partBlue Gray (H42)(60%) + White (H1)(40%)
Kamile Bidan backpack brown partMahogany (H84)(100%)
Kamile Bidan visor sky blue partSky Blue (H25)(100%)
Disclaimer

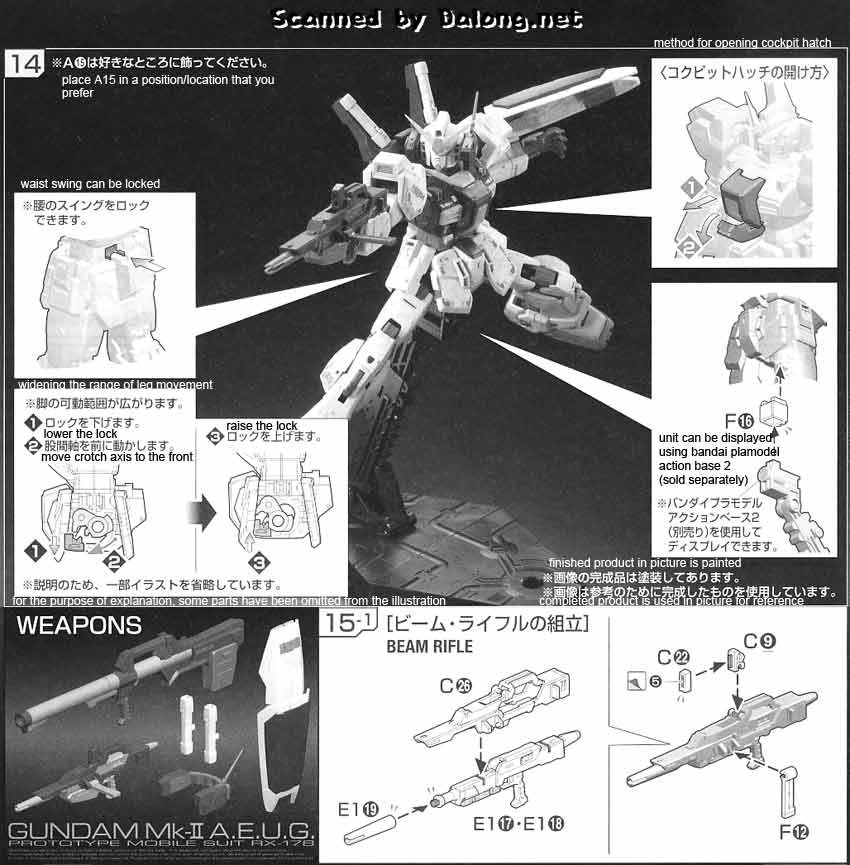

Construction Manual and Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.

RG Gundam Mk-II AEUG Color Guide & Manual RG Gundam Mk-II AEUG Color Guide & Manual RG Gundam Mk-II AEUG Color Guide & Manual RG Gundam Mk-II AEUG Color Guide & Manual RG Gundam Mk-II AEUG Color Guide & Manual

RG Gundam Mk-II AEUG Color Guide & Manual RG Gundam Mk-II AEUG Color Guide & Manual RG Gundam Mk-II AEUG Color Guide & Manual RG Gundam Mk-II AEUG Color Guide & Manual RG Gundam Mk-II AEUG Color Guide & Manual

RG Gundam Mk-II AEUG Color Guide & Manual RG Gundam Mk-II AEUG Color Guide & Manual RG Gundam Mk-II AEUG Color Guide & Manual




Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)----Gloss White (4696AP)
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)----Flat Dark Gray (4754AP)
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)------
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)------
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)----Gloss Black (4695AP)
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)------
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)----------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)----------------------
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)------
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)------
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)Non Specular Sea Blue FS35042 (UA044)--
Blue Gray (H42)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)French Mirage Blue (70.900)IDF Blue (71.113)FRENCH BLUE (A.MIG-0062)----Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)----Flat Non Specular Interm. Blue (4639AP)
Mahogany (H84)Mahogany (C42)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)DARK TRACKS (A.MIG-0035)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)----Flat Rust (4675AP)
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)------
