MG Gundam Exia Ignition Mode English Manual and Color Guide

MG GN-001 Gundam Exia Ignition Mode Construction and Color Guide Manual

Update: Here's the manual for the ordinary MG GN-001 Gundam Exia.

I just love that Bandai released a Master Grade version of the Gundam Exia repair mode via their Master Grade Gundam Exia Ignition Mode release. If I'm understanding this correctly, they're calling this ignition mode because of the LED light units included with the kit.

Bandai Master Grade MG GN-001 Gundam Exia Ignition Mode Construction and Color Guide Manual

Gundam Exia repair mode takes its name from the fact that it needs a bunch of repairs. At the end of Gundam 00 Season 1, Setsuna F. Seie has his Exia nearly destroyed. You'd think that it was indeed destroyed but at the beginning of Gundam 00 Season 2 (which was 4 years after season 1) you'll see that it had indeed survived the carnage and Setsuna had patched it up so that it could still fight. Albeit not as dominating as it was before because aside from the damage incurred most mobile suits were at par already with the season 1 Gundams because they already possessed the fake GN drives to power their units.

The MG GN-001 Gundam Exia Ignition mode is selling for $$$$ at Amazon, 3664 yen at Amiami, 6500 yen at HobbyLink Japan, 5200 yen at Hobby Search.

Manual was translated to English from the Japanese manual posted over at Dalong. For a translation of the meaning of the symbols found in the model kit's manual, refer to this previous post.

More model kit translated color guides can be found here.

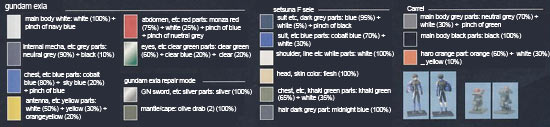

Color Guide DescriptionPaint Ratios
MG gundam exia ignition mode main body etc white partWhite (H1)(100%) + Navy Blue (H54)(small dose)
MG gundam exia ignition mode internal mecha, etc gray partsNeutral Gray (H53)(90%) + Black (H2)(10%)
MG gundam exia ignition mode chest, etc blue partsCobalt Blue (H35)(80%) + Sky Blue (H25)(20%) + Blue (H5)(small dose)
MG gundam exia ignition mode antenna, etc yellow partsWhite (H1)(50%) + Yellow (H4)(30%) + Orange Yellow (H24)(20%)
MG gundam exia ignition mode abdomen, etc red partsMonza Red/Red Madder (H86)(75%) + White (H1)(25%) + Blue (H5)(small dose) + Neutral Gray (H53)(small dose)
MG gundam exia ignition mode eyes, etc clear green partsClear Green (H94)(60%) + Clear Blue (H93)(20%) + Clear (H30)(20%)
Gundam Exia Repair Mode GN Sword, etc silver partsSilver (H8)(100%)
Gundam Exia Repair Mode mantle/capeOlive Drab (2) (H78)(100%)
Setsuna F. Seie suit etc dark gray partsBlue (H5)(95%) + White (H1)(5%) + Black (H2)(small dose)
Setsuna F. Seie suit, etc blue partsCobalt Blue (H35)(70%) + White (H1)(30%)
Setsuna F. Seie shoulder, line etc white partsWhite (H1)(100%)
Setsuna F. Seie head, skin colorFlesh/Pale Brown (H44)(100%)
Setsuna F. Seie chest, etc khaki green partsKhaki Green (H80)(65%) + White (H1)(35%)
Setsuna F. Seie hair dark gray partsMidnight Blue (H55)(100%)
Carrel main body gray partsNeutral Gray (H53)(70%) + White (H1)(30%) + Green (H6)(small dose)
Carrel main body black partsBlack (H2)(100%)
Carrel haro orange partOrange (H14)(60%) + White (H1)(30%) + Yellow (H4)(10%)
Disclaimer


Available at these Online Shops:

Amazon


Related Products




Construction Manual



Bandai Master Grade MG GN-001 Gundam Exia Ignition Mode Construction and Color Guide Manual Bandai Master Grade MG GN-001 Gundam Exia Ignition Mode Construction and Color Guide Manual Bandai Master Grade MG GN-001 Gundam Exia Ignition Mode Construction and Color Guide Manual Bandai Master Grade MG GN-001 Gundam Exia Ignition Mode Construction and Color Guide Manual Bandai Master Grade MG GN-001 Gundam Exia Ignition Mode Construction and Color Guide Manual

Bandai Master Grade MG GN-001 Gundam Exia Ignition Mode Construction and Color Guide Manual Bandai Master Grade MG GN-001 Gundam Exia Ignition Mode Construction and Color Guide Manual Bandai Master Grade MG GN-001 Gundam Exia Ignition Mode Construction and Color Guide Manual Bandai Master Grade MG GN-001 Gundam Exia Ignition Mode Construction and Color Guide Manual Bandai Master Grade MG GN-001 Gundam Exia Ignition Mode Construction and Color Guide Manual

Bandai Master Grade MG GN-001 Gundam Exia Ignition Mode Construction and Color Guide Manual Bandai Master Grade MG GN-001 Gundam Exia Ignition Mode Construction and Color Guide Manual Bandai Master Grade MG GN-001 Gundam Exia Ignition Mode Construction and Color Guide Manual

Paint Conversion Table:  (Disclaimer| How to Use | Sitemap)


White
(H1)
Aqueous Hobby Color
White
(C1)
Mr. Color
White
(X2)
Tamiya Color Acrylic Paint
Gloss White
(70.842)
Vallejo Model Color
White (Gloss)
(22)
Humbrol Enamel
White (Gloss)
(22)
Humbrol Acrylic
white (Gloss)
(36104)
Revell Aqua Color Acrylic
white (solid gloss)
(32104)
Revell Email Enamel
SATIN WHITE
(A.MIG-0047)
Ammo Acrylics
Gloss White
(4696AP)
Italeri
White
(X-2)
Tamiya Enamel
White (Lacquer Paint)
(LP2)
Tamiya Lacquer Paint
Pure White
(TS26)
Tamiya Color Spray Paints

Black
(H2)
Aqueous Hobby Color
Black
(C2)
Mr. Color
Black
(X1)
Tamiya Color Acrylic Paint
Glossy Black
(70.861)
Vallejo Model Color
Black (Gloss)
(21)
Humbrol Enamel
Black (Gloss)
(21)
Humbrol Acrylic
black (Gloss)
(36107)
Revell Aqua Color Acrylic
black (solid matt)
(32107)
Revell Email Enamel
SATIN BLACK
(A.MIG-0032)
Ammo Acrylics
Gloss Black
(4695AP)
Italeri
Black
(X-1)
Tamiya Enamel
Black (Lacquer Paint)
(LP1)
Tamiya Lacquer Paint
Semi Gloss Black
(C92)
Mr. Color
Semi-Gloss Black
(X18)
Tamiya Color Acrylic Paint
Semi Gloss Black
(X-18)
Tamiya Enamel
Semi Gloss Black (Lacquer Paint)
(LP5)
Tamiya Lacquer Paint
Semi Gloss Black
(TS29)
Tamiya Color Spray Paints
Black
(TS14)
Tamiya Color Spray Paints

Yellow
(H4)
Aqueous Hobby Color
Yellow
(C4)
Mr. Color
Flat Yellow
(XF3)
Tamiya Color Acrylic Paints (Flat)
Flat Yellow
(70.953)
Vallejo Model Color
Medium Yellow
(71.002)
Vallejo Model Air
Yellow (Gloss)
(69)
Humbrol Enamel
Yellow (Gloss)
(69)
Humbrol Acrylic
yellow (Gloss)
(36112)
Revell Aqua Color Acrylic
yellow (solid matt)
(32112)
Revell Email Enamel
YELLOW
(A.MIG-0048)
Ammo Acrylics
Gloss Yellow
(4642AP)
Italeri
Yellow
(69.004)
Vallejo Mecha Color
Lemon Yellow
(X8)
Tamiya Color Acrylic Paint
Deep Yellow
(70.915)
Vallejo Model Color
Lemon Yellow
(X-8)
Tamiya Enamel
Pure Yellow (Lacquer Paint)
(LP8)
Tamiya Lacquer Paint
Yellow
(TS16)
Tamiya Color Spray Paints
MS Yellow(Federation Mobile Suit Yellow)
(UG03)
Gundam Color

Blue
(H5)
Aqueous Hobby Color
Blue
(C5)
Mr. Color
Royal Blue
(X3)
Tamiya Color Acrylic Paint
Dark Prussian Blue
(70.899)
Vallejo Model Color
Blue
(71.004)
Vallejo Model Air
Midnight Blue (Gloss)
(15)
Humbrol Enamel
Midnight Blue (Gloss)
(15)
Humbrol Acrylic
Ultramarine Blue
(HTK-_272)
Hataka
Green
(H6)
Aqueous Hobby Color
Green
(C6)
Mr. Color
Green
(X5)
Tamiya Color Acrylic Paint
Black Green
(70.980)
Vallejo Model Color
Brunswick Green (Gloss)
(3)
Humbrol Enamel
Brunswick Green (Gloss)
(3)
Humbrol Acrylic
Sea Green (Gloss)
(36162)
Revell Aqua Color Acrylic
sea green (solid matt)
(32162)
Revell Email Enamel
Silver
(H8)
Aqueous Hobby Color
Silver
(C8)
Mr. Color
Flat Aluminium
(XF16)
Tamiya Color Acrylic Paints (Flat)
Silver (Metallic)
(70.997)
Vallejo Model Color
Silver RLM01 (Metallic)
(71.063)
Vallejo Model Air
Silver (metallic)
(11)
Humbrol Enamel
Silver (metallic)
(11)
Humbrol Acrylic
Silver (solid metallic)
(36190)
Revell Aqua Color Acrylic
silver (solid metallic)
(32190)
Revell Email Enamel
Aluminum (F)
(4677)
Testors Model Master Acrylic
Aluminum (F)
(1781)
Testors Model Master Enamel
Matt Natural Metal FS37178
(LC24)
Lifecolor
MATT ALUMINUM
(A.MIG-0194)
Ammo Acrylics
Aluminium (Metallic)
(RC020)
AK Real Color
Metal. Gloss Silver
(4678AP)
Italeri
Flat Aluminum
(XF-16)
Tamiya Enamel
Light Steel
(69.064)
Vallejo Mecha Color
Flat Aluminum (Lacquer Paint)
(LP38)
Tamiya Lacquer Paint
Aluminum (Metallic)
(71.062)
Vallejo Model Air
Aluminium
(HTK-_078)
Hataka
FS17178 Aluminium
(X142)
Xtracolor
Metallic Gray
(XF56)
Tamiya Color Acrylic Paints (Flat)
Oily Steel (Metallic)
(70.865)
Vallejo Model Color
Chrome (Metallic
(71.064)
Vallejo Model Air
Aluminum (metallic)
(56)
Humbrol Enamel
Aluminum (solid metallic)
(36199)
Revell Aqua Color Acrylic
aluminum (solid metallic)
(32199)
Revell Email Enamel
POLISHED METAL
(A.MIG-0192)
Ammo Acrylics
Metal. Flat Aluminum
(4677AP)
Italeri
Metallic Grey
(XF-56)
Tamiya Enamel
Dark Steel
(69.065)
Vallejo Mecha Color
Metallic gray (Lacquer Paint)
(LP61)
Tamiya Lacquer Paint
SILVER
(A.MIG-0195)
Ammo Acrylics
Shine Silver
(C90)
Mr. Color
Chrome Silver (metallic)
(191)
Humbrol Enamel
White Aluminium
(HTK-_190)
Hataka
RAL9001 Weissaluminium
(X252)
Xtracolor
Bare Metal Silver
(AS12)
Tamiya Color Spray For Aircraft

Orange
(H14)
Aqueous Hobby Color
Orange
(C59)
Mr. Color
Orange
(X6)
Tamiya Color Acrylic Paint
Clear Orange
(70.956)
Vallejo Model Color
Orange
(71.083)
Vallejo Model Air
Orange (Gloss)
(18)
Humbrol Enamel
luminous orange (solid matt)
(36125)
Revell Aqua Color Acrylic
luminous orange (solid matt)
(32125)
Revell Email Enamel
Orange (Gloss)
(1527)
Testors Model Master Enamel
Matt Orange FS32246
(LC05)
Lifecolor
ORANGE
(A.MIG-0129)
Ammo Acrylics
Orange
(RC009)
AK Real Color
Pure Orange
(HTK-_704)
Hataka
Flat Orange
(4302AP)
Italeri
orange (Gloss)
(36130)
Revell Aqua Color Acrylic
orange (solid matt)
(32130)
Revell Email Enamel
Gloss Orange
(4682AP)
Italeri

Orange Yellow
(H24)
Aqueous Hobby Color
Orange Yellow
(C58)
Mr. Color
Light Orange
(70.911)
Vallejo Model Color
Orange Rust
(71.130)
Vallejo Model Air
LIGHT RUST
(A.MIG-0039)
Ammo Acrylics
Signal Orange
(HTK-_133)
Hataka

Sky Blue
(H25)
Aqueous Hobby Color
Sky Blue
(C34)
Mr. Color
Sky Blue
(X14)
Tamiya Color Acrylic Paint
Mediterranean Blue (Gloss)
(48)
Humbrol Enamel

Clear
(H30)
Aqueous Hobby Color
Clear
(C46)
Mr. Color
Clear
(X22)
Tamiya Color Acrylic Paint
Glossy Varnish
(70.510)
Vallejo Model Color
Varnish (Gloss)
(35)
Humbrol Enamel
Varnish (Gloss)
(35)
Humbrol Acrylic
Clear (Gloss)
(36101)
Revell Aqua Color Acrylic
Clear (solid gloss)
(32101)
Revell Email Enamel
Gloss Clear Acrylic
(4638)
Testors Model Master Acrylic
Gloss Clear Acrylic
(2017)
Testors Model Master Enamel
Gloss Clear
(LC73)
Lifecolor
GLOSSY VARNISH
(A.MIG-0091)
Ammo Acrylics
Gloss Varnish
(RC502)
AK Real Color
Gloss Lacquer Clear Coat
(HTK-XP09)
Hataka
Gloss Clear Acryl 35 ml
(4638AP)
Italeri
Clear
(X-22)
Tamiya Enamel
Clear (Lacquer Paint)
(LP9)
Tamiya Lacquer Paint
Clear
(TS13)
Tamiya Color Spray Paints

Cobalt Blue
(H35)
Aqueous Hobby Color
Cobalt Blue
(C80)
Mr. Color

Flesh/Pale Brown
(H44)
Aqueous Hobby Color
Flesh
(C51)
Mr. Color
Flat Flesh
(XF15)
Tamiya Color Acrylic Paints (Flat)
Cork Brown
(70.843)
Vallejo Model Color
Skin Tone
(71.076)
Vallejo Model Air
Flesh (Matte)
(61)
Humbrol Enamel
Leather (Matte)
(62)
Humbrol Acrylic
Brown (solid matt)
(36185)
Revell Aqua Color Acrylic
brown (solid silk matt)
(32185)
Revell Email Enamel
SAND BROWN
(A.MIG-0026)
Ammo Acrylics
Flesh
(N44)
Acrysion
Flat Light Flesh
(4390AP)
Italeri
Flat Flesh
(XF-15)
Tamiya Enamel
Flat Flesh (Lacquer Paint)
(LP66)
Tamiya Lacquer Paint
Desert Yellow
(70.977)
Vallejo Model Color
Camouflage Brown
(71.117)
Vallejo Model Air
Pale Sand
(70.837)
Vallejo Model Color
LIGHT SKIN TONE
(A.MIG-0115)
Ammo Acrylics
Pale Sand
(RC018)
AK Real Color
Leather (Matte)
(62)
Humbrol Enamel
Flat Skin Tone Tint Base - Light
(4601AP)
Italeri
Flat Skin Tone Warm Tint
(4603AP)
Italeri
Flat Flesh 2
(TS77)
Tamiya Color Spray Paints
flesh (solid matt)
(36135)
Revell Aqua Color Acrylic
flesh (solid silk matt)
(32135)
Revell Email Enamel

Neutral Gray
(H53)
Aqueous Hobby Color
Neutral Gray
(C13)
Mr. Color
Neutral Gray
(XF53)
Tamiya Color Acrylic Paints (Flat)
Neutral Grey
(70.992)
Vallejo Model Color
Aggressor Gray
(71.274)
Vallejo Model Air
US Compass Grey (Satin)
(128)
Humbrol Enamel
US Compass Grey (Satin)
(128)
Humbrol Acrylic
Aggressor Gray FS36251
(1794)
Testors Model Master Enamel
Light Grey FS36251
(UA034)
Lifecolor
NEUTRAL GRAY
(A.MIG-0239)
Ammo Acrylics
Aggressor Grey
(RC248)
AK Real Color
Aggressor Grey
(HTK-_157)
Hataka
FS16251 Medium Grey
(X132)
Xtracolor
Dark Sea Gray
(XF54)
Tamiya Color Acrylic Paints (Flat)
Dark Sea Grey
(70.991)
Vallejo Model Color
Neutral Grey
(71.051)
Vallejo Model Air
Air Mobility Command Gray FS36173
(2035)
Testors Model Master Enamel
Neutral Grey 43 FS35173
(UA046)
Lifecolor
(BS 638)
(A.MIG-0205)
Ammo Acrylics
Neutral Grey 43
(RC261)
AK Real Color
Neutral Grey 43
(HTK-_033)
Hataka
FS16173 Air Mobility Command Grey
(X158)
Xtracolor
Grey Z
(69.039)
Vallejo Mecha Color

Navy Blue
(H54)
Aqueous Hobby Color
Navy Blue
(C14)
Mr. Color
Dark Sea Blue
(70.898)
Vallejo Model Color
Steel Blue
(71.087)
Vallejo Model Air
Navy Blue (Matte)
(77)
Humbrol Enamel
Navy Blue (Matte)
(77)
Humbrol Acrylic
Greyish Blue (solid matt)
(36179)
Revell Aqua Color Acrylic
Greyish Blue (solid matt)
(32179)
Revell Email Enamel
Flat Sea Blue FS35042
(1718)
Testors Model Master Enamel
Non Specular Sea Blue FS35042
(UA044)
Lifecolor
SEA BLUE
(A.MIG-0227)
Ammo Acrylics
Graublau – Grey Blue
(RC208)
AK Real Color
Grey-Blue
(HTK-_171)
Hataka
RAL5008 Graublau
(X264)
Xtracolor
Navy Blue
(N54)
Acrysion
Flat Non Specular Sea Blue
(4604AP)
Italeri
Titan Dark Blue
(69.022)
Vallejo Mecha Color
Field Blue
(XF50)
Tamiya Color Acrylic Paints (Flat)
Grey Blue
(71.005)
Vallejo Model Air
Titan's Blue 1
(UG16)
Gundam Color

Midnight Blue
(H55)
Aqueous Hobby Color
Midnight Blue
(C71)
Mr. Color
Royal Blue
(X3)
Tamiya Color Acrylic Paint
USN Sea Blue
(71.295)
Vallejo Model Air
Flat Sea Blue FS35042
(1718)
Testors Model Master Enamel
Non Specular Sea Blue FS35042
(UA044)
Lifecolor
Sea Blue
(RC257)
AK Real Color
Semi-Gloss Sea Blue
(HTK-_006)
Hataka
Midnight Blue
(N55)
Acrysion
Sea Blue
(XF17)
Tamiya Color Acrylic Paints (Flat)
Greyish Blue (solid matt)
(36179)
Revell Aqua Color Acrylic
Greyish Blue (solid matt)
(32179)
Revell Email Enamel

Olive Drab (2)
(H78)
Aqueous Hobby Color
Olive Drab (2)
(C38)
Mr. Color
Olive Drab
(XF62)
Tamiya Color Acrylic Paints (Flat)
Brown Violet
(70.887)
Vallejo Model Color
German Green
(71.020)
Vallejo Model Air
Olive Drab (Matte)
(66)
Humbrol Enamel
Olive Drab (Matte)
(66)
Humbrol Acrylic
olive grey (solid matt)
(36166)
Revell Aqua Color Acrylic
olive grey (solid matt)
(32166)
Revell Email Enamel
Olive Drab ANA613
(4842)
Testors Model Master Acrylic
Olive Drab ANA613 (F)
(2050)
Testors Model Master Enamel
Olive Drab 41 FS34088
(UA005)
Lifecolor
DARK OLIVE DRAB
(A.MIG-0237)
Ammo Acrylics
Olive Drab No.9 / No.22
(RC023)
AK Real Color
US Olive Drab (Late)
(HTK-_018)
Hataka
Olive Drab(1)
(N52)
Acrysion
Flat Olive Drab
(4315AP)
Italeri
Olive Drab
(XF-62)
Tamiya Enamel
Olive Drab (Lacquer Paint)
(LP28)
Tamiya Lacquer Paint
USA Olive Drab
(70.889)
Vallejo Model Color
Medium Olive
(71.092)
Vallejo Model Air
Olive Drab (Matte)
(155)
Humbrol Enamel
OLIVE DRAB DARK base
(A.MIG-0925)
Ammo Acrylics
Dark Olive Drab 41
(RC259)
AK Real Color
US Olive Drab 41 (Early)
(HTK-_004)
Hataka
Olive Drab(2)
(N78)
Acrysion
Flat Olive Drab - US Army
(4728AP)
Italeri
Num. 41 Dark Olive Drab
(71.316)
Vallejo Model Air
Olive Drab
(TS5)
Tamiya Color Spray Paints
Olive Drab (USAF)
(AS6)
Tamiya Color Spray For Aircraft

Khaki Green
(H80)
Aqueous Hobby Color
Khaki Green
(C54)
Mr. Color
Nato Green
(XF67)
Tamiya Color Acrylic Paints (Flat)
NATO Green
(71.093)
Vallejo Model Air
Tricolor Green NATO (SG)
(2173)
Testors Model Master Enamel
Green FS34094
(UA303)
Lifecolor
NATO GREEN
(A.MIG-0084)
Ammo Acrylics
NATO Green
(RC080)
AK Real Color
NATO Green
(HTK-_152)
Hataka
Khaki Green
(N80)
Acrysion
NATO green (Lacquer Paint)
(LP58)
Tamiya Lacquer Paint
Nato Green
(TS61)
Tamiya Color Spray Paints

Monza Red/Red Madder
(H86)
Aqueous Hobby Color
Monza Red/Red Madder
(C68)
Mr. Color

Clear Blue
(H93)
Aqueous Hobby Color
Clear Blue
(C50)
Mr. Color
Clear Blue
(X23)
Tamiya Color Acrylic Paint
Transparent Blue (Transparent)
(70.938)
Vallejo Model Color
Blue (clear)
(36752)
Revell Aqua Color Acrylic
blue (clear)
(32752)
Revell Email Enamel
Transparent Blue (G)
(4658)
Testors Model Master Acrylic
CRYSTAL LIGHT BLUE
(A.MIG-0098)
Ammo Acrylics
Clear Blue
(RC504)
AK Real Color
Gloss Light Blue
(4650AP)
Italeri
Clear Blue
(X-23)
Tamiya Enamel
Clear Blue (Lacquer Paint)
(LP68)
Tamiya Lacquer Paint
CRYSTAL BLACK BLUE (AND TAIL LIGHT OFF)
(A.MIG-0099)
Ammo Acrylics
Clear Blue
(TS72)
Tamiya Color Spray Paints

Clear Green
(H94)
Aqueous Hobby Color
Clear Green
(C138)
Mr. Color
Clear Green
(X25)
Tamiya Color Acrylic Paint
Transparent Green (Transparent)
(70.936)
Vallejo Model Color
Green (Clear)
(1325)
Humbrol Enamel
Transparent Green (G)
(4668)
Testors Model Master Acrylic
CRYSTAL GREEN
(A.MIG-0092)
Ammo Acrylics
Clear Green
(RC505)
AK Real Color
Clear Green
(N94)
Acrysion
