HG Gundam Avalanche Exia (Dash) English Manual & Color Guide

Bandai 1/144 High Grade HG GN-001/hs-A010 Gundam Avalanche Exia English Construction Manual and Color Guide

Setsuna F. Seie's Gundam Exia equipped and configured as Gundam Exia Avalanche. There is an added Dash unit to this model kit that makes it unique from the typical Gundam Exia Avalanche. Although in the box of the model kit the Exia is spelled with an apostrophe at the end, wonder what's that all about?, shouldn't it be a "-" instead?

For me, the Avalanche redesign of the Exia is a welcome addition to the Gundam Exia line. Despite it not being seen in the anime but only in one of the side stories of Gundam 00. Still, I prefer the 1/100 scale over the 1/144 *snicker*

The HG GN-001/hs-A010 Gundam Avalanche Exia (Dash) is selling for 1450 yen at Amiami, 2000 yen at HobbyLink Japan, 1400 yen at HWJapan.

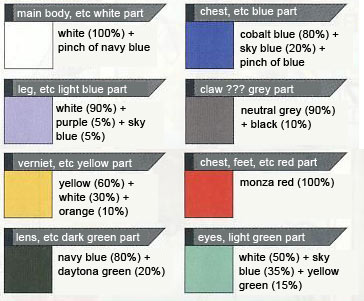

Color Guide DescriptionPaint Ratios
main body etc white partWhite (H1)(100%) + Navy Blue (H54)(small dose)
legs, etc light blue partWhite (H1)(90%) + Purple (H39)(5%) + Sky Blue (H25)(5%)
vernier etc yellow partYellow (H4)(60%) + White (H1)(30%) + Orange (H14)(10%)
lens, etc dark green partNavy Blue (H54)(80%) + Bright Green/Daytona Green (H26)(20%)
chest, etc blue partCobalt Blue (H35)(80%) + Sky Blue (H25)(20%) + Blue (H5)(small dose)
claw, etc gray partNeutral Gray (H53)(90%) + Black (H2)(10%)
chest, feet etc red partMonza Red/Red Madder (H86)(100%)
eyes, light green partWhite (H1)(50%) + Sky Blue (H25)(35%) + Yellow Green/Roman Green/Le Mans Green (H16)(15%)
Disclaimer


Available at these Online Shops:

Amazon


Related Products





Paint Conversion Table:  (Disclaimer| How to Use | Sitemap)


White
(H1)
Aqueous Hobby Color
White
(C1)
Mr. Color
White
(X2)
Tamiya Color Acrylic Paint
Gloss White
(70.842)
Vallejo Model Color
White (Gloss)
(22)
Humbrol Enamel
White (Gloss)
(22)
Humbrol Acrylic
white (Gloss)
(36104)
Revell Aqua Color Acrylic
white (solid gloss)
(32104)
Revell Email Enamel
SATIN WHITE
(A.MIG-0047)
Ammo Acrylics
Gloss White
(4696AP)
Italeri
White
(X-2)
Tamiya Enamel
White (Lacquer Paint)
(LP2)
Tamiya Lacquer Paint
Pure White
(TS26)
Tamiya Color Spray Paints

Black
(H2)
Aqueous Hobby Color
Black
(C2)
Mr. Color
Black
(X1)
Tamiya Color Acrylic Paint
Glossy Black
(70.861)
Vallejo Model Color
Black (Gloss)
(21)
Humbrol Enamel
Black (Gloss)
(21)
Humbrol Acrylic
black (Gloss)
(36107)
Revell Aqua Color Acrylic
black (solid matt)
(32107)
Revell Email Enamel
SATIN BLACK
(A.MIG-0032)
Ammo Acrylics
Gloss Black
(4695AP)
Italeri
Black
(X-1)
Tamiya Enamel
Black (Lacquer Paint)
(LP1)
Tamiya Lacquer Paint
Semi Gloss Black
(C92)
Mr. Color
Semi-Gloss Black
(X18)
Tamiya Color Acrylic Paint
Semi Gloss Black
(X-18)
Tamiya Enamel
Semi Gloss Black (Lacquer Paint)
(LP5)
Tamiya Lacquer Paint
Semi Gloss Black
(TS29)
Tamiya Color Spray Paints
Black
(TS14)
Tamiya Color Spray Paints

Yellow
(H4)
Aqueous Hobby Color
Yellow
(C4)
Mr. Color
Flat Yellow
(XF3)
Tamiya Color Acrylic Paints (Flat)
Flat Yellow
(70.953)
Vallejo Model Color
Medium Yellow
(71.002)
Vallejo Model Air
Yellow (Gloss)
(69)
Humbrol Enamel
Yellow (Gloss)
(69)
Humbrol Acrylic
yellow (Gloss)
(36112)
Revell Aqua Color Acrylic
yellow (solid matt)
(32112)
Revell Email Enamel
YELLOW
(A.MIG-0048)
Ammo Acrylics
Gloss Yellow
(4642AP)
Italeri
Yellow
(69.004)
Vallejo Mecha Color
Lemon Yellow
(X8)
Tamiya Color Acrylic Paint
Deep Yellow
(70.915)
Vallejo Model Color
Lemon Yellow
(X-8)
Tamiya Enamel
Pure Yellow (Lacquer Paint)
(LP8)
Tamiya Lacquer Paint
Yellow
(TS16)
Tamiya Color Spray Paints
MS Yellow(Federation Mobile Suit Yellow)
(UG03)
Gundam Color

Blue
(H5)
Aqueous Hobby Color
Blue
(C5)
Mr. Color
Royal Blue
(X3)
Tamiya Color Acrylic Paint
Dark Prussian Blue
(70.899)
Vallejo Model Color
Blue
(71.004)
Vallejo Model Air
Midnight Blue (Gloss)
(15)
Humbrol Enamel
Midnight Blue (Gloss)
(15)
Humbrol Acrylic
Ultramarine Blue
(HTK-_272)
Hataka
Orange
(H14)
Aqueous Hobby Color
Orange
(C59)
Mr. Color
Orange
(X6)
Tamiya Color Acrylic Paint
Clear Orange
(70.956)
Vallejo Model Color
Orange
(71.083)
Vallejo Model Air
Orange (Gloss)
(18)
Humbrol Enamel
luminous orange (solid matt)
(36125)
Revell Aqua Color Acrylic
luminous orange (solid matt)
(32125)
Revell Email Enamel
Orange (Gloss)
(1527)
Testors Model Master Enamel
Matt Orange FS32246
(LC05)
Lifecolor
ORANGE
(A.MIG-0129)
Ammo Acrylics
Orange
(RC009)
AK Real Color
Pure Orange
(HTK-_704)
Hataka
Flat Orange
(4302AP)
Italeri
orange (Gloss)
(36130)
Revell Aqua Color Acrylic
orange (solid matt)
(32130)
Revell Email Enamel
Gloss Orange
(4682AP)
Italeri

Yellow Green/Roman Green/Le Mans Green
(H16)
Aqueous Hobby Color
Yellow Green/Roman Green
(C64)
Mr. Color
Light Green
(X15)
Tamiya Color Acrylic Paint
Lime Green
(70.827)
Vallejo Model Color
Lime (Gloss)
(38)
Humbrol Enamel
GREEN BASE
(A.MIG-0916)
Ammo Acrylics

Sky Blue
(H25)
Aqueous Hobby Color
Sky Blue
(C34)
Mr. Color
Sky Blue
(X14)
Tamiya Color Acrylic Paint
Mediterranean Blue (Gloss)
(48)
Humbrol Enamel

Bright Green/Daytona Green
(H26)
Aqueous Hobby Color
Bright Green/Daytona Green
(C66)
Mr. Color
Emerald (Gloss)
(2)
Humbrol Enamel
Emerald (Gloss)
(2)
Humbrol Acrylic
Emerald Green (Gloss)
(36161)
Revell Aqua Color Acrylic
emerald green (solid matt)
(32161)
Revell Email Enamel
SIGNAL GREEN
(A.MIG-0054)
Ammo Acrylics

Cobalt Blue
(H35)
Aqueous Hobby Color
Cobalt Blue
(C80)
Mr. Color

Purple
(H39)
Aqueous Hobby Color
Purple
(C67)
Mr. Color
Purple
(X16)
Tamiya Color Acrylic Paint
Purple
(70.959)
Vallejo Model Color
Purple (Gloss)
(68)
Humbrol Enamel
PURPLE
(A.MIG-0127)
Ammo Acrylics

Neutral Gray
(H53)
Aqueous Hobby Color
Neutral Gray
(C13)
Mr. Color
Neutral Gray
(XF53)
Tamiya Color Acrylic Paints (Flat)
Neutral Grey
(70.992)
Vallejo Model Color
Aggressor Gray
(71.274)
Vallejo Model Air
US Compass Grey (Satin)
(128)
Humbrol Enamel
US Compass Grey (Satin)
(128)
Humbrol Acrylic
Aggressor Gray FS36251
(1794)
Testors Model Master Enamel
Light Grey FS36251
(UA034)
Lifecolor
NEUTRAL GRAY
(A.MIG-0239)
Ammo Acrylics
Aggressor Grey
(RC248)
AK Real Color
Aggressor Grey
(HTK-_157)
Hataka
FS16251 Medium Grey
(X132)
Xtracolor
Dark Sea Gray
(XF54)
Tamiya Color Acrylic Paints (Flat)
Dark Sea Grey
(70.991)
Vallejo Model Color
Neutral Grey
(71.051)
Vallejo Model Air
Air Mobility Command Gray FS36173
(2035)
Testors Model Master Enamel
Neutral Grey 43 FS35173
(UA046)
Lifecolor
(BS 638)
(A.MIG-0205)
Ammo Acrylics
Neutral Grey 43
(RC261)
AK Real Color
Neutral Grey 43
(HTK-_033)
Hataka
FS16173 Air Mobility Command Grey
(X158)
Xtracolor
Grey Z
(69.039)
Vallejo Mecha Color

Navy Blue
(H54)
Aqueous Hobby Color
Navy Blue
(C14)
Mr. Color
Dark Sea Blue
(70.898)
Vallejo Model Color
Steel Blue
(71.087)
Vallejo Model Air
Navy Blue (Matte)
(77)
Humbrol Enamel
Navy Blue (Matte)
(77)
Humbrol Acrylic
Greyish Blue (solid matt)
(36179)
Revell Aqua Color Acrylic
Greyish Blue (solid matt)
(32179)
Revell Email Enamel
Flat Sea Blue FS35042
(1718)
Testors Model Master Enamel
Non Specular Sea Blue FS35042
(UA044)
Lifecolor
SEA BLUE
(A.MIG-0227)
Ammo Acrylics
Graublau – Grey Blue
(RC208)
AK Real Color
Grey-Blue
(HTK-_171)
Hataka
RAL5008 Graublau
(X264)
Xtracolor
Navy Blue
(N54)
Acrysion
Flat Non Specular Sea Blue
(4604AP)
Italeri
Titan Dark Blue
(69.022)
Vallejo Mecha Color
Field Blue
(XF50)
Tamiya Color Acrylic Paints (Flat)
Grey Blue
(71.005)
Vallejo Model Air
Titan's Blue 1
(UG16)
Gundam Color

Monza Red/Red Madder
(H86)
Aqueous Hobby Color
Monza Red/Red Madder
(C68)
Mr. Color

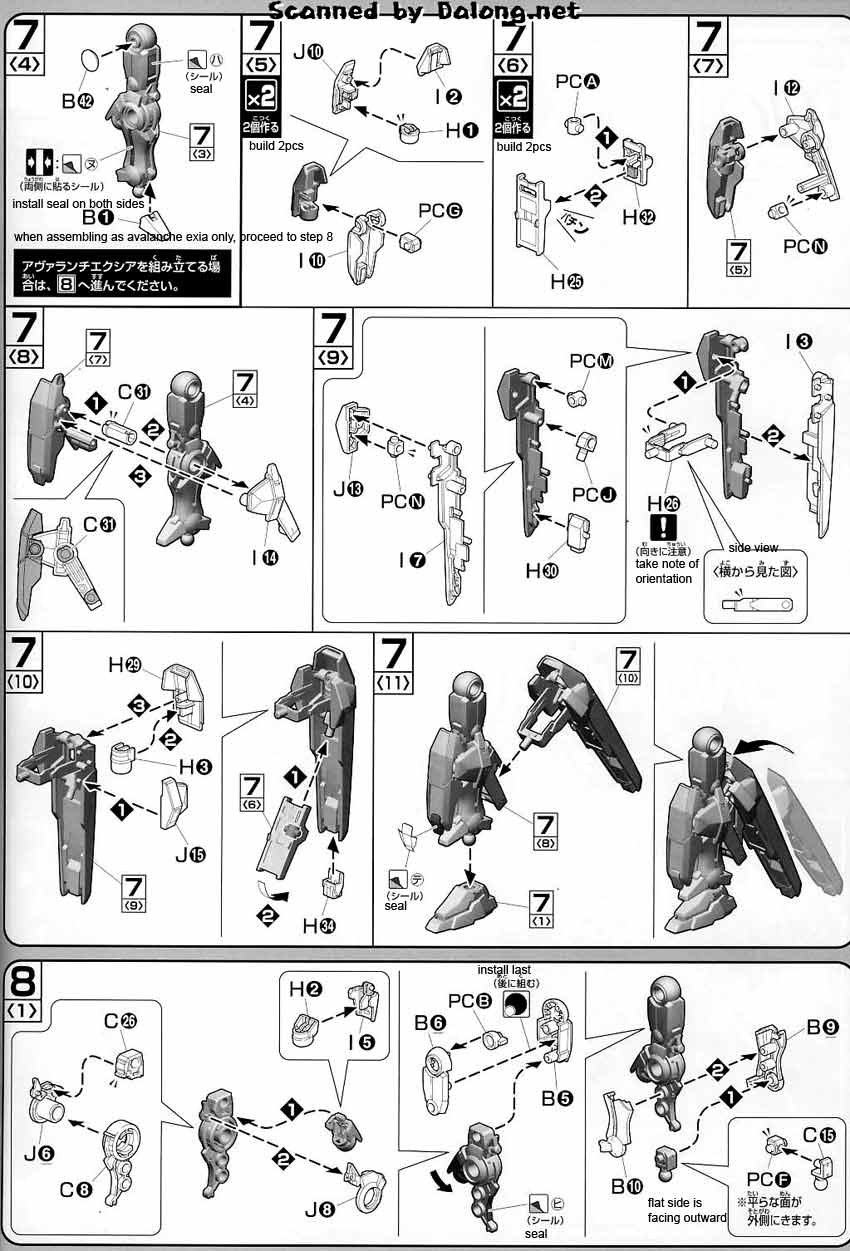

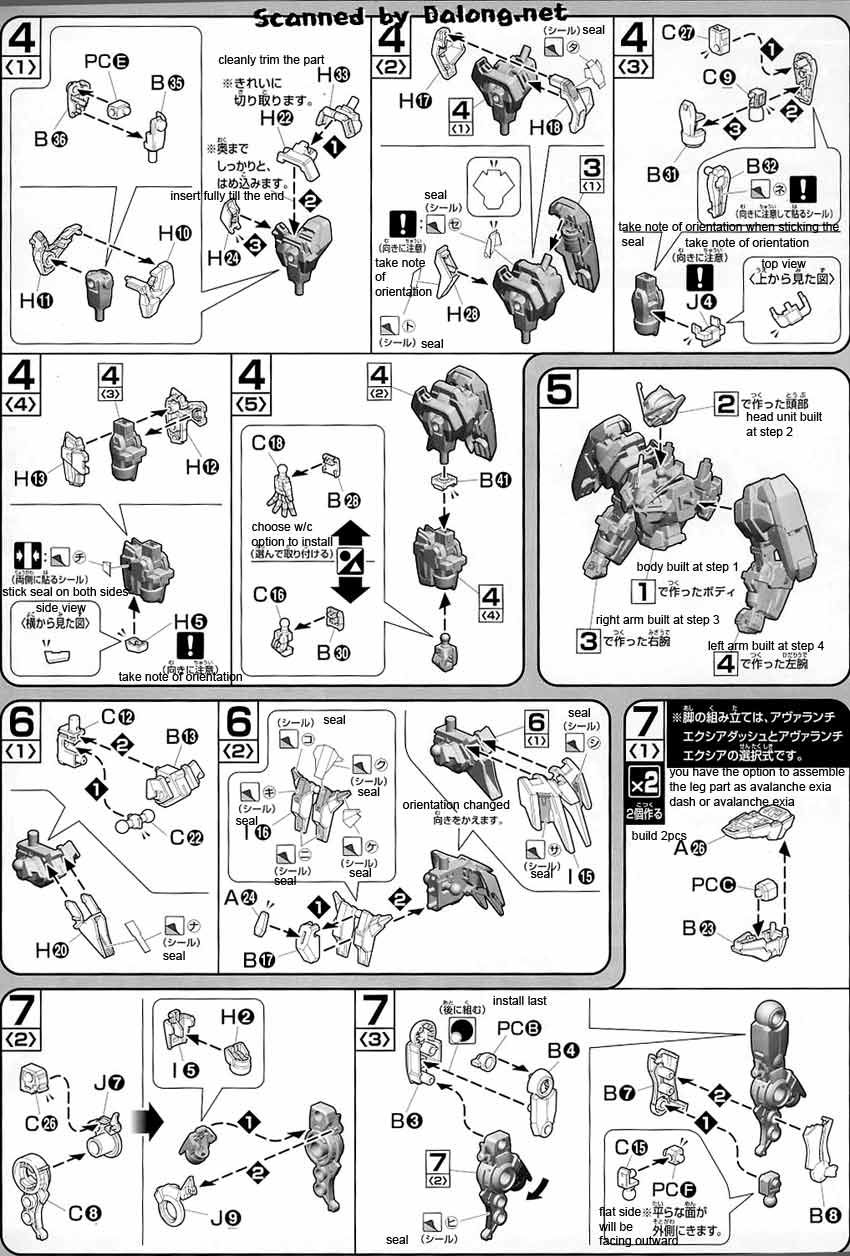

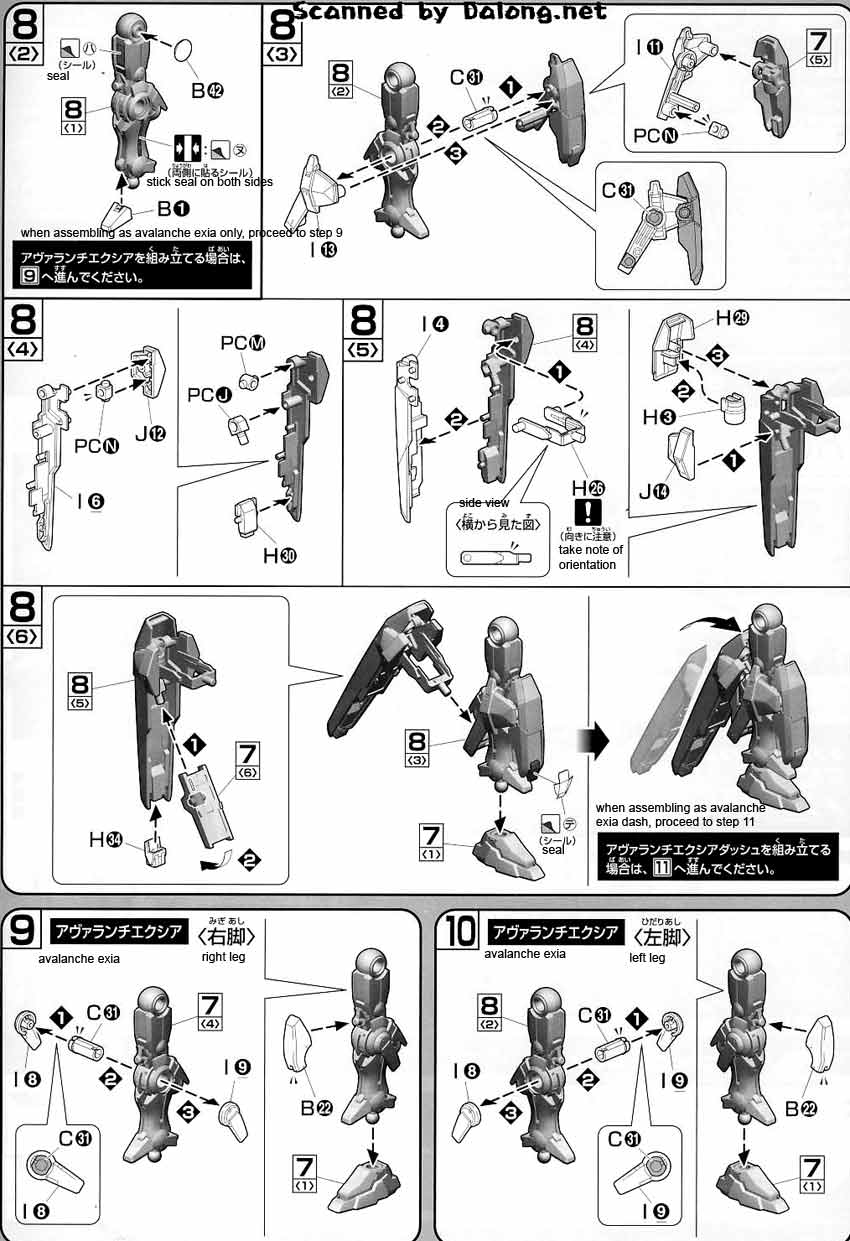

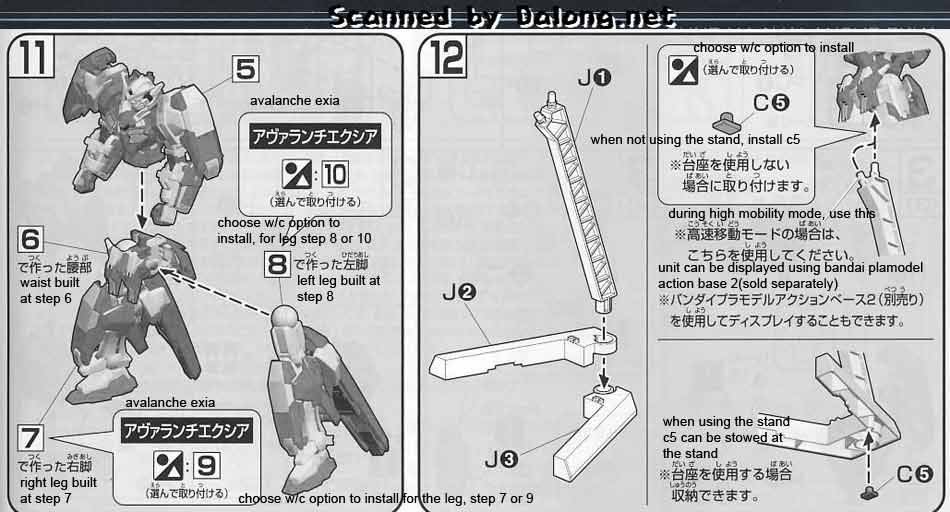

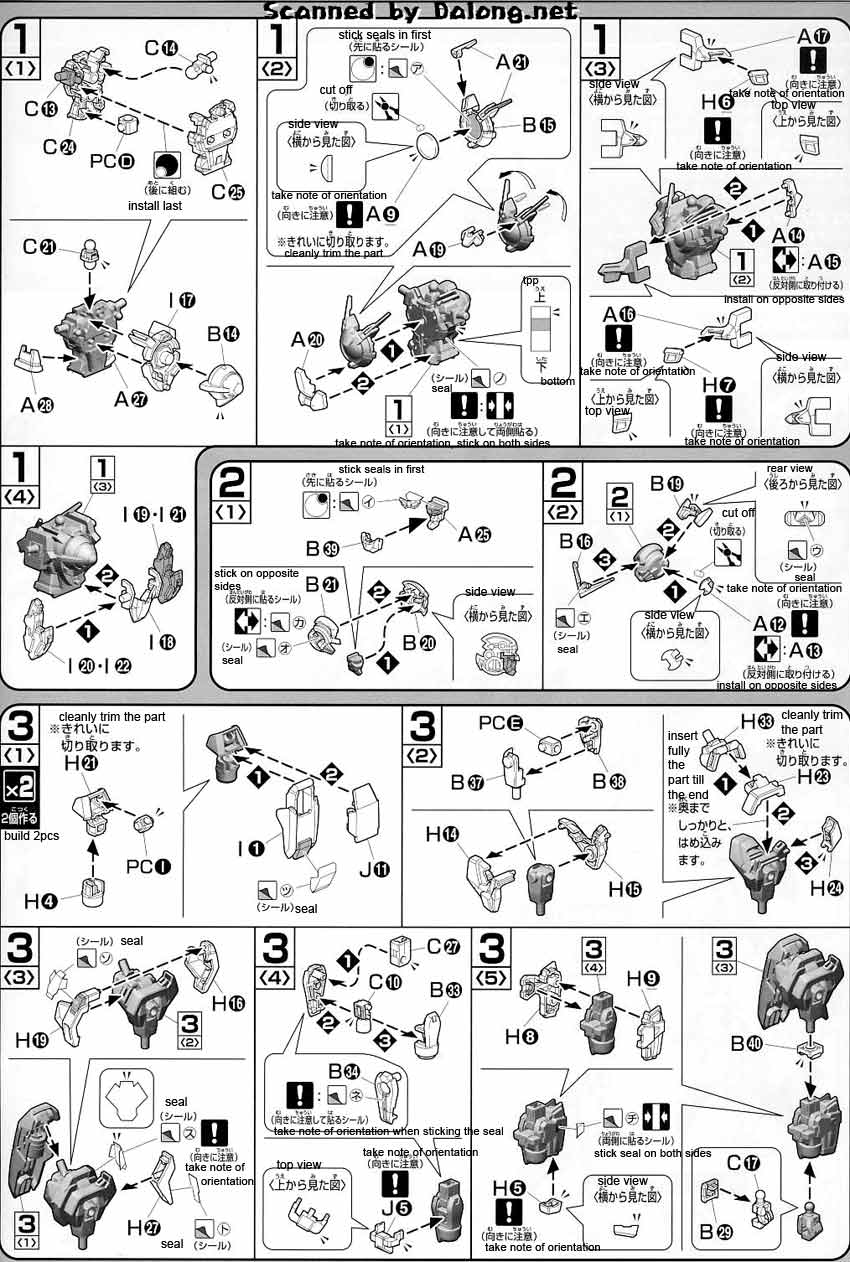

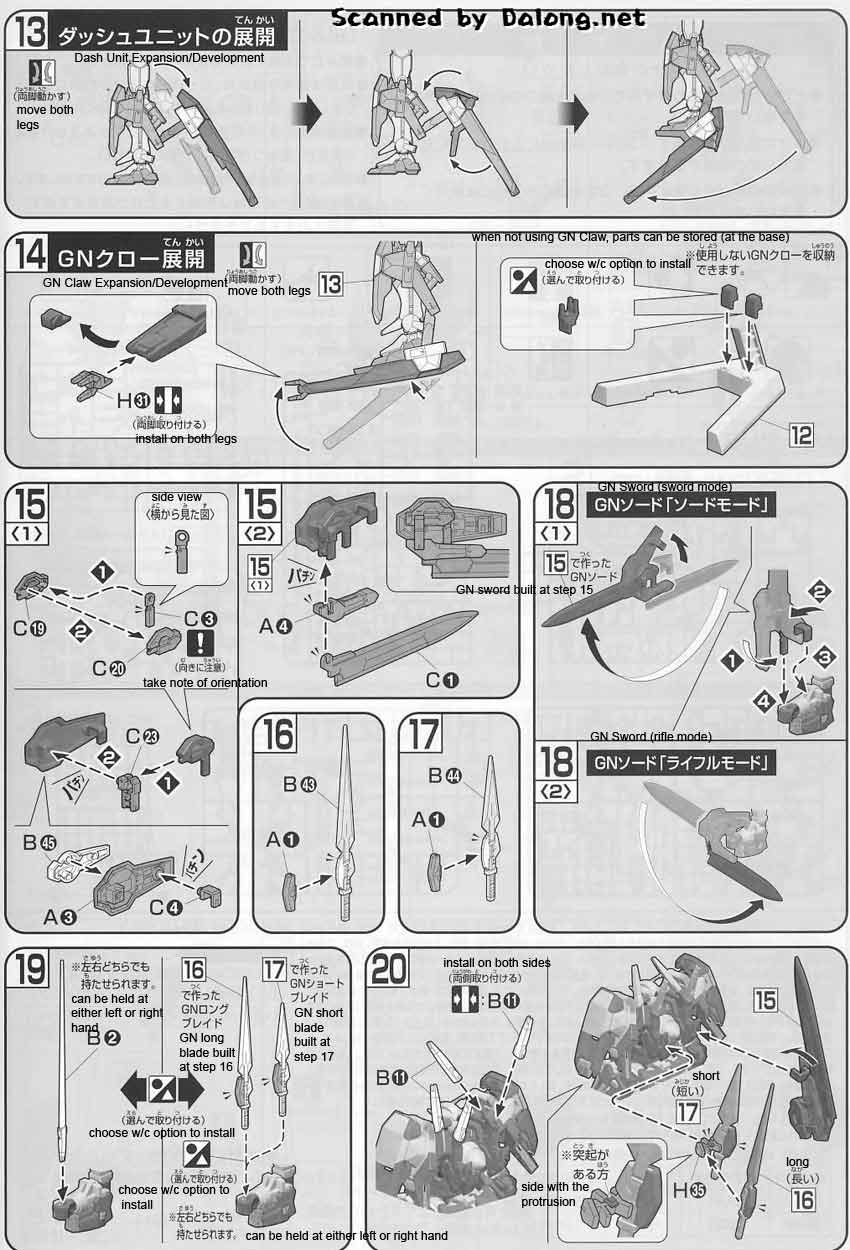

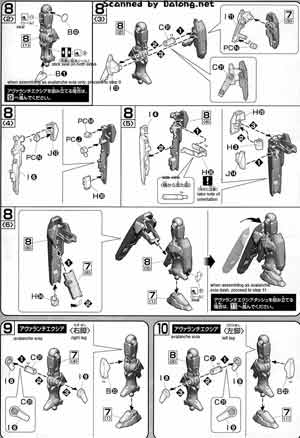

Construction Manual and Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla review site.
