HG Gundam Exia English Manual & Color Guide

HG GN-001 Gundam Exia Color Englisht Translation Guide & Manual
The one that started it all for the Gundam 00 Franchise, the 1/144 High Grade GN-001 Gundam Exia released in late 2007 by Bandai. GN-001 Gundam Exia was the lead Gundam of Gundam 00 Season1 and piloted by Setsuna F. Seie. From this, Bandai made a lot more variants like the 1/100 Exia, 1/60 Exia, MG Exia, MG Exia Ignition Mode, Exia TransAM and slew of other HG variants. Lets also not forget Exia Avalanche Mode in 1/100 and HG

The 1/144 HG GN-001 Gundam Exia is selling for $$$ at Amazon, 878 yen at Amiami, 840 yen at HobbyLink Japan, 1020 yen at Hobby Search.

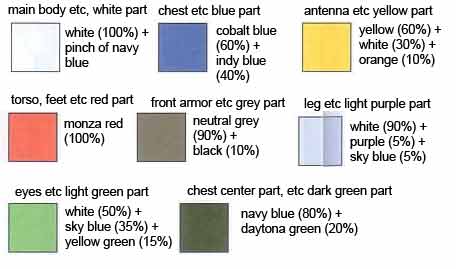

Color Guide DescriptionPaint Ratios
main body etc white partWhite (H1)(100%) + Navy Blue (H54)(small dose)
torso, feet etc red partMonza Red/Red Madder (H86)(100%)
eyes etc light green partWhite (H1)(50%) + Sky Blue (H25)(35%) + Yellow Green/Roman Green/Le Mans Green (H16)(15%)
chest etc blue partCobalt Blue (H35)(60%) + Bright Blue/Indy Blue (H15)(40%)
front armor etc gray partNeutral Gray (H53)(90%) + Black (H2)(10%)
chest center part, etc dark green partNavy Blue (H54)(80%) + Bright Green/Daytona Green (H26)(20%)
antenna etc yellow partYellow (H4)(60%) + White (H1)(30%) + Orange (H14)(10%)
leg etc light purple partWhite (H1)(90%) + Sky Blue (H25)(5%) + Purple (H39)(5%)
Disclaimer





Construction Manual and Color Guide for the 1/144 High Grade Gundam Exia was translated to English from the Japanese manual posted at Dalong's Gunpla Review site.

HG GN-001 Gundam Exia Color Englisht Translation Guide & Manual HG GN-001 Gundam Exia Color Englisht Translation Guide & Manual HG GN-001 Gundam Exia Color Englisht Translation Guide & Manual HG GN-001 Gundam Exia Color Englisht Translation Guide & Manual


Paint Conversion Table:  (Disclaimer | How to Use)


White
(H1)
Aqueous Hobby Color
White
(C1)
Mr. Color
White
(X2)
Tamiya Color Acrylic Paint
Gloss White
(70.842)
Vallejo Model Color
White (Gloss)
(22)
Humbrol Enamel
White (Gloss)
(22)
Humbrol Acrylic
white (Gloss)
(36104)
Revell Aqua Color Acrylic
white (solid gloss)
(32104)
Revell Email Enamel
SATIN WHITE
(A.MIG-0047)
Ammo Acrylics
Gloss White
(4696AP)
Italeri
White
(X-2)
Tamiya Enamel
White (Lacquer Paint)
(LP2)
Tamiya Lacquer Paint
Pure White
(TS26)
Tamiya Color Spray Paints

Black
(H2)
Aqueous Hobby Color
Black
(C2)
Mr. Color
Black
(X1)
Tamiya Color Acrylic Paint
Glossy Black
(70.861)
Vallejo Model Color
Black (Gloss)
(21)
Humbrol Enamel
Black (Gloss)
(21)
Humbrol Acrylic
black (Gloss)
(36107)
Revell Aqua Color Acrylic
black (solid matt)
(32107)
Revell Email Enamel
SATIN BLACK
(A.MIG-0032)
Ammo Acrylics
Gloss Black
(4695AP)
Italeri
Black
(X-1)
Tamiya Enamel
Black (Lacquer Paint)
(LP1)
Tamiya Lacquer Paint
Semi Gloss Black
(C92)
Mr. Color
Semi-Gloss Black
(X18)
Tamiya Color Acrylic Paint
Semi Gloss Black
(X-18)
Tamiya Enamel
Semi Gloss Black (Lacquer Paint)
(LP5)
Tamiya Lacquer Paint
Semi Gloss Black
(TS29)
Tamiya Color Spray Paints
Black
(TS14)
Tamiya Color Spray Paints

Yellow
(H4)
Aqueous Hobby Color
Yellow
(C4)
Mr. Color
Flat Yellow
(XF3)
Tamiya Color Acrylic Paints (Flat)
Flat Yellow
(70.953)
Vallejo Model Color
Medium Yellow
(71.002)
Vallejo Model Air
Yellow (Gloss)
(69)
Humbrol Enamel
Yellow (Gloss)
(69)
Humbrol Acrylic
yellow (Gloss)
(36112)
Revell Aqua Color Acrylic
yellow (solid matt)
(32112)
Revell Email Enamel
YELLOW
(A.MIG-0048)
Ammo Acrylics
Gloss Yellow
(4642AP)
Italeri
Yellow
(69.004)
Vallejo Mecha Color
Lemon Yellow
(X8)
Tamiya Color Acrylic Paint
Deep Yellow
(70.915)
Vallejo Model Color
Lemon Yellow
(X-8)
Tamiya Enamel
Pure Yellow (Lacquer Paint)
(LP8)
Tamiya Lacquer Paint
Yellow
(TS16)
Tamiya Color Spray Paints
MS Yellow(Federation Mobile Suit Yellow)
(UG03)
Gundam Color

Orange
(H14)
Aqueous Hobby Color
Orange
(C59)
Mr. Color
Orange
(X6)
Tamiya Color Acrylic Paint
Clear Orange
(70.956)
Vallejo Model Color
Orange
(71.083)
Vallejo Model Air
Orange (Gloss)
(18)
Humbrol Enamel
luminous orange (solid matt)
(36125)
Revell Aqua Color Acrylic
luminous orange (solid matt)
(32125)
Revell Email Enamel
Orange (Gloss)
(1527)
Testors Model Master Enamel
Matt Orange FS32246
(LC05)
Lifecolor
ORANGE
(A.MIG-0129)
Ammo Acrylics
Orange
(RC009)
AK Real Color
Pure Orange
(HTK-_704)
Hataka
Flat Orange
(4302AP)
Italeri
orange (Gloss)
(36130)
Revell Aqua Color Acrylic
orange (solid matt)
(32130)
Revell Email Enamel
Gloss Orange
(4682AP)
Italeri

Bright Blue/Indy Blue
(H15)
Aqueous Hobby Color
Bright Blue/Indy Blue
(C65)
Mr. Color
Blue
(X4)
Tamiya Color Acrylic Paint
Dark Blue
(70.930)
Vallejo Model Color
French Blue (Gloss)
(14)
Humbrol Enamel
French Blue (Gloss)
(14)
Humbrol Acrylic
Blue (Gloss)
(36152)
Revell Aqua Color Acrylic
blue (solid matt)
(32152)
Revell Email Enamel
MEDIUM BLUE
(A.MIG-0103)
Ammo Acrylics
Gloss French Blue
(4659AP)
Italeri
Ultramarine
(70.839)
Vallejo Model Color
Lufthansa Blue RAL 5022
(198)
Humbrol Enamel
Flat Blue
(XF8)
Tamiya Color Acrylic Paints (Flat)

Yellow Green/Roman Green/Le Mans Green
(H16)
Aqueous Hobby Color
Yellow Green/Roman Green
(C64)
Mr. Color
Light Green
(X15)
Tamiya Color Acrylic Paint
Lime Green
(70.827)
Vallejo Model Color
Lime (Gloss)
(38)
Humbrol Enamel
GREEN BASE
(A.MIG-0916)
Ammo Acrylics

Sky Blue
(H25)
Aqueous Hobby Color
Sky Blue
(C34)
Mr. Color
Sky Blue
(X14)
Tamiya Color Acrylic Paint
Mediterranean Blue (Gloss)
(48)
Humbrol Enamel

Bright Green/Daytona Green
(H26)
Aqueous Hobby Color
Bright Green/Daytona Green
(C66)
Mr. Color
Emerald (Gloss)
(2)
Humbrol Enamel
Emerald (Gloss)
(2)
Humbrol Acrylic
Emerald Green (Gloss)
(36161)
Revell Aqua Color Acrylic
emerald green (solid matt)
(32161)
Revell Email Enamel
SIGNAL GREEN
(A.MIG-0054)
Ammo Acrylics

Cobalt Blue
(H35)
Aqueous Hobby Color
Cobalt Blue
(C80)
Mr. Color

Purple
(H39)
Aqueous Hobby Color
Purple
(C67)
Mr. Color
Purple
(X16)
Tamiya Color Acrylic Paint
Purple
(70.959)
Vallejo Model Color
Purple (Gloss)
(68)
Humbrol Enamel
PURPLE
(A.MIG-0127)
Ammo Acrylics

Neutral Gray
(H53)
Aqueous Hobby Color
Neutral Gray
(C13)
Mr. Color
Neutral Gray
(XF53)
Tamiya Color Acrylic Paints (Flat)
Neutral Grey
(70.992)
Vallejo Model Color
Aggressor Gray
(71.274)
Vallejo Model Air
US Compass Grey (Satin)
(128)
Humbrol Enamel
US Compass Grey (Satin)
(128)
Humbrol Acrylic
Aggressor Gray FS36251
(1794)
Testors Model Master Enamel
Light Grey FS36251
(UA034)
Lifecolor
NEUTRAL GRAY
(A.MIG-0239)
Ammo Acrylics
Aggressor Grey
(RC248)
AK Real Color
Aggressor Grey
(HTK-_157)
Hataka
FS16251 Medium Grey
(X132)
Xtracolor
Dark Sea Gray
(XF54)
Tamiya Color Acrylic Paints (Flat)
Dark Sea Grey
(70.991)
Vallejo Model Color
Neutral Grey
(71.051)
Vallejo Model Air
Air Mobility Command Gray FS36173
(2035)
Testors Model Master Enamel
Neutral Grey 43 FS35173
(UA046)
Lifecolor
(BS 638)
(A.MIG-0205)
Ammo Acrylics
Neutral Grey 43
(RC261)
AK Real Color
Neutral Grey 43
(HTK-_033)
Hataka
FS16173 Air Mobility Command Grey
(X158)
Xtracolor
Grey Z
(69.039)
Vallejo Mecha Color

Navy Blue
(H54)
Aqueous Hobby Color
Navy Blue
(C14)
Mr. Color
Navy Blue
(AS8)
Tamiya Color Spray For Aircraft
Dark Sea Blue
(70.898)
Vallejo Model Color
Steel Blue
(71.087)
Vallejo Model Air
Navy Blue (Matte)
(77)
Humbrol Enamel
Navy Blue (Matte)
(77)
Humbrol Acrylic
Greyish Blue (solid matt)
(36179)
Revell Aqua Color Acrylic
Greyish Blue (solid matt)
(32179)
Revell Email Enamel
Flat Sea Blue FS35042
(1718)
Testors Model Master Enamel
Non Specular Sea Blue FS35042
(UA044)
Lifecolor
SEA BLUE
(A.MIG-0227)
Ammo Acrylics
Graublau – Grey Blue
(RC208)
AK Real Color
Grey-Blue
(HTK-_171)
Hataka
RAL5008 Graublau
(X264)
Xtracolor
Navy Blue
(N54)
Acrysion
Flat Non Specular Sea Blue
(4604AP)
Italeri
Titan Dark Blue
(69.022)
Vallejo Mecha Color
Field Blue
(XF50)
Tamiya Color Acrylic Paints (Flat)
Grey Blue
(71.005)
Vallejo Model Air
Titan's Blue 1
(UG16)
Gundam Color

Monza Red/Red Madder
(H86)
Aqueous Hobby Color
Monza Red/Red Madder
(C68)
Mr. Color
