MG GN-001 Gundam Exia English Manual & Color Guide

MG GN-001 Gundam Exia Construction Manual

The first Master Grade release for the GN-001 Gundam Exia of Setsuna F. Seie. The Exia is the melee and close combat specialist of the 4 Gundams deployed by the Celestial Being organization in the Gundam 00 Season 1 anime series.

Color Guide DescriptionPaint Ratios
MG GN-001 Gundam Exia white partsWhite (H1)(100%) + Navy Blue (H54)(small dose)
MG GN-001 Gundam Exia internal gray partsNeutral Gray (H53)(90%) + Black (H2)(10%)
MG GN-001 Gundam Exia blue partsCobalt Blue (H35)(80%) + Sky Blue (H25)(20%) + Blue (H5)(small dose)
MG GN-001 Gundam Exia yellow antenna partsWhite (H1)(50%) + Yellow (H4)(30%) + Orange (H14)(20%)
MG GN-001 Gundam Exia red partsMonza Red/Red Madder (H86)(75%) + White (H1)(25%) + Blue (H5)(small dose) + Neutral Gray (H53)(small dose)
MG GN-001 Gundam Exia green eye partsClear Green (H94)(60%) + Clear Blue (H93)(20%) + Clear (H30)(20%)
Disclaimer




Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Clear Green (H94)Clear Green (C138)Clear Green (X25)Transparent Green (Transparent) (70.936)--CRYSTAL GREEN (A.MIG-0092)Clear Green (RC505)----Green (Clear) (1325)--------
Clear Blue (H93)Clear Blue (C50)Clear Blue (X23)Transparent Blue (Transparent) (70.938)--CRYSTAL LIGHT BLUE (A.MIG-0098)Clear Blue (RC504)--blue (clear) (32752)--------Gloss Light Blue (4650AP)
Clear (H30)Clear (C46)Clear (X22)Glossy Varnish (70.510)--GLOSSY VARNISH (A.MIG-0091)Gloss Varnish (RC502)Gloss Lacquer Clear Coat (HTK-XP09)Clear (solid gloss) (32101)Varnish (Gloss) (35)Gloss Clear Acrylic (2017)--Gloss Clear (LC73)Gloss Clear Acryl 35 ml (4638AP)

Manual was translated to English from the original Japanese manual posted at Dalong. Color Guide for the Exia can be found here. Meaning of the symbols found in the manual can be found here.

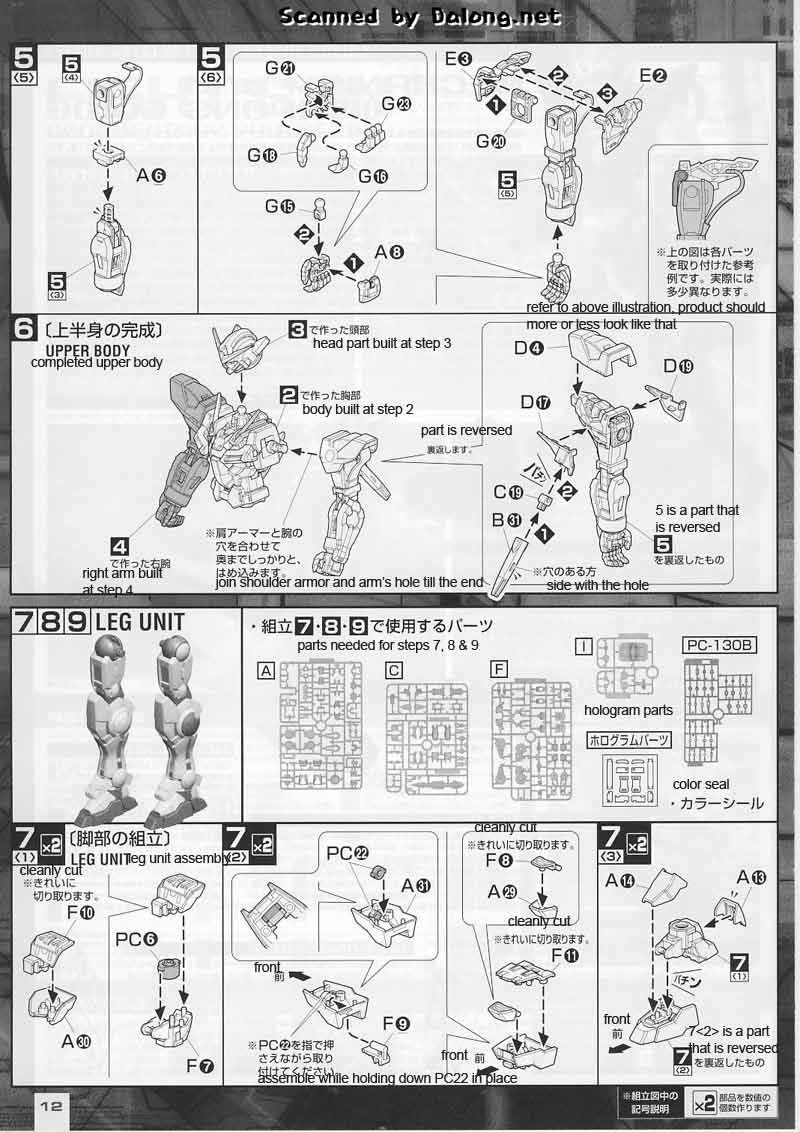

Bandai Master Grade MG GN-001 Gundam Exia English Construction Manual Bandai Master Grade MG GN-001 Gundam Exia English Construction Manual Bandai Master Grade MG GN-001 Gundam Exia English Construction Manual Bandai Master Grade MG GN-001 Gundam Exia English Construction Manual

Bandai Master Grade MG GN-001 Gundam Exia English Construction Manual Bandai Master Grade MG GN-001 Gundam Exia English Construction Manual Bandai Master Grade MG GN-001 Gundam Exia English Construction Manual Bandai Master Grade MG GN-001 Gundam Exia English Construction Manual

Bandai Master Grade MG GN-001 Gundam Exia English Construction Manual Bandai Master Grade MG GN-001 Gundam Exia English Construction Manual Bandai Master Grade MG GN-001 Gundam Exia English Construction Manual
