Saturday, January 10, 2015

PG 1/60 Strike Rouge English Color Guide



Translated this a while back. Forgot to post about it since I was too busy transferring the files from the old server to this one. It's the color guide for the 1/60 Perfect Grade Strike Rouge of Cagalli Yula Athha from Gundam Seed.

The 1/60 Perfect Grade Strike Rouge is selling for $ at Amazon.

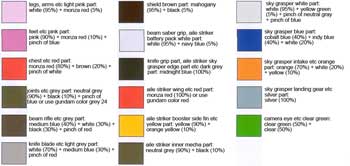

Color Guide DescriptionPaint Ratios
legs, arms etc light pink partWhite (H1)(95%) + Monza Red/Red Madder (H86)(5%)
feet etc pink partPink (H19)(90%) + Monza Red/Red Madder (H86)(10%) + Blue (H5)(small dose)
chest etc red partMonza Red/Red Madder (H86)(80%) + Brown (H7)(20%) + White (H1)(small dose)
joints etc gray partNeutral Gray (H53)(90%) + Black (H2)(10%) + Blue (H5)(small dose) or use gundam color gray 24
beam rifle etc gray partMedium Blue/Intermediate Blue (H56)(40%) + White (H1)(30%) + Black (H2)(30%) + Red (H3)(small dose)
knife blade etc light gray partWhite (H1)(70%) + Medium Blue/Intermediate Blue (H56)(30%) + Red (H3)(small dose)
shield brown partMahogany (H84)(95%) + Black (H2)(5%)
beam saber grip, aile striker battery pack white partWhite (H1)(95%) + Navy Blue (H54)(5%)
knife grip part, aile striker sky grasper edge part etcMidnight Blue (H55)(100%)
aile striker wing etc red partMonza Red/Red Madder (H86)(100%) or use gundam color red
aile striker booster side fin etc yellow partYellow (H4)(90%) + Orange Yellow (H24)(10%)
aile striker inner mecha partNeutral Gray (H53)(90%) + Black (H2)(10%)
sky grasper white partWhite (H1)(95%) + Yellow Green/Roman Green/Le Mans Green (H16)(5%) + Neutral Gray (H53)(small dose) + Blue (H5)(small dose)
sky grasper blue partCobalt Blue (H35)(40%) + Bright Blue/Indy Blue (H15)(40%) + White (H1)(20%)
sky grasper intake etc orange partOrange (H14)(70%) + White (H1)(20%) + Yellow (H4)(10%)
sky grasper landing gear etc silver partSilver (H8)(100%)
camera eye etc clear green partClear Green (H94)(50%) + Clear (H30)(50%)
Disclaimer


Construction Manual & Color Guide for the 1/60 PG Strike Rouge was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site.








Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Pink (H19)Pink (C63)Pink (X17)Old Rose (70.944)----------Pink (Gloss) (200)--------
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Brown (H7)Brown (C7)Brown (X9)Chocolate Brown (70.872)Burnt Umber (71.040)OLD RUST (A.MIG-0042)----Dark Brown (32181)Service Brown (Gloss) (10)------Flat Leather (4674AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Mahogany (H84)Mahogany (C42)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)DARK TRACKS (A.MIG-0035)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)------Flat Rust (4675AP)
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Yellow Green/Roman Green/Le Mans Green (H16)Yellow Green/Roman Green (C64)Light Green (X15)Lime Green (70.827)--GREEN BASE (A.MIG-0916)------Lime (Gloss) (38)--------
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Clear Green (H94)Clear Green (C138)Clear Green (X25)Transparent Green (Transparent) (70.936)--CRYSTAL GREEN (A.MIG-0092)Clear Green (RC505)----Green (Clear) (1325)--------
Clear (H30)Clear (C46)Clear (X22)Glossy Varnish (70.510)--GLOSSY VARNISH (A.MIG-0091)Gloss Varnish (RC502)Gloss Lacquer Clear Coat (HTK-XP09)Clear (solid gloss) (32101)Varnish (Gloss) (35)Gloss Clear Acrylic (2017)--Gloss Clear (LC73)Gloss Clear Acryl 35 ml (4638AP)
