MG Lukas's Strike E + I.W.S.P. English Color Guide & Manual

MG GAT-X105E Lukas's Strike E + I.W.S.P. English Translation Color Guide & Manual

Released in 2008 by Bandai was the 1/100 Master Grade variant of the GAT-X105E Strike E + I.W.S.P. of Lucas O'donnell from one of the Gundam Seed side stories released by the franchise to add further color to the Gundam Universe.

The Strike E of Lucas O'donnel is a variant of the Strike Gundam piloted by Kira Yamato, differing with having an IWSP back pack and having a shield with different design. Love that Gatling Gun in the shield, but to quote French General Pierre Bosquet, with regards to the Charge of the Light Brigade; "C'est magnifique, mais ce n'est pas la guerre." ("It is magnificent, but it is not war.") I know its science fiction, but any weapons designer worth his salt would know to never place a combustible weapon right next to a defensive implement, least they explode.

The MG GAT-X105E Lukas's Strike E + I.W.S.P. is selling for $ at Amazon, 3302 yen at Amiami, 3600 yen at HobbyLink Japan, 3600 yen at Hobby Search

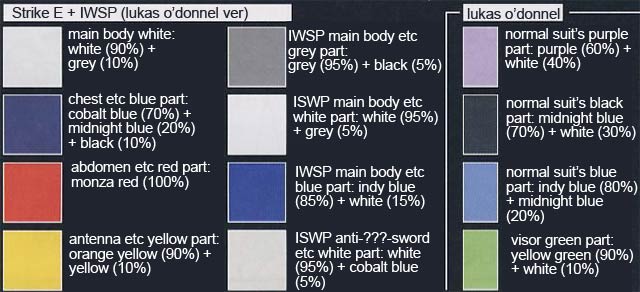

Color Guide DescriptionPaint Ratios
main body white partWhite (H1)(90%) + Gray/Nezumi (H22)(10%)
chest etc blue partCobalt Blue (H35)(70%) + Midnight Blue (H55)(20%) + Black (H2)(10%)
abdomen etc red partMonza Red/Red Madder (H86)(100%)
antenna etc yellow partOrange Yellow (H24)(90%) + Yellow (H4)(10%)
IWSP main body etc gray partGray/Nezumi (H22)(95%) + Black (H2)(5%)
IWSP main body etc white partWhite (H1)(95%) + Gray/Nezumi (H22)(5%)
IWSP main body etc blue partBright Blue/Indy Blue (H15)(85%) + White (H1)(15%)
IWSP anti ship sword etc white partWhite (H1)(95%) + Cobalt Blue (H35)(5%)
Lukas O'donnel normal suit's purple partPurple (H39)(60%) + White (H1)(40%)
Lukas O'donnel normal suit's black partMidnight Blue (H55)(60%) + White (H1)(40%)
Lukas O'donnel normal suit's blue partBright Blue/Indy Blue (H15)(80%) + Midnight Blue (H55)(20%)
Lukas O'donnel visor green partYellow Green/Roman Green/Le Mans Green (H16)(90%) + White (H1)(10%)
Disclaimer

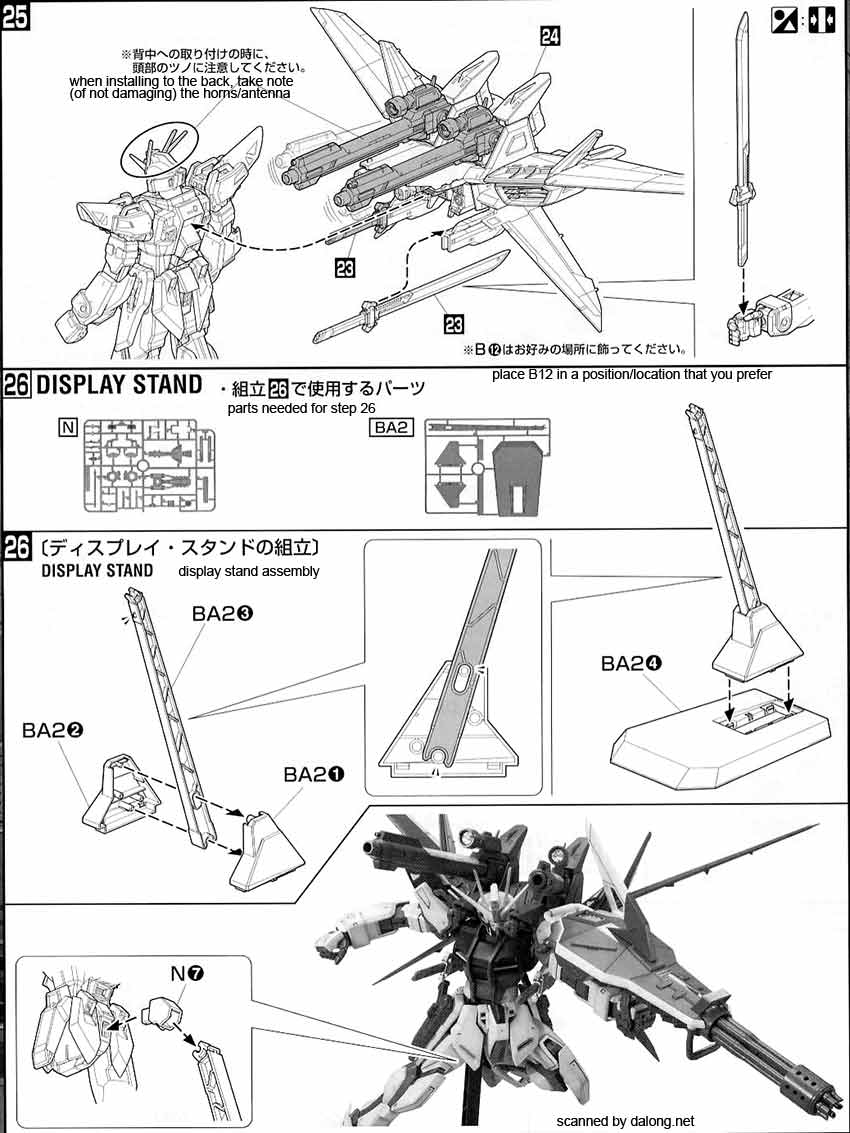

Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.

MG GAT-X105E Lukas's Strike E + I.W.S.P. Color Guide & Manual MG GAT-X105E Lukas's Strike E + I.W.S.P. Color Guide & Manual MG GAT-X105E Lukas's Strike E + I.W.S.P. Color Guide & Manual MG GAT-X105E Lukas's Strike E + I.W.S.P. Color Guide & Manual MG GAT-X105E Lukas's Strike E + I.W.S.P. Color Guide & Manual

MG GAT-X105E Lukas's Strike E + I.W.S.P. Color Guide & Manual MG GAT-X105E Lukas's Strike E + I.W.S.P. Color Guide & Manual MG GAT-X105E Lukas's Strike E + I.W.S.P. Color Guide & Manual MG GAT-X105E Lukas's Strike E + I.W.S.P. Color Guide & Manual MG GAT-X105E Lukas's Strike E + I.W.S.P. Color Guide & Manual

MG GAT-X105E Lukas's Strike E + I.W.S.P. Color Guide & Manual MG GAT-X105E Lukas's Strike E + I.W.S.P. Color Guide & Manual MG GAT-X105E Lukas's Strike E + I.W.S.P. Color Guide & Manual

Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)----Gloss White (4696AP)
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)----Flat Dark Gray (4754AP)
Cobalt Blue (H35)Cobalt Blue (C80)----------------------
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)Non Specular Sea Blue FS35042 (UA044)--
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)----Gloss Black (4695AP)
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)----------------------
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)----------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)----Gloss Yellow (4642AP)
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)------
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)------
Yellow Green/Roman Green/Le Mans Green (H16)Yellow Green/Roman Green (C64)Light Green (X15)Lime Green (70.827)--GREEN BASE (A.MIG-0916)------Lime (Gloss) (38)------
