MG GAT-X105 Strike Gundam + I.W.S.P. English Manual and Color Guide

MG GAT-X105 Strike Gundam + I.W.S.P. Construction Manual and Color Guide

The GAT-X105 Strike Gundam + I.W.S.P from the Gundam Seed Anime Series. IWSP stands for Integrated Weapons Striker Pack, its an amalgamation of the different strike packs that Strike Gundam usually uses. Judging from reviews I've scrounged of this kit from the web, this unit has a hard time standing up on its own. So you will definitely need to use the stand that they've included with the kit in order to pose it. Most probably the reason too, why they've decided to include a stand with the kit *snicker*.

Construction Manual and Color Guide was translated to English from the Japanese manual posted at Dalong. More model kit color guides can be found here.

The MG Strike Gundam + IWSP is selling for 4200 yen at HLJ, 2940 yen at HWJapan, 3081 yen at Amiami.

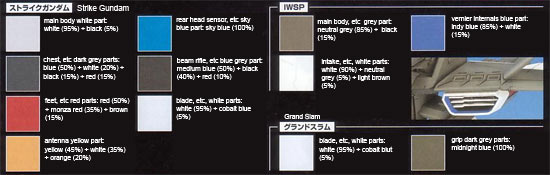

Color Guide DescriptionPaint Ratios
MG GAT-X105 Strike Gundam + I.W.S.P. main body white partWhite (H1)(95%) + Black (H2)(5%)
MG GAT-X105 Strike Gundam + I.W.S.P. chest, etc dark gray partsBlue (H5)(50%) + White (H1)(20%) + Black (H2)(15%) + Red (H3)(15%)
MG GAT-X105 Strike Gundam + I.W.S.P. feet, etc red partsRed (H3)(50%) + Monza Red/Red Madder (H86)(35%) + Brown (H7))(15%)
MG GAT-X105 Strike Gundam + I.W.S.P. antenna yellow partYellow (H4)(45%) + White (H1)(35%) + Orange (H14)(20%)
MG GAT-X105 Strike Gundam + I.W.S.P. rear head sensor etc sky blue partSky Blue (H25)(100%)
MG GAT-X105 Strike Gundam + I.W.S.P. beam rifle, etc blue gray partMedium Blue/Intermediate Blue (H56)(50%) + Black (H2)(40%) + Red (H3)(10%)
MG GAT-X105 Strike Gundam + I.W.S.P. blade etc white partsWhite (H1)(95%) + Cobalt Blue (H35)(5%)
IWSP main body etc gray partNeutral Gray (H53)(85%) + Black (H2)(15%)
IWSP intake etc white partsWhite (H1)(90%) + Neutral Gray (H53)(5%) + Light Brown (H321)(5%)
IWSP vernier internals blue partBright Blue/Indy Blue (H15)(85%) + White (H1)(15%)
Grand Slam blade etc white partsWhite (H1)(95%) + Cobalt Blue (H35)(5%)
Grand Slam grip dark partsMidnight Blue (H55)(100%)
Disclaimer






Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Brown (H7)Brown (C7)Brown (X9)Chocolate Brown (70.872)Burnt Umber (71.040)OLD RUST (A.MIG-0042)----Dark Brown (32181)Service Brown (Gloss) (10)------Flat Leather (4674AP)
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Light Brown (H321)Light Brown (C321)Deck Tan (XF55)--Light Brown (71.027)SANDGRAU (A.MIG-0009)Deck Tan (RC019)--beige (solid silk matt) (32314)Oak (Satin) (71)--------
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--

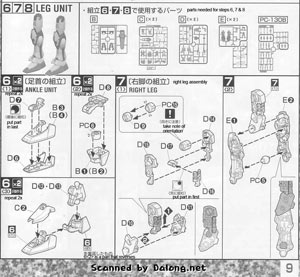

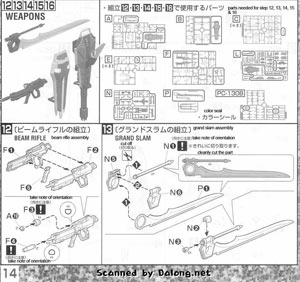

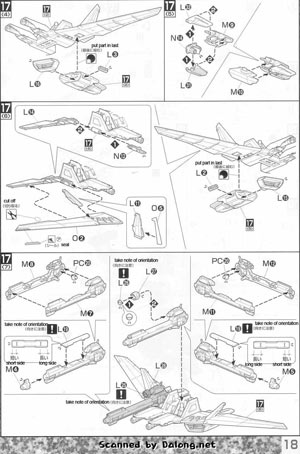

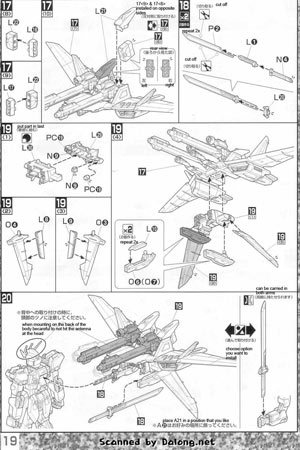

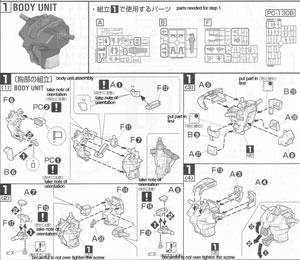

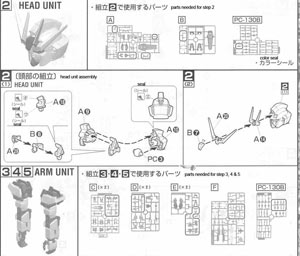

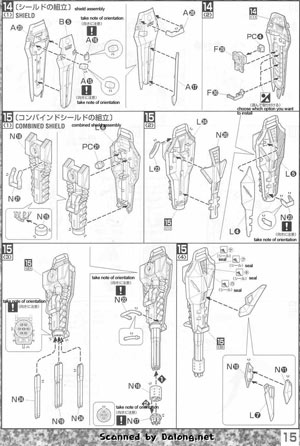

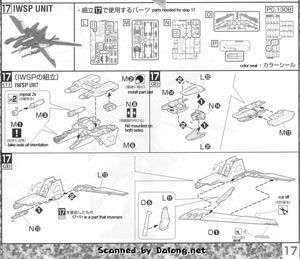

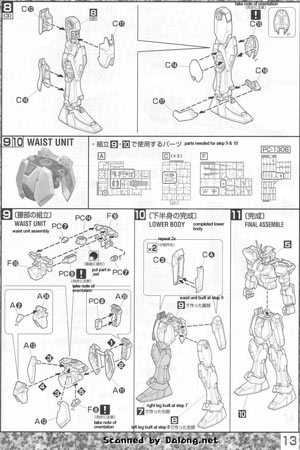

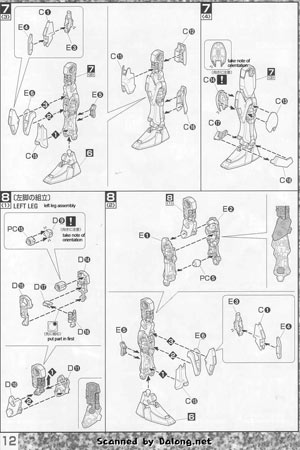

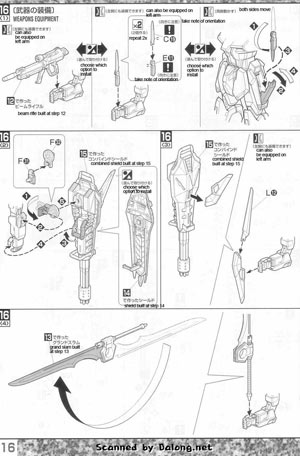

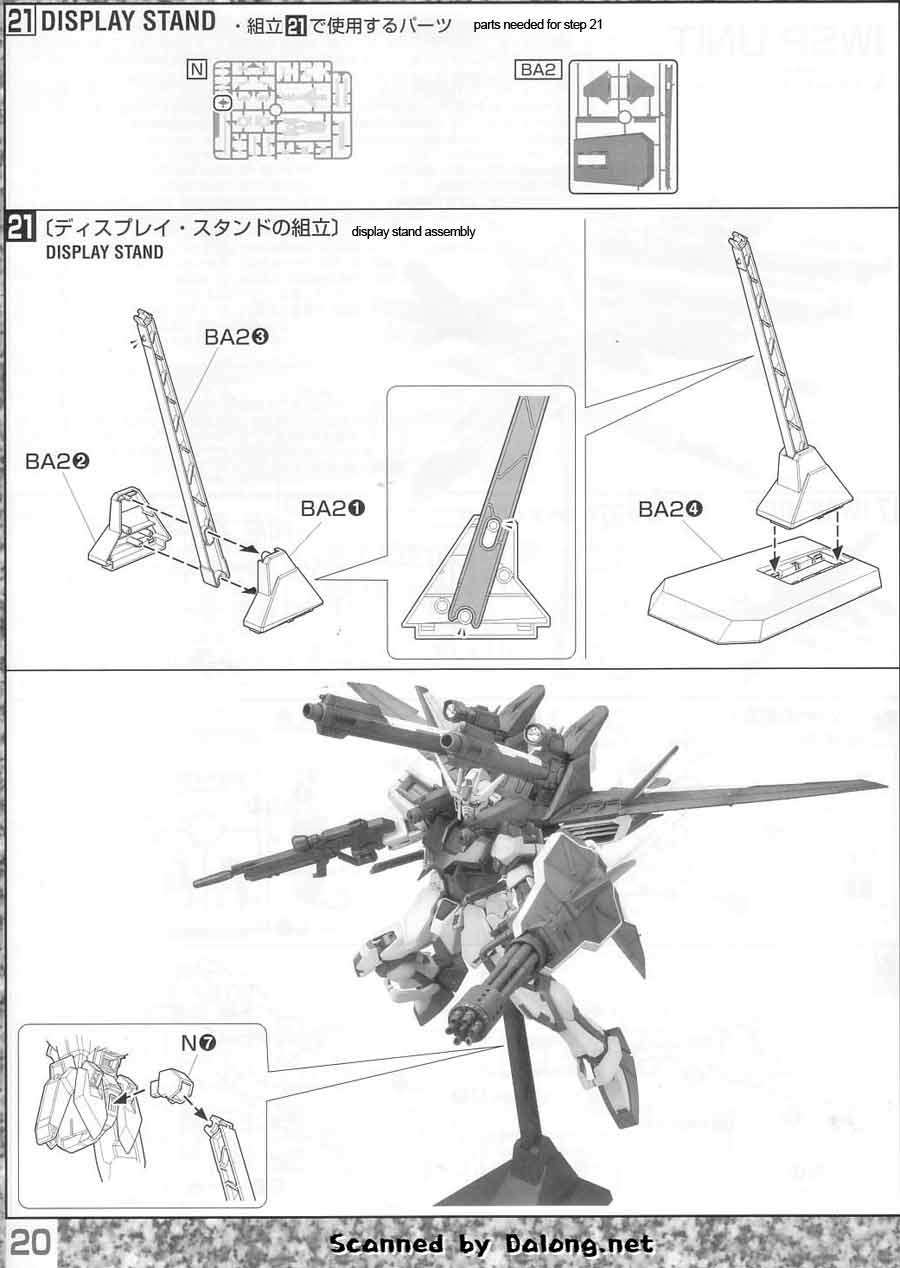

Construction Manual


MG GAT-X105 Strike Gundam + I.W.S.P. Construction Manual and Color Guide MG GAT-X105 Strike Gundam + I.W.S.P. Construction Manual and Color Guide m94_mb0008.thumbnail.jpg m94_mb0009.thumbnail.jpg MG GAT-X105 Strike Gundam + I.W.S.P. Construction Manual and Color Guide m94_mb0013.thumbnail.jpg

m94_mb0014.thumbnail.jpg MG GAT-X105 Strike Gundam + I.W.S.P. Construction Manual and Color Guide MG GAT-X105 Strike Gundam + I.W.S.P. Construction Manual and Color Guide m94_mb0017.thumbnail.jpg MG GAT-X105 Strike Gundam + I.W.S.P. Construction Manual and Color Guide MG GAT-X105 Strike Gundam + I.W.S.P. Construction Manual and Color Guide MG GAT-X105 Strike Gundam + I.W.S.P. Construction Manual and Color Guide
