MG Launcher/Sword Strike Gundam English Manual and Color Guide

MG GAT-105 Launcher/Sword Strike Gundam Construction Manual and Color Guide
Master Grade version of Kira Yamato's GAT-105 Strike Gundam with Launcher Strike and Sword Strike packs from the Gundam Seed anime series. At first glance of the box my first thoughts were, Whoa! 2 Gundams in 1 kit. Then of course reality set in and I realized that its just the Strike Gundam included in the kit with two striker packs included.

The Sword Striker pack is used by the Strike Gundam when it intends to do short range melee type of combats. While the Launcher Striker pack is more for ranged battles. If you want the traditional Strike Gundam, you can try buying the MG Aile Strike Gundam version.

The Master Grade GAT-105 Launcher/Sword Strike Gundam is selling for 3669 yen at Amiami, 5000 yen at Hobby Link Japan, 3500 yen at HWJapan, $$$$ at Amazon 3rd party sellers.

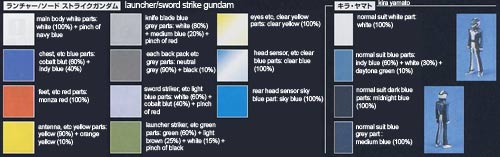

Color Guide DescriptionPaint Ratios
MG Launcher/Sword Strike Gundam main body white partsWhite (H1)(100%) + Navy Blue (H54)(small dose)
MG Launcher/Sword Strike Gundam chest, etc blue partsCobalt Blue (H35)(60%) + Bright Blue/Indy Blue (H15)(40%)
MG Launcher/Sword Strike Gundam feet, etc red partsMonza Red/Red Madder (H86)(100%)
MG Launcher/Sword Strike Gundam antenna etc yellow partsYellow (H4)(90%) + Orange Yellow (H24)(10%)
MG Launcher/Sword Strike Gundam knife blade blue gray partsWhite (H1)(80%) + Medium Blue/Intermediate Blue (H56)(20%) + Red (H3)(small dose)
MG Launcher/Sword Strike Gundam each backpack etc gray partsNeutral Gray (H53)(90%) + Black (H2)(10%)
MG Launcher/Sword Strike Gundam sword striker etc light blue partsWhite (H1)(60%) + Cobalt Blue (H35)(40%) + Red (H3)(small dose)
MG Launcher/Sword Strike Gundam launcher striker etc green partsGreen (H6)(60%) + Light Brown (H321)(25%) + White (H1)(15%) + Black (H2)(small dose)
MG Launcher/Sword Strike Gundam eyes etc clear yellow partsClear Yellow (H91)(100%)
MG Launcher/Sword Strike Gundam head sensor etc clear blue partsClear Blue (H93)(100%)
MG Launcher/Sword Strike Gundam rear head sensor sky blue partsSky Blue (H25)(100%)
Kira Yamato normal suit white partWhite (H1)(100%)
Kira Yamato normal suit blue partsBright Blue/Indy Blue (H15)(60%) + White (H1)(30%) + Bright Green/Daytona Green (H26)(10%)
Kira Yamato normal suit dark blue partsMidnight Blue (H55)(100%)
Kira Yamato normal suit blue gray partsMedium Blue/Intermediate Blue (H56)(100%)
Disclaimer




Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Green (H6)Green (C6)Green (X5)Black Green (70.980)--------sea green (solid matt) (32162)Brunswick Green (Gloss) (3)--------
Light Brown (H321)Light Brown (C321)Deck Tan (XF55)--Light Brown (71.027)SANDGRAU (A.MIG-0009)Deck Tan (RC019)--beige (solid silk matt) (32314)Oak (Satin) (71)--------
Clear Yellow (H91)Clear Yellow (C48)Clear Yellow (X24)------Clear Yellow (RC507)--------------
Clear Blue (H93)Clear Blue (C50)Clear Blue (X23)Transparent Blue (Transparent) (70.938)--CRYSTAL LIGHT BLUE (A.MIG-0098)Clear Blue (RC504)--blue (clear) (32752)--------Gloss Light Blue (4650AP)
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------
Bright Green/Daytona Green (H26)Bright Green/Daytona Green (C66)------SIGNAL GREEN (A.MIG-0054)----emerald green (solid matt) (32161)Emerald (Gloss) (2)--------
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--

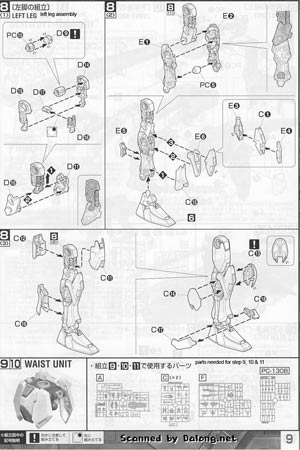

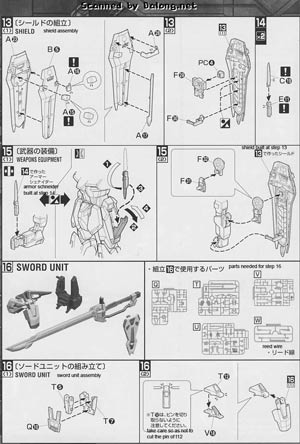

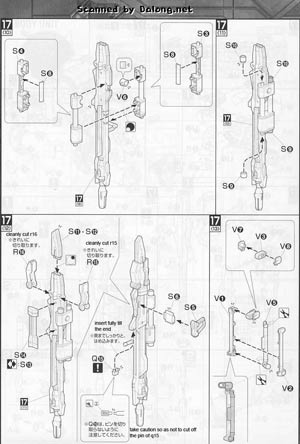

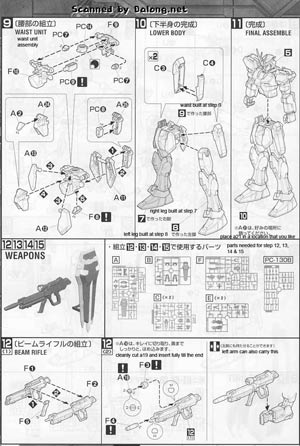

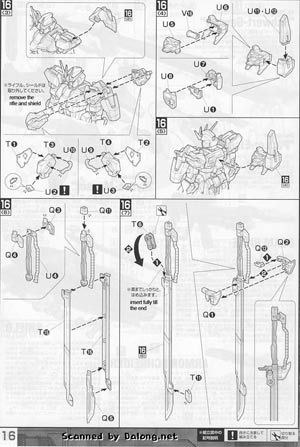

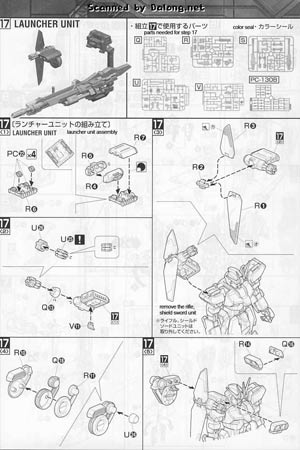

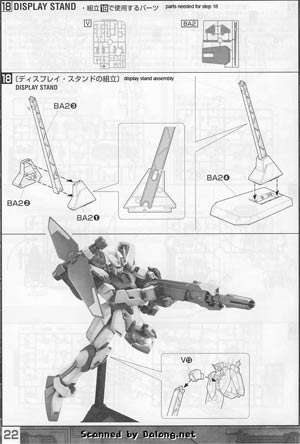

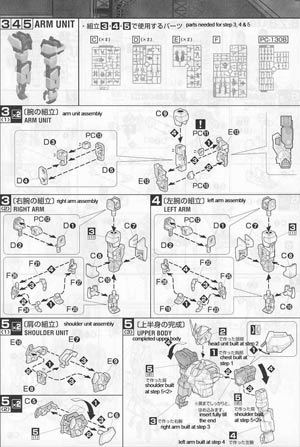

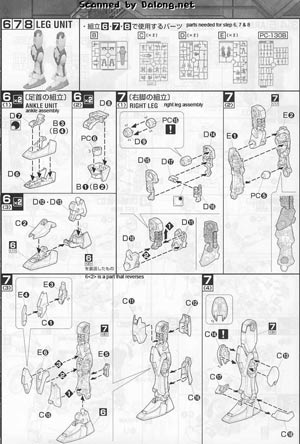

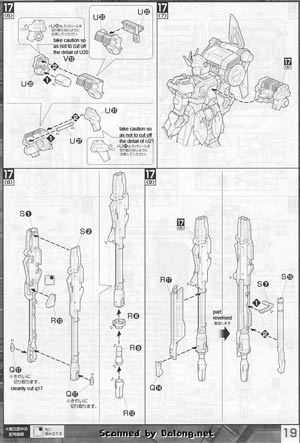

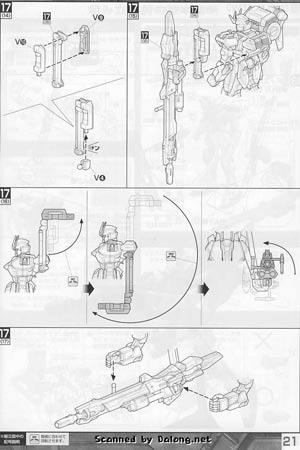

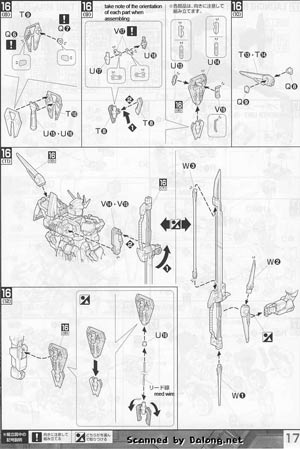

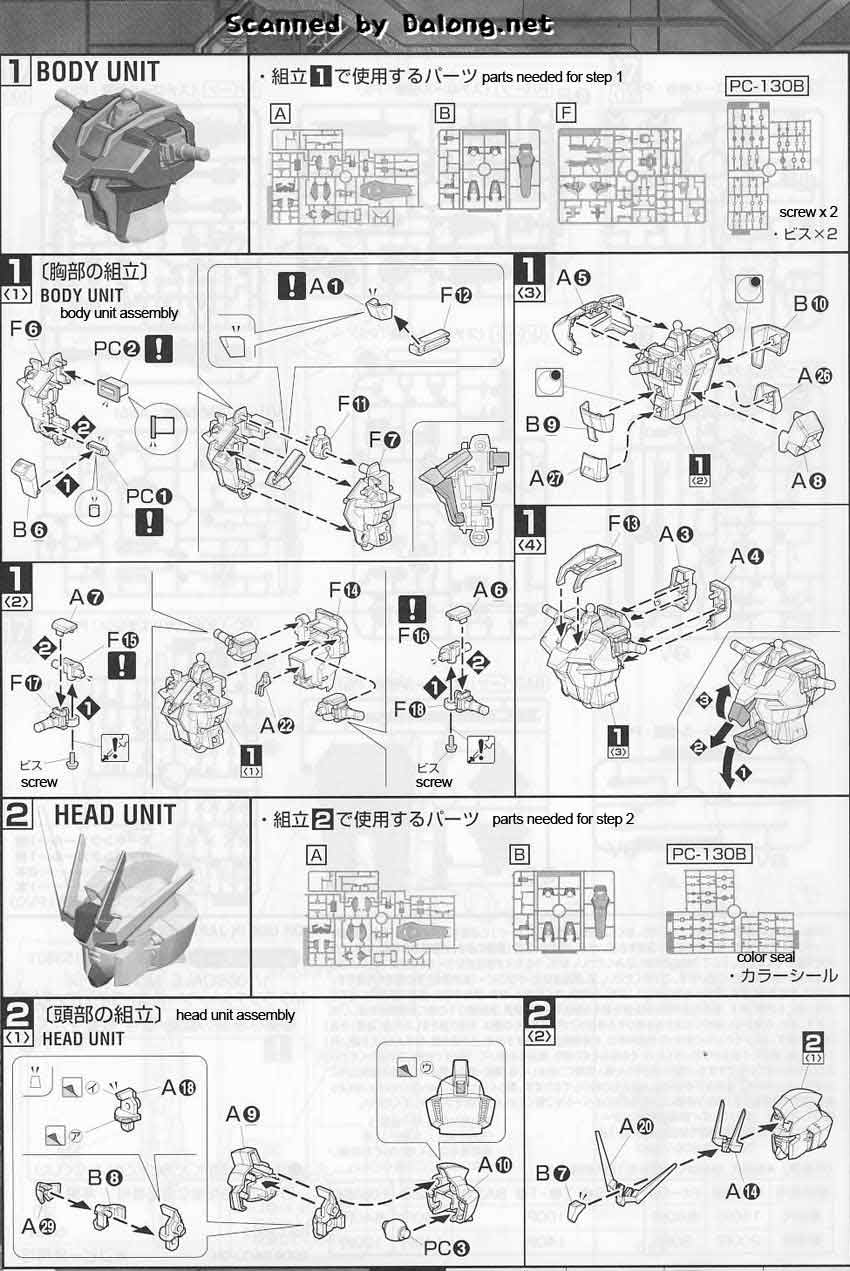

Color Guide and Construction Manual was translated to English from the Japanese manual posted at Dalong. For the meaning of the symbols found in the construction manual, you can check out this older post, here.
