MG RX-0 Unicorn Gundam English Manual & Color Guide

RX-0 Unicorn Gundam Construction Manual
Manual translated from the manual posted at Dalong's.


This manual is of the original RX-0 Unicorn Gundam ver Ka model kit. There is supposed to be an OVA version of the Master Grade Gundam Unicorn coming out this March. I'm guessing the manual can still apply to the new one slightly because there will be new parts included with that kit. If incase your looking for the color guide, translated Color Guide for the RX-0 Gundam Unicorn can be found here.

RX-0 Unicorn Gundam English Manual & Color Guide RX-0 Unicorn Gundam English Manual & Color Guide RX-0 Unicorn Gundam English Manual & Color Guide RX-0 Unicorn Gundam English Manual & Color Guide RX-0 Unicorn Gundam English Manual & Color Guide

RX-0 Unicorn Gundam English Manual & Color Guide RX-0 Unicorn Gundam English Manual & Color Guide RX-0 Unicorn Gundam English Manual & Color Guide RX-0 Unicorn Gundam English Manual & Color Guide RX-0 Unicorn Gundam English Manual & Color Guide

RX-0 Unicorn Gundam English Manual & Color Guide RX-0 Unicorn Gundam English Manual & Color Guide RX-0 Unicorn Gundam English Manual & Color Guide RX-0 Unicorn Gundam English Manual & Color Guide RX-0 Unicorn Gundam English Manual & Color Guide

RX-0 Unicorn Gundam English Manual & Color Guide RX-0 Unicorn Gundam English Manual & Color Guide

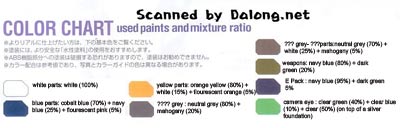

Color Guide DescriptionPaint Ratios
MG RX-0 Unicorn Gundam white partsWhite (C1)(100%)
MG RX-0 Unicorn Gundam blue partsCobalt Blue (C80)(70%) + Navy Blue (C14)(25%) + Flourescent Pink (C174)(5%)
MG RX-0 Unicorn Gundam yellow partsOrange Yellow (C58)(80%) + White (C1)(15%) + Flourescent Orange (C173)(5%)
MG RX-0 Unicorn Gundam joints gray partNeutral Gray (C13)(80%) + Mahogany (C42)(20%)
MG RX-0 Unicorn Gundam light gray partsNeutral Gray (C13)(70%) + White (C1)(25%) + Mahogany (C42)(5%)
MG RX-0 Unicorn Gundam weaponsNavy Blue (C14)(80%) + Dark Green (C70)(20%)
MG RX-0 Unicorn Gundam E packNavy Blue (C14)(95%) + Dark Green (C70)(5%)
MG RX-0 Unicorn Gundam camera eye Silver (C8)(100%) as a base and on top Clear Green (C138)(40%) + Clear Blue (C50)(10%) + Clear (C46)(50%)
Disclaimer






Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
--Flourescent Pink (C174)------------------------
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
--Flourescent Orange (C173)------------------------
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)------Flat Dark Gray (4754AP)
Mahogany (H84)Mahogany (C42)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)DARK TRACKS (A.MIG-0035)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)------Flat Rust (4675AP)
--Dark Green (C70)------------------------
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Clear Green (H94)Clear Green (C138)Clear Green (X25)Transparent Green (Transparent) (70.936)--CRYSTAL GREEN (A.MIG-0092)Clear Green (RC505)----Green (Clear) (1325)--------
Clear Blue (H93)Clear Blue (C50)Clear Blue (X23)Transparent Blue (Transparent) (70.938)--CRYSTAL LIGHT BLUE (A.MIG-0098)Clear Blue (RC504)--blue (clear) (32752)--------Gloss Light Blue (4650AP)
Clear (H30)Clear (C46)Clear (X22)Glossy Varnish (70.510)--GLOSSY VARNISH (A.MIG-0091)Gloss Varnish (RC502)Gloss Lacquer Clear Coat (HTK-XP09)Clear (solid gloss) (32101)Varnish (Gloss) (35)Gloss Clear Acrylic (2017)--Gloss Clear (LC73)Gloss Clear Acryl 35 ml (4638AP)
