MG RX-0 Unicorn Gundam HD Color with MS Cage English Manual and Color Guide

RX-0 Unicorn Gundam HD Color with MS Cage Construction Manual and Color Guide

Posted over at Dalong was the manual for the Master Grade Gundam Unicorn HD Color with MS Cage. With that on hand I translated both the Color Guide and the Construction Manual. This Unicorn Gundam model is a tad bit expensive than the regular Gundam Unicorn because of the MS Cage included in the kit. Its release is in time with the Gundam Unicorn OVA episode 1 that is being released this year.

The MG RX-0 Unicorn HD Color with MS cage is selling for 7500 yen at HLJ, 5480 yen at Amiami, 5475 yen at HWJapan, $$$$ at Amazon 3rd party sellers.

More model kit color guides can be found here.

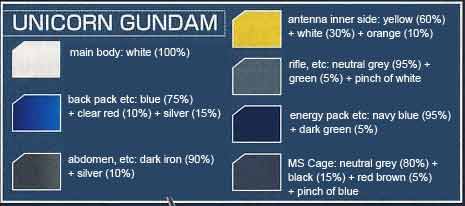

Color Guide DescriptionPaint Ratios
MG Unicorn Gundam main bodyWhite (H1)(100%)
MG Unicorn Gundam back pack etcBlue (H5)(75%) + Clear Red (H90)(10%) + Silver (H8)(15%)
MG Unicorn Gundam abdomen etcSteel (H18)(90%) + Silver (H8)(10%)
MG Unicorn Gundam antenna inner sideYellow (H4)(60%) + White (H1)(30%) + Orange (H14)(10%)
MG Unicorn Gundam rifle, etcNeutral Gray (H53)(95%) + Green (H6)(5%) + White (H1)(small dose)
MG Unicorn Gundam energy pack etcNavy Blue (H54)(95%) + Dark Green (H36)(5%)
MG Unicorn Gundam MS cageNeutral Gray (H53)(80%) + Black (H2)(15%) + Red Brown (H47)(5%) + Blue (H5)(small dose)

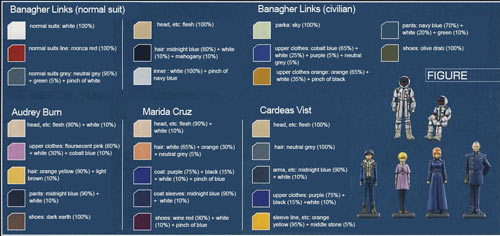

Banagher Lnks normal suitsWhite (H1)(100%)
Banagher Lnks normal suit's lineMonza Red/Red Madder (H86)(100%)
Banagher Lnks normal suit's grayNeutral Gray (H53)(95%) + Green (H6)(5%) + White (H1)(small dose)
Banagher Lnks headFlesh/Pale Brown (H44)(100%)
Banagher Lnks hairMidnight Blue (H55)(80%) + White (H1)(10%) + Mahogany (H84)(10%)
Banagher Lnks innerWhite (H1)(100%) + Navy Blue (H54)(small dose)
Banagher Links (Civilian) parkaSky (Duck Egg Green) (H74)(100%)
Banagher Links (Civilian) upper clothesCobalt Blue (H35)(65%) + White (H1)(25%) + Purple (H39)(5%) + Neutral Gray (H53)(5%)
Banagher Links (Civilian) upper clothes orangeOrange (H14)(65%) + White (H1)(35%) + Black (H2)(small dose)
Banagher Links (Civilian) pantsNavy Blue (H54)(70%) + White (H1)(20%) + Green (H6)(10%)
Banagher Links (Civilian) shoesOlive Drab (1) (H52)(100%)
Audrey Burn head, etcFlesh/Pale Brown (H44)(100%)
Audrey Burn upper clothesFlourescent Pink (C174)(60%) + White (C1)(30%) + Cobalt Blue (C80)(10%)
Audrey Burn hairOrange Yellow (H24)(90%) + Light Brown (H321)(10%)
Audrey Burn pantsMidnight Blue (H55)(90%) + White (H1)(10%)
Audrey Burn shoesDark Earth (H72)(100%)
Marida Cruz head, etcFlesh/Pale Brown (H44)(90%) + White (H1)(10%)
Marida Cruz hairWhite (H1)(65%) + Orange (H14)(30%) + Neutral Gray (H53)(5%)
Marida Cruz coatPurple (H39)(75%) + Black (H2)(15%) + White (H1)(10%) + Blue (H5)(small dose)
Marida Cruz coat sleevesMidnight Blue (H55)(90%) + White (H1)(10%)
Marida Cruz shoesWine Red/Maroon (H43)(90%) + White (H1)(10%) + Blue (H5)(small dose)
Cardeas Vist head, etcFlesh/Pale Brown (H44) (100%)
Cardeas Vist hairNeutral Gray (H53)(100%)
Cardeas Vist arms etcMidnight Blue (H55) (90%)+ White (H1)(10%)
Cardeas Vist upper clothesPurple (H39)(75%) + Black (H2)(15%) + White (H1)(10%)
Cardeas Vist sleeve line etcOrange Yellow (H24)(95%) + Middle Stone (H71)(5%)
Disclaimer






Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Clear Red (H90)Clear Red (C47)Clear Red (X27)Transparent Red (Transparent) (70.934)--CRYSTAL RED (A.MIG-0093)Clear Red (RC503)--red (clear) (32731)Red (Clear) (1321)------Gloss Red (4605AP)
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Steel (H18)Steel (C28)--Oily Steel (Metallic) (70.865)Steel (Metallic) (71.065)STEEL (A.MIG-0191)----steel (solid metallic) (32191)Polished Steel (metalcote) (27003)------Metal. Flat Steel (4679AP)
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Green (H6)Green (C6)Green (X5)Black Green (70.980)--------sea green (solid matt) (32162)Brunswick Green (Gloss) (3)--------
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Dark Green (H36)IJN Green (Nakajima) (C15)J.N. Green (XF11)Deep Green (70.970)Olive Green (71.007)DEEP GREEN (A.MIG-0052)--Fir Green (HTK-_289)--Bronze Green (Matte) (75)--------
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Red Brown (H47)Red Brown (C41)Red Brown (XF64)Flat Brown (70.984)Hull Red (71.039)ROTBRAUN (A.MIG-0014)S.C.C. 1A Brown (RC034)S.C.C. No. 1A Dark Brown (HTK-_077)--German Camouflage Red Brown (Matte) (160)Root Braun RAL 8012 (SG) (2152)--SCC 1A Very Dark Brown (UA274)Flat Earth Red (4707AP)
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Flesh/Pale Brown (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)SAND BROWN (A.MIG-0026)----brown (solid silk matt) (32185)Flesh (Matte) (61)------Flat Light Flesh (4390AP)
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--
Mahogany (H84)Mahogany (C42)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)DARK TRACKS (A.MIG-0035)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)------Flat Rust (4675AP)
Sky (Duck Egg Green) (H74)Duck Egg Green (C26)Sky (XF21)Pastel Green (70.885)Sky Type S (71.302)SKY TYPE S (A.MIG-0243)APC Interior Green (RC078)Seafoam Green (HTK-_239)--Duck Egg Blue (Matte) (23)--------
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)--------
Olive Drab (1) (H52)Olive Drab (1) (C12)Olive Drab (XF62)Brown Violet (70.887)German Green (71.020)DARK OLIVE DRAB (A.MIG-0237)Olive Drab No.9 / No.22 (RC023)US Olive Drab (Late) (HTK-_018)--Olive Drab (Matte) (155)Olive Drab ANA613 (F) (2050)----Flat Olive Drab (4315AP)
--Flourescent Pink (C174)------------------------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Light Brown (H321)Light Brown (C321)Deck Tan (XF55)--Light Brown (71.027)SANDGRAU (A.MIG-0009)Deck Tan (RC019)--beige (solid silk matt) (32314)Oak (Satin) (71)--------
Dark Earth (H72)Dark Earth (C22)Flat Earth (XF52)English Uniform (70.921)Dark Earth (71.029)MEDIUM BROWN (A.MIG-0070)RAF Dark Earth (RC287)Dark Earth (HTK-_009)Earth Brown (solid matt) (32187)Dark Earth (Matte) (29)Dark Earth ANA617 (F) (2054)RAF Dark Earth BS450 (X002)RAF Dark Earth FS 30118 (UA547)Flat Field Drab (4708AP)
Wine Red/Maroon (H43)Wine Red/Maroon (C100)--Red (70.926)--------Red (32132)Crimson (Gloss) (20)--------
Middle Stone (H71)Middle Stone (C21)--Middle Stone (70.882)Middlestone (71.031)DUNKELGELB BASE (A.MIG-0902)RAF Middle Stone (RC292)Mid Stone (HTK-_013)--Mid Stone (Matte) (84)RAF Middlestone ANA615 (F) (2052)--Middle Stone FS30266 (UA097)--

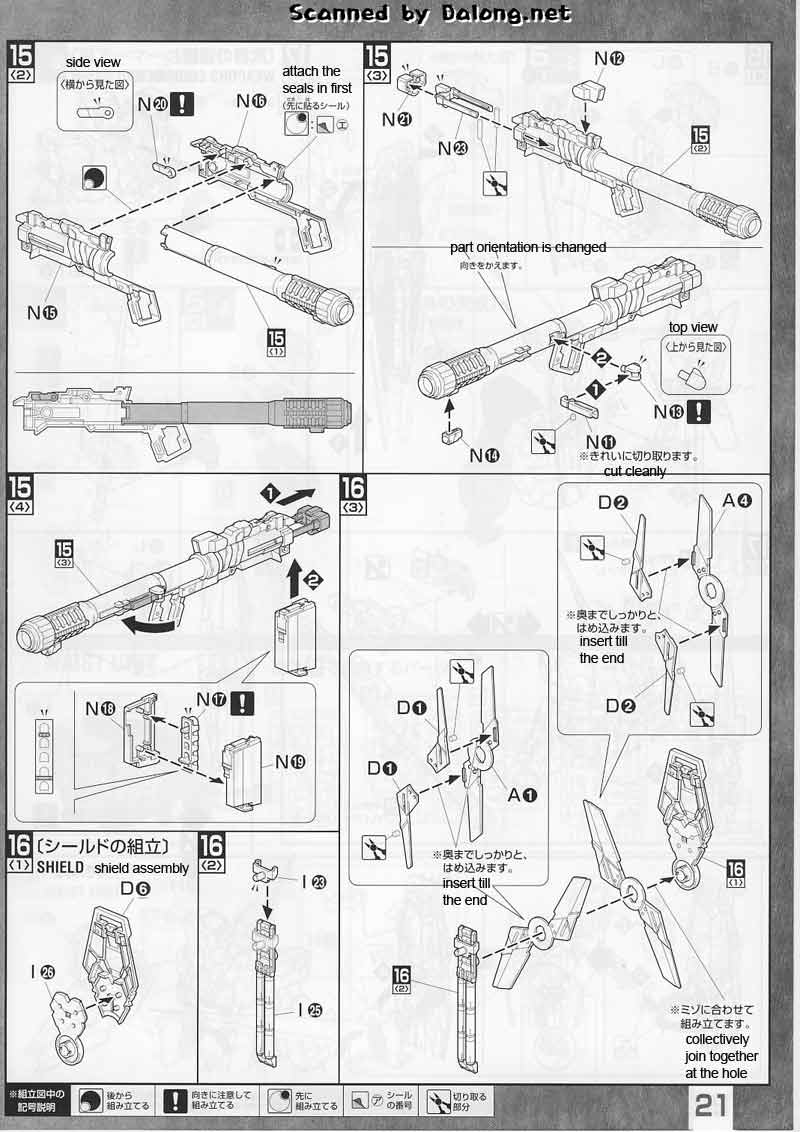

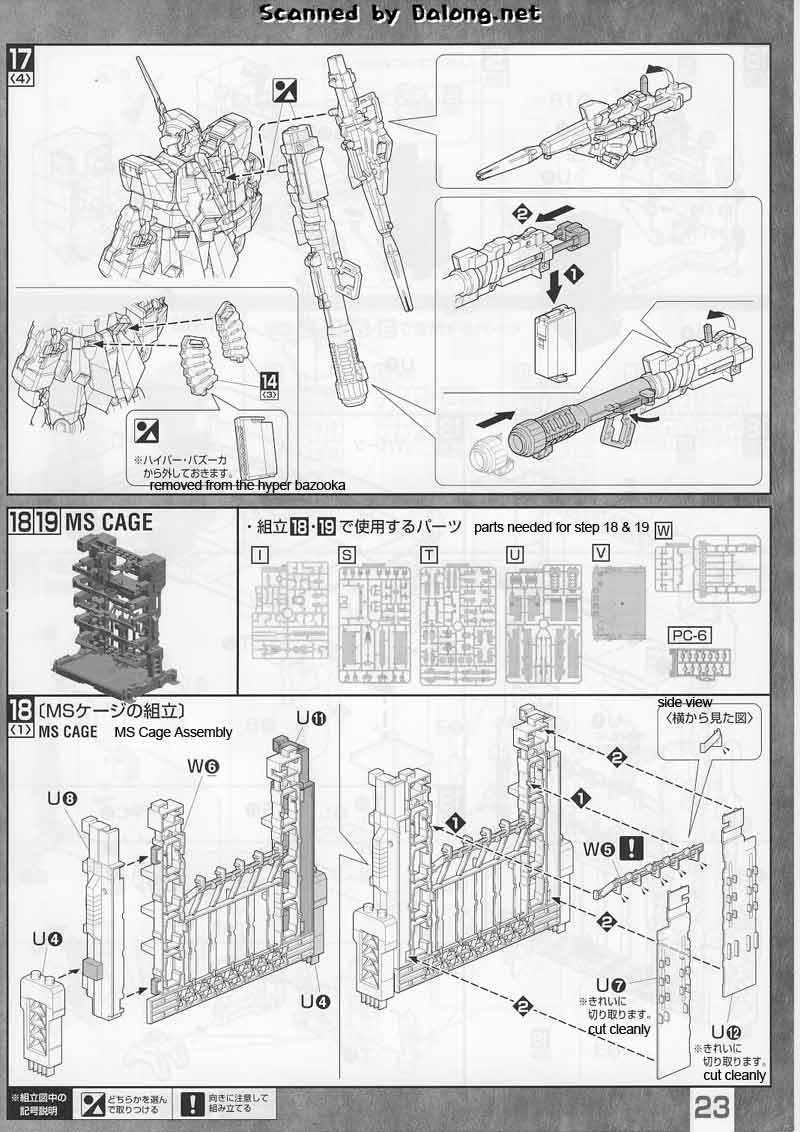

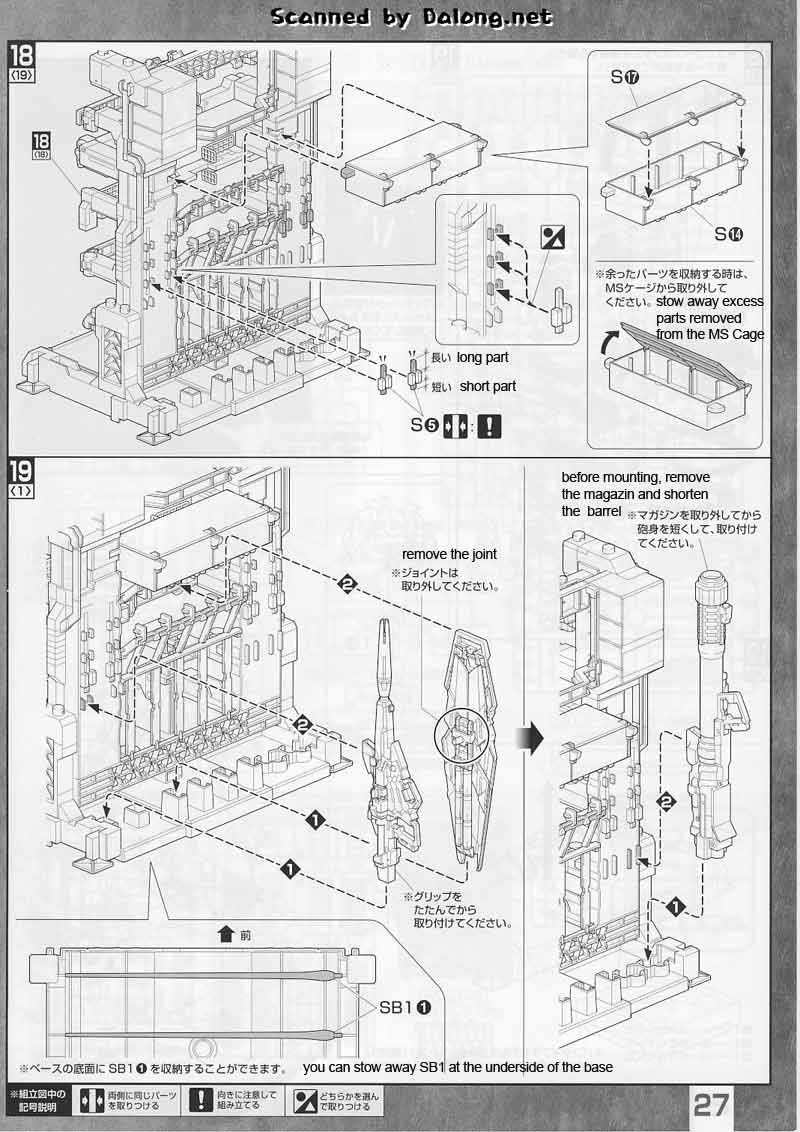

Construction Manual:


Meaning of the symbols found in the manual can be found here.
