MG Gundam Astray Blue Frame 2nd Revise English Manual & Color Guide

MG MBF-P03R Gundam Astray Blue Frame Second Revise Construction Manual
After the Red Frame, just had to translate the construction manual for the MG Gundam Astray Blue Frame. I recently finished building a non-grade 1/100 Gundam Astray Blue Frame. I love the Blue Frame so much that I actually dropped building the Gundam Dynames when I had bought the Blue Frame hehehe.

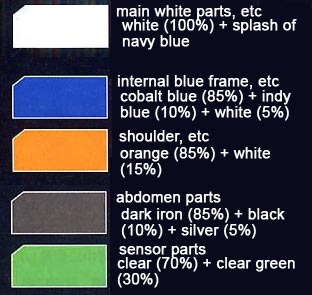

Color Guide DescriptionPaint Ratios
MG Gundam Astray Blue Frame 2nd Revise main white parts, etcWhite (H1)(100%) + Navy Blue (H54) (small dose)
MG Gundam Astray Blue Frame 2nd Revise internal blue frame etcCobalt Blue (H35)(85%) + Bright Blue/Indy Blue (H15)(10%) + White (H1)(5%)
MG Gundam Astray Blue Frame 2nd Revise shoulder etcOrange (H14)(85%) + White (H1)(15%)
MG Gundam Astray Blue Frame 2nd Revise abdomen partsSteel (H18)(85%) + Black (H2)(10%) + Silver (H8)(5%)
MG Gundam Astray Blue Frame 2nd Revise sensor partsClear (H30)(70%) + Clear Green (H94)(30%)
Disclaimer

Manual was translated to English from the Japanese manual posted at Dalong. Translated color guide for the Master Grade Blue Frame Astray can be found here. For the meaning of the symbols found in the kit, check out this past post.
