MG Gundam Astray Red Frame English Manual & Color Guide

MG Gundam Astray Red Frame Construction Manual & Color Guide

Another Bandai Hobby Shop Exclusive, the Master Grade version of the original Gundam Astray Red Frame from the Gundam Seed Universe. Not to be confused with the Master Grade Gundam Astray Red Frame Kai nor the non-grade 1/100 Gundam Astray Red Frame. Also, since its a Bandai Hobby Shop Exclusive, it will be rare to find this in your garden variety hobby shop, unless of course they have access to Bandai exclusives.

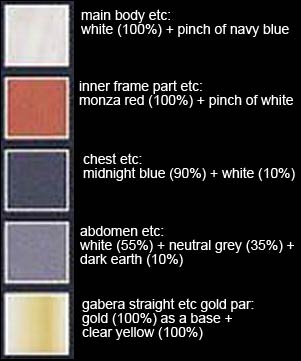

Color Guide DescriptionPaint Ratios
main body etcWhite (H1)(100%) + Navy Blue (H54)(small dose)
inner frame etcMonza Red/Red Madder (H86)(100%) + White (H1)(small dose)
chest etcMidnight Blue (H55)(90%) + White (H1)(10%)
abdomen etcWhite (H1)(55%) + Neutral Gray (H53)(35%) + Dark Earth (H72)(10%)
gabera straight etc gold partGold (H9)(100%) as a base and as a top coat Clear Yellow (H91)(100%)
Disclaimer


Available at these Online Shops:




Related Products

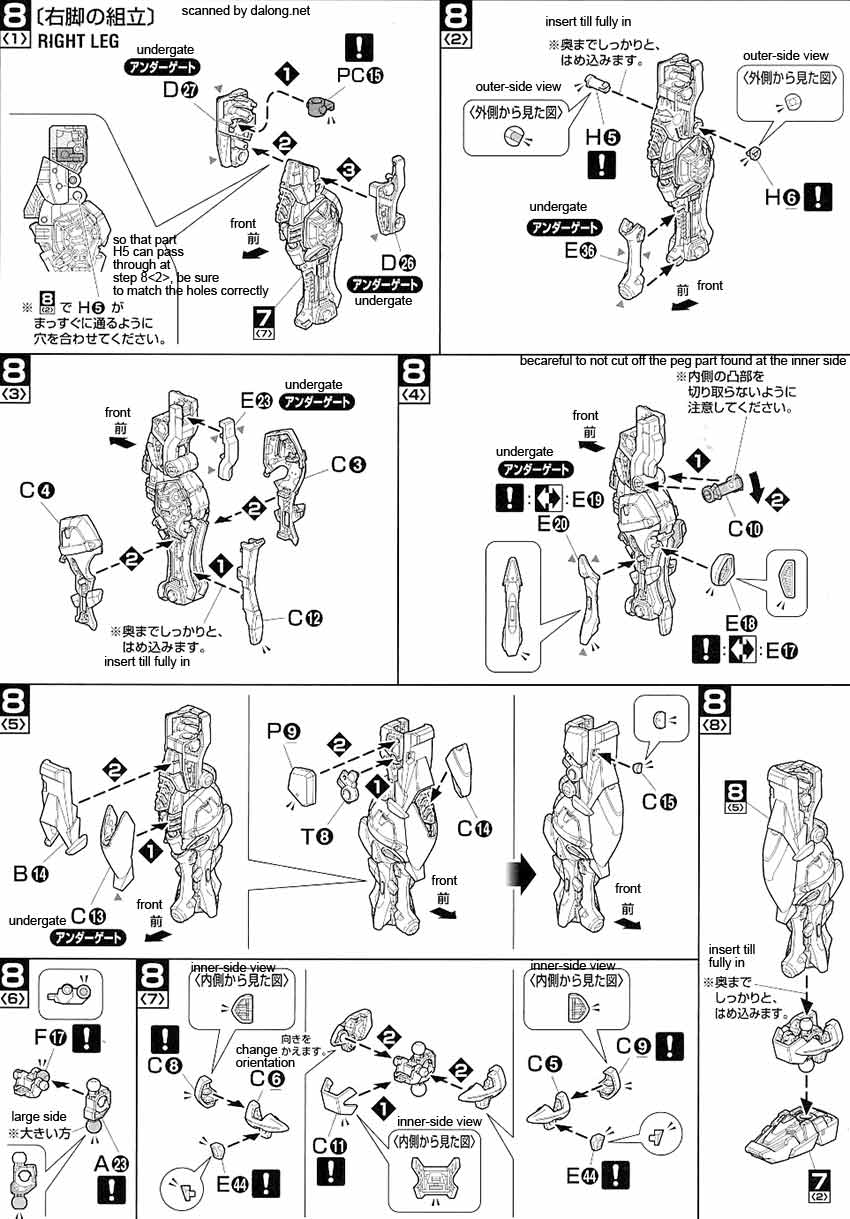

Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.

MG Gundam Astray Red Frame Construction Manual & Color Guide MG Gundam Astray Red Frame Construction Manual & Color Guide MG Gundam Astray Red Frame Construction Manual & Color Guide MG Gundam Astray Red Frame Construction Manual & Color Guide

MG Gundam Astray Red Frame Construction Manual & Color Guide MG Gundam Astray Red Frame Construction Manual & Color Guide MG Gundam Astray Red Frame Construction Manual & Color Guide MG Gundam Astray Red Frame Construction Manual & Color Guide

MG Gundam Astray Red Frame Construction Manual & Color Guide MG Gundam Astray Red Frame Construction Manual & Color Guide

Paint Conversion Table:  (Disclaimer| How to Use | Sitemap)


White
(H1)
Aqueous Hobby Color
White
(C1)
Mr. Color
White
(S1)
Mr. Color Spray
White
(X2)
Tamiya Color Acrylic Paint
Gloss White
(70.842)
Vallejo Model Color
White (Gloss)
(22)
Humbrol Enamel
White (Gloss)
(22)
Humbrol Acrylic
white (Gloss)
(36104)
Revell Aqua Color Acrylic
white (solid gloss)
(32104)
Revell Email Enamel
SATIN WHITE
(A.MIG-0047)
Ammo Acrylics
WHITE
(N1)
Acrysion
Gloss White
(4696AP)
Italeri
White
(X-2)
Tamiya Enamel
White (Lacquer Paint)
(LP2)
Tamiya Lacquer Paint
Pure White
(TS26)
Tamiya Color Spray Paints
Gold
(H9)
Aqueous Hobby Color
Gold
(C9)
Mr. Color
Gold
(S9)
Mr. Color Spray
Gold Leaf
(X12)
Tamiya Color Acrylic Paint
Gold (Metallic)
(70.996)
Vallejo Model Color
Gold (Metallic)
(71.066)
Vallejo Model Air
Gold (metallic)
(16)
Humbrol Enamel
Gold (metallic)
(16)
Humbrol Acrylic
Gold (solid metallic)
(36194)
Revell Aqua Color Acrylic
gold (solid metallic)
(32194)
Revell Email Enamel
GOLD
(A.MIG-0198)
Ammo Acrylics
GOLD
(N9)
Acrysion
Metal. Gloss Gold
(4671AP)
Italeri
Polished Gold
(72.055)
Vallejo Game Color
Polished Gold
(72.755)
Vallejo Game Air
Glorious Gold
(72.056)
Vallejo Game Color
Glorious Gold
(72.756)
Vallejo Game Air
GOLD
(AK11191)
AK 3rd Gen Acrylics

Neutral Gray
(H53)
Aqueous Hobby Color
Neutral Gray
(C13)
Mr. Color
Neutral Gray
(S13)
Mr. Color Spray
Neutral Gray
(XF53)
Tamiya Color Acrylic Paints (Flat)
Neutral Grey
(70.992)
Vallejo Model Color
Aggressor Gray
(71.274)
Vallejo Model Air
US Compass Grey (Satin)
(128)
Humbrol Enamel
US Compass Grey (Satin)
(128)
Humbrol Acrylic
Aggressor Gray FS36251
(1794)
Testors Model Master Enamel
Light Grey FS36251
(UA034)
Lifecolor
NEUTRAL GRAY
(A.MIG-0239)
Ammo Acrylics
Aggressor Grey
(RC248)
AK Real Color
Aggressor Grey
(HTK-_157)
Hataka
FS16251 Medium Grey
(X132)
Xtracolor
Neutral Gray
(N22)
Acrysion
Dark Sea Gray
(XF54)
Tamiya Color Acrylic Paints (Flat)
Dark Sea Grey
(70.991)
Vallejo Model Color
Neutral Grey
(71.051)
Vallejo Model Air
Air Mobility Command Gray FS36173
(2035)
Testors Model Master Enamel
Neutral Grey 43 FS35173
(UA046)
Lifecolor
(BS 638)
(A.MIG-0205)
Ammo Acrylics
Neutral Grey 43
(RC261)
AK Real Color
Neutral Grey 43
(HTK-_033)
Hataka
FS16173 Air Mobility Command Grey
(X158)
Xtracolor
Grey Z
(69.039)
Vallejo Mecha Color
Grey (solid silk matt)
(36374)
Revell Aqua Color Acrylic
grey (solid silk matt)
(32374)
Revell Email Enamel
Light Ghost Gray FS 36375 (F)
(1728)
Testors Model Master Enamel
PALE GREY
(AK11013)
AK 3rd Gen Acrylics
Deck Tan
(XF55)
Tamiya Color Acrylic Paints (Flat)
Deck Tan
(70.986)
Vallejo Model Color
Dark Ghost Gray FS 36320 (F)
(1741)
Testors Model Master Enamel
DECK TAN
(AK11114)
AK 3rd Gen Acrylics

Navy Blue
(H54)
Aqueous Hobby Color
Navy Blue
(C14)
Mr. Color
Navy Blue
(S14)
Mr. Color Spray
Dark Sea Blue
(70.898)
Vallejo Model Color
Steel Blue
(71.087)
Vallejo Model Air
Navy Blue (Matte)
(77)
Humbrol Enamel
Navy Blue (Matte)
(77)
Humbrol Acrylic
Greyish Blue (solid matt)
(36179)
Revell Aqua Color Acrylic
Greyish Blue (solid matt)
(32179)
Revell Email Enamel
Flat Sea Blue FS35042
(1718)
Testors Model Master Enamel
Non Specular Sea Blue FS35042
(UA044)
Lifecolor
SEA BLUE
(A.MIG-0227)
Ammo Acrylics
Graublau – Grey Blue
(RC208)
AK Real Color
Grey-Blue
(HTK-_171)
Hataka
RAL5008 Graublau
(X264)
Xtracolor
Navy Blue
(N54)
Acrysion
Flat Non Specular Sea Blue
(4604AP)
Italeri
Titan Dark Blue
(69.022)
Vallejo Mecha Color
Field Blue
(XF50)
Tamiya Color Acrylic Paints (Flat)
Grey Blue
(71.005)
Vallejo Model Air
Titan's Blue 1
(UG16)
Gundam Color
DARK SEA BLUE
(AK11190)
AK 3rd Gen Acrylics
Sea Blue
(XF17)
Tamiya Color Acrylic Paints (Flat)
Blue Grey (Matte)
(79)
Humbrol Enamel
Blue Grey (Matte)
(79)
Humbrol Acrylic
Dust grey (solid matt)
(36177)
Revell Aqua Color Acrylic
Dust grey (solid matt)
(32177)
Revell Email Enamel

Midnight Blue
(H55)
Aqueous Hobby Color
Midnight Blue
(C71)
Mr. Color
Royal Blue
(X3)
Tamiya Color Acrylic Paint
USN Sea Blue
(71.295)
Vallejo Model Air
Flat Sea Blue FS35042
(1718)
Testors Model Master Enamel
Non Specular Sea Blue FS35042
(UA044)
Lifecolor
Sea Blue
(RC257)
AK Real Color
Semi-Gloss Sea Blue
(HTK-_006)
Hataka
Midnight Blue
(N55)
Acrysion
Sea Blue
(XF17)
Tamiya Color Acrylic Paints (Flat)
Greyish Blue (solid matt)
(36179)
Revell Aqua Color Acrylic
Greyish Blue (solid matt)
(32179)
Revell Email Enamel

Dark Earth
(H72)
Aqueous Hobby Color
Dark Earth
(C22)
Mr. Color
Flat Earth
(XF52)
Tamiya Color Acrylic Paints (Flat)
English Uniform
(70.921)
Vallejo Model Color
Dark Earth
(71.029)
Vallejo Model Air
Dark Earth (Matte)
(29)
Humbrol Enamel
Dark Earth (Matte)
(29)
Humbrol Acrylic
Earth Brown (solid matt)
(36187)
Revell Aqua Color Acrylic
Earth Brown (solid matt)
(32187)
Revell Email Enamel
Dark Earth ANA617
(4846)
Testors Model Master Acrylic
Dark Earth ANA617 (F)
(2054)
Testors Model Master Enamel
RAF Dark Earth FS 30118
(UA547)
Lifecolor
MEDIUM BROWN
(A.MIG-0070)
Ammo Acrylics
RAF Dark Earth
(RC287)
AK Real Color
Dark Earth
(HTK-_009)
Hataka
RAF Dark Earth BS450
(X002)
Xtracolor
Dark Earth
(N72)
Acrysion
Flat Field Drab
(4708AP)
Italeri
Earth
(72.062)
Vallejo Game Color
Earth
(72.762)
Vallejo Game Air
US Earth Brown
(71.290)
Vallejo Model Air
US Tank Earth Brown FS30099
(UA087)
Lifecolor
(BRITISH 1941-42 SERVICE DRAB)
(A.MIG-0111)
Ammo Acrylics
No.5 Earth Brown
(RC029)
AK Real Color
Flat Dark Earth
(4303AP)
Italeri
BS Dark Earth
(71.323)
Vallejo Model Air
Flat Marrone Mimetico 2
(4641AP)
Italeri
Flat Bruno Mimetico
(4644AP)
Italeri
Dark Earth BS381C/450
(C369)
Mr. Color
Flat Dark Earth Ana 617
(4846AP)
Italeri
Earth Brown
(HTK-_256)
Hataka
BS Dark Earth
(HTK-_206)
Hataka
Brown (solid matt)
(36185)
Revell Aqua Color Acrylic
brown (solid silk matt)
(32185)
Revell Email Enamel
BRITISH KHAKI
(AK11127)
AK 3rd Gen Acrylics

Monza Red/Red Madder
(H86)
Aqueous Hobby Color
Monza Red/Red Madder
(C68)
Mr. Color
Red Madder
(S68)
Mr. Color Spray
Red Madder
(N86)
Acrysion
Dark Vermillion
(70.947)
Vallejo Model Color
Scarlet (Matte)
(60)
Humbrol Enamel
Scarlet (Matte)
(60)
Humbrol Acrylic
Red
(RC006)
AK Real Color
VERMILLION
(AK11090)
AK 3rd Gen Acrylics

Clear Yellow
(H91)
Aqueous Hobby Color
Clear Yellow
(C48)
Mr. Color
Clear Yellow
(S48)
Mr. Color Spray
Clear Yellow
(X24)
Tamiya Color Acrylic Paint
Clear Yellow
(RC507)
AK Real Color
Clear Yellow
(N91)
Acrysion
Clear Yellow
(X-24)
Tamiya Enamel
Clear Yellow (Lacquer Paint)
(LP69)
Tamiya Lacquer Paint
CLEAR YELLOW
(AK11217)
AK 3rd Gen Acrylics
Transparent Yellow (Transparent)
(70.937)
Vallejo Model Color
