1/100 Gundam Astray Green Frame of Trojan Noiret English Color Guide & Manual

1/100 Gundam Astray Green Frame of Trojan Noiret Color Guide

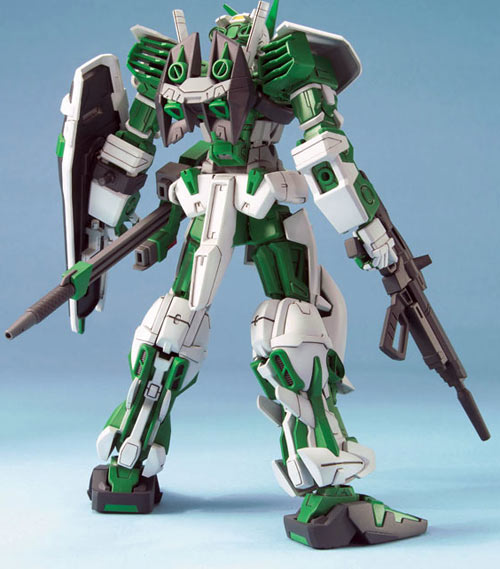

Trojan Noiret's Gundam Astray Green Frame that is part of the mecha found in the SEED vs Astray side story of Gundam Seed. Since I'm a huge fan of the Astray design I'd be sure to buy this if ever one comes within reach of me. So huge a fan that I'd be willing to over look the fact that its just a Gundam Astray Red Frame that was colored green and the Gerbera Strait sword was ditched in place of a rifle *snicker*

1/100 Gundam Astray Green Frame of Trojan Noiret Color Guide

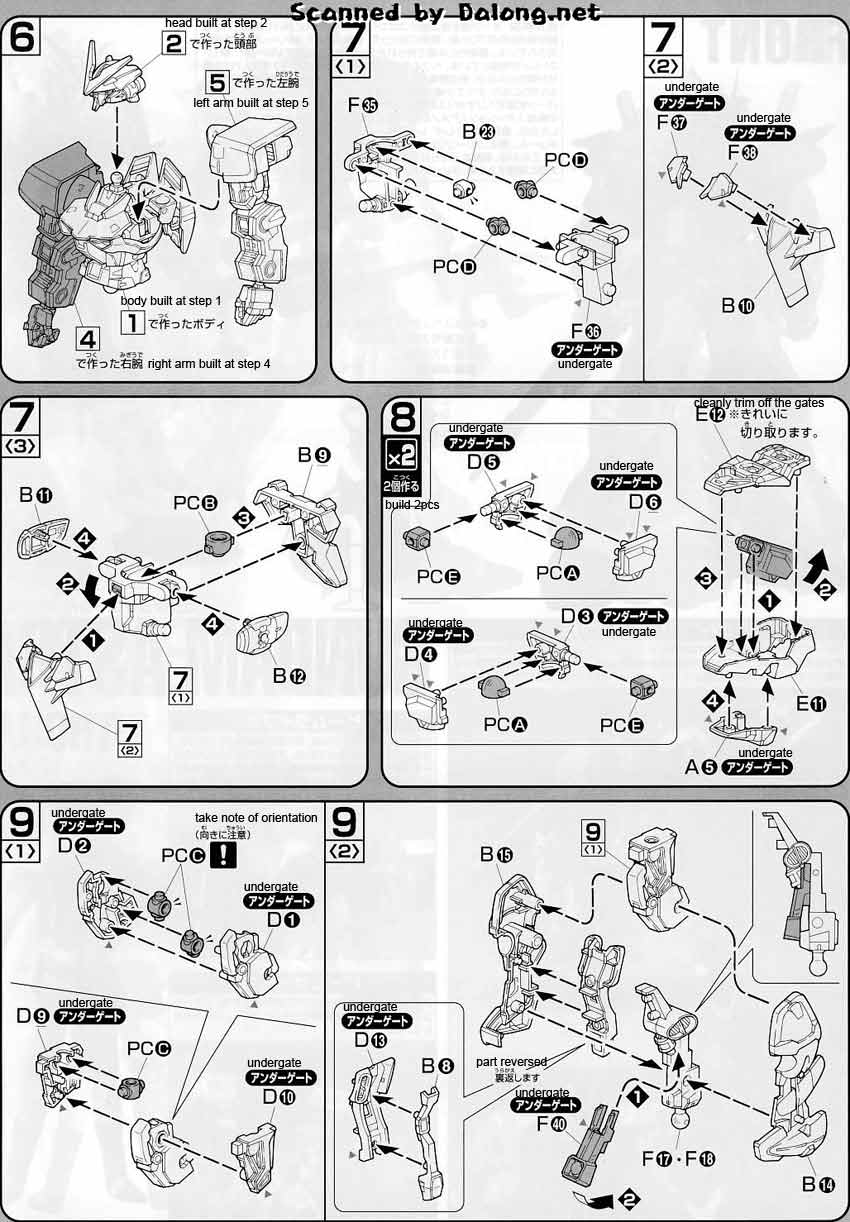

Color Guide & Construction Manual for the 1/100 Gundam Astray Green Frame was translated to English from the manual posted at Dalong.

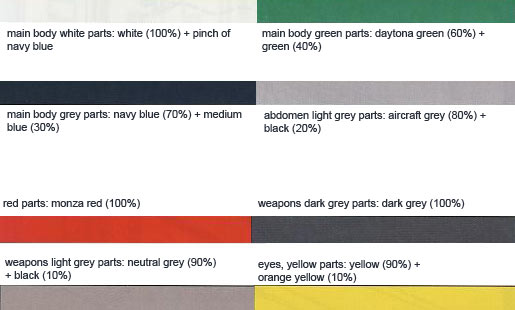

Color Guide DescriptionPaint Ratios
Gundam Astray Green Frame main body white partsWhite (H1)(100%) + Navy Blue (H54)(small dose)
Gundam Astray Green Frame main body green partsBright Green/Daytona Green (H26)(60%) + Green (H6)(40%)
Gundam Astray Green Frame main body gray partsNavy Blue (H54)(70%) + Medium Blue/Intermediate Blue (H56)(30%)
Gundam Astray Green Frame abdomen light gray partsAircraft Gray (H57)(80%) + Black (H2)(20%)
Gundam Astray Green Frame red partsMonza Red/Red Madder (H86)(100%)
Gundam Astray Green Frame weapons dark gray partsDark Gray (1) (H82)(100%)
Gundam Astray Green Frame weapons light gray partsNeutral Gray (H53)(90%) + Black (H2)(10%)
Gundam Astray Green Frame eyes, yellow partsYellow (H4)(90%) + Orange Yellow (H24)(10%)

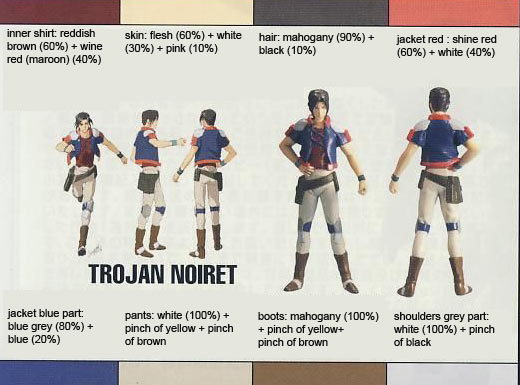

trojan noiret inner shirtRusset / Azuki (H33)(60%) + Wine Red/Maroon (H43)(40%)
trojan noiret skinFlesh/Pale Brown (H44)(60%) + White (H1)(30%) + Pink (H19)(10%)
trojan noiret hairMahogany (H84)(90%) + Black (H2)(10%)
trojan noiret jacket red partShine Red (H23)(60%) + White (H1)(40%)
trojan noiret jacket blue partBlue Gray (H42)(80%) + Blue (H5)(20%)
trojan noiret pantsWhite (H1)(100%) + Yellow (H4)(small dose) + Brown (H7)(small dose)
trojan noiret bootsMahogany (H84)(100%) + Yellow (H4)(small dose) + Brown (H7)(small dose)
trojan noiret shoulders gray partWhite (H1)(100%) + Black (H2)(small dose)
Disclaimer






Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Bright Green/Daytona Green (H26)Bright Green/Daytona Green (C66)------SIGNAL GREEN (A.MIG-0054)----emerald green (solid matt) (32161)Emerald (Gloss) (2)--------
Green (H6)Green (C6)Green (X5)Black Green (70.980)--------sea green (solid matt) (32162)Brunswick Green (Gloss) (3)--------
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Aircraft Gray (H57)Aircraft Gray (C73)J.A. Gray (XF14)------------Light Grey (Matte) (147)--------
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Dark Gray (1) (H82)Dark Gray(1) (C31)------FS 36293 (A.MIG-0236)----------------
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Russet / Azuki (H33)Russet/Azuki (C81)--------------Brown (Satin) (133)------Flat Wood (4673AP)
Wine Red/Maroon (H43)Wine Red/Maroon (C100)--Red (70.926)--------Red (32132)Crimson (Gloss) (20)--------
Flesh/Pale Brown (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)SAND BROWN (A.MIG-0026)----brown (solid silk matt) (32185)Flesh (Matte) (61)------Flat Light Flesh (4390AP)
Pink (H19)Pink (C63)Pink (X17)Old Rose (70.944)----------Pink (Gloss) (200)--------
Mahogany (H84)Mahogany (C42)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)DARK TRACKS (A.MIG-0035)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)------Flat Rust (4675AP)
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Blue Gray (H42)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)French Mirage Blue (70.900)IDF Blue (71.113)FRENCH BLUE (A.MIG-0062)----Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)------Flat Non Specular Interm. Blue (4639AP)
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Brown (H7)Brown (C7)Brown (X9)Chocolate Brown (70.872)Burnt Umber (71.040)OLD RUST (A.MIG-0042)----Dark Brown (32181)Service Brown (Gloss) (10)------Flat Leather (4674AP)

The Gundam Astray Green Frame is selling for 1832 yen at Amiami, 1750 yen at HWJapan, 2500 yen at Hobby Link Japan, 2500 yen at Hobby Search, $$$$ at Amazon 3rd party sellers.
