MG Gundam Amazing Red Warrior English Manual & Color Guide

MG Gundam Amazing Red Warrior Construction Manual & Color Guide

MG Gundam Amazing Red Warrior Construction Manual & Color Guide

Color Guide DescriptionPaint Ratios

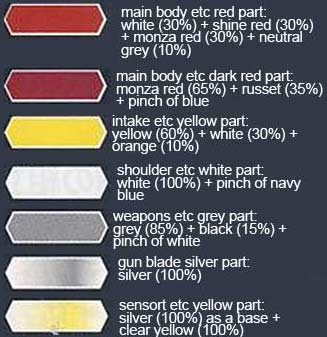

MG Gundam Amazing Red Warrior main body etc red partWhite (H1)(30%) + Shine Red (H23)(30%) + Monza Red/Red Madder (H86)(30%) + Neutral Gray (H53)(10%)
MG Gundam Amazing Red Warrior main body etc dark red partMonza Red/Red Madder (H86)(65%) + Russet / Azuki (H33)(35%) + Blue (H5)(small dose)
MG Gundam Amazing Red Warrior intake etc yellow partYellow (H4)(60%) + White (H1)(30%) + Orange (H14)(10%)
MG Gundam Amazing Red Warrior shoulder etc white partWhite (H1)(100%) + Navy Blue (H54)(small dose)
MG Gundam Amazing Red Warrior weapons etc gray partGray/Nezumi (H22)(85%) + Black (H2)(15%) + White (H1)(small dose)
MG Gundam Amazing Red Warrior gun blade silver partSilver (H8)(100%)
MG Gundam Amazing Red Warrior sensor etc yellow partSilver (H8)(100%) as a base and on top Clear Yellow (H91)(100%)

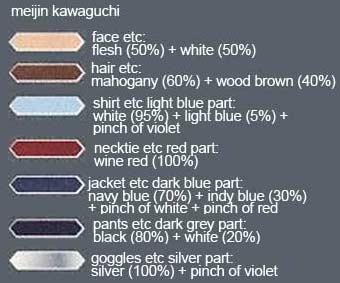

Meijin Kawaguchi face etcFlesh/Pale Brown (H44)(50%) + White (H1)(50%)
Meijin Kawaguchi hair etcMahogany (H84)(60%) + Wood Brown (H37)(40%)
Meijin Kawaguchi shirt etc light blue partWhite (H1)(95%) + Light Blue/mizu (H45)(5%) + Violet (H49)(small dose)
Meijin Kawaguchi necktie etc red partWine Red/Maroon (H43)(100%)
Meijin Kawaguchi jacket etc dark blue partNavy Blue (H54)(70%) + Bright Blue/Indy Blue (H15)(30%) + White (H1)(small dose) + Red (H3)(small dose)
Meijin Kawaguchi pants etc dark gray partBlack (H2)(80%) + White (H1)(20%)
Meijin Kawaguchi goggles etc silver partSilver (H8)(100%) + Violet (H49)(small dose)
Disclaimer


Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.

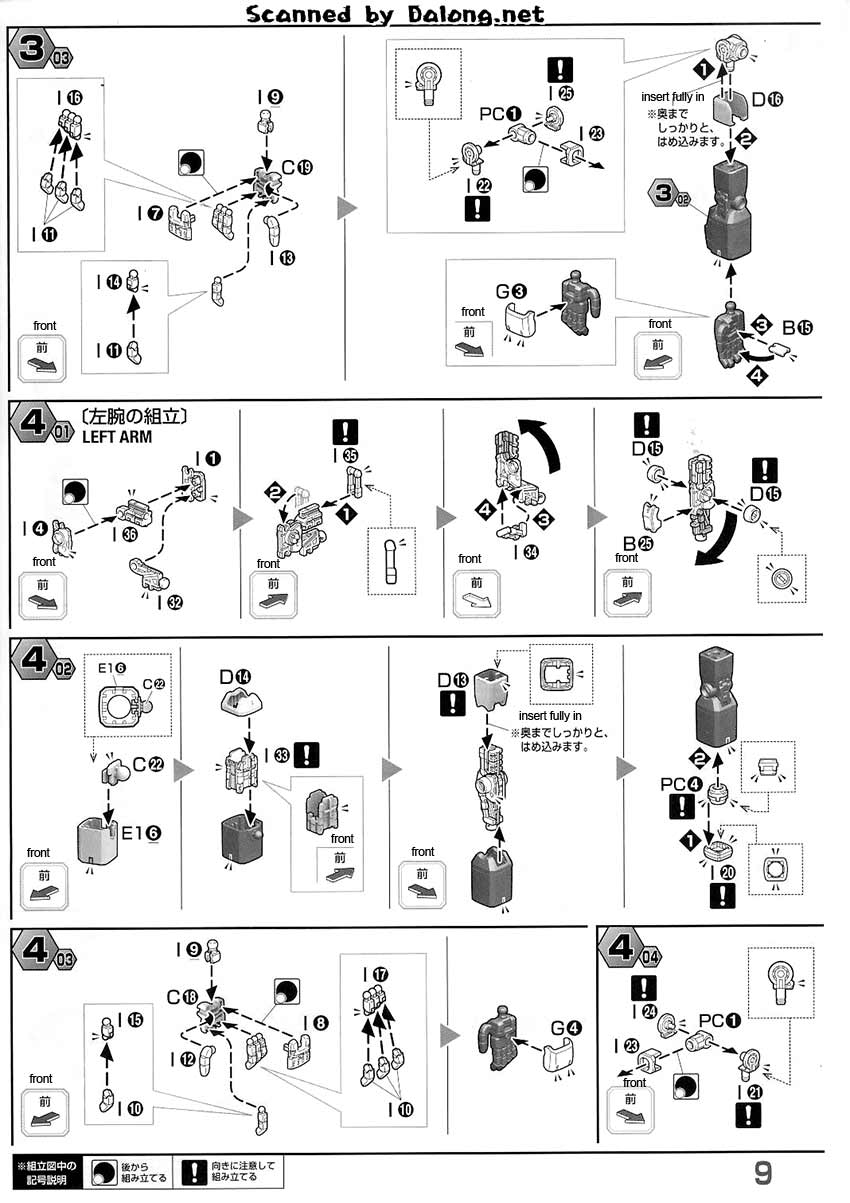

MG Gundam Amazing Red Warrior Construction Manual & Color GuideMG Gundam Amazing Red Warrior Construction Manual & Color GuideMG Gundam Amazing Red Warrior Construction Manual & Color GuideMG Gundam Amazing Red Warrior Construction Manual & Color Guide
MG Gundam Amazing Red Warrior Construction Manual & Color GuideMG Gundam Amazing Red Warrior Construction Manual & Color GuideMG Gundam Amazing Red Warrior Construction Manual & Color GuideMG Gundam Amazing Red Warrior Construction Manual & Color Guide
MG Gundam Amazing Red Warrior Construction Manual & Color GuideMG Gundam Amazing Red Warrior Construction Manual & Color GuideMG Gundam Amazing Red Warrior Construction Manual & Color GuideMG Gundam Amazing Red Warrior Construction Manual & Color Guide
MG Gundam Amazing Red Warrior Construction Manual & Color GuideMG Gundam Amazing Red Warrior Construction Manual & Color GuideMG Gundam Amazing Red Warrior Construction Manual & Color Guide




Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Russet / Azuki (H33)Russet/Azuki (C81)--------------Brown (Satin) (133)------Flat Wood (4673AP)
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)------Flat Dark Gray (4754AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Clear Yellow (H91)Clear Yellow (C48)Clear Yellow (X24)------Clear Yellow (RC507)--------------
Flesh/Pale Brown (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)SAND BROWN (A.MIG-0026)----brown (solid silk matt) (32185)Flesh (Matte) (61)------Flat Light Flesh (4390AP)
Mahogany (H84)Mahogany (C42)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)DARK TRACKS (A.MIG-0035)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)------Flat Rust (4675AP)
Wood Brown (H37)Wood Brown (C43)----Sand Brown (71.034)CLAY BROWN (A.MIG-0079)No.8 Earth Red (RC031)Earth Red (HTK-_213)--Brown (Matte) (186)Military Brown FS30117 (1701)--Earth Red FS30117 (UA306)Flat Wood (4673AP)
Light Blue/mizu (H45)----Sky Blue (70.961)AII SV. Gol Light Blue (71.317)SKY LINE BLUE A II (A.MIG-0224)Air Superiority Blue (RC239)Air Superiority Blue (HTK-_155)--Sea Blue (Gloss) (47)----Air Superiority Blue FS35450 (UA037)Gloss Light Blue (4650AP)
Violet (H49)--Purple (X16)Violet (70.960)--VIOLET (A.MIG-0126)------Purple (Gloss) (68)--------
Wine Red/Maroon (H43)Wine Red/Maroon (C100)--Red (70.926)--------Red (32132)Crimson (Gloss) (20)--------
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
