MG RX-78-02 Gundam The Origin English Manual & Color Guide

MG RX-78-02 Gundam The Origin Construction Manual & Color Guide

MG RX-78-02 Gundam The Origin Construction Manual & Color Guide

Color Guide DescriptionPaint Ratios
MG RX-78-02 Gundam main body etc white partWhite (H1)(100%) + Light Brown/Tan (H27)(small dose)
MG RX-78-02 Gundam main body etc blue partWhite (H1)(60%) + Bright Blue/Indy Blue (H15)(30%) + Purple (H39)(10%)
MG RX-78-02 Gundam main body red partMonza Red/Red Madder (H86)(50%) + Orange Yellow (H24)(30%) + White (H1)(20%) + Gray/Nezumi (H22)(small dose)
MG RX-78-02 Gundam main body etc yellow partYellow (H4)(50%) + White (H1)(30%) + Orange Yellow (H24)(20%)
MG RX-78-02 Gundam sensor etc red partClear Red (H90)(100%)
MG RX-78-02 Gundam main body etc gray partNeutral Gray (H53)(90%) + Black (H2)(10%)
MG RX-78-02 Gundam weapons, backpack etc gray partNeutral Gray (H53)(80%) + Black (H2)(20%) + Russet / Azuki (H33)(small dose)
MG RX-78-02 Gundam weapons etc black partMidnight Blue (H55)(100%)
MG RX-78-02 Gundam sensor etc yellow partClear Yellow (H91)(100%)
MG RX-78-02 Gundam sensor etc green partClear Green (H94)(100%)

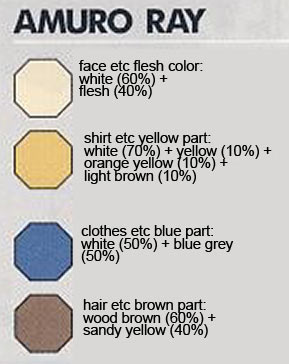

Amuro Ray face etc flesh colorWhite (H1)(60%) + Flesh/Pale Brown (H44)(40%)
Amuro Ray shirt etc yellow partWhite (H1)(70%) + Yellow (H4)(10%) + Orange Yellow (H24)(10%) + Light Brown/Tan (H27)(10%)
Amuro Ray clothes etc blue partWhite (H1)(50%) + Blue Gray (H42)(50%)
Amuro Ray hair etc brown partWood Brown (H37)(60%) + Sandy Yellow (Dark Yellow) (H79)(40%)
Disclaimer


Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.

MG RX-78-02 Gundam The Origin Construction Manual & Color GuideMG RX-78-02 Gundam The Origin Construction Manual & Color GuideMG RX-78-02 Gundam The Origin Construction Manual & Color GuideMG RX-78-02 Gundam The Origin Construction Manual & Color Guide
MG RX-78-02 Gundam The Origin Construction Manual & Color GuideMG RX-78-02 Gundam The Origin Construction Manual & Color GuideMG RX-78-02 Gundam The Origin Construction Manual & Color GuideMG RX-78-02 Gundam The Origin Construction Manual & Color Guide
MG RX-78-02 Gundam The Origin Construction Manual & Color GuideMG RX-78-02 Gundam The Origin Construction Manual & Color GuideMG RX-78-02 Gundam The Origin Construction Manual & Color GuideMG RX-78-02 Gundam The Origin Construction Manual & Color Guide
MG RX-78-02 Gundam The Origin Construction Manual & Color GuideMG RX-78-02 Gundam The Origin Construction Manual & Color Guide



Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Light Brown/Tan (H27)Tan (C44)Buff (XF57)Green Brown (70.879)German Yellow Brown (71.272)GELBBRAUN (A.MIG-0013)Gelbraun – Yellow Brown (RC063)Green Brown (HTK-_303)Ochre Brown (solid matt) (32188)Brown Yellow (Matte) (94)Africa Grunbraun RAL 8000 (F) (2099)RAL8000 Grunbraun (X803)Grunbraun/Gelbbraun RAL 8000 (UA203)Flat US Army/Mar.Gulf Arm Sand (4812AP)
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)--------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)------Flat Dark Gray (4754AP)
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Clear Red (H90)Clear Red (C47)Clear Red (X27)Transparent Red (Transparent) (70.934)--CRYSTAL RED (A.MIG-0093)Clear Red (RC503)--red (clear) (32731)Red (Clear) (1321)------Gloss Red (4605AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Russet / Azuki (H33)Russet/Azuki (C81)--------------Brown (Satin) (133)------Flat Wood (4673AP)
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--
Clear Yellow (H91)Clear Yellow (C48)Clear Yellow (X24)------Clear Yellow (RC507)--------------
Clear Green (H94)Clear Green (C138)Clear Green (X25)Transparent Green (Transparent) (70.936)--CRYSTAL GREEN (A.MIG-0092)Clear Green (RC505)----Green (Clear) (1325)--------
Flesh/Pale Brown (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)SAND BROWN (A.MIG-0026)----brown (solid silk matt) (32185)Flesh (Matte) (61)------Flat Light Flesh (4390AP)
Blue Gray (H42)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)French Mirage Blue (70.900)IDF Blue (71.113)FRENCH BLUE (A.MIG-0062)----Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)------Flat Non Specular Interm. Blue (4639AP)
Wood Brown (H37)Wood Brown (C43)----Sand Brown (71.034)CLAY BROWN (A.MIG-0079)No.8 Earth Red (RC031)Earth Red (HTK-_213)--Brown (Matte) (186)Military Brown FS30117 (1701)--Earth Red FS30117 (UA306)Flat Wood (4673AP)
Sandy Yellow (Dark Yellow) (H79)Dark Yellow (Sandy Yellow) (C39)Deck Tan Wooden (XF78)--Sand Yellow (71.028)LIGHT WOOD (A.MIG-0038)--Grey Beige (HTK-_287)--Desert Yellow (Matte) (93)------Flat Middle Stone (4304AP)
