RG RX-78-2 Gundam English Manual and Color Guide

Bandai 1/144 Real Grade RG RX-78-2 Gundam English Construction Manual

The much awaited Real Grade RX-78-2 Gundam from Bandai that was released as part of the 30th anniversary of Gundam plastic model kits this year. Looking at the manual posted at Dalong I couldn't help but be amazed at the detail and engineering that they had put in this kit. Of course I had to hope that they also execute this kind of craftmanship in their 1/100 lines *snicker* It was also announced that the next kit in this line would be the Zaku II of Char Aznable.

The Real Grade RX-78-2 Gundam is selling for 2500 yen at HobbyLink Japan, 1830 yen at Amiami, 2000 yen at Hobby Search.

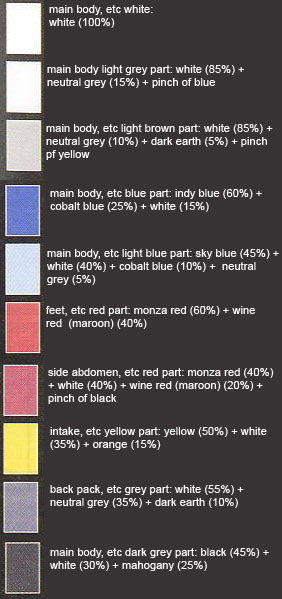

Color Guide DescriptionPaint Ratios
RG RX-78-2 Gundam main body etc white partWhite (H1)(100%)
RG RX-78-2 Gundam main body light gray partWhite (H1)(85%) + Neutral Gray (H53)(15%) + Blue (H5)(small dose)
RG RX-78-2 Gundam main body etc light brown partWhite (H1)(85%) + Neutral Gray (H53)(10%) + Dark Earth (H72)(5%) + Yellow (H4)(small dose)
RG RX-78-2 Gundam main body etc blue partBright Blue/Indy Blue (H15)(60%) + Cobalt Blue (H35)(25%) + White (H1)(15%)
RG RX-78-2 Gundam main body etc light blue partSky Blue (H25)(45%) + White (H1)(40%) + Cobalt Blue (H35)(10%) + Neutral Gray (H53)(5%)
RG RX-78-2 Gundam feet, etc red partWine Red/Maroon (H43)(40%) + Monza Red/Red Madder (H86)(60%)
RG RX-78-2 Gundam side abdomen etc red partMonza Red/Red Madder (H86)(40%) + White (H1)(40%) + Wine Red/Maroon (H43)(20%) + Black (H2)(small dose)
RG RX-78-2 Gundam intake etc yellow partYellow (H4)(50%) + White (H1)(35%) + Orange (H14)(15%)
RG RX-78-2 Gundam backpack etc gray partWhite (H1)(55%) + Neutral Gray (H53)(35%) + Dark Earth (H72)(10%)
RG RX-78-2 Gundam main body etc dark gray partBlack (H2)(45%) + White (H1)(30%) + Mahogany (H84)(25%)

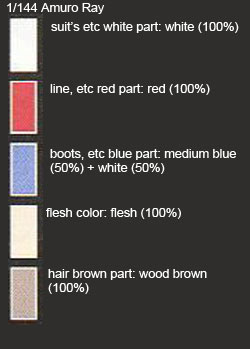

Amuro Ray suit's etc white partWhite (H1)(100%)
Amuro Ray line, etc red partRed (H3)(100%)
Amuro Ray boots, etc blue partMedium Blue/Intermediate Blue (H56)(50%) + White (H1)(50%)
Amuro Ray flesh colorFlesh/Pale Brown (H44)(100%)
Amuro Ray hair brown partWood Brown (H37)(100%)
Disclaimer



Construction Manual and Color Guide for the Real Grade RX-78-2 was translated to English from the Japanese manual posted at Dalong's Gunpla review site. For the meaning of the symbols found in the construction manual, kindly refer to this older post. Video review of the RG RX-78-2 Gundam can be found at HobbyLink TV

Bandai 1/144 Real Grade RG RX-78-2 Gundam English Construction Manual Bandai 1/144 Real Grade RG RX-78-2 Gundam English Construction Manual Bandai 1/144 Real Grade RG RX-78-2 Gundam English Construction Manual Bandai 1/144 Real Grade RG RX-78-2 Gundam English Construction Manual Bandai 1/144 Real Grade RG RX-78-2 Gundam English Construction Manual

Bandai 1/144 Real Grade RG RX-78-2 Gundam English Construction Manual Bandai 1/144 Real Grade RG RX-78-2 Gundam English Construction Manual Bandai 1/144 Real Grade RG RX-78-2 Gundam English Construction Manual Bandai 1/144 Real Grade RG RX-78-2 Gundam English Construction Manual Bandai 1/144 Real Grade RG RX-78-2 Gundam English Construction Manual

Bandai 1/144 Real Grade RG RX-78-2 Gundam English Construction Manual


Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Dark Earth (H72)Dark Earth (C22)Flat Earth (XF52)English Uniform (70.921)Dark Earth (71.029)MEDIUM BROWN (A.MIG-0070)RAF Dark Earth (RC287)Dark Earth (HTK-_009)Earth Brown (solid matt) (32187)Dark Earth (Matte) (29)Dark Earth ANA617 (F) (2054)RAF Dark Earth BS450 (X002)RAF Dark Earth FS 30118 (UA547)Flat Field Drab (4708AP)
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------
Wine Red/Maroon (H43)Wine Red/Maroon (C100)--Red (70.926)--------Red (32132)Crimson (Gloss) (20)--------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Mahogany (H84)Mahogany (C42)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)DARK TRACKS (A.MIG-0035)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)------Flat Rust (4675AP)
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Flesh/Pale Brown (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)SAND BROWN (A.MIG-0026)----brown (solid silk matt) (32185)Flesh (Matte) (61)------Flat Light Flesh (4390AP)
Wood Brown (H37)Wood Brown (C43)----Sand Brown (71.034)CLAY BROWN (A.MIG-0079)No.8 Earth Red (RC031)Earth Red (HTK-_213)--Brown (Matte) (186)Military Brown FS30117 (1701)--Earth Red FS30117 (UA306)Flat Wood (4673AP)
