HG Graze Ritter (Carta Version) English Manual & Color Guide

HG Graze Ritter (Carta Version) Construction Manual & Color Guide English Translation

HG Graze Ritter (Carta Version) Construction Manual & Color Guide English Translation

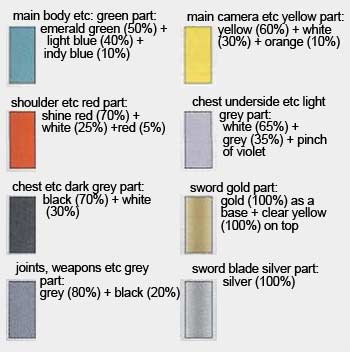

Color Guide DescriptionPaint Ratios
main body etc green partEmerald Green (H46)(50%) + Light Blue/mizu (H45)(40%) + Bright Blue/Indy Blue (H15)(10%)
shoulder etc red partShine Red (H23)(70%) + White (H1)(25%) + Red (H3)(5%)
chest etc dark gray partBlack (H2)(70%) + White (H1)(30%)
joints, weapons etc gray partGray/Nezumi (H22)(80%) + Black (H2)(20%)
main camera etc yellow partYellow (H4)(60%) + White (H1)(30%) + Orange (H14)(10%)
chest underside etc light gray partWhite (H1)(65%) + Gray/Nezumi (H22)(35%) + Violet (H49)(small dose)
sword gold partGold (H9)(100%) as a base and on top Clear Yellow (H91)(100%)
sword blade silver partSilver (H8)(100%)
Disclaimer

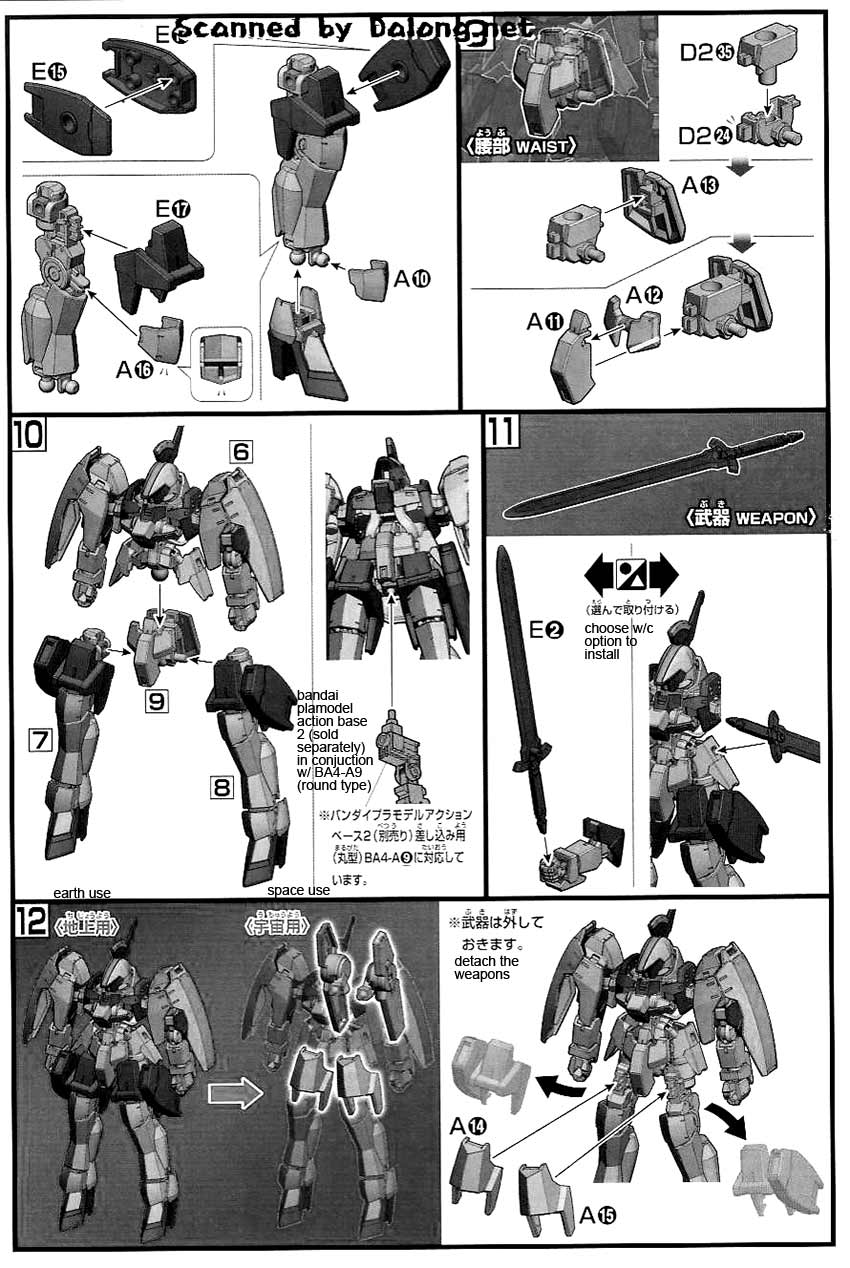

Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.
