HG Graze Standard Type/Commander Type English Manual & Color Guide

HG Graze Standard Type/Commander Type Construction Manual & Color Guide

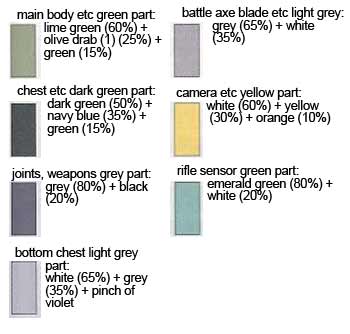

Color Guide DescriptionPaint Ratios
main body etc green partLime Green/yomogi (H50)(60%) + Olive Drab (1) (H52)(25%) + Green (H6)(15%)
chest etc dark green partDark Green (H36)(50%) + Navy Blue (H54)(35%) + Green (H6)(15%)
joints, weapons gray partGray/Nezumi (H22)(80%) + Black (H2)(20%)
bottom chest light gray partWhite (H1)(65%) + Gray/Nezumi (H22)(35%) + Violet (H49)(small dose)
battle axe blade etc light gray partGray/Nezumi (H22)(65%) + White (H1)(35%)
camera etc yellow partWhite (H1)(60%) + Yellow (H4)(30%) + Orange (H14)(10%)
rifle sensor green partEmerald Green (H46)(80%) + White (H1)(20%)
Disclaimer


Construction Manual & Color Guide was translated to English from the Japanese Manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.

HG Graze Standard Type/Commander Type Construction Manual & Color GuideHG Graze Standard Type/Commander Type Construction Manual & Color GuideHG Graze Standard Type/Commander Type Construction Manual & Color GuideHG Graze Standard Type/Commander Type Construction Manual & Color Guide
HG Graze Standard Type/Commander Type Construction Manual & Color Guide

Available at these Online Shops:

Amazon


Related Products



Paint Conversion Table:  (Disclaimer| How to Use | Sitemap)


White
(H1)
Aqueous Hobby Color
White
(C1)
Mr. Color
White
(X2)
Tamiya Color Acrylic Paint
Gloss White
(70.842)
Vallejo Model Color
White (Gloss)
(22)
Humbrol Enamel
White (Gloss)
(22)
Humbrol Acrylic
white (Gloss)
(36104)
Revell Aqua Color Acrylic
white (solid gloss)
(32104)
Revell Email Enamel
SATIN WHITE
(A.MIG-0047)
Ammo Acrylics
Gloss White
(4696AP)
Italeri
White
(X-2)
Tamiya Enamel
White (Lacquer Paint)
(LP2)
Tamiya Lacquer Paint
Pure White
(TS26)
Tamiya Color Spray Paints

Black
(H2)
Aqueous Hobby Color
Black
(C2)
Mr. Color
Black
(X1)
Tamiya Color Acrylic Paint
Glossy Black
(70.861)
Vallejo Model Color
Black (Gloss)
(21)
Humbrol Enamel
Black (Gloss)
(21)
Humbrol Acrylic
black (Gloss)
(36107)
Revell Aqua Color Acrylic
black (solid matt)
(32107)
Revell Email Enamel
SATIN BLACK
(A.MIG-0032)
Ammo Acrylics
Gloss Black
(4695AP)
Italeri
Black
(X-1)
Tamiya Enamel
Black (Lacquer Paint)
(LP1)
Tamiya Lacquer Paint
Semi Gloss Black
(C92)
Mr. Color
Semi-Gloss Black
(X18)
Tamiya Color Acrylic Paint
Semi Gloss Black
(X-18)
Tamiya Enamel
Semi Gloss Black (Lacquer Paint)
(LP5)
Tamiya Lacquer Paint
Semi Gloss Black
(TS29)
Tamiya Color Spray Paints
Black
(TS14)
Tamiya Color Spray Paints

Yellow
(H4)
Aqueous Hobby Color
Yellow
(C4)
Mr. Color
Flat Yellow
(XF3)
Tamiya Color Acrylic Paints (Flat)
Flat Yellow
(70.953)
Vallejo Model Color
Medium Yellow
(71.002)
Vallejo Model Air
Yellow (Gloss)
(69)
Humbrol Enamel
Yellow (Gloss)
(69)
Humbrol Acrylic
yellow (Gloss)
(36112)
Revell Aqua Color Acrylic
yellow (solid matt)
(32112)
Revell Email Enamel
YELLOW
(A.MIG-0048)
Ammo Acrylics
Gloss Yellow
(4642AP)
Italeri
Yellow
(69.004)
Vallejo Mecha Color
Lemon Yellow
(X8)
Tamiya Color Acrylic Paint
Deep Yellow
(70.915)
Vallejo Model Color
Lemon Yellow
(X-8)
Tamiya Enamel
Pure Yellow (Lacquer Paint)
(LP8)
Tamiya Lacquer Paint
Yellow
(TS16)
Tamiya Color Spray Paints
MS Yellow(Federation Mobile Suit Yellow)
(UG03)
Gundam Color

Green
(H6)
Aqueous Hobby Color
Green
(C6)
Mr. Color
Green
(X5)
Tamiya Color Acrylic Paint
Black Green
(70.980)
Vallejo Model Color
Brunswick Green (Gloss)
(3)
Humbrol Enamel
Brunswick Green (Gloss)
(3)
Humbrol Acrylic
Sea Green (Gloss)
(36162)
Revell Aqua Color Acrylic
sea green (solid matt)
(32162)
Revell Email Enamel
Orange
(H14)
Aqueous Hobby Color
Orange
(C59)
Mr. Color
Orange
(X6)
Tamiya Color Acrylic Paint
Clear Orange
(70.956)
Vallejo Model Color
Orange
(71.083)
Vallejo Model Air
Orange (Gloss)
(18)
Humbrol Enamel
luminous orange (solid matt)
(36125)
Revell Aqua Color Acrylic
luminous orange (solid matt)
(32125)
Revell Email Enamel
Orange (Gloss)
(1527)
Testors Model Master Enamel
Matt Orange FS32246
(LC05)
Lifecolor
ORANGE
(A.MIG-0129)
Ammo Acrylics
Orange
(RC009)
AK Real Color
Pure Orange
(HTK-_704)
Hataka
Flat Orange
(4302AP)
Italeri
orange (Gloss)
(36130)
Revell Aqua Color Acrylic
orange (solid matt)
(32130)
Revell Email Enamel
Gloss Orange
(4682AP)
Italeri

Gray/Nezumi
(H22)
Aqueous Hobby Color
Neutral Gray
(C13)
Mr. Color
Neutral Gray
(XF53)
Tamiya Color Acrylic Paints (Flat)
Neutral Grey
(70.992)
Vallejo Model Color
Light Gray
(71.050)
Vallejo Model Air
Grey Primer (Matte)
(1)
Humbrol Enamel
Dark Grey (Gloss)
(32171)
Revell Email Enamel
GREY
(A.MIG-0059)
Ammo Acrylics
Flat Dark Gray
(4754AP)
Italeri
Dark Admiralty Grey (Gloss)
(5)
Humbrol Enamel

Dark Green
(H36)
Aqueous Hobby Color
IJN Green (Nakajima)
(C15)
Mr. Color
J.N. Green
(XF11)
Tamiya Color Acrylic Paints (Flat)
Deep Green
(70.970)
Vallejo Model Color
Olive Green
(71.007)
Vallejo Model Air
Bronze Green (Matte)
(75)
Humbrol Enamel
DEEP GREEN
(A.MIG-0052)
Ammo Acrylics
Fir Green
(HTK-_289)
Hataka
IJN Green (Nakajima)
(N36)
Acrysion
BLUE GREEN
(A.MIG-0069)
Ammo Acrylics

Emerald Green
(H46)
Aqueous Hobby Color
Emerald
(70.838)
Vallejo Model Color
INTERIOR TURQUOISE GREEN
(A.MIG-0223)
Ammo Acrylics
Emerald Green
(N46)
Acrysion

Violet
(H49)
Aqueous Hobby Color
Purple
(X16)
Tamiya Color Acrylic Paint
Violet
(70.960)
Vallejo Model Color
Purple (Gloss)
(68)
Humbrol Enamel
VIOLET
(A.MIG-0126)
Ammo Acrylics
Violet
(N49)
Acrysion

Lime Green/yomogi
(H50)
Aqueous Hobby Color
Light Green
(X15)
Tamiya Color Acrylic Paint
Lime Green
(70.827)
Vallejo Model Color
Lime (Gloss)
(38)
Humbrol Enamel
GREEN BASE
(A.MIG-0916)
Ammo Acrylics
Lime Green
(N50)
Acrysion

Olive Drab (1)
(H52)
Aqueous Hobby Color

Navy Blue
(H54)
Aqueous Hobby Color
Navy Blue
(C14)
Mr. Color
Dark Sea Blue
(70.898)
Vallejo Model Color
Steel Blue
(71.087)
Vallejo Model Air
Navy Blue (Matte)
(77)
Humbrol Enamel
Navy Blue (Matte)
(77)
Humbrol Acrylic
Greyish Blue (solid matt)
(36179)
Revell Aqua Color Acrylic
Greyish Blue (solid matt)
(32179)
Revell Email Enamel
Flat Sea Blue FS35042
(1718)
Testors Model Master Enamel
Non Specular Sea Blue FS35042
(UA044)
Lifecolor
SEA BLUE
(A.MIG-0227)
Ammo Acrylics
Graublau – Grey Blue
(RC208)
AK Real Color
Grey-Blue
(HTK-_171)
Hataka
RAL5008 Graublau
(X264)
Xtracolor
Navy Blue
(N54)
Acrysion
Flat Non Specular Sea Blue
(4604AP)
Italeri
Titan Dark Blue
(69.022)
Vallejo Mecha Color
Field Blue
(XF50)
Tamiya Color Acrylic Paints (Flat)
Grey Blue
(71.005)
Vallejo Model Air
Titan's Blue 1
(UG16)
Gundam Color
