1/100 Graze Custom English Manual & Color Guide

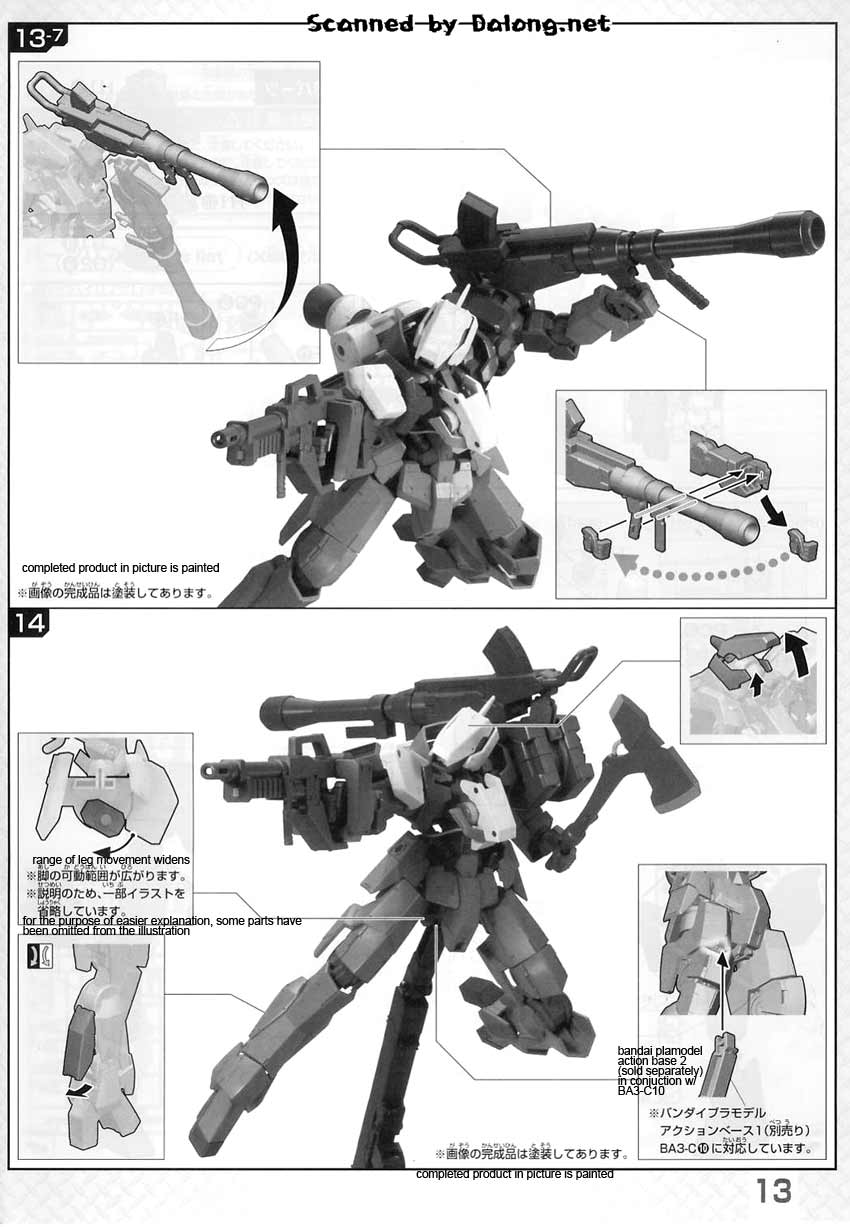

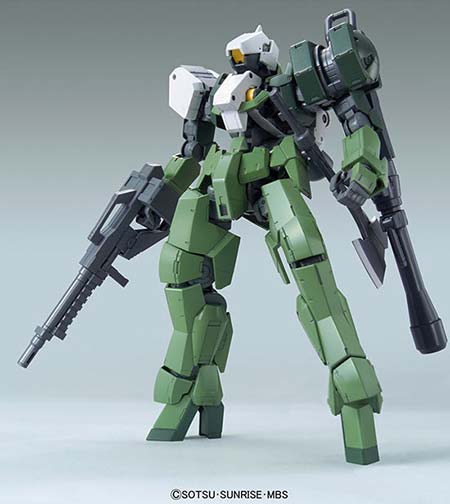

1/100 Graze Custom Construction Manual & Color Guide

1/100 Graze Custom Construction Manual & Color Guide

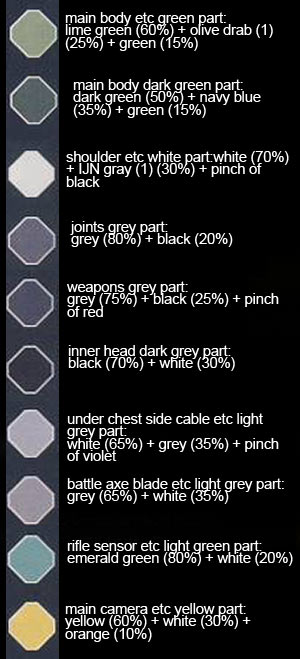

Color Guide DescriptionPaint Ratios
main body etc green partLime Green/yomogi (H50)(60%) + Olive Drab (1) (H52)(25%) + Green (H6)(15%)
main body dark green partDark Green (H36)(50%) + Navy Blue (H54)(35%) + Green (H6)(15%)
shoulder etc white partWhite (H1)(70%) + IJN Gray (H61)(30%) + Black (H2)(small dose)
joints gray partGray/Nezumi (H22)(80%) + Black (H2)(20%)
weapons gray partGray/Nezumi (H22)(75%) + Black (H2)(25%) + Red (H3)(small dose)
inner head dark gray partBlack (H2)(70%) + White (H1)(30%)
under chest side cable etc light gray partWhite (H1)(65%) + Gray/Nezumi (H22)(35%) + Violet (H49)(small dose)
battle axe blade etc light gray partGray/Nezumi (H22)(65%) + White (H1)(35%)
rifle sensor etc light green partEmerald Green (H46)(80%) + White (H1)(20%)
main camera etc yellow partYellow (H4)(60%) + White (H1)(30%) + Orange (H14)(10%)
Disclaimer


Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.
