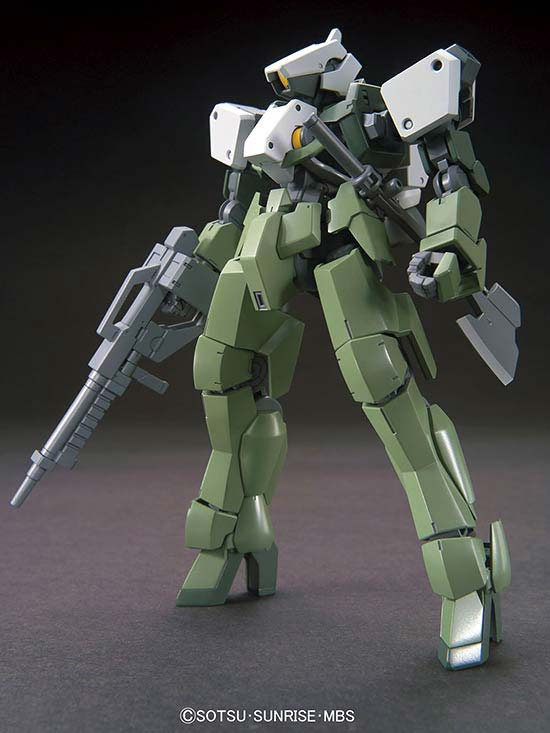

HG Graze Custom English Manual & Color Guide

HG Graze Custom Construction Manual & Color Guide

HG Graze Custom Construction Manual & Color Guide

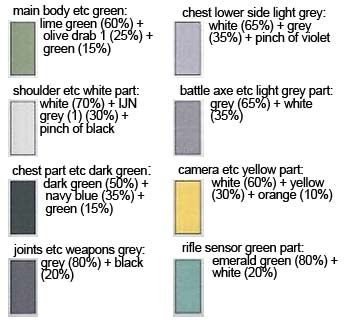

Color Guide DescriptionPaint Ratios
main body etc green partLime Green/yomogi (H50)(60%) + Olive Drab (1) (H52)(25%) + Green (H6)(15%)
shoulder etc white partWhite (H1)(70%) + IJN Gray (H61)(30%) + Black (H2)(small dose)
chest part etc dark greenDark Green (H36)(50%) + Navy Blue (H54)(35%) + Green (H6)(15%)
joints etc weapons gray partGray/Nezumi (H22)(80%) + Black (H2)(20%)
chest lower side light gray partWhite (H1)(65%) + Gray/Nezumi (H22)(35%) + Violet (H49)(small dose)
battle axe etc light gray partGray/Nezumi (H22)(65%) + White (H1)(35%)
camera etc yellow partWhite (H1)(60%) + Yellow (H4)(30%) + Orange (H14)(10%)
rifle sensor green partEmerald Green (H46)(80%) + White (H1)(20%)
Disclaimer


Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.

HG Graze Custom Construction Manual & Color GuideHG Graze Custom Construction Manual & Color GuideHG Graze Custom Construction Manual & Color GuideHG Graze Custom Construction Manual & Color Guide
HG Graze Custom Construction Manual & Color Guide



Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Lime Green/yomogi (H50)--Light Green (X15)Lime Green (70.827)--GREEN BASE (A.MIG-0916)------Lime (Gloss) (38)--------
Olive Drab (1) (H52)--------------------------
Green (H6)Green (C6)Green (X5)Black Green (70.980)--------sea green (solid matt) (32162)Brunswick Green (Gloss) (3)--------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
IJN Gray (H61)IJN Gray(Mitsubishi) (C35)J.N. Gray (XF12)Medium Sea Grey (70.870)Light Gray (71.050)--IJN J3 Hai-Iro (Grey) (RC302)--stone grey (solid matt) (32175)Light Grey (Matte) (64)--------
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Dark Green (H36)IJN Green (Nakajima) (C15)J.N. Green (XF11)Deep Green (70.970)Olive Green (71.007)DEEP GREEN (A.MIG-0052)--Fir Green (HTK-_289)--Bronze Green (Matte) (75)--------
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)------Flat Dark Gray (4754AP)
Violet (H49)--Purple (X16)Violet (70.960)--VIOLET (A.MIG-0126)------Purple (Gloss) (68)--------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Emerald Green (H46)----Emerald (70.838)--INTERIOR TURQUOISE GREEN (A.MIG-0223)----------------
