MG Wing Gundam Proto Zero English Manual & Color Guide

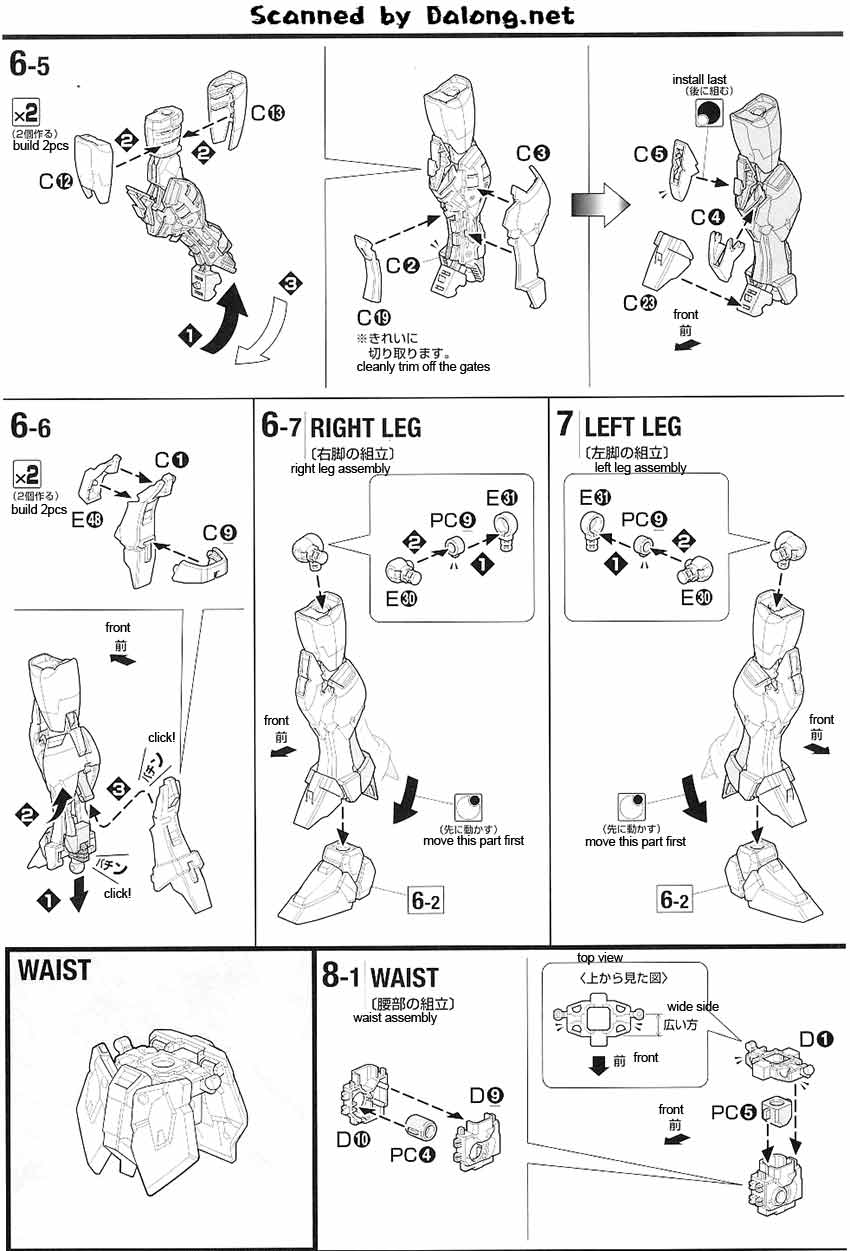

MG Wing Gundam Proto Zero Construction Manual & Color Guide

From Gundam Wing Endless Waltz comes the Wing Gundam Proto Zero released as a 1/100 Master Grade model kit by Bandai last year. Piloted by series protagonist, Hiiro Yui, it was the titular mecha of the said series. Aside from mobile suit mode, this model kit has the gimmick to transform to "bird" mode, a sort of mobile armor configuration.


The MG Wing Gundam Proto Zero is selling for $ at Amazon, 3480 yen at Amiami, 3840 yen at HobbyLink Japan

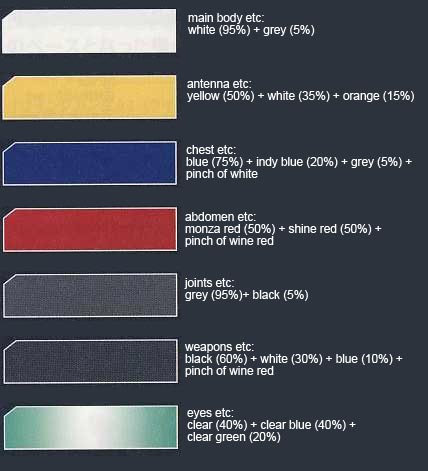

Color Guide DescriptionPaint Ratios
MG Wing Gundam Proto Zero main body etcWhite (H1)(95%) + Gray/Nezumi (H22)(5%)
MG Wing Gundam Proto Zero antenna etcYellow (H4)(50%) + White (H1)(35%) + Orange (H14)(15%)
MG Wing Gundam Proto Zero chest etcBlue (H5)(75%) + Bright Blue/Indy Blue (H15)(20%) + Gray/Nezumi (H22)(5%) + White (H1)(small dose)
MG Wing Gundam Proto Zero abdomen etcMonza Red/Red Madder (H86)(50%) + Shine Red (H23)(50%) + Wine Red/Maroon (H43)(small dose)
MG Wing Gundam Proto Zero joints etcGray/Nezumi (H22)(95%) + Black (H2)(5%)
MG Wing Gundam Proto Zero weapons etcBlack (H2)(60%) + White (H1)(30%) + Blue (H5)(10%) + Wine Red/Maroon (H43)(small dose)
MG Wing Gundam Proto Zero eyes etcClear (H30)(40%) + Clear Blue (H93)(40%) + Clear Green (H94)(20%)
hiiro yui skin etcFlesh/Pale Brown (H44)(50%) + White (H1)(50%)
hiiro yui hair etcMahogany (H84)(100%)
hiiro yui shirtRLM02 Gray (H70)(70%) + Green (H6)(30%)
hiiro yui pantsMidnight Blue (H55)(90%) + White (H1)(10%)
hiiro yui shoesMiddle Stone (H71)(90%) + White (H1)(10%)
Disclaimer

Construction Manual & Color Guide for the MG Wing Gundam Proto Zero was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site.

MG Wing Gundam Proto Zero Construction Manual & Color Guide MG Wing Gundam Proto Zero Construction Manual & Color Guide MG Wing Gundam Proto Zero Construction Manual & Color Guide MG Wing Gundam Proto Zero Construction Manual & Color Guide

MG Wing Gundam Proto Zero Construction Manual & Color Guide MG Wing Gundam Proto Zero Construction Manual & Color Guide MG Wing Gundam Proto Zero Construction Manual & Color Guide MG Wing Gundam Proto Zero Construction Manual & Color Guide

MG Wing Gundam Proto Zero Construction Manual & Color Guide MG Wing Gundam Proto Zero Construction Manual & Color Guide MG Wing Gundam Proto Zero Construction Manual & Color Guide MG Wing Gundam Proto Zero Construction Manual & Color Guide MG Wing Gundam Proto Zero Construction Manual & Color Guide



Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)----Gloss White (4696AP)
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)----Flat Dark Gray (4754AP)
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)----Gloss Yellow (4642AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)------
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)----------------------
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)------
Wine Red/Maroon (H43)Wine Red/Maroon (C100)--Red (70.926)--------Red (32132)Crimson (Gloss) (20)------
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)----Gloss Black (4695AP)
Clear (H30)Clear (C46)Clear (X22)Glossy Varnish (70.510)--GLOSSY VARNISH (A.MIG-0091)Gloss Varnish (RC502)Gloss Lacquer Clear Coat (HTK-XP09)Clear (solid gloss) (32101)Varnish (Gloss) (35)Gloss Clear Acrylic (2017)Gloss Clear (LC73)Gloss Clear Acryl 35 ml (4638AP)
Clear Blue (H93)Clear Blue (C50)Clear Blue (X23)Transparent Blue (Transparent) (70.938)--CRYSTAL LIGHT BLUE (A.MIG-0098)Clear Blue (RC504)--blue (clear) (32752)------Gloss Light Blue (4650AP)
Clear Green (H94)Clear Green (C138)Clear Green (X25)Transparent Green (Transparent) (70.936)--CRYSTAL GREEN (A.MIG-0092)Clear Green (RC505)----Green (Clear) (1325)------
Flesh/Pale Brown (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)SAND BROWN (A.MIG-0026)----brown (solid silk matt) (32185)Flesh (Matte) (61)----Flat Light Flesh (4390AP)
Mahogany (H84)Mahogany (C42)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)DARK TRACKS (A.MIG-0035)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)----Flat Rust (4675AP)
RLM02 Gray (H70)RLM02 Gray (C60)RLM Gray (XF22)Green Grey (70.886)Grey RLM02 (71.044)GREEN SLATE (A.MIG-0217)RLM 02 RLM-Grau (1938) (RC265)Grey (HTK-_023)--RLM 02 Grau Matt (240)Grau RLM 02 (SG) (2071)Grau RLM 02 (UA504)Grau RLM 02 (4770AP)
Green (H6)Green (C6)Green (X5)Black Green (70.980)--------sea green (solid matt) (32162)Brunswick Green (Gloss) (3)------
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)Non Specular Sea Blue FS35042 (UA044)--
Middle Stone (H71)Middle Stone (C21)--Middle Stone (70.882)Middlestone (71.031)DUNKELGELB BASE (A.MIG-0902)RAF Middle Stone (RC292)Mid Stone (HTK-_013)--Mid Stone (Matte) (84)RAF Middlestone ANA615 (F) (2052)Middle Stone FS30266 (UA097)--
