HG XXXG-01W Wing Gundam English Manual & Color Guide

HG XXXG-01W Wing Gundam Construction Manual & Color Guide

Released last September by Bandai was the 1/144 High Grade Wing Gundam from the Gundam Wing anime franchise. Piloted by protagonist Hiiro Yui, it is the titular mecha of the said franchise. Like in the anime, this model kit is capable of transforming to "Bird Mode", which is a mobile armor flying configuration of the Wing Gundam.


The HG XXXG-01W Wing Gundam is selling for $ at Amazon, 1090 yen at Amiami, 1200 yen at HobbyLink Japan

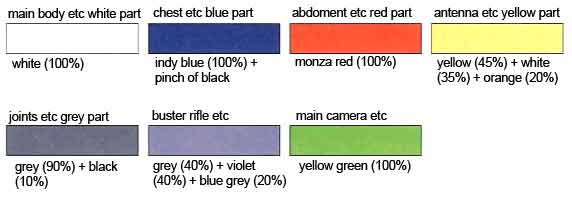

Color Guide DescriptionPaint Ratios
main body etc white partWhite (H1)(100%)
joints etc gray partGray/Nezumi (H22)(90%) + Black (H2)(10%)
chest etc blue partBright Blue/Indy Blue (H15)(100%) + Black (H2)(small dose)
buster rifle etcGray/Nezumi (H22)(40%) + Violet (H49)(40%) + Blue Gray (H42)(20%)
abdomen etc red partMonza Red/Red Madder (H86)(100%)
main camera etcYellow Green/Roman Green/Le Mans Green (H16)(100%)
antenna etc yellow partYellow (H4)(45%) + White (H1)(35%) + Orange (H14)(20%)
Disclaimer






Construction Manual & Color Guide for the HG XXXG-01W Wing Gundam was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post

HG XXXG-01W Wing Gundam Construction Manual & Color Guide HG XXXG-01W Wing Gundam Construction Manual & Color Guide HG XXXG-01W Wing Gundam Construction Manual & Color Guide HG XXXG-01W Wing Gundam Construction Manual & Color Guide HG XXXG-01W Wing Gundam Construction Manual & Color Guide HG XXXG-01W Wing Gundam Construction Manual & Color Guide

Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)----Gloss White (4696AP)
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)----Flat Dark Gray (4754AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)----Gloss Black (4695AP)
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)------
Violet (H49)--Purple (X16)Violet (70.960)--VIOLET (A.MIG-0126)------Purple (Gloss) (68)------
Blue Gray (H42)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)French Mirage Blue (70.900)IDF Blue (71.113)FRENCH BLUE (A.MIG-0062)----Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)----Flat Non Specular Interm. Blue (4639AP)
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)----------------------
Yellow Green/Roman Green/Le Mans Green (H16)Yellow Green/Roman Green (C64)Light Green (X15)Lime Green (70.827)--GREEN BASE (A.MIG-0916)------Lime (Gloss) (38)------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)----Gloss Yellow (4642AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)Matt Orange FS32246 (LC05)Flat Orange (4302AP)
