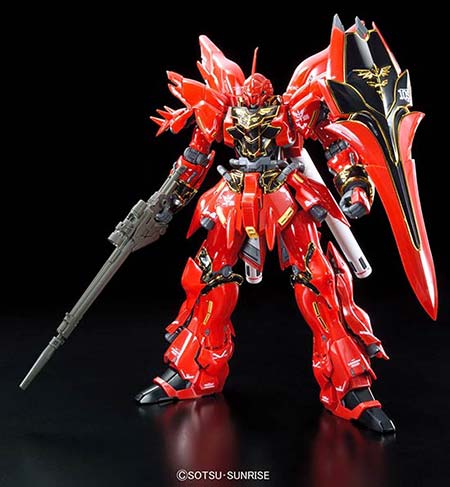

RG Sinanju English Manual & Color Guide

RG Sinanju Construction Manual & Color Guide

RG Sinanju Construction Manual & Color Guide

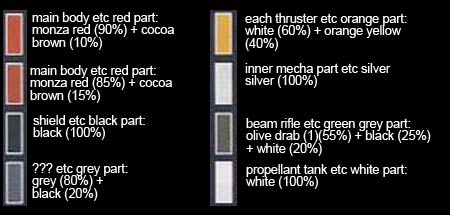

Color Guide DescriptionPaint Ratios
RG Sinanju main body etc red partMonza Red/Red Madder (H86)(90%) + Cocoa Brown (H17)(10%)
RG Sinanju main body etc red partMonza Red/Red Madder (H86)(85%) + Cocoa Brown (H17)(15%)
RG Sinanju shield etc black partBlack (H2)(100%)
RG Sinanju Etc gray partGray/Nezumi (H22)(80%) + Black (H2)(20%)
RG Sinanju thruster etc orange partWhite (H1)(60%) + Orange Yellow (H24)(40%)
RG Sinanju inner mecha etc silver partSilver (H8)(100%)
RG Sinanju beam rifle etc green gray partOlive Drab (1) (H52)(55%) + Black (H2)(25%) + White (H1)(20%)
RG Sinanju propellant tank etc white partWhite (H1)(100%)
Full Frontal faceLight Brown/Tan (H27)(50%) + White (H1)(50%)
Full Frontal mask etc light gray partWhite (H1)(95%) + Gray/Nezumi (H22)(5%) + Blue (H5)(small dose)
Full Frontal hair etc light yellow partWhite (H1)(75%) + Yellow (H4)(15%) + Light Brown/Tan (H27)(10%)
Full Frontal upper garment red partMonza Red/Red Madder (H86)(100%)
Full Frontal pants etc white partWhite (H1)(100%)
Full Frontal boots etc brown partWood Brown (H37)(100%)
Full Frontal shoulder etc black partBlack (H2)(80%) + White (H1)(10%)
Full Frontal yellow partYellow (H4)(80%) + Orange Yellow (H24)(20%) + White (H1)(small dose)
Disclaimer


Construction Manual & Color Guide was translated to English from the Japanese Manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.

RG Sinanju Construction Manual & Color GuideRG Sinanju Construction Manual & Color GuideRG Sinanju Construction Manual & Color GuideRG Sinanju Construction Manual & Color Guide
RG Sinanju Construction Manual & Color GuideRG Sinanju Construction Manual & Color GuideRG Sinanju Construction Manual & Color GuideRG Sinanju Construction Manual & Color Guide
RG Sinanju Construction Manual & Color GuideRG Sinanju Construction Manual & Color GuideRG Sinanju Construction Manual & Color GuideRG Sinanju Construction Manual & Color Guide
RG Sinanju Construction Manual & Color GuideRG Sinanju Construction Manual & Color GuideRG Sinanju Construction Manual & Color GuideRG Sinanju Construction Manual & Color Guide




Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Cocoa Brown (H17)Hull Red (C29)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)RED BROWN SHADOW (A.MIG-0912)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)------Flat Rust (4675AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)------Flat Dark Gray (4754AP)
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Olive Drab (1) (H52)--------------------------
Light Brown/Tan (H27)Tan (C44)Buff (XF57)Green Brown (70.879)German Yellow Brown (71.272)GELBBRAUN (A.MIG-0013)Gelbraun – Yellow Brown (RC063)Green Brown (HTK-_303)Ochre Brown (solid matt) (32188)Brown Yellow (Matte) (94)Africa Grunbraun RAL 8000 (F) (2099)RAL8000 Grunbraun (X803)Grunbraun/Gelbbraun RAL 8000 (UA203)Flat US Army/Mar.Gulf Arm Sand (4812AP)
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Wood Brown (H37)Wood Brown (C43)----Sand Brown (71.034)CLAY BROWN (A.MIG-0079)No.8 Earth Red (RC031)Earth Red (HTK-_213)--Brown (Matte) (186)Military Brown FS30117 (1701)--Earth Red FS30117 (UA306)Flat Wood (4673AP)
