MG RX-93 Nu Gundam Ver Ka English Manual & Color Guide

MG Nu Gundam Ver Ka English Translation Construction Manual & Color Guide

The much anticipated Hajime Katoki's version of the Nu Gundam was released this December by Bandai as a 1/100 Master Grade model kit. It differs greatly from the original Master Grade RX-93 Nu Gundam released by Bandai, obviously because its a Ver. Ka special. Notable features of it is that it incorporates a hidden green pycho frame in its inner frame and its fin funnels can be configured in an optional double fin funnel mode. There is also an option to install the separately sold Gundam LED lights in its torso to light up the Nu Gundam. In my book, Bandai really gave the fans what they wanted with this release.

The 1/100 Master Grade Nu Gundam Ver Ka is selling for $ at Amazon, 5600 yen at HobbyLink Japan, 5950 yen at Hobby Search

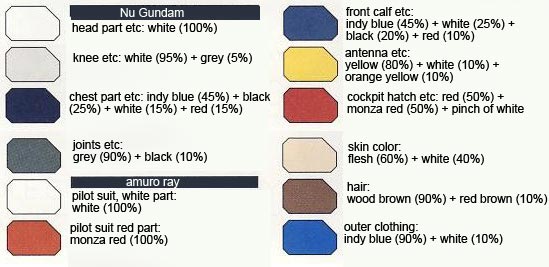

Color Guide DescriptionPaint Ratios
MG NU Gundam Ver Ka. head part etcWhite (H1)(100%)
MG NU Gundam Ver Ka. knee etcWhite (H1)(95%) + Gray/Nezumi (H22)(5%)
MG NU Gundam Ver Ka. chest part etcBright Blue/Indy Blue (H15)(45%) + Black (H2)(25%) + White (H1)(15%) + Red (H3)(15%)
MG NU Gundam Ver Ka. joints etcGray/Nezumi (H22)(90%) + Black (H2)(10%)
MG NU Gundam Ver Ka. front calf etcBright Blue/Indy Blue (H15)(45%) + White (H1)(25%) + Black (H2)(20%) + Red (H3)(10%)
MG NU Gundam Ver Ka. antenna etcYellow (H4)(80%) + White (H1)(10%) + Orange Yellow (H24)(10%)
MG NU Gundam Ver Ka. cockpit hatch etcRed (H3)(50%) + Monza Red/Red Madder (H86)(50%) + White (H1)(small dose)
Amuro Ray pilot suit, white partWhite (H1)(100%)
Amuro Ray pilot suit red partMonza Red/Red Madder (H86)(100%)
Amuro Ray skin colorFlesh/Pale Brown (H44)(60%) + White (H1)(40%)
Amuro Ray hairWood Brown (H37)(90%) + Red Brown (H47)(10%)
Amuro Ray outer clothingBright Blue/Indy Blue (H15)(90%) + White (H1)(10%)
Disclaimer

Construction Manual & Color Guide for the 1/100 Master Grade Nu Gundam Ver Ka was translated to English from the Japanese Manual posted at Dalong's Gunpla & Model Kit Review site.

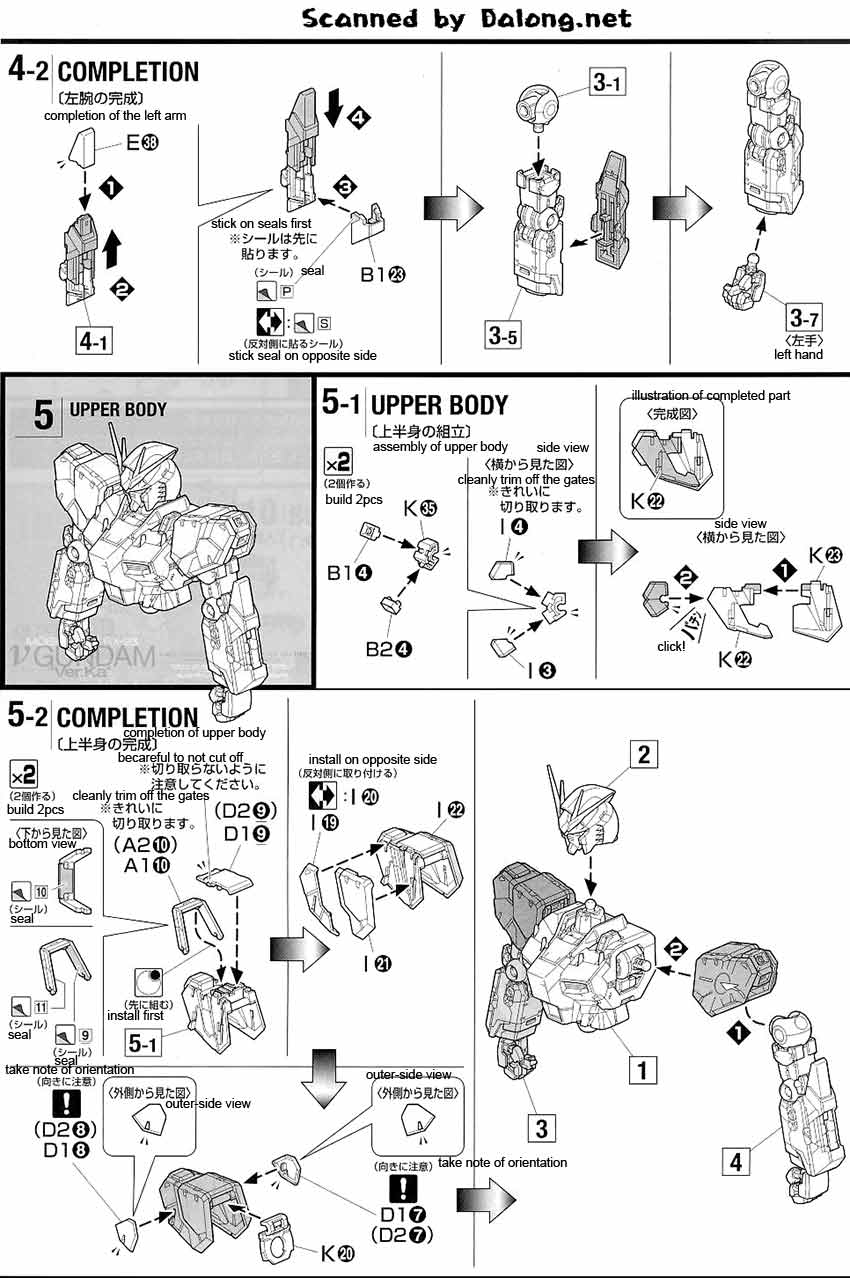

MG Nu Gundam Ver Ka Construction Manual & Color Guide MG Nu Gundam Ver Ka Construction Manual & Color Guide MG Nu Gundam Ver Ka Construction Manual & Color Guide MG Nu Gundam Ver Ka Construction Manual & Color Guide MG Nu Gundam Ver Ka Construction Manual & Color Guide

MG Nu Gundam Ver Ka Construction Manual & Color Guide MG Nu Gundam Ver Ka Construction Manual & Color Guide MG Nu Gundam Ver Ka Construction Manual & Color Guide MG Nu Gundam Ver Ka Construction Manual & Color Guide MG Nu Gundam Ver Ka Construction Manual & Color Guide

MG Nu Gundam Ver Ka Construction Manual & Color Guide MG Nu Gundam Ver Ka Construction Manual & Color Guide MG Nu Gundam Ver Ka Construction Manual & Color Guide MG Nu Gundam Ver Ka Construction Manual & Color Guide MG Nu Gundam Ver Ka Construction Manual & Color Guide

MG Nu Gundam Ver Ka Construction Manual & Color Guide MG Nu Gundam Ver Ka Construction Manual & Color Guide MG Nu Gundam Ver Ka Construction Manual & Color Guide


Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)----Gloss White (4696AP)
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)----Flat Dark Gray (4754AP)
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)------
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)----Gloss Black (4695AP)
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)----Gloss Yellow (4642AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)----------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)----------------------
Flesh/Pale Brown (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)SAND BROWN (A.MIG-0026)----brown (solid silk matt) (32185)Flesh (Matte) (61)----Flat Light Flesh (4390AP)
Wood Brown (H37)Wood Brown (C43)----Sand Brown (71.034)CLAY BROWN (A.MIG-0079)No.8 Earth Red (RC031)Earth Red (HTK-_213)--Brown (Matte) (186)Military Brown FS30117 (1701)Earth Red FS30117 (UA306)Flat Wood (4673AP)
Red Brown (H47)Red Brown (C41)Red Brown (XF64)Flat Brown (70.984)Hull Red (71.039)ROTBRAUN (A.MIG-0014)S.C.C. 1A Brown (RC034)S.C.C. No. 1A Dark Brown (HTK-_077)--German Camouflage Red Brown (Matte) (160)Root Braun RAL 8012 (SG) (2152)SCC 1A Very Dark Brown (UA274)Flat Earth Red (4707AP)
