MG Gundam AGE-1 Normal English Manual & Color Guide

MG Gundam AGE-1 Normal English Translation Color Guide & Manual

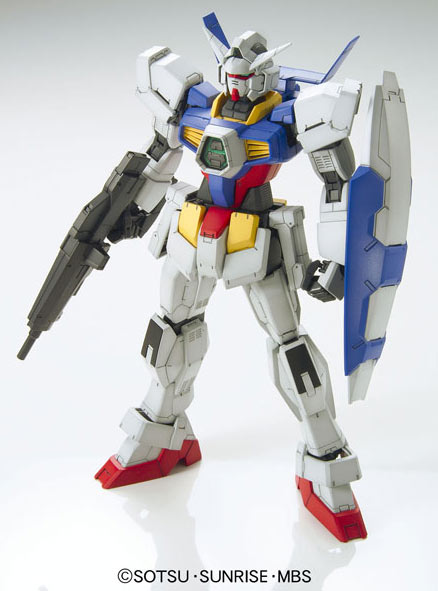

The titular mobile suit of the currently showing Gundam AGE anime series by Bandai gets released as a 1/100 Master Grade model kit. Prior versions of this that we've seen released were a 1/48 Mega Size, 1/144 High Grade and an AG class that's targetted for younger model kit builders.

The MG Gundam AGE-1 Normal is selling for $ at Amazon, 2540 yen at Amiami, 2800 yen at HobbyLink Japan, 2975 yen at Hobby Search.

Color Guide DescriptionPaint Ratios

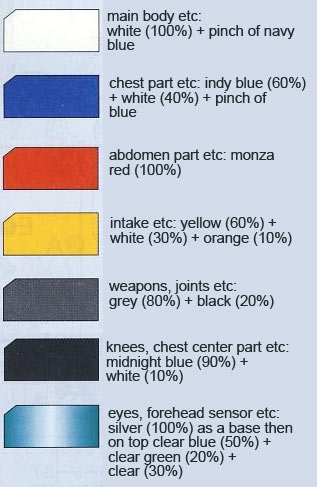

MG Gundam AGE-1 Normal main body etcWhite (H1)(100%) + Navy Blue (H54)(small dose)
MG Gundam AGE-1 Normal chest part etcBright Blue/Indy Blue (H15)(60%) + White (H1)(40%) + Blue (H5)(small dose)
MG Gundam AGE-1 Normal abdomen red part etcMonza Red/Red Madder (H86)(100%)
MG Gundam AGE-1 Normal intake etcYellow (H4)(60%) + White (H1)(30%) + Orange (H14)(10%)
MG Gundam AGE-1 Normal weapons, joints etcGray/Nezumi (H22)(80%) + Black (H2)(20%)
MG Gundam AGE-1 Normal knees, chest center part etcMidnight Blue (H55)(90%) + White (H1)(10%)
MG Gundam AGE-1 Normal eyes, forehead sensor etcSilver (H8)(100%) as a base then as a top coat Clear Blue (H93)(50%) + Clear Green (H94)(20%) + Clear (H30)(30%)

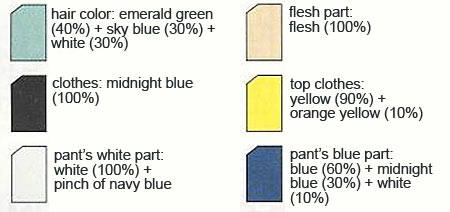

Pilot Figure hair colorEmerald Green (H46)(40%) + Sky Blue (H25)(30%) + White (H1)(30%)
Pilot Figure clothesMidnight Blue (H55)(100%)
Pilot Figure paint's white partWhite (H1)(100%) + Navy Blue (H54)(small dose)
Pilot Figure flesh partFlesh/Pale Brown (H44)(100%)
Pilot Figure top clothesYellow (H4)(90%) + Orange Yellow (H24)(10%)
Pilot Figure pant's blue partBlue (H5)(60%) + Midnight Blue (H55)(30%) + White (H1)(10%)
Disclaimer

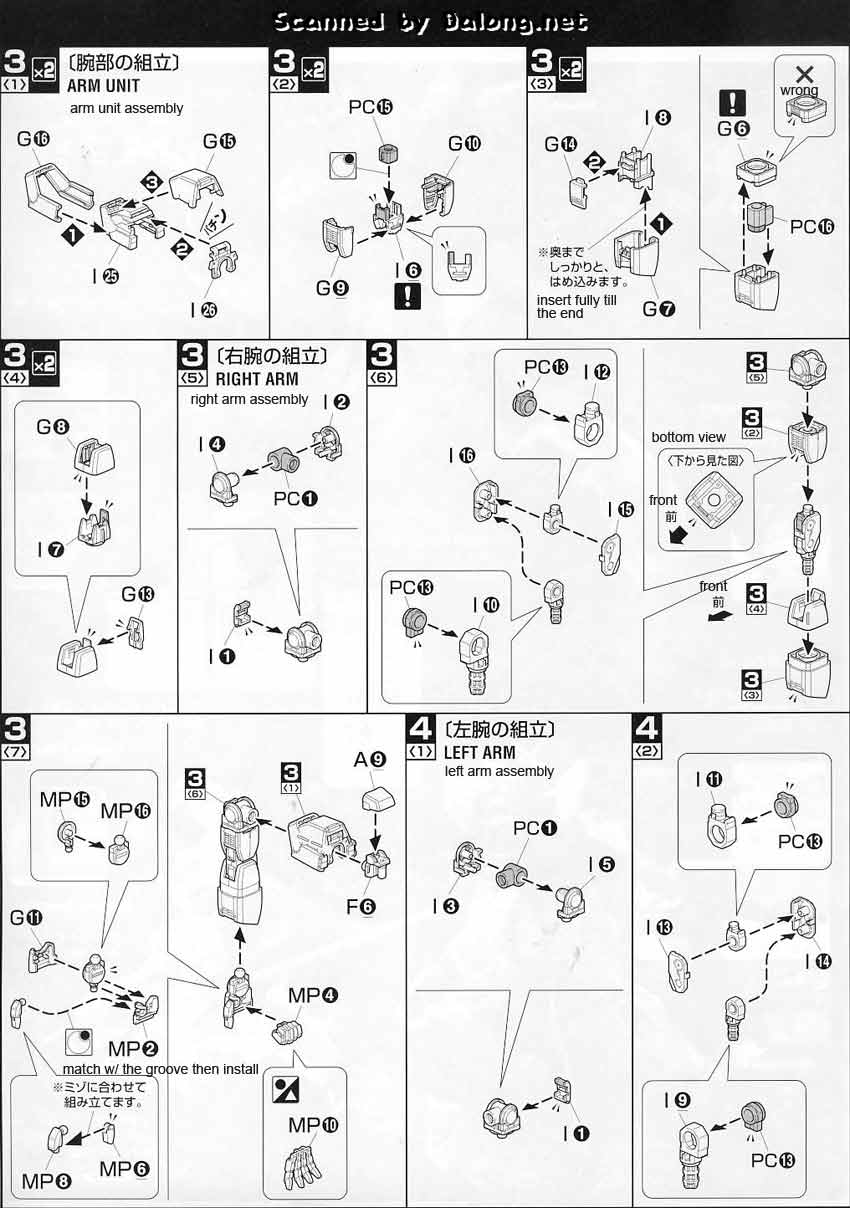

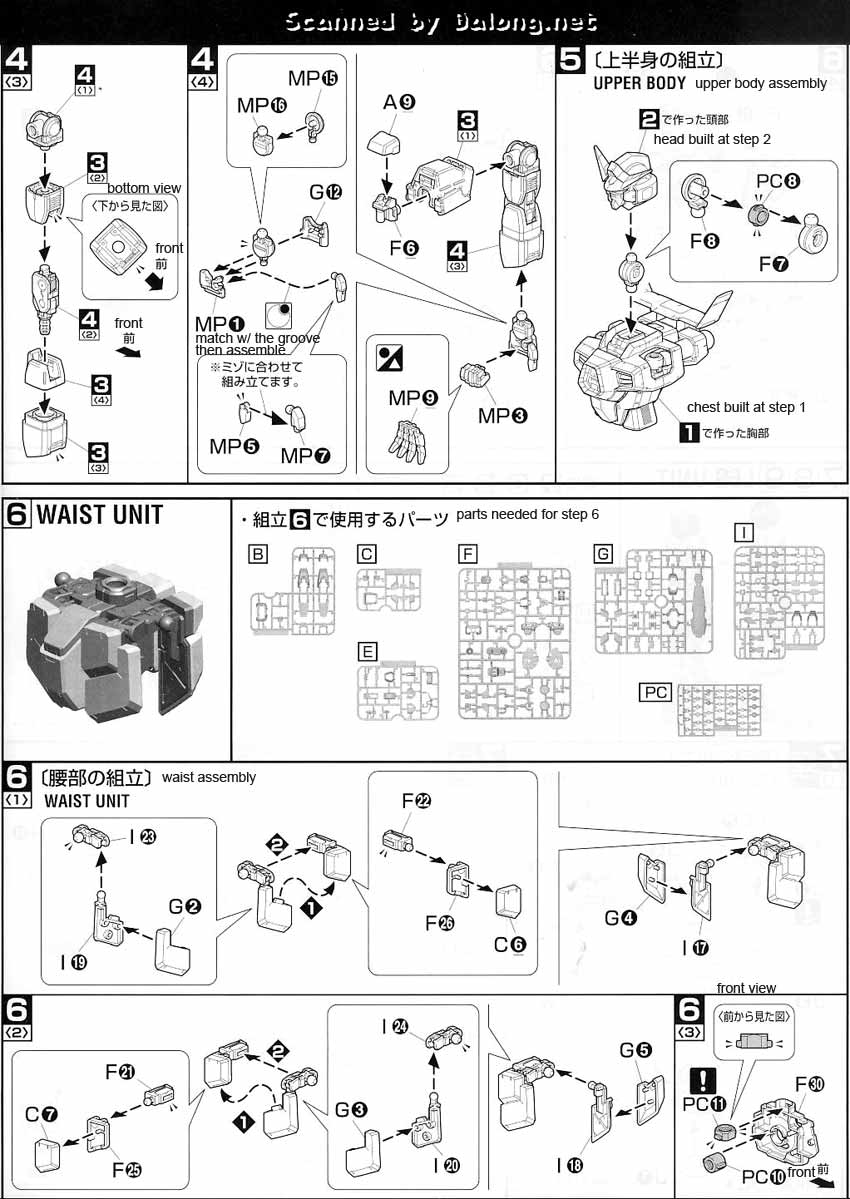

Color Guide & Construction Manual was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.

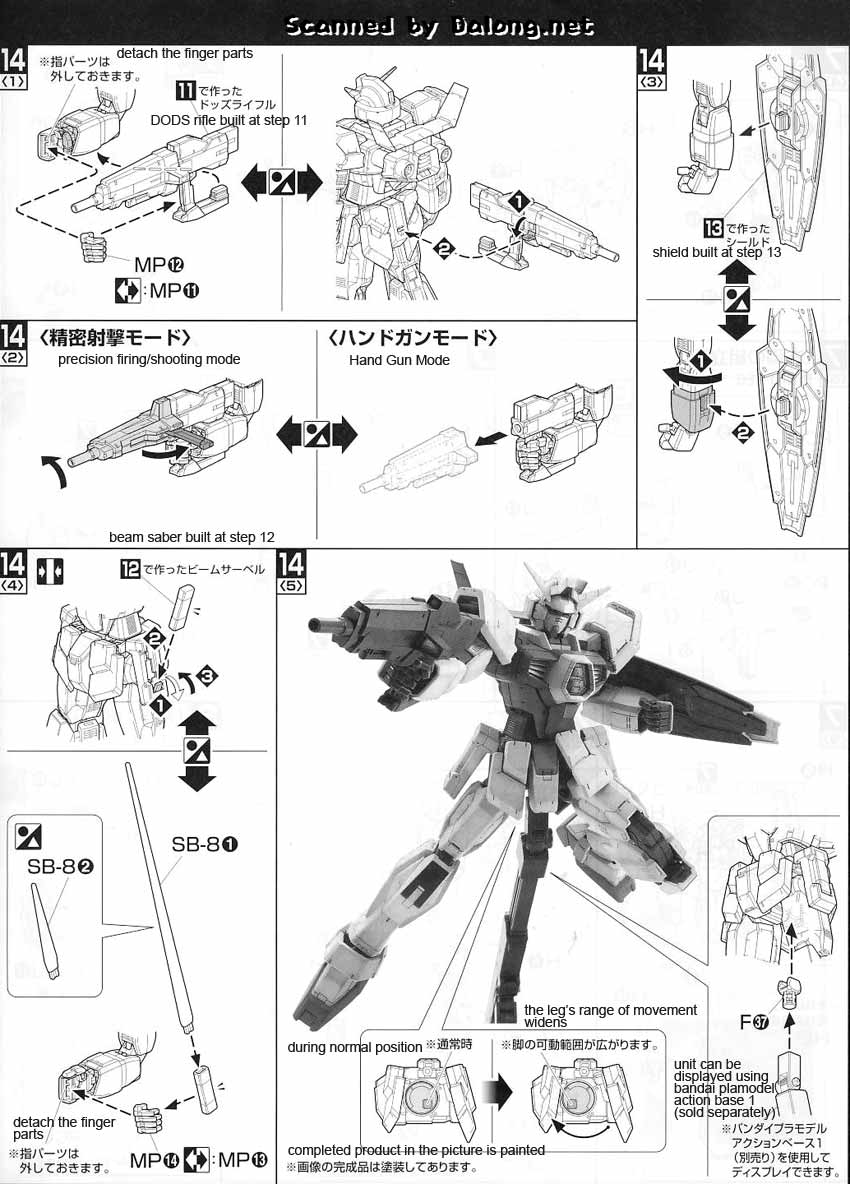

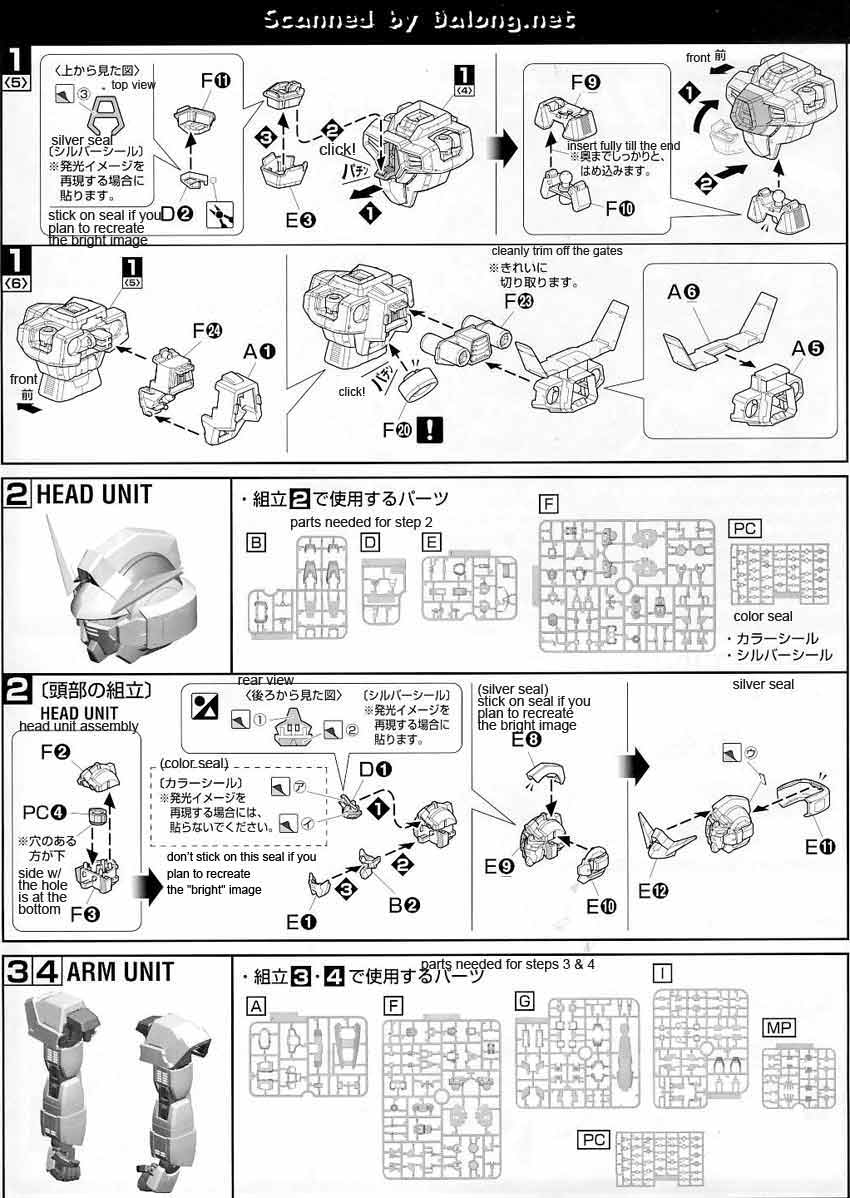

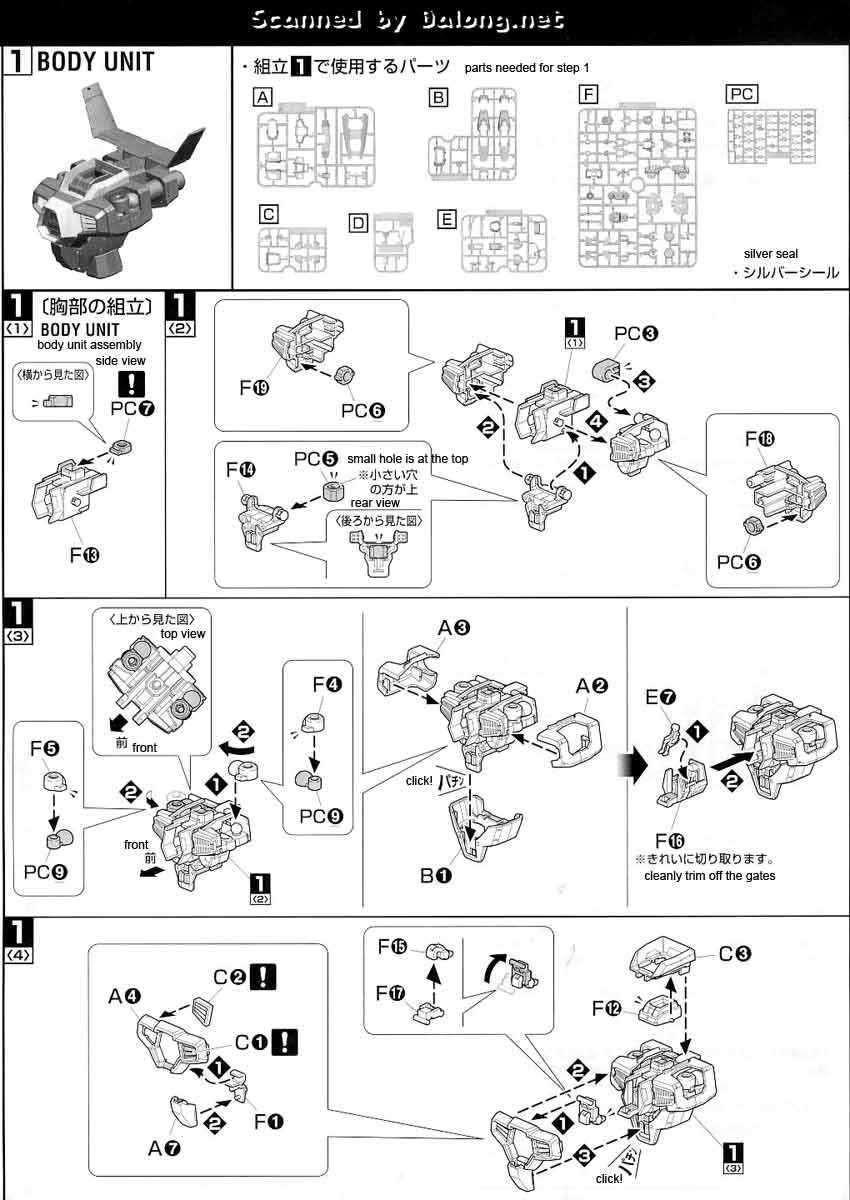

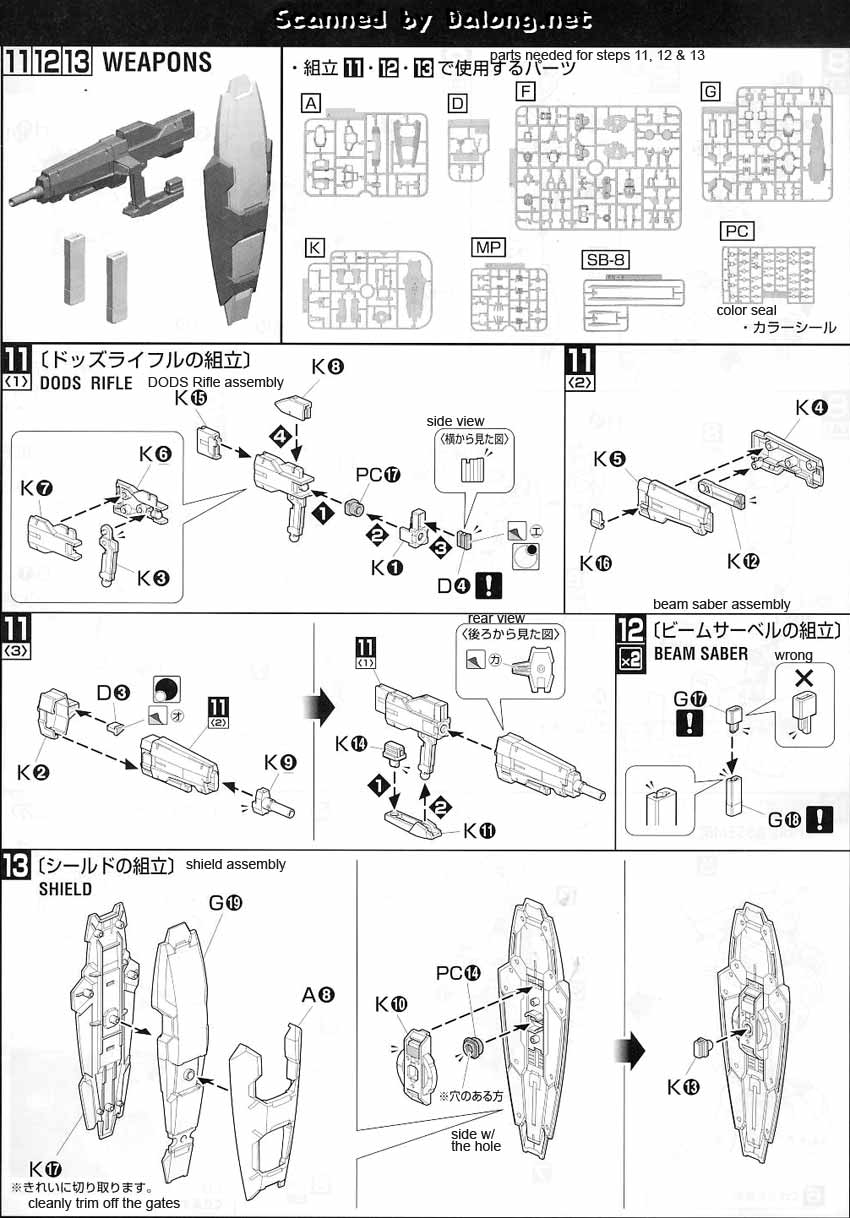

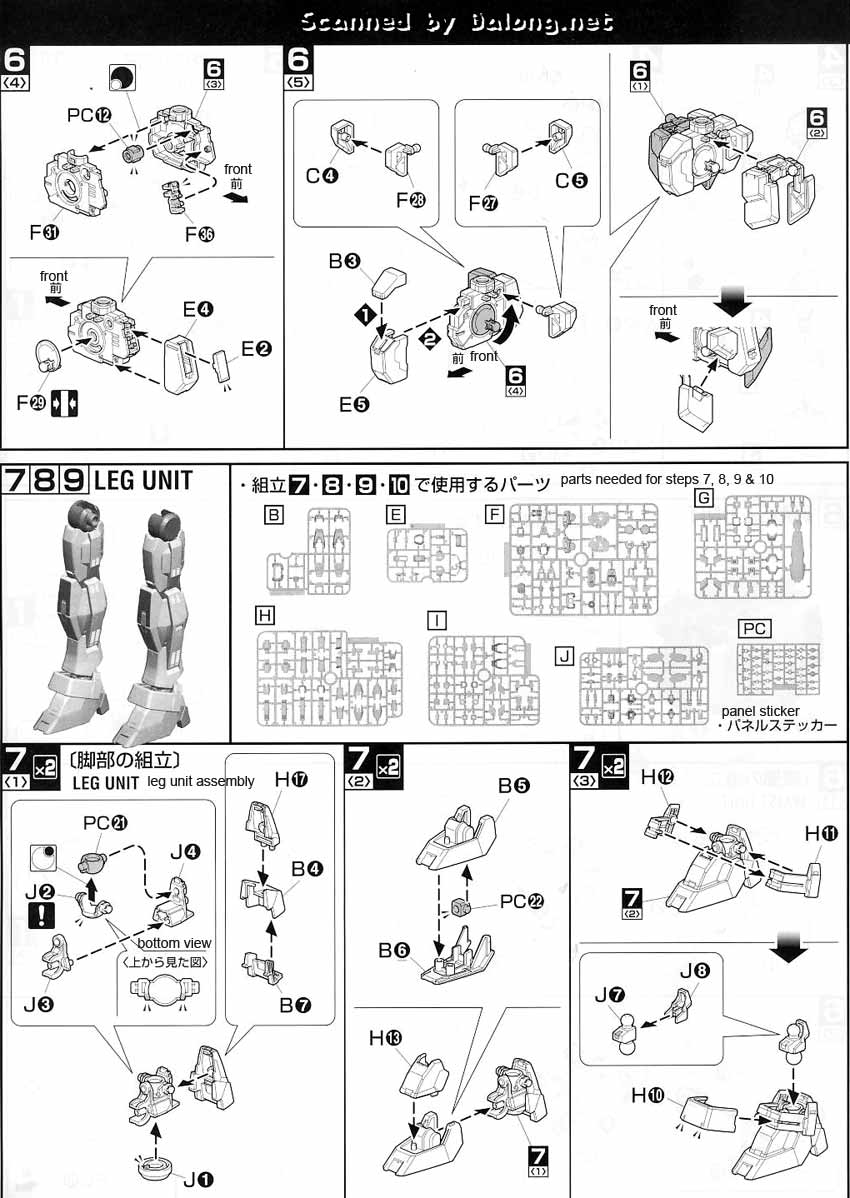

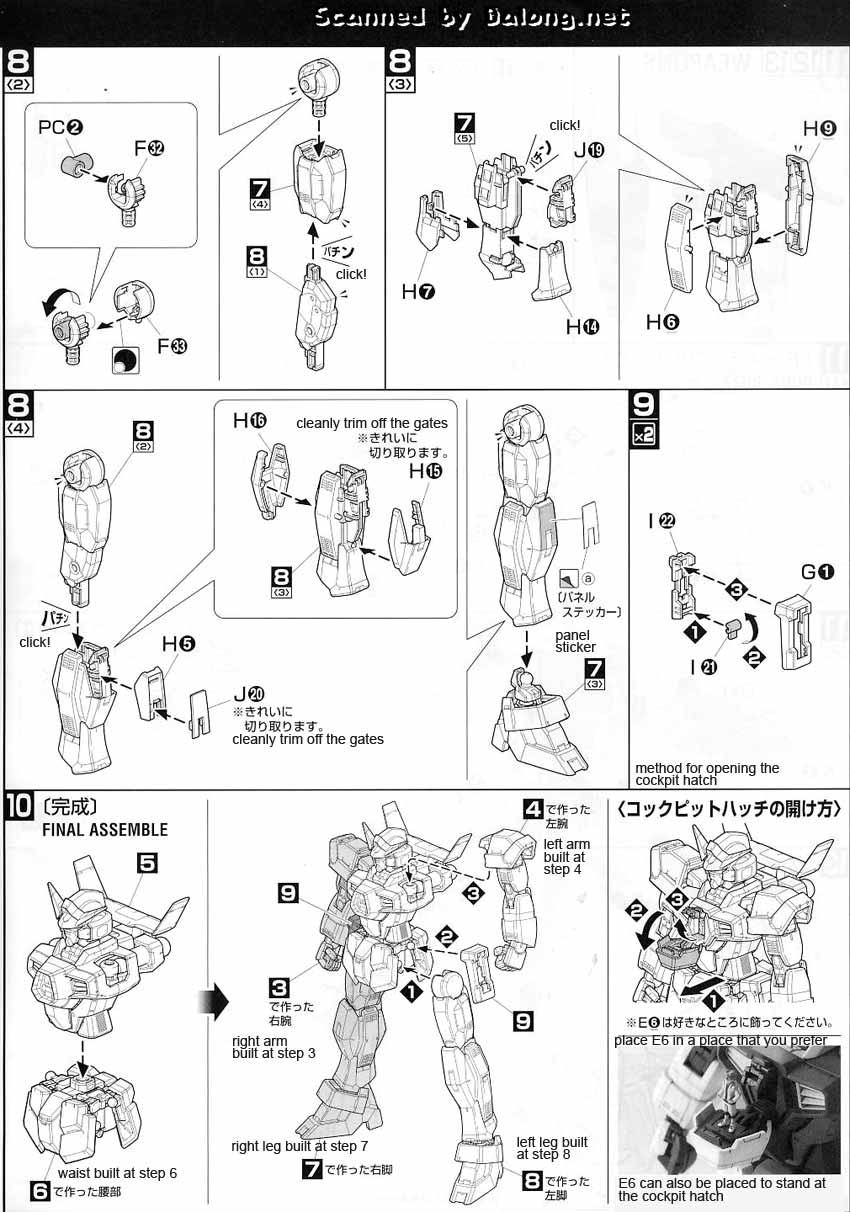

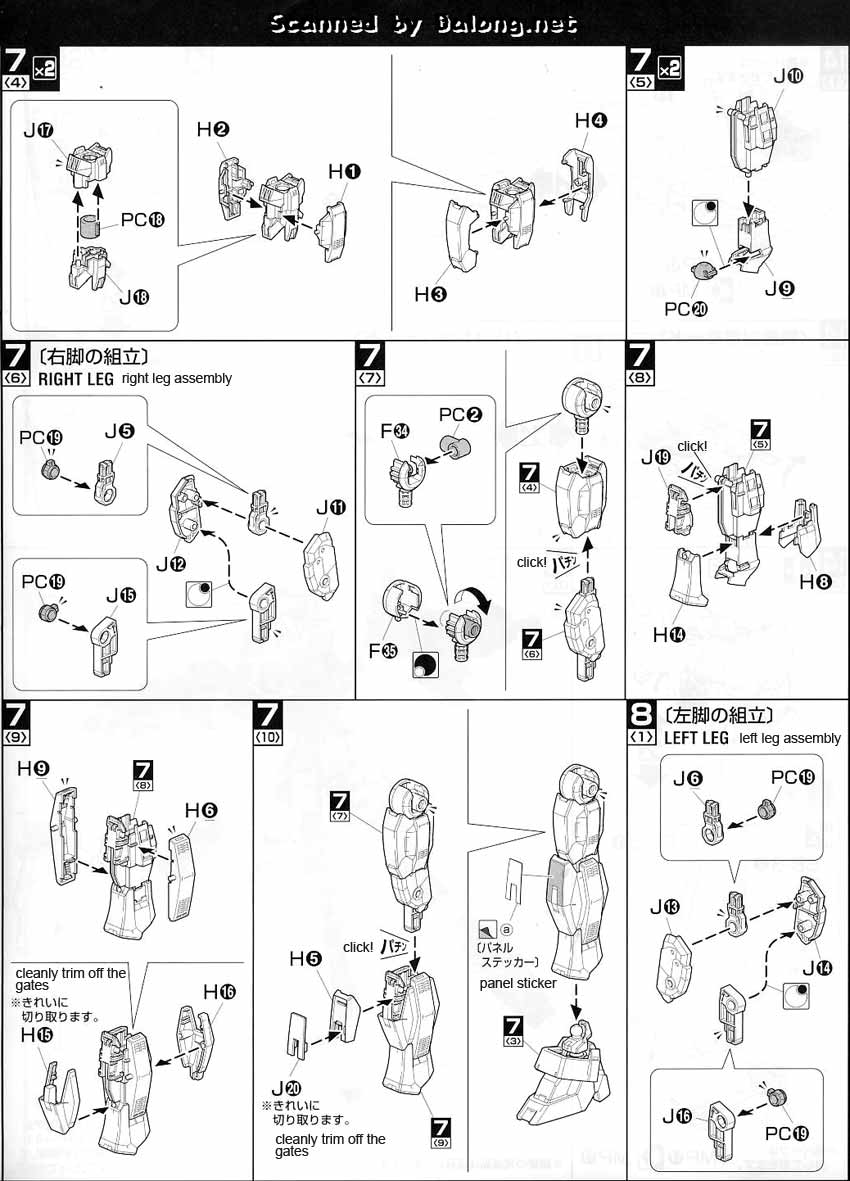

MG Gundam AGE-1 Normal English Translation Color Guide & Manual MG Gundam AGE-1 Normal English Translation Color Guide & Manual MG Gundam AGE-1 Normal English Translation Color Guide & Manual MG Gundam AGE-1 Normal English Translation Color Guide & Manual MG Gundam AGE-1 Normal English Translation Color Guide & Manual

MG Gundam AGE-1 Normal English Translation Color Guide & Manual MG Gundam AGE-1 Normal English Translation Color Guide & Manual MG Gundam AGE-1 Normal English Translation Color Guide & Manual MG Gundam AGE-1 Normal English Translation Color Guide & Manual

Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)------Flat Dark Gray (4754AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Clear Blue (H93)Clear Blue (C50)Clear Blue (X23)Transparent Blue (Transparent) (70.938)--CRYSTAL LIGHT BLUE (A.MIG-0098)Clear Blue (RC504)--blue (clear) (32752)--------Gloss Light Blue (4650AP)
Clear Green (H94)Clear Green (C138)Clear Green (X25)Transparent Green (Transparent) (70.936)--CRYSTAL GREEN (A.MIG-0092)Clear Green (RC505)----Green (Clear) (1325)--------
Clear (H30)Clear (C46)Clear (X22)Glossy Varnish (70.510)--GLOSSY VARNISH (A.MIG-0091)Gloss Varnish (RC502)Gloss Lacquer Clear Coat (HTK-XP09)Clear (solid gloss) (32101)Varnish (Gloss) (35)Gloss Clear Acrylic (2017)--Gloss Clear (LC73)Gloss Clear Acryl 35 ml (4638AP)
Emerald Green (H46)----Emerald (70.838)--INTERIOR TURQUOISE GREEN (A.MIG-0223)----------------
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------
Flesh/Pale Brown (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)SAND BROWN (A.MIG-0026)----brown (solid silk matt) (32185)Flesh (Matte) (61)------Flat Light Flesh (4390AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
