MG 00 Raiser English Manual & Color Guide

MG GN-0000+GNR-010 00 Raiser English Translation of Color Guide & Manual

Finally released this month by Bandai was the 1/100 MG 00 Raiser (Double O Raiser) flown by Setsuna F. Seie in Gundam 00 Season 2. This mobile suit is comprised of the Double O Gundam mecha and the O Raiser support craft.

In the anime series, the purpose of the O Raiser, was aside from a weapons platform, was to stabilize and maximize the twin GN drives used by the Double O Gundam which had a nasty habit of shutting down whenever Setsuna used TransAm. The O Raiser was piloted by reluctant Celestial Being captive, Saji Crossroad.

Prior to this, Bandai already released a 1/100 00 Raiser (normal and designer's color) as well as a Perfect Grade 00 Raiser. Then of course there was the 1/144 variants of the 00 Raiser.

This kit comes with 1 LED Unit but the actual model kit can be fitted with a total of 5 LED units. 3 of which can be used in the Double 00 Gundam while 2 can be fitted in the O Raiser. You also have the option to build the Double O Gundam as having GN Condensers instead of GN drives, to recreate the 00 Raiser from the Gundam 00 Movie. 00 Raiser had lost its Twin Drives at the end of the Season 2 when Setsuna and Ribbons Almark decided to have their Exia vs O Gundam mobile suit death match.

I saw some Gundam LED's being sold at Amazon. Do take caution however in leaving your LED unit on for a long time (like by connecting it directly to a DC power supply instead of using batteries) as it might end up melting your 00 Raiser or worse, burning down your house when your 00 Raiser catches fire from the heat.

The 1/100 MG 00 Raiser from Gundam 00 is selling for $$$ at Amazon

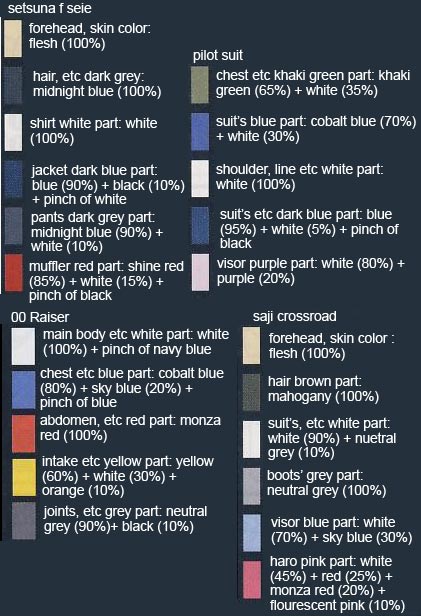

Color Guide DescriptionPaint Ratios
main body etc white partWhite (H1)(100%) + Navy Blue (H54)(small dose)
chest etc blue partCobalt Blue (H35)(80%) + Sky Blue (H25)(20%) + Blue (H5)(small dose)
abdomen etc red partMonza Red/Red Madder (H86)(100%)
intake etc yellow partYellow (H4)(60%) + White (H1)(30%) + Orange (H14)(10%)
joints, etc gray partNeutral Gray (H53)(90%) + Black (H2)(10%)
setsuna f seie forehead, skin colorFlesh/Pale Brown (H44)(100%)
setsuna f seie hair, etc dark grayMidnight Blue (H55)(100%)
setsuna f seie shirt white partWhite (H1)(100%)
setsuna f seie jacket dark blue partBlue (H5)(90%) + Black (H2)(10%) + White (H1)(small dose)
setsuna f seie pants dark gray partMidnight Blue (H55)(90%) + White (H1)(10%)
setsuna f seie muffler red partShine Red (H23)(85%) + White (H1)(15%) + Black (H2)(small dose)
setsuna f seie pilot suit chest etc khaki green partKhaki Green (H80)(65%) + White (H1)(35%)
setsuna f seie pilot suit suit's blue partCobalt Blue (H35)(70%) + White (H1)(30%)
setsuna f seie pilot suit shoulder, line etc white partWhite (H1)(100%)
setsuna f seie pilot suit suit's etc dark blue partBlue (H5)(95%) + White (H1)(5%) + Black (H2)(small dose)
setsuna f seie pilot suit visor purple partWhite (H1)(80%) + Purple (H39)(20%)
saji crossroad forehead, skin colorFlesh/Pale Brown (H44)(100%)
saji crossroad hair brown partMahogany (H84)(100%)
saji crossroad suit's etc white partWhite (H1)(90%) + Neutral Gray (H53)(10%)
saji crossroad boot's gray partNeutral Gray (H53)(100%)
saji crossroad visor blue partWhite (H1)(70%) + Sky Blue (H25)(30%)
saji crossroad haro pink partWhite (C1)(45%) + Red (C3)(25%) + Monza Red/Red Madder (C68)(20%) + Flourescent Pink (C174)(10%)
Disclaimer


Available at these Online Shops:

Amazon


Related Products

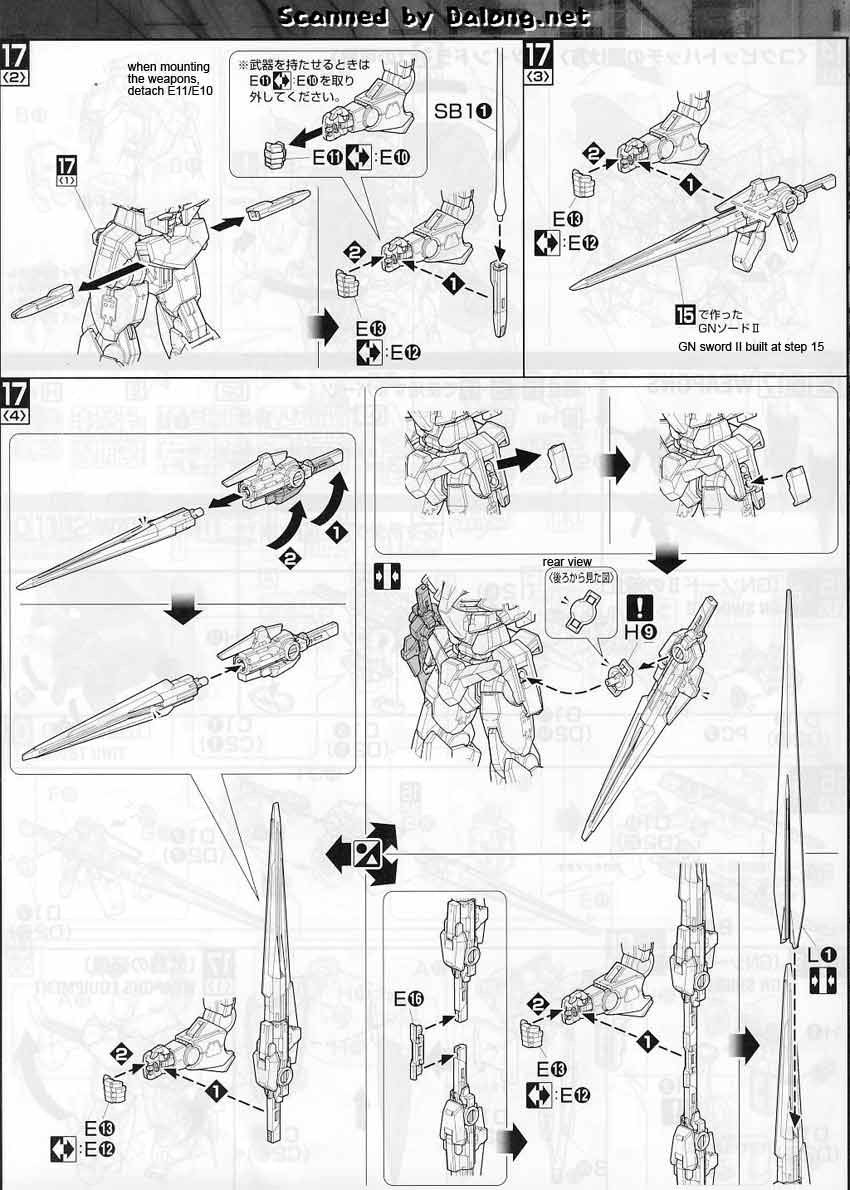

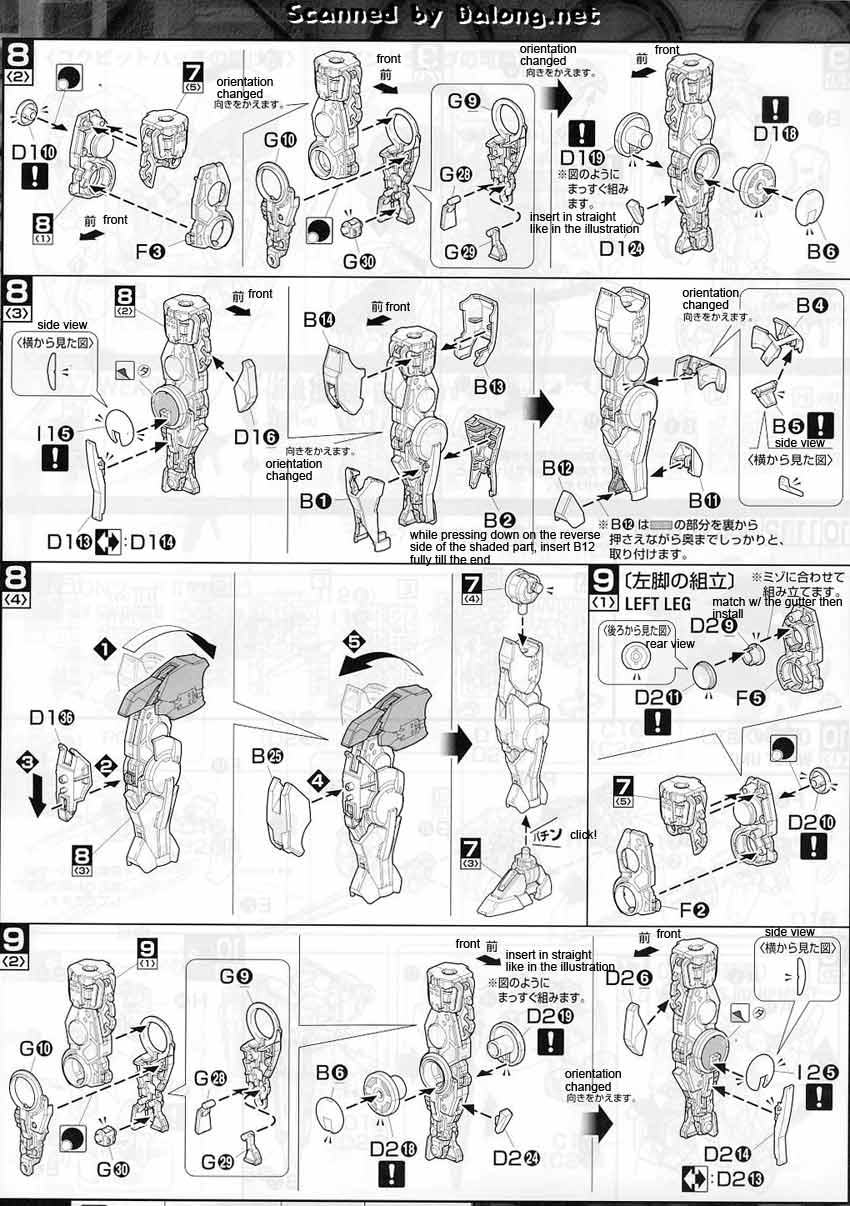

Construction Manual and Color Guide for the 1/100 MG 00 Raiser was translated to English from the Japanese manual posted at Dalong's Gunpla Review site. For the meaning of the symbols found in the model kits manual, kindly refer to this older post.
