1/100 GNY-001F Gundam Astraea Type F English Manual & Color Guide

1/100 GNY-001F Gundam Astraea Type F Construction Manual

The 1/100 non grade Gundam Astraea Type F of Fon Spaak from the Gundam 00 side stories. Like the Gundam Astraea of Ruido Resonance, The Type F also serves as a test bed for Celestial Being to try out new technologies that they are developing for their frontline Gundams.

The side stories are a series of comics that further expand the Anno Domini Universe timeline that Gundam 00 resides in. Personally I prefer the Gundam 00 series over the others when it comes to the storyline, I think that it tackles more mature themes which shows that the Gundam franchise is growing up along with its original fanbase who are probably within the 30~50 age bracket... but yeah that's just me thinking again... hehehe

The 1/100 non-grade Astraea F Type is selling for 2054 yen at Amiami, 2800 yen at Hobby Link Japan, 2240 yen at Hobby Search and 1959 yen at HWJapan. 3rd party sellers over at Amazon are usually selling it for $$$$.

Color Guide DescriptionPaint Ratios
1/100 GNY-001F Gundam Astraea Type F main body red partsRed (H3)(75%) + White (H1)(15%) + Yellow (H4)(10%)
1/100 GNY-001F Gundam Astraea Type F main body dark red partsWine Red/Maroon (H43)(80%) + White (H1)(15%) + Yellow (H4)(5%)
1/100 GNY-001F Gundam Astraea Type F main body light brown partsWhite (H1)(60%) + Mahogany (H84)(25%) + Yellow (H4)(10%) + Black (H2)(5%)
1/100 GNY-001F Gundam Astraea Type F main body yellow partsYellow (H4)(60%) + White (H1)(30%) + Orange (H14)(10%)
1/100 GNY-001F Gundam Astraea Type F main body white partsWhite (H1)(100%) + Navy Blue (H54)
1/100 GNY-001F Gundam Astraea Type F weapons light gray partsNeutral Gray (H53)(70%) + White (H1)(30%)
1/100 GNY-001F Gundam Astraea Type F weapons gray partsNeutral Gray (H53)(85%) + White (H1)(15%)
1/100 GNY-001F Gundam Astraea Type F shoulders, rifle, launcher internals silver partSilver (H8)(100%)
Disclaimer


Available at these Online Shops:

Amazon


Related Products





Paint Conversion Table:  (Disclaimer| How to Use | Sitemap)


White
(H1)
Aqueous Hobby Color
White
(C1)
Mr. Color
White
(X2)
Tamiya Color Acrylic Paint
Gloss White
(70.842)
Vallejo Model Color
White (Gloss)
(22)
Humbrol Enamel
White (Gloss)
(22)
Humbrol Acrylic
white (Gloss)
(36104)
Revell Aqua Color Acrylic
white (solid gloss)
(32104)
Revell Email Enamel
SATIN WHITE
(A.MIG-0047)
Ammo Acrylics
Gloss White
(4696AP)
Italeri
White
(X-2)
Tamiya Enamel
White (Lacquer Paint)
(LP2)
Tamiya Lacquer Paint
Pure White
(TS26)
Tamiya Color Spray Paints

Black
(H2)
Aqueous Hobby Color
Black
(C2)
Mr. Color
Black
(X1)
Tamiya Color Acrylic Paint
Glossy Black
(70.861)
Vallejo Model Color
Black (Gloss)
(21)
Humbrol Enamel
Black (Gloss)
(21)
Humbrol Acrylic
black (Gloss)
(36107)
Revell Aqua Color Acrylic
black (solid matt)
(32107)
Revell Email Enamel
SATIN BLACK
(A.MIG-0032)
Ammo Acrylics
Gloss Black
(4695AP)
Italeri
Black
(X-1)
Tamiya Enamel
Black (Lacquer Paint)
(LP1)
Tamiya Lacquer Paint
Semi Gloss Black
(C92)
Mr. Color
Semi-Gloss Black
(X18)
Tamiya Color Acrylic Paint
Semi Gloss Black
(X-18)
Tamiya Enamel
Semi Gloss Black (Lacquer Paint)
(LP5)
Tamiya Lacquer Paint
Semi Gloss Black
(TS29)
Tamiya Color Spray Paints
Black
(TS14)
Tamiya Color Spray Paints

Red
(H3)
Aqueous Hobby Color
Red
(C3)
Mr. Color
Red
(X7)
Tamiya Color Acrylic Paint
Carmine Red
(70.908)
Vallejo Model Color
Red RLM23
(71.003)
Vallejo Model Air
Bright Red (Gloss)
(19)
Humbrol Enamel
Bright Red (Gloss)
(19)
Humbrol Acrylic
Fiery Red (Gloss)
(36131)
Revell Aqua Color Acrylic
fiery red (solid matt)
(32131)
Revell Email Enamel
RED
(A.MIG-0049)
Ammo Acrylics
Traffic Red
(HTK-_103)
Hataka

Yellow
(H4)
Aqueous Hobby Color
Yellow
(C4)
Mr. Color
Flat Yellow
(XF3)
Tamiya Color Acrylic Paints (Flat)
Flat Yellow
(70.953)
Vallejo Model Color
Medium Yellow
(71.002)
Vallejo Model Air
Yellow (Gloss)
(69)
Humbrol Enamel
Yellow (Gloss)
(69)
Humbrol Acrylic
yellow (Gloss)
(36112)
Revell Aqua Color Acrylic
yellow (solid matt)
(32112)
Revell Email Enamel
YELLOW
(A.MIG-0048)
Ammo Acrylics
Gloss Yellow
(4642AP)
Italeri
Yellow
(69.004)
Vallejo Mecha Color
Lemon Yellow
(X8)
Tamiya Color Acrylic Paint
Deep Yellow
(70.915)
Vallejo Model Color
Lemon Yellow
(X-8)
Tamiya Enamel
Pure Yellow (Lacquer Paint)
(LP8)
Tamiya Lacquer Paint
Yellow
(TS16)
Tamiya Color Spray Paints
MS Yellow(Federation Mobile Suit Yellow)
(UG03)
Gundam Color

Silver
(H8)
Aqueous Hobby Color
Silver
(C8)
Mr. Color
Flat Aluminium
(XF16)
Tamiya Color Acrylic Paints (Flat)
Silver (Metallic)
(70.997)
Vallejo Model Color
Silver RLM01 (Metallic)
(71.063)
Vallejo Model Air
Silver (metallic)
(11)
Humbrol Enamel
Silver (metallic)
(11)
Humbrol Acrylic
Silver (solid metallic)
(36190)
Revell Aqua Color Acrylic
silver (solid metallic)
(32190)
Revell Email Enamel
Aluminum (F)
(4677)
Testors Model Master Acrylic
Aluminum (F)
(1781)
Testors Model Master Enamel
Matt Natural Metal FS37178
(LC24)
Lifecolor
MATT ALUMINUM
(A.MIG-0194)
Ammo Acrylics
Aluminium (Metallic)
(RC020)
AK Real Color
Metal. Gloss Silver
(4678AP)
Italeri
Flat Aluminum
(XF-16)
Tamiya Enamel
Light Steel
(69.064)
Vallejo Mecha Color
Flat Aluminum (Lacquer Paint)
(LP38)
Tamiya Lacquer Paint
Aluminum (Metallic)
(71.062)
Vallejo Model Air
Aluminium
(HTK-_078)
Hataka
FS17178 Aluminium
(X142)
Xtracolor
Metallic Gray
(XF56)
Tamiya Color Acrylic Paints (Flat)
Oily Steel (Metallic)
(70.865)
Vallejo Model Color
Chrome (Metallic
(71.064)
Vallejo Model Air
Aluminum (metallic)
(56)
Humbrol Enamel
Aluminum (solid metallic)
(36199)
Revell Aqua Color Acrylic
aluminum (solid metallic)
(32199)
Revell Email Enamel
POLISHED METAL
(A.MIG-0192)
Ammo Acrylics
Metal. Flat Aluminum
(4677AP)
Italeri
Metallic Grey
(XF-56)
Tamiya Enamel
Dark Steel
(69.065)
Vallejo Mecha Color
Metallic gray (Lacquer Paint)
(LP61)
Tamiya Lacquer Paint
SILVER
(A.MIG-0195)
Ammo Acrylics
Shine Silver
(C90)
Mr. Color
Chrome Silver (metallic)
(191)
Humbrol Enamel
White Aluminium
(HTK-_190)
Hataka
RAL9001 Weissaluminium
(X252)
Xtracolor
Bare Metal Silver
(AS12)
Tamiya Color Spray For Aircraft

Orange
(H14)
Aqueous Hobby Color
Orange
(C59)
Mr. Color
Orange
(X6)
Tamiya Color Acrylic Paint
Clear Orange
(70.956)
Vallejo Model Color
Orange
(71.083)
Vallejo Model Air
Orange (Gloss)
(18)
Humbrol Enamel
luminous orange (solid matt)
(36125)
Revell Aqua Color Acrylic
luminous orange (solid matt)
(32125)
Revell Email Enamel
Orange (Gloss)
(1527)
Testors Model Master Enamel
Matt Orange FS32246
(LC05)
Lifecolor
ORANGE
(A.MIG-0129)
Ammo Acrylics
Orange
(RC009)
AK Real Color
Pure Orange
(HTK-_704)
Hataka
Flat Orange
(4302AP)
Italeri
orange (Gloss)
(36130)
Revell Aqua Color Acrylic
orange (solid matt)
(32130)
Revell Email Enamel
Gloss Orange
(4682AP)
Italeri

Wine Red/Maroon
(H43)
Aqueous Hobby Color
Wine Red/Maroon
(C100)
Mr. Color
Red
(70.926)
Vallejo Model Color
Crimson (Gloss)
(20)
Humbrol Enamel
Red
(36132)
Revell Aqua Color Acrylic
Red
(32132)
Revell Email Enamel
Wine Red
(N43)
Acrysion
Dark Red
(69.011)
Vallejo Mecha Color
Neutral Gray
(H53)
Aqueous Hobby Color
Neutral Gray
(C13)
Mr. Color
Neutral Gray
(XF53)
Tamiya Color Acrylic Paints (Flat)
Neutral Grey
(70.992)
Vallejo Model Color
Aggressor Gray
(71.274)
Vallejo Model Air
US Compass Grey (Satin)
(128)
Humbrol Enamel
US Compass Grey (Satin)
(128)
Humbrol Acrylic
Aggressor Gray FS36251
(1794)
Testors Model Master Enamel
Light Grey FS36251
(UA034)
Lifecolor
NEUTRAL GRAY
(A.MIG-0239)
Ammo Acrylics
Aggressor Grey
(RC248)
AK Real Color
Aggressor Grey
(HTK-_157)
Hataka
FS16251 Medium Grey
(X132)
Xtracolor
Dark Sea Gray
(XF54)
Tamiya Color Acrylic Paints (Flat)
Dark Sea Grey
(70.991)
Vallejo Model Color
Neutral Grey
(71.051)
Vallejo Model Air
Air Mobility Command Gray FS36173
(2035)
Testors Model Master Enamel
Neutral Grey 43 FS35173
(UA046)
Lifecolor
(BS 638)
(A.MIG-0205)
Ammo Acrylics
Neutral Grey 43
(RC261)
AK Real Color
Neutral Grey 43
(HTK-_033)
Hataka
FS16173 Air Mobility Command Grey
(X158)
Xtracolor
Grey Z
(69.039)
Vallejo Mecha Color

Navy Blue
(H54)
Aqueous Hobby Color
Navy Blue
(C14)
Mr. Color
Dark Sea Blue
(70.898)
Vallejo Model Color
Steel Blue
(71.087)
Vallejo Model Air
Navy Blue (Matte)
(77)
Humbrol Enamel
Navy Blue (Matte)
(77)
Humbrol Acrylic
Greyish Blue (solid matt)
(36179)
Revell Aqua Color Acrylic
Greyish Blue (solid matt)
(32179)
Revell Email Enamel
Flat Sea Blue FS35042
(1718)
Testors Model Master Enamel
Non Specular Sea Blue FS35042
(UA044)
Lifecolor
SEA BLUE
(A.MIG-0227)
Ammo Acrylics
Graublau – Grey Blue
(RC208)
AK Real Color
Grey-Blue
(HTK-_171)
Hataka
RAL5008 Graublau
(X264)
Xtracolor
Navy Blue
(N54)
Acrysion
Flat Non Specular Sea Blue
(4604AP)
Italeri
Titan Dark Blue
(69.022)
Vallejo Mecha Color
Field Blue
(XF50)
Tamiya Color Acrylic Paints (Flat)
Grey Blue
(71.005)
Vallejo Model Air
Titan's Blue 1
(UG16)
Gundam Color

Mahogany
(H84)
Aqueous Hobby Color
Mahogany
(C42)
Mr. Color
Hull Red
(XF9)
Tamiya Color Acrylic Paints (Flat)
Hull Red
(70.985)
Vallejo Model Color
Mahogany
(71.036)
Vallejo Model Air
Wine (Matte)
(73)
Humbrol Enamel
reddish brown (solid matt)
(36137)
Revell Aqua Color Acrylic
reddish brown (solid matt)
(32137)
Revell Email Enamel
DARK TRACKS
(A.MIG-0035)
Ammo Acrylics
Mahogany Brown
(HTK-_130)
Hataka
Flat Rust
(4675AP)
Italeri
Dark Rust
(70.302)
Vallejo Panzer Aces
Hull Red
(71.039)
Vallejo Model Air
SCC 1A Very Dark Brown
(UA274)
Lifecolor
S.C.C. 1A Brown
(RC034)
AK Real Color
S.C.C. No. 1A Dark Brown
(HTK-_077)
Hataka

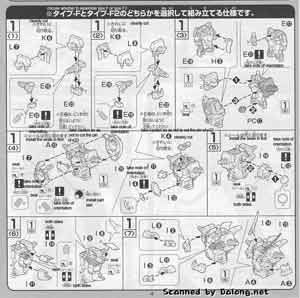

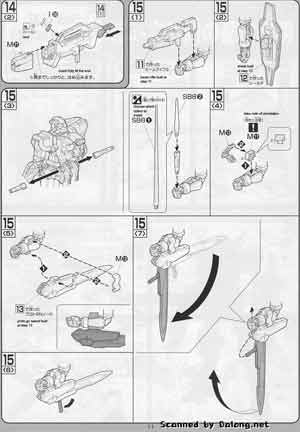

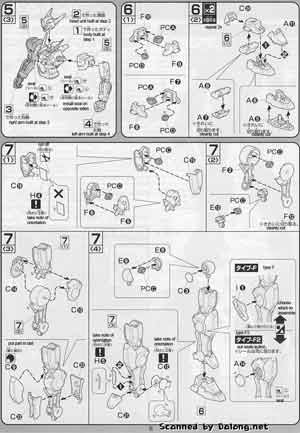

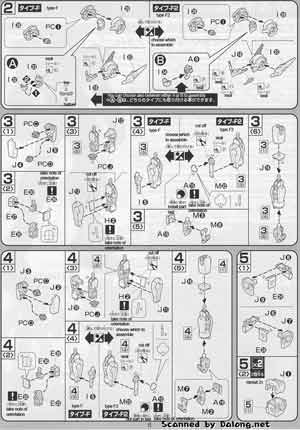

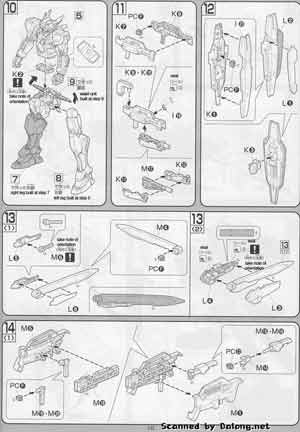

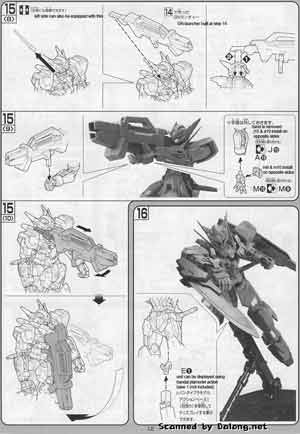

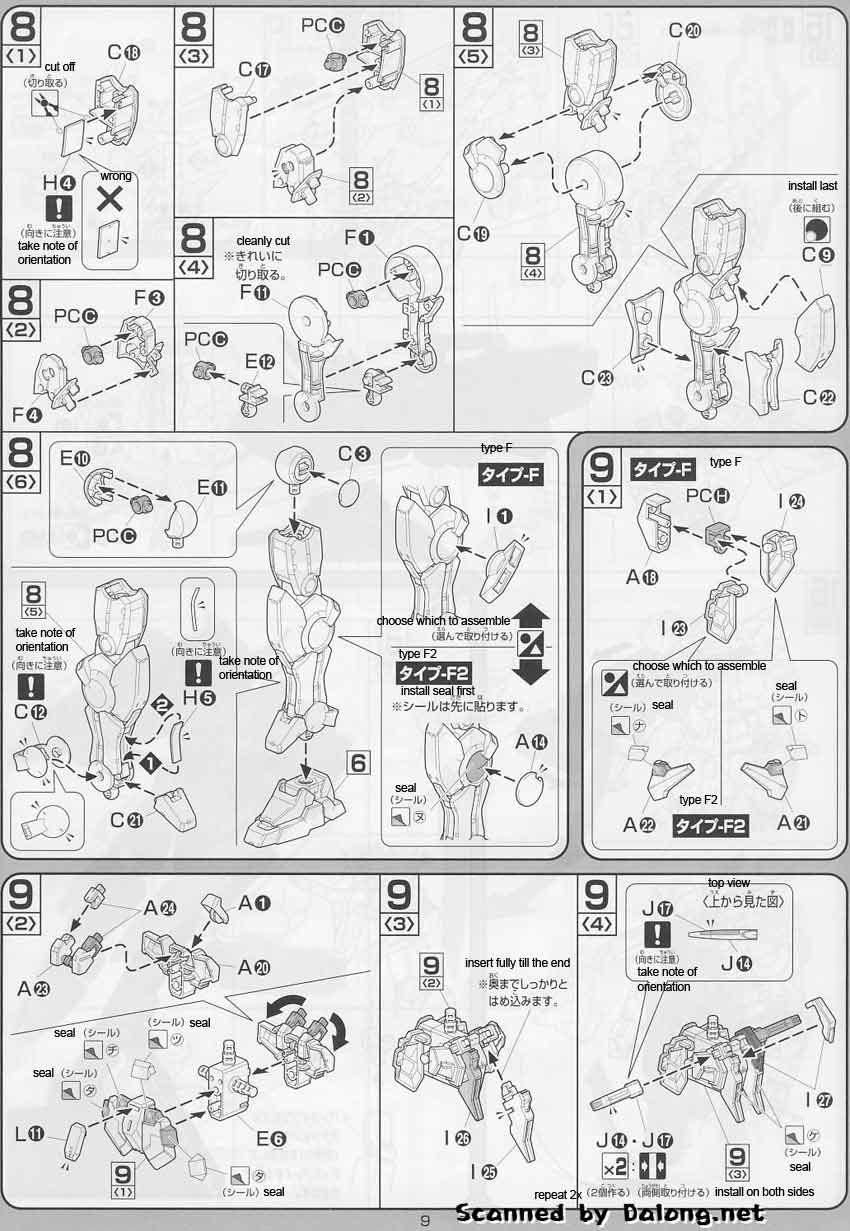

Construction Manual was translated to English from the Japanese manual posted at Dalong. Translated Color Guide of the 1/100 GNY-001F Gundam Astraea Type F can be found here.
