1/100 SVMS-010 Over Flag English Manual & Color Guide

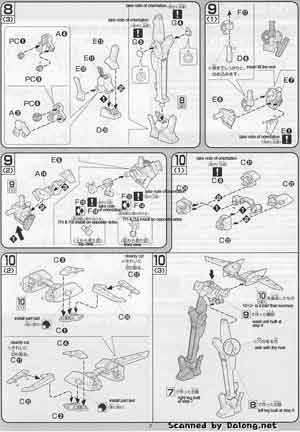

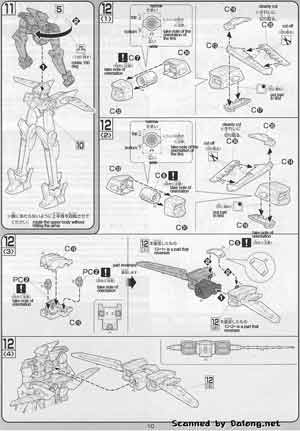

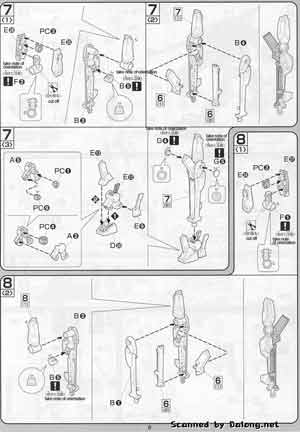

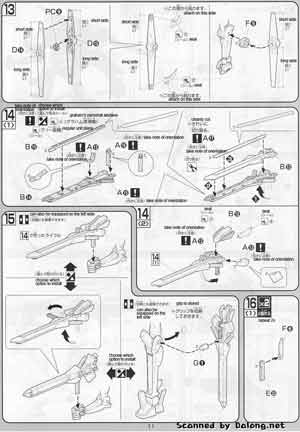

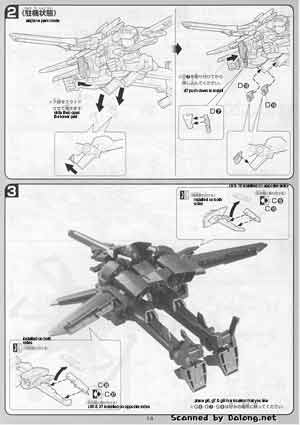

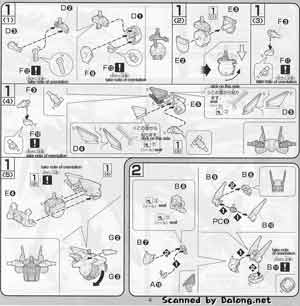

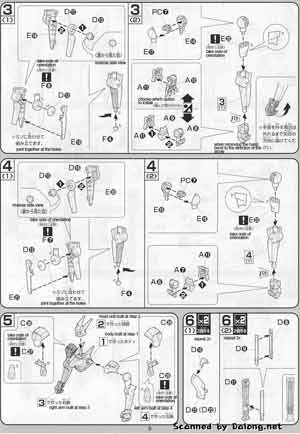

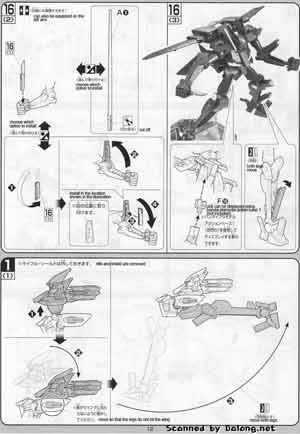

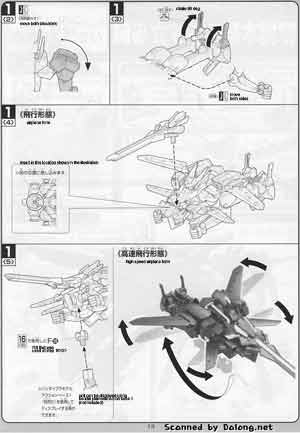

1/100 SVMS-010 Over Flag Construction Manual
Update: Translated Color Guide for the 1/100 Over Flag can be found here.

1/100 SVMS-010 Over Flag of Graham, Daryl and Howard in Season 1 of Gundam 00. This beautiful mobile suit is classified as a mobile armor because it can transform to both fighter and robot mode. Therefore being able to take advantage of the benefits that each mode can bring in the battlefield.

The Over Flag is powered by a conventional engine but with the engine souped up, limiters removed and with a properly motivated pilot behind it, it can have a decent shot going up against a GN drive powered mobile suit. One of the GN Thrones found this out the hard way when it went up against Graham Aker who was seething with rage after the death of one of his teammates. Past info that I've written up about the SVMS-010 Over Flag you can find here.

Selling Price of the 1/100 SVMS-010 Over Flag is 1613 yen at Amiami. 1540 yen at HWJapan, 2200 yen at Hobby Link Japan and 2200 yen at Hobby Search. At Amazon some 3rd party sellers are selling it for $$$$.

Color Guide DescriptionPaint Ratios
main body etc black partsBlack (H2)(100%)
chest etc white partsWhite (H1)(95%) + Blue Gray (H42)(5%)
lower leg etc dark gray partsNavy Blue (H54)(70%) + Black (H2)(15%) + White (H1)(15%)
rifle, etc internal mecha silver partsSilver (H8)(100%)
plasma sword, graham's rifle blue partsClear Blue (H93)(100%)
mono eye red partsMonza Red/Red Madder (H86)(100%)
Union Ground Crew A skin colorFlesh/Pale Brown (H44)(100%)
Union Ground Crew A chest etc blue partBright Blue/Indy Blue (H15)(70%) + White (H1)(20%) + Blue (H5)(10%)
Union Ground Crew A shoes, etc dark gray partsMidnight Blue (H55)(100%)
Union Ground Crew A left ornament white partWhite (H1)(95%) + Sky Blue (H25)(5%)
Union Ground Crew A red partMonza Red/Red Madder (H86)(100%)
Union Ground Crew B skin colorFlesh/Pale Brown (H44)(100%)
Union Ground Crew B helmet etcWhite (H1)(100%)
Union Ground Crew B top uniform orange partOrange (H14)(90%) + Neutral Gray (H53)(10%)
Union Ground Crew B gray partNavy Blue (H54)(80%) + White (H1)(20%)
Union Ground Crew B shoes etc dark gray partMidnight Blue (H55)(100%)
Pilot skin colorFlesh/Pale Brown (H44)(100%)
Pilot suit etc white partsWhite (H1)(95%) + Sky Blue (H25)(5%) + Pink (H19)(small dose)
Pilot helmet etc blue partsBright Blue/Indy Blue (H15)(95%) + Red (H3)(5%)
Pilot backpack etc gray partsNeutral Gray (H53)(100%)
Pilot hair yellow partYellow (H4)(70%) + White (H1)(30%)
Pilot helmet visor brown partsWood Brown (H37)(80%) + Yellow (H4)(20%)
Pilot thighs dark gray partMidnight Blue (H55)(100%)
