Saturday, October 1, 2016

HG Dom Test Type English Manual & Color Guide (The Origin)

HG Dom Test Type English Manual & Color Guide (The Origin) High Grade Bandai

HG Dom Test Type English Manual & Color Guide (The Origin) High Grade Bandai

HG Dom Test Type English Manual & Color Guide (The Origin) High Grade Bandai

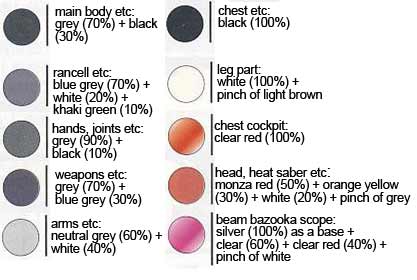

Color Guide DescriptionPaint Ratios
main body etcGray/Nezumi (H22)(70%) + Black (H2)(30%)
ransel (backpack) etcBlue Gray (H42)(70%) + White (H1)(20%) + Khaki Green (H80)(10%)
hands, joints etcGray/Nezumi (H22)(90%) + Black (H2)(10%)
weapons, etcGray/Nezumi (H22)(70%) + Blue Gray (H42)(30%)
arms etcNeutral Gray (H53)(60%) + White (H1)(40%)
chest etcBlack (H2)(10%)
leg partWhite (H1)(100%) + Light Brown/Tan (H27)(small dose)
chest cockpitClear Red (H90)(100%)
head, heat saber etcMonza Red/Red Madder (H86)(50%) + Orange Yellow (H24)(30%) + White (H1)(20%) + Gray/Nezumi (H22)(small dose)
beam bazooka scopeSilver (H8)(100%) as a base and on top Clear (H30)(60%) + Clear Red (H90)(40%) + White (H1)(small dose)
Disclaimer


Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.

HG Dom Test Type English Manual & Color Guide (The Origin) High Grade BandaiHG Dom Test Type English Manual & Color Guide (The Origin) High Grade BandaiHG Dom Test Type English Manual & Color Guide (The Origin) High Grade BandaiHG Dom Test Type English Manual & Color Guide (The Origin) High Grade Bandai








Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)------Flat Dark Gray (4754AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Blue Gray (H42)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)French Mirage Blue (70.900)IDF Blue (71.113)FRENCH BLUE (A.MIG-0062)----Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)------Flat Non Specular Interm. Blue (4639AP)
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Khaki Green (H80)Khaki Green (C54)Nato Green (XF67)--NATO Green (71.093)NATO GREEN (A.MIG-0084)NATO Green (RC080)NATO Green (HTK-_152)----Tricolor Green NATO (SG) (2173)--Green FS34094 (UA303)--
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Light Brown/Tan (H27)Tan (C44)Buff (XF57)Green Brown (70.879)German Yellow Brown (71.272)GELBBRAUN (A.MIG-0013)Gelbraun – Yellow Brown (RC063)Green Brown (HTK-_303)Ochre Brown (solid matt) (32188)Brown Yellow (Matte) (94)Africa Grunbraun RAL 8000 (F) (2099)RAL8000 Grunbraun (X803)Grunbraun/Gelbbraun RAL 8000 (UA203)Flat US Army/Mar.Gulf Arm Sand (4812AP)
Clear Red (H90)Clear Red (C47)Clear Red (X27)Transparent Red (Transparent) (70.934)--CRYSTAL RED (A.MIG-0093)Clear Red (RC503)--red (clear) (32731)Red (Clear) (1321)------Gloss Red (4605AP)
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Clear (H30)Clear (C46)Clear (X22)Glossy Varnish (70.510)--GLOSSY VARNISH (A.MIG-0091)Gloss Varnish (RC502)Gloss Lacquer Clear Coat (HTK-XP09)Clear (solid gloss) (32101)Varnish (Gloss) (35)Gloss Clear Acrylic (2017)--Gloss Clear (LC73)Gloss Clear Acryl 35 ml (4638AP)
