Sunday, April 5, 2015

1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver English Manual & Color Guide

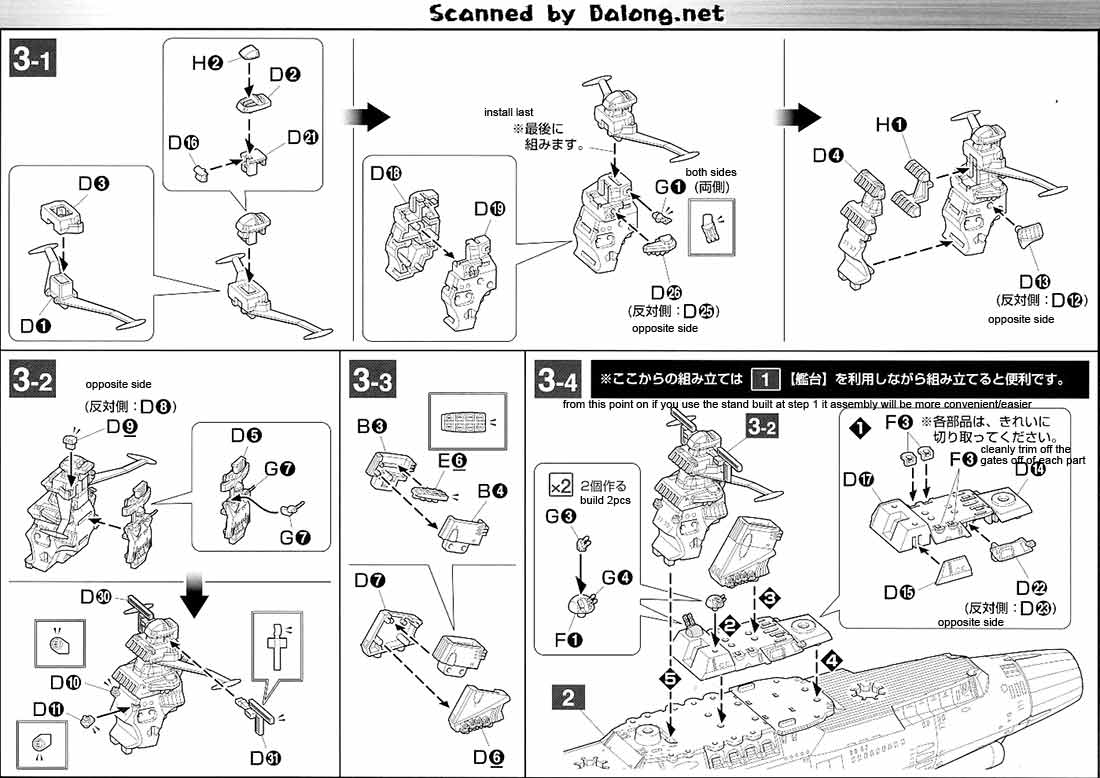

1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver Construction Manual & Color Guide

Another variant of the Space Battleship Yamato released by Bandai from the 2199 series was the Cosmo Reverse Version. If you ask me which version of the Yamato I prefer then it would be the massive 1/350 scale.

The 1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver is selling for $ at Amazon.

1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver Construction Manual & Color Guide

1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver Construction Manual & Color Guide

1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver Construction Manual & Color Guide

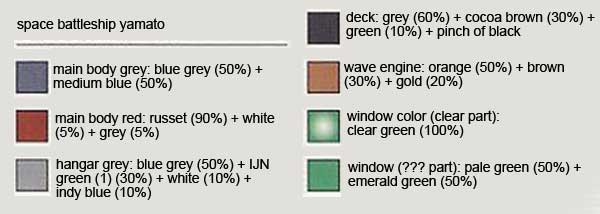

Color Guide DescriptionPaint Ratios
space battleship yamato main body gray partBlue Gray (H42)(50%) + Medium Blue/Intermediate Blue (H56)(50%)
space battleship yamato main body red partRusset / Azuki (H33)(90%) + White (H1)(5%) + Gray/Nezumi (H22)(5%)
space battleship yamato hangar gray partBlue Gray (H42)(50%) + IJN Green (H59)(30%) + White (H1)(10%) + Bright Blue/Indy Blue (H15)(10%)
space battleship yamato deck partGray/Nezumi (H22)(60%) + Cocoa Brown (H17)(30%) + Green (H6)(10%) + Black (H2)(small dose)
space battleship yamato wave engine partOrange (H14)(50%) + Brown (H7)(30%) + Gold (H9)(20%)
space battleship yamato window color (clear part)Clear Green (H94)(100%)
space battleship yamato windowPale Green (H41)(50%) + Emerald Green (H46)(50%)

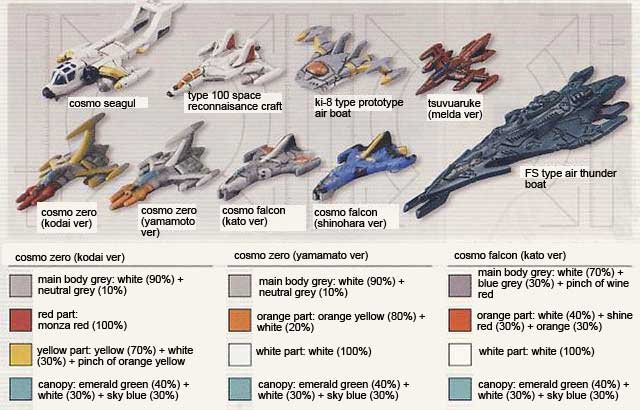

cosmo zero (kodai ver) main body grey partWhite (H1)(90%) + Neutral Gray (H53)(10%)
cosmo zero (kodai ver) red partMonza Red/Red Madder (H86)(100%)
cosmo zero (kodai ver) yellow partYellow (H4)(70%) + White (H1)(30%) + Orange Yellow (H24)(small dose)
cosmo zero (yamamoto ver) canopy partEmerald Green (H46)(40%) + White (H1)(30%) + Sky Blue (H25)(30%)
cosmo zero (yamamoto ver) main body gray partWhite (H1)(90%) + Neutral Gray (H53)(10%)
cosmo zero (yamamoto ver) orange partOrange Yellow (H24)(80%) + White (H1)(20%)
cosmo zero (yamamoto ver) white partWhite (H1)(100%)
cosmo zero (yamamoto ver) canopyEmerald Green (H46)(40%) + White (H1)(30%) + Sky Blue (H25)(30%)
cosmo falco (kato ver) main body gray partWhite (H1)(70%) + Blue Gray (H42)(30%) + Wine Red/Maroon (H43)(small dose)
cosmo falco (kato ver) orange partWhite (H1)(40%) + Orange (H14)(30%) + Shine Red (H23)(30%)
cosmo falco (kato ver) white partWhite (H1)(100%)
cosmo falco (kato ver) canopyEmerald Green (H46)(40%) + White (H1)(30%) + Sky Blue (H25)(30%)

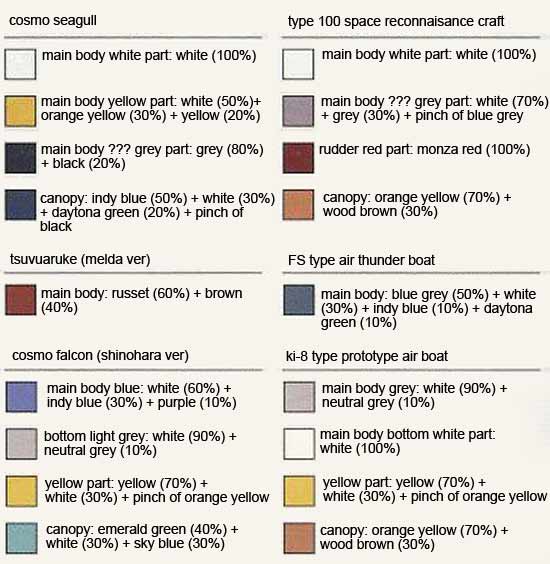

cosmo seagull main body white partWhite (H1)(100%)
cosmo seagull main body yellow partWhite (H1)(50%) + Orange Yellow (H24)(30%) + Yellow (H4)(20%)
cosmo seagull main body gray partGray/Nezumi (H22)(80%) + Black (H2)(20%)
cosmo seagull canopyBright Blue/Indy Blue (H15)(50%) + White (H1)(30%) + Bright Green/Daytona Green (H26)(20%) + Black (H2)(small dose)
tsuvuaruke (melda ver) main bodyRusset / Azuki (H33)(60%) + Brown (H7)(40%)
cosmo falcon (shinohara ver) main body blue partWhite (H1)(60%) + Bright Blue/Indy Blue (H15)(30%) + Purple (H39)(10%)
cosmo falcon (shinohara ver) bottom line gray partWhite (H1)(90%) + Neutral Gray (H53)(10%)
cosmo falcon (shinohara ver) yellow partWhite (H1)(100%) + Orange Yellow (H24)(small dose)
cosmo falcon (shinohara ver) canopyEmerald Green (H46)(40%) + White (H1)(30%) + Sky Blue (H25)(30%)
type 100 space reconnaisance craft main body white partWhite (H1)(100%)
type 100 space reconnaisance craft main body gray partWhite (H1)(70%) + Gray/Nezumi (H22)(30%) + Blue Gray (H42)(small dose)
type 100 space reconnaisance craft rudder red partMonza Red/Red Madder (H86)(100%)
type 100 space reconnaisance craft canopyOrange Yellow (H24)(70%) + Wood Brown (H37)(30%)
FS type air thunder boatBlue Gray (H42)(50%) + White (H1)(30%) + Bright Blue/Indy Blue (H15)(10%) + Bright Green/Daytona Green (H26)(10%)
main body gray partWhite (H1)(90%) + Neutral Gray (H53)(10%)
main body bottom white partWhite (H1)(100%)
yellow partYellow (H4)(70%) + White (H1)(30%) + Orange Yellow (H24)(small dose)
canopyOrange Yellow (H24)(70%) + Wood Brown (H37)(30%)
Disclaimer




Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site.

1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Cosmo Reverse Ver Construction Manual & Color Guide

Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Blue Gray (H42)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)French Mirage Blue (70.900)IDF Blue (71.113)FRENCH BLUE (A.MIG-0062)----Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)------Flat Non Specular Interm. Blue (4639AP)
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Russet / Azuki (H33)Russet/Azuki (C81)--------------Brown (Satin) (133)------Flat Wood (4673AP)
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)------Flat Dark Gray (4754AP)
IJN Green (H59)IJN Green (Nakajima) (C15)J.N. Green (XF11)Deep Green (70.970)Olive Green (71.007)DEEP GREEN (A.MIG-0052)IJN D1 Deep Green Black (RC304)Fir Green (HTK-_289)--Bronze Green (Matte) (75)--------
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------
Cocoa Brown (H17)Hull Red (C29)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)RED BROWN SHADOW (A.MIG-0912)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)------Flat Rust (4675AP)
Green (H6)Green (C6)Green (X5)Black Green (70.980)--------sea green (solid matt) (32162)Brunswick Green (Gloss) (3)--------
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Brown (H7)Brown (C7)Brown (X9)Chocolate Brown (70.872)Burnt Umber (71.040)OLD RUST (A.MIG-0042)----Dark Brown (32181)Service Brown (Gloss) (10)------Flat Leather (4674AP)
Gold (H9)Gold (C9)Gold Leaf (X12)Gold (Metallic) (70.996)Gold (Metallic) (71.066)GOLD (A.MIG-0198)----gold (solid metallic) (32194)Gold (metallic) (16)------Metal. Gloss Gold (4671AP)
Clear Green (H94)Clear Green (C138)Clear Green (X25)Transparent Green (Transparent) (70.936)--CRYSTAL GREEN (A.MIG-0092)Clear Green (RC505)----Green (Clear) (1325)--------
Pale Green (H41)--------------------------
Emerald Green (H46)----Emerald (70.838)--INTERIOR TURQUOISE GREEN (A.MIG-0223)----------------
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------
Wine Red/Maroon (H43)Wine Red/Maroon (C100)--Red (70.926)--------Red (32132)Crimson (Gloss) (20)--------
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Bright Green/Daytona Green (H26)Bright Green/Daytona Green (C66)------SIGNAL GREEN (A.MIG-0054)----emerald green (solid matt) (32161)Emerald (Gloss) (2)--------
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)--------
Wood Brown (H37)Wood Brown (C43)----Sand Brown (71.034)CLAY BROWN (A.MIG-0079)No.8 Earth Red (RC031)Earth Red (HTK-_213)--Brown (Matte) (186)Military Brown FS30117 (1701)--Earth Red FS30117 (UA306)Flat Wood (4673AP)
