1/1000 Space Battleship Yamato 2199 English Manual & Color Guide

1/1000 Space Battleship Yamato 2199 Construction Manual & Color Guide

From Bandai comes the 1/1000 Space Battleship Yamato 2199 from the anime of the same name. From what I understand the Space Battleship Yamato 2199 anime is a reboot of the original 1970 series to attune it to the advancements of modern day animation techniques. I think also to introduce to newer fans the series all over again.

Space Battleship Yamato holds a special place in my heart because as a young kid I got to watch some episodes of the Space Battleship Yamato, but I got to watch the "Americanized" version known as Star Blazers. I remember one time in the beach I saw some large drift wood washed up ashore. Because of their shapes, I imagined that they were the large capital ships and had a ball playing with these large chunks of wood, placing them on the sand and imagining they were my fleet. I wonder if kids these days still use their imagination when playing?, where an ordinary piece of wood or common day item transforms to whatever it is the current topic of playtime is about.

The 1/1000 Space Battleship Yamato 2199 is selling for $ at Amazon, 2760 yen at Amiami, 3040 yen at HobbyLink Japan, 3230 yen at Hobby Search

Color Guide DescriptionPaint Ratios

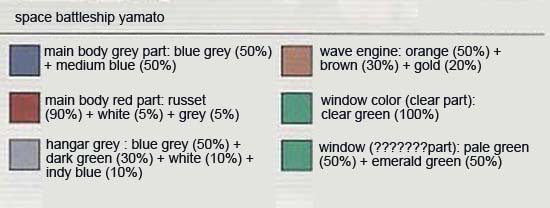

space battleship yamato main body gray partBlue Gray (H42)(50%) + Medium Blue/Intermediate Blue (H56)(50%)
space battleship yamato main body red partRusset / Azuki (H33)(90%) + White (H1)(5%) + Gray/Nezumi (H22)(5%)
space battleship yamato hangar gray partBlue Gray (H42)(50%) + Dark Green (H36)(30%) + White (H1)(10%) + Bright Blue/Indy Blue (H15)(10%)
space battleship yamato wave engineOrange (H14)(50%) + Brown (H7)(30%) + Gold (H9)(20%)
space battleship yamato window color (clear part)Clear Green (H94)(100%)
space battleship yamato windowPale Green (H41)(50%) + Emerald Green (H46)(50%)

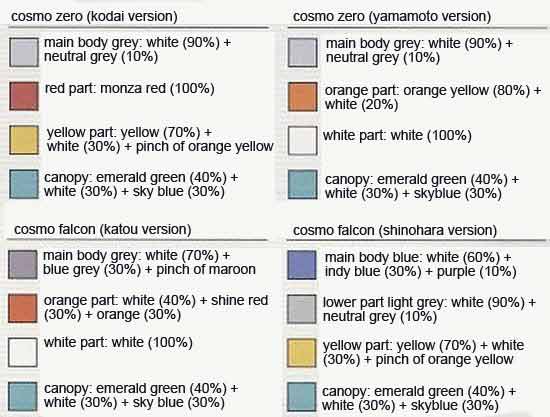

cosmo zero (kodai ver) main body gray partWhite (H1)(90%) + Neutral Gray (H53)(10%)
cosmo zero (kodai ver) red partMonza Red/Red Madder (H86)(100%)
cosmo zero (kodai ver) yellow partYellow (H4)(70%) + White (H1)(30%) + Orange Yellow (H24)(small dose)
cosmo zero (kodai ver) canopyEmerald Green (H46)(40%) + White (H1)(30%) + Sky Blue (H25)(30%)
cosmo falcon (katou ver) main body gray partWhite (H1)(70%) + Blue Gray (H42)(30%) + Wine Red/Maroon (H43)(small dose)
cosmo falcon (katou ver) orange partWhite (H1)(40%) + Shine Red (H23)(30%) + Orange (H14)(30%)
cosmo falcon (katou ver) white partWhite (H1)(100%)
cosmo falcon (katou ver) canopyEmerald Green (H46)(40%) + White (H1)(30%) + Sky Blue (H25)(30%)
cosmo zero (yamamoto ver) main body gray partWhite (H1)(90%) + Neutral Gray (H53)(10%)
cosmo zero (yamamoto ver) orange partOrange Yellow (H24)(80%) + White (H1)(20%)
cosmo zero (yamamoto ver) white partWhite (H1)(100%)
cosmo zero (yamamoto ver) canopyEmerald Green (H46)(40%) + White (H1)(30%) + Sky Blue (H25)(30%)
cosmo falcon (shinohara ver) main body blue partWhite (H1)(60%) + Bright Blue/Indy Blue (H15)(30%) + Purple (H39)(10%)
cosmo falcon (shinohara ver) lower light gray partWhite (H1)(90%) + Neutral Gray (H53)(10%)
cosmo falcon (shinohara ver) yellow partYellow (H4)(70%) + White (H1)(30%) + Orange Yellow (H24)(small dose)
cosmo falcon (shinohara ver) canopyEmerald Green (H46)(40%) + White (H1)(30%) + Sky Blue (H25)(30%)
Disclaimer

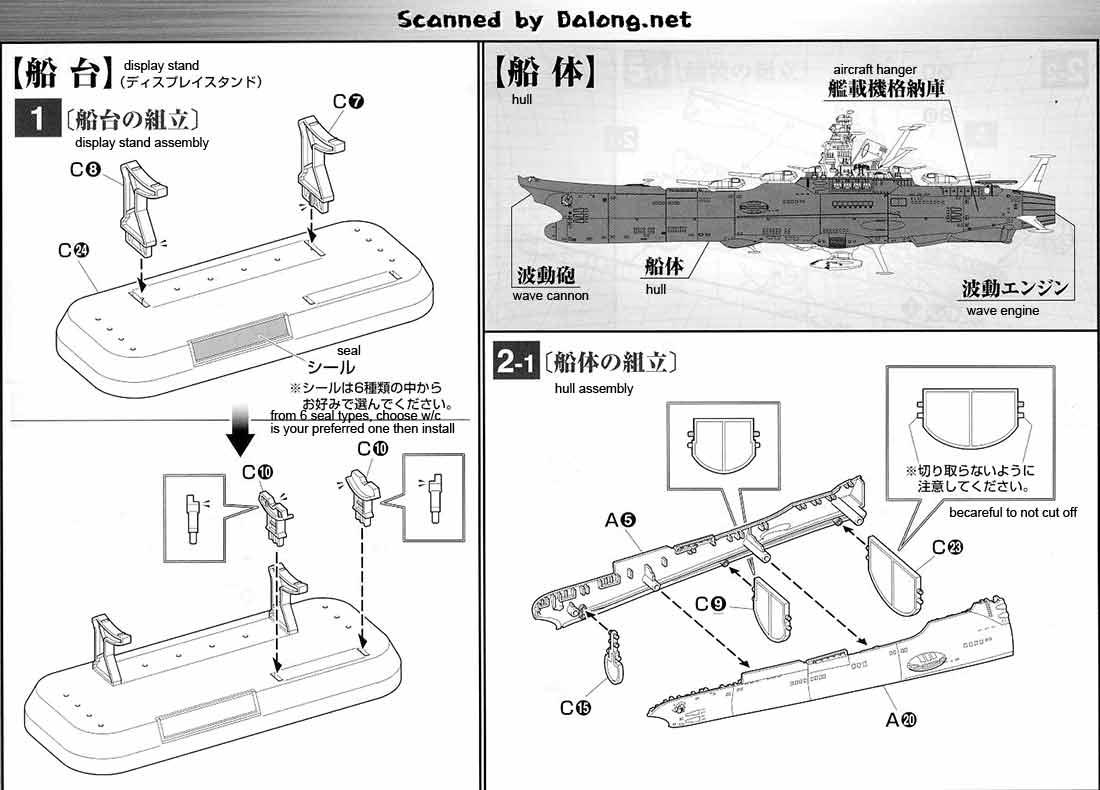

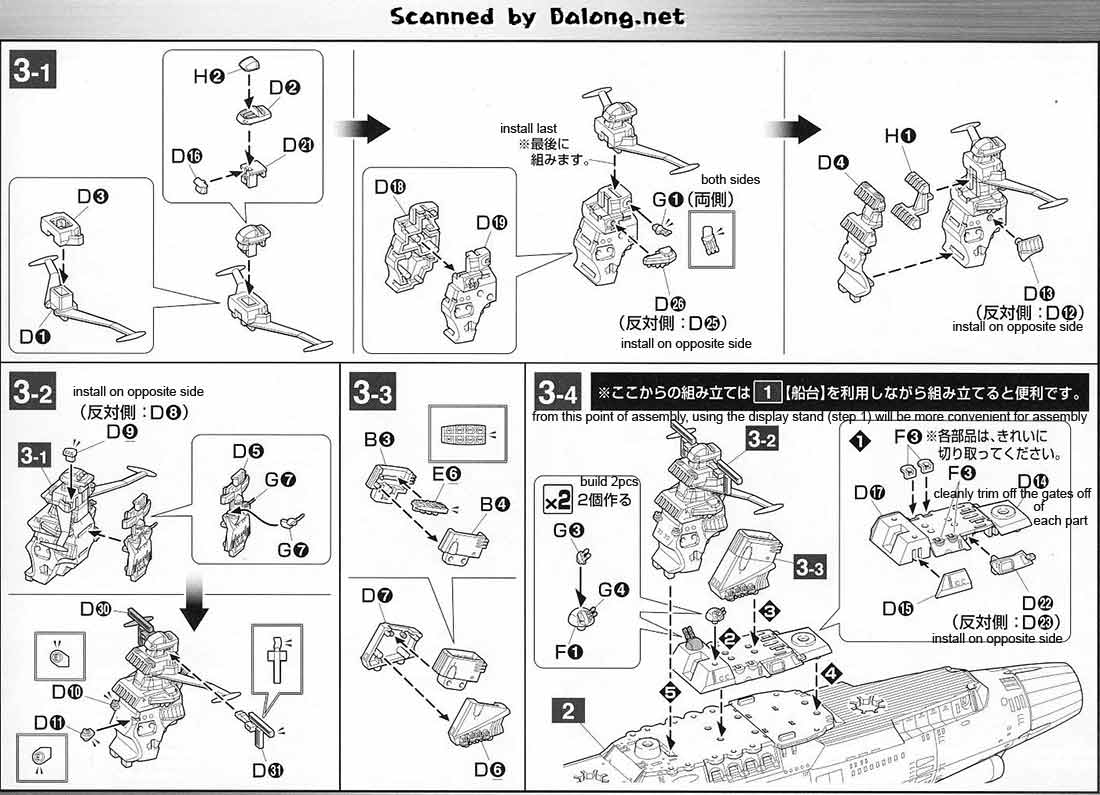

Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site.

1/1000 Space Battleship Yamato 2199 Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Construction Manual & Color Guide

1/1000 Space Battleship Yamato 2199 Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Construction Manual & Color Guide

1/1000 Space Battleship Yamato 2199 Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Construction Manual & Color Guide 1/1000 Space Battleship Yamato 2199 Construction Manual & Color Guide

1/1000 Space Battleship Yamato 2199 Construction Manual & Color Guide

Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Blue Gray (H42)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)French Mirage Blue (70.900)IDF Blue (71.113)FRENCH BLUE (A.MIG-0062)----Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)------Flat Non Specular Interm. Blue (4639AP)
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Russet / Azuki (H33)Russet/Azuki (C81)--------------Brown (Satin) (133)------Flat Wood (4673AP)
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Gray/Nezumi (H22)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Light Gray (71.050)GREY (A.MIG-0059)----Dark Grey (Gloss) (32171)Grey Primer (Matte) (1)------Flat Dark Gray (4754AP)
Dark Green (H36)IJN Green (Nakajima) (C15)J.N. Green (XF11)Deep Green (70.970)Olive Green (71.007)DEEP GREEN (A.MIG-0052)--Fir Green (HTK-_289)--Bronze Green (Matte) (75)--------
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Brown (H7)Brown (C7)Brown (X9)Chocolate Brown (70.872)Burnt Umber (71.040)OLD RUST (A.MIG-0042)----Dark Brown (32181)Service Brown (Gloss) (10)------Flat Leather (4674AP)
Gold (H9)Gold (C9)Gold Leaf (X12)Gold (Metallic) (70.996)Gold (Metallic) (71.066)GOLD (A.MIG-0198)----gold (solid metallic) (32194)Gold (metallic) (16)------Metal. Gloss Gold (4671AP)
Clear Green (H94)Clear Green (C138)Clear Green (X25)Transparent Green (Transparent) (70.936)--CRYSTAL GREEN (A.MIG-0092)Clear Green (RC505)----Green (Clear) (1325)--------
Pale Green (H41)--------------------------
Emerald Green (H46)----Emerald (70.838)--INTERIOR TURQUOISE GREEN (A.MIG-0223)----------------
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------
Wine Red/Maroon (H43)Wine Red/Maroon (C100)--Red (70.926)--------Red (32132)Crimson (Gloss) (20)--------
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)--------
