MG MS-06R-1A Zaku II Black Trinity v2.0 English Manual & Color Guide

MG MS-06R-1A Zaku II Black Trinity v2.0 Construction Manual & Color Guide

From the original Mobile Suit Gundam is the version 2 Master Grade release of the Black Trinity's Zaku II by Bandai in 2008. The Black Trinity are a group of Zeon Ace pilots who are known for their vaunted Jetstream Attack to overcome their enemies. The Zaku II was where they earned their reputation. I much prefer them in their Dom's though.

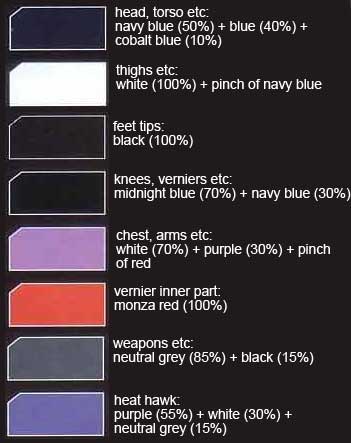

Color Guide DescriptionPaint Ratios
MG Zaku II Black Trinity head, torso etcNavy Blue (H54)(50%) + Blue (H5)(40%) + Cobalt Blue (H35)(10%)
MG Zaku II Black Trinity thighs etcWhite (H1)(100%) + Navy Blue (H54)(small dose)
MG Zaku II Black Trinity feet tipsBlack (H2)(100%)
MG Zaku II Black Trinity knees, verniers etcMidnight Blue (H55)(70%) + Navy Blue (H54)(30%)
MG Zaku II Black Trinity chest, arms etcWhite (H1)(70%) + Purple (H39)(30%) + Red (H3)(small dose)
MG Zaku II Black Trinity vernier inner red partMonza Red/Red Madder (H86)(100%)
MG Zaku II Black Trinity weapons etcNeutral Gray (H53)(85%) + Black (H2)(15%)
MG Zaku II Black Trinity heat hawkPurple (H39)(55%) + White (H1)(30%) + Neutral Gray (H53) (15%)

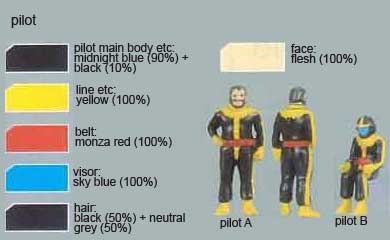

pilot figure main body etcMidnight Blue (H55)(90%) + Black (H2)(10%)
pilot figure line etcYellow (H4)(100%)
pilot figure beltMonza Red/Red Madder (H86)(100%)
pilot figure visorSky Blue (H25)(100%)
pilot figure hairBlack (H2)(50%) + Neutral Gray (H53)(50%)
pilot figure faceFlesh/Pale Brown (H44)(100%)
Disclaimer





The MG MS-06R-1A Zaku II Black Trinity v2.0 is selling for $ at Amazon

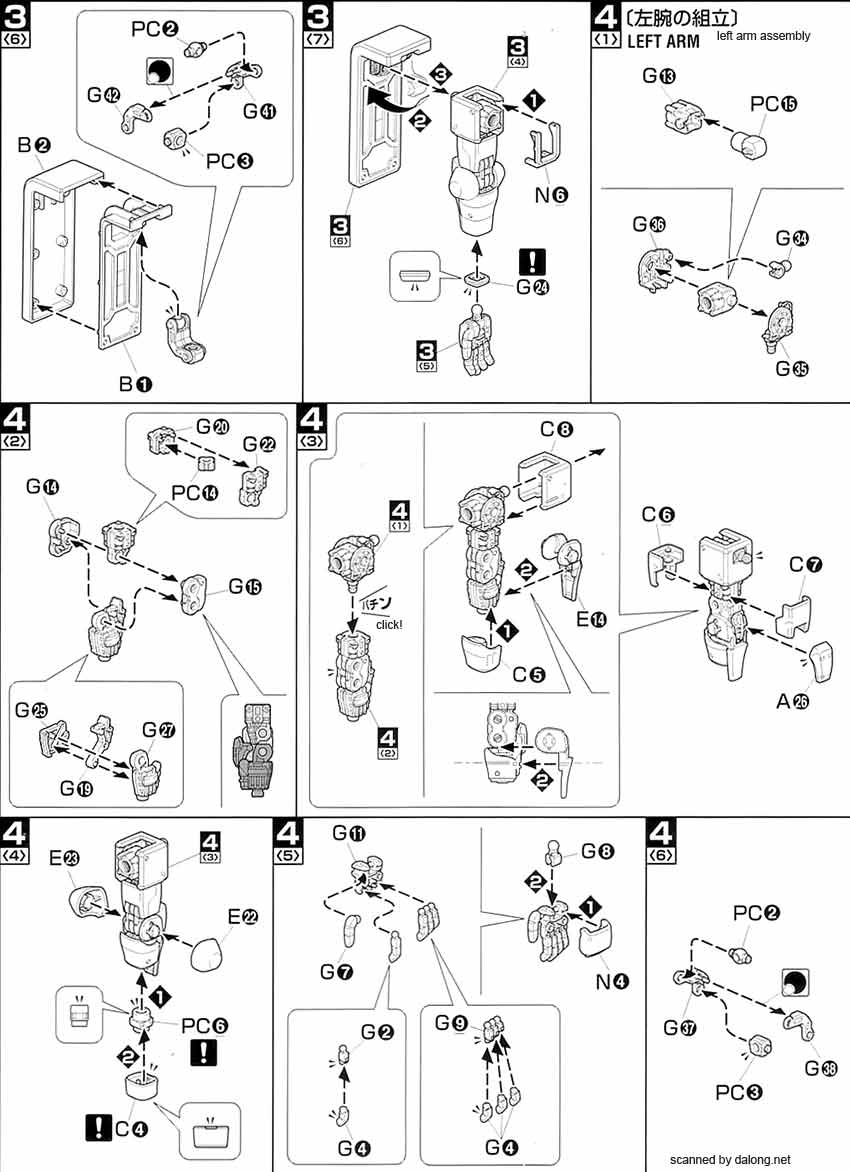

Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.

MG MS-06R-1A Zaku II Black Trinity v2.0 Construction Manual & Color Guide MG MS-06R-1A Zaku II Black Trinity v2.0 Construction Manual & Color Guide MG MS-06R-1A Zaku II Black Trinity v2.0 Construction Manual & Color Guide MG MS-06R-1A Zaku II Black Trinity v2.0 Construction Manual & Color Guide

MG MS-06R-1A Zaku II Black Trinity v2.0 Construction Manual & Color Guide MG MS-06R-1A Zaku II Black Trinity v2.0 Construction Manual & Color Guide MG MS-06R-1A Zaku II Black Trinity v2.0 Construction Manual & Color Guide MG MS-06R-1A Zaku II Black Trinity v2.0 Construction Manual & Color Guide

MG MS-06R-1A Zaku II Black Trinity v2.0 Construction Manual & Color Guide MG MS-06R-1A Zaku II Black Trinity v2.0 Construction Manual & Color Guide MG MS-06R-1A Zaku II Black Trinity v2.0 Construction Manual & Color Guide MG MS-06R-1A Zaku II Black Trinity v2.0 Construction Manual & Color Guide

MG MS-06R-1A Zaku II Black Trinity v2.0 Construction Manual & Color Guide MG MS-06R-1A Zaku II Black Trinity v2.0 Construction Manual & Color Guide


Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)--------
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)--------
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------
Flesh/Pale Brown (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)SAND BROWN (A.MIG-0026)----brown (solid silk matt) (32185)Flesh (Matte) (61)------Flat Light Flesh (4390AP)
