MG GX-9900 Gundam X English Manual & Color Guide

MG GX-9900 Gundam X Construction Manual & Color Guide

The titular GX-9900 Gundam X of Garrod Ran from the After War Gundam X anime series was recently released by Bandai as a 1/100 Master Grade model kit. The anime series was released in 1996 and lasted for 39 episodes. It's not part however of the Universal Century line and revolves around a different universe like the Seed and 00 series.


The 1/100 Master Grade GX-9900 Gundam X is selling for $ at Amazon, 2830 yen at Amiami, 3040 yen at HobbyLink Japan

Color Guide DescriptionPaint Ratios

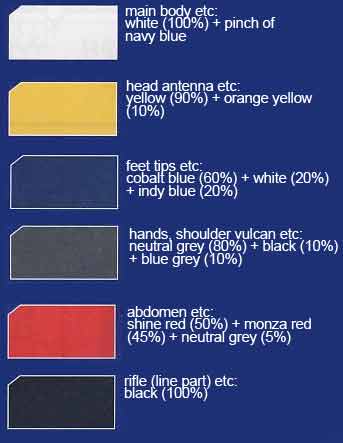

MG GX-9900 Gundam X main body etcWhite (H1)(100%) + Navy Blue (H54)(small dose)
MG GX-9900 Gundam X head antenna etcYellow (H4)(90%) + Orange Yellow (H24)(10%)
MG GX-9900 Gundam X feet tips etcCobalt Blue (H35)(60%) + White (H1)(20%) + Bright Blue/Indy Blue (H15)(20%)
MG GX-9900 Gundam X hands, shoulder vulcan etcNeutral Gray (H53)(80%) + Black (H2)(10%) + Blue Gray (H42)(10%)
MG GX-9900 Gundam X abdomen etcShine Red (H23)(50%) + Monza Red/Red Madder (H86)(45%) + Neutral Gray (H53)(5%)
MG GX-9900 Gundam X rifle (line part) etcBlack (H2)(100%)

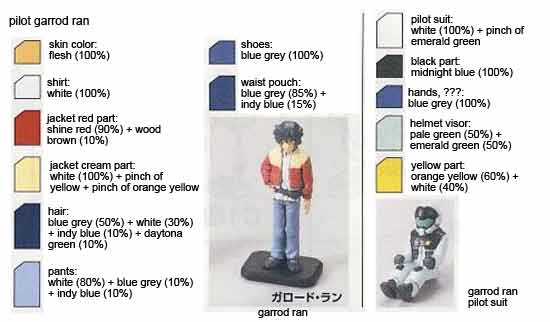

garrod ran skin colorFlesh/Pale Brown (H44)(100%)
garrod ran shirtWhite (H1)(100%)
garrod ran jacket red partShine Red (H23)(90%) + Wood Brown (H37)(10%)
garrod ran jacket cream partWhite (H1)(100%) + Yellow (H4)(small dose) + Orange Yellow (H24)(small dose)
garrod ran hairBlue Gray (H42)(50%) + White (H1)(30%) + Bright Blue/Indy Blue (H15)(10%) + Bright Green/Daytona Green (H26)(10%)
garrod ran pantsWhite (H1)(80%) + Blue Gray (H42)(10%) + Bright Blue/Indy Blue (H15)(10%)
garrod ran shoesBlue Gray (H42)(100%)
garrod ran waist pouchBlue Gray (H42)(85%) + Bright Blue/Indy Blue (H15)(15%)
garrod ran pilot suitWhite (H1)(100%) + Emerald Green (H46)(small dose)
pilot suit black partMidnight Blue (H55)(100%)
pilot suit handsBlue Gray (H42)(100%)
pilot suit helmet visorPale Green (H41)(50%) + Emerald Green (H46)(50%)
pilot suit yellow partOrange Yellow (H24)(60%) + White (H1)(40%)
Disclaimer





Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual kindly refer to this older post.

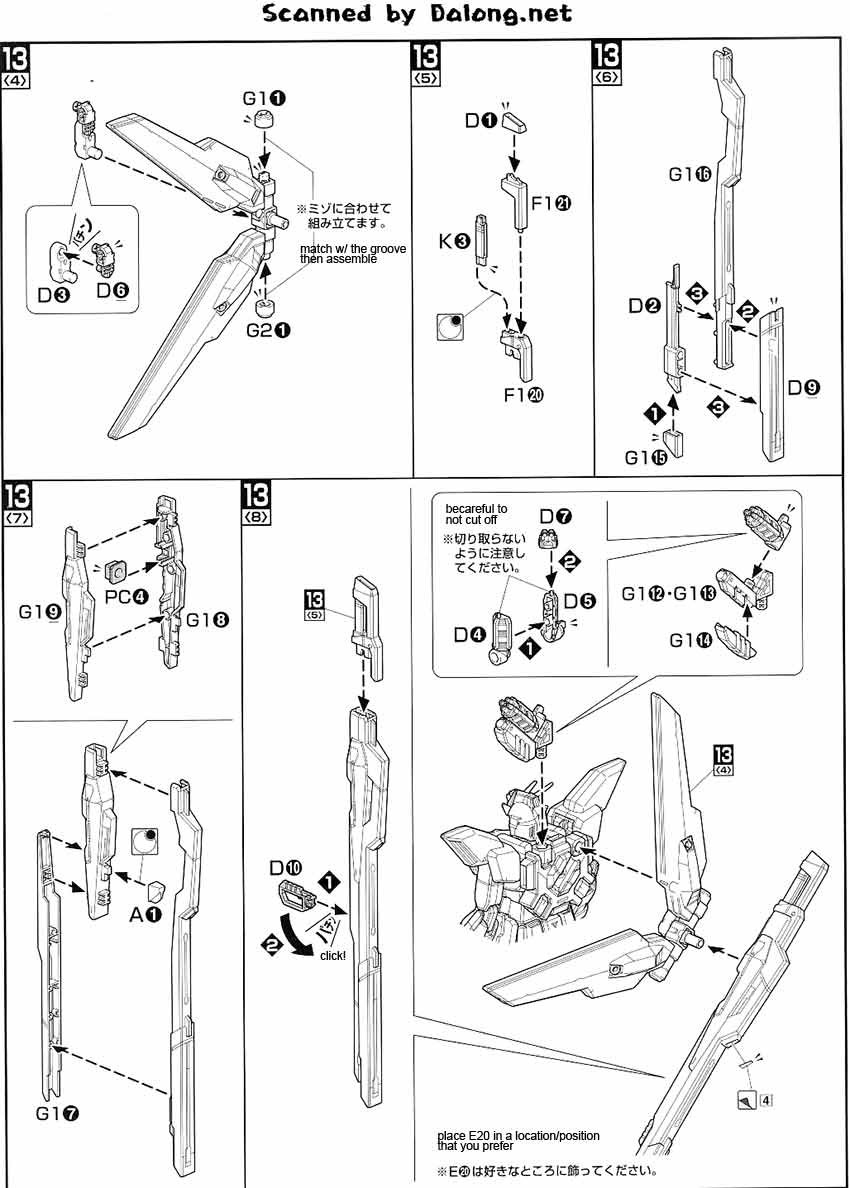

MG GX-9900 Gundam X Construction Manual & Color Guide MG GX-9900 Gundam X Construction Manual & Color Guide MG GX-9900 Gundam X Construction Manual & Color Guide MG GX-9900 Gundam X Construction Manual & Color Guide

MG GX-9900 Gundam X Construction Manual & Color Guide MG GX-9900 Gundam X Construction Manual & Color Guide MG GX-9900 Gundam X Construction Manual & Color Guide MG GX-9900 Gundam X Construction Manual & Color Guide

MG GX-9900 Gundam X Construction Manual & Color Guide MG GX-9900 Gundam X Construction Manual & Color Guide MG GX-9900 Gundam X Construction Manual & Color Guide MG GX-9900 Gundam X Construction Manual & Color Guide MG GX-9900 Gundam X Construction Manual & Color Guide

Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Blue Gray (H42)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)French Mirage Blue (70.900)IDF Blue (71.113)FRENCH BLUE (A.MIG-0062)----Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)------Flat Non Specular Interm. Blue (4639AP)
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Flesh/Pale Brown (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)SAND BROWN (A.MIG-0026)----brown (solid silk matt) (32185)Flesh (Matte) (61)------Flat Light Flesh (4390AP)
Wood Brown (H37)Wood Brown (C43)----Sand Brown (71.034)CLAY BROWN (A.MIG-0079)No.8 Earth Red (RC031)Earth Red (HTK-_213)--Brown (Matte) (186)Military Brown FS30117 (1701)--Earth Red FS30117 (UA306)Flat Wood (4673AP)
Bright Green/Daytona Green (H26)Bright Green/Daytona Green (C66)------SIGNAL GREEN (A.MIG-0054)----emerald green (solid matt) (32161)Emerald (Gloss) (2)--------
Emerald Green (H46)----Emerald (70.838)--INTERIOR TURQUOISE GREEN (A.MIG-0223)----------------
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--
Pale Green (H41)--------------------------
