HMM Great Saber English Manual & Color Guide

1/72 HMM Great Saber Color Guide & Manual

The Great Saber from Zoids Chaotic Century anime series released as a 1/72 HMM model kit by Kotobukiya. This particular Saber variant is unique with the installation of the Power balance unit on its back area, along with an impressive arsenal of weapons. This model kit was released in May of 2010 by Kotobukiya.

The 1/72 HMM Great Saber from Kotobukiya is selling for $$$ at Amazon, 5440 yen at HobbyLink Japan, 5780 yen at Hobby Search.

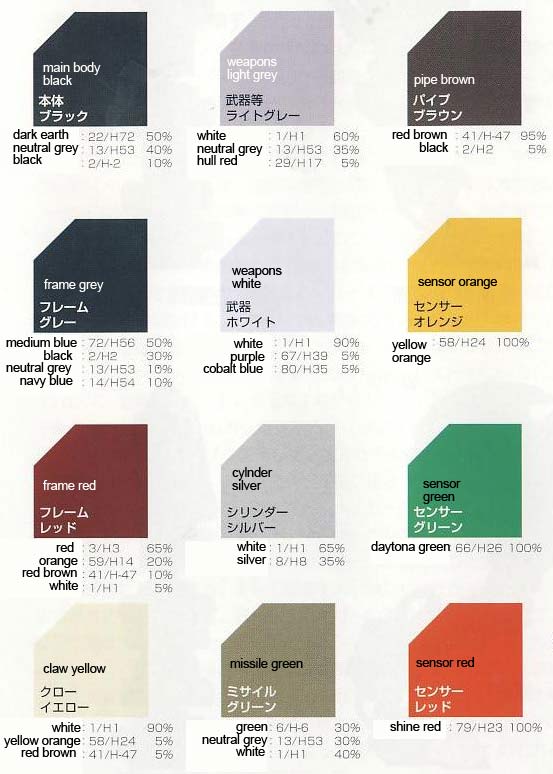

Color Guide DescriptionPaint Ratios
main body black partDark Earth (H72)(50%) + Neutral Gray (H53)(40%) + Black (H2)(10%)
frame gray partMedium Blue/Intermediate Blue (H56)(50%) + Black (H2)(30%) + Neutral Gray (H53)(10%) + Navy Blue (H54)(10%)
frame red partRed (H3)(65%) + Orange (H14)(20%) + Red Brown (H47)(10%) + White (H1)(5%)
claw yellowWhite (H1)(90%) + Orange Yellow (H24)(5%) + Red Brown (H47)(5%)
weapons light gray partWhite (H1)(60%) + Neutral Gray (H53)(35%) + Cocoa Brown (H17)(5%)
weapons white partWhite (H1)(90%) + Purple (H39)(5%) + Cobalt Blue (H35)(5%)
cylinder silver partWhite (H1)(65%) + Silver (H8)(35%)
missile green partGreen (H6)(30%) + Neutral Gray (H53)(30%) + White (H1)(40%)
pipe brown partRed Brown (H47)(95%) + Black (H2)(5%)
sensor orange partOrange Yellow (H24)(100%)
sensor green partBright Green/Daytona Green (H26)(100%)
sensor red partShine Red (H23)(100%)
Disclaimer





Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.

1/72 HMM Great Saber English Translation Color Guide & Manual 1/72 HMM Great Saber English Translation Color Guide & Manual 1/72 HMM Great Saber English Translation Color Guide & Manual 1/72 HMM Great Saber English Translation Color Guide & Manual

1/72 HMM Great Saber English Translation Color Guide & Manual 1/72 HMM Great Saber English Translation Color Guide & Manual 1/72 HMM Great Saber English Translation Color Guide & Manual 1/72 HMM Great Saber English Translation Color Guide & Manual

1/72 HMM Great Saber English Translation Color Guide & Manual 1/72 HMM Great Saber English Translation Color Guide & Manual 1/72 HMM Great Saber English Translation Color Guide & Manual 1/72 HMM Great Saber English Translation Color Guide & Manual

1/72 HMM Great Saber English Translation Color Guide & Manual 1/72 HMM Great Saber English Translation Color Guide & Manual 1/72 HMM Great Saber English Translation Color Guide & Manual 1/72 HMM Great Saber English Translation Color Guide & Manual

Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Dark Earth (H72)Dark Earth (C22)Flat Earth (XF52)English Uniform (70.921)Dark Earth (71.029)MEDIUM BROWN (A.MIG-0070)RAF Dark Earth (RC287)Dark Earth (HTK-_009)Earth Brown (solid matt) (32187)Dark Earth (Matte) (29)Dark Earth ANA617 (F) (2054)RAF Dark Earth BS450 (X002)RAF Dark Earth FS 30118 (UA547)Flat Field Drab (4708AP)
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Red Brown (H47)Red Brown (C41)Red Brown (XF64)Flat Brown (70.984)Hull Red (71.039)ROTBRAUN (A.MIG-0014)S.C.C. 1A Brown (RC034)S.C.C. No. 1A Dark Brown (HTK-_077)--German Camouflage Red Brown (Matte) (160)Root Braun RAL 8012 (SG) (2152)--SCC 1A Very Dark Brown (UA274)Flat Earth Red (4707AP)
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Cocoa Brown (H17)Hull Red (C29)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)RED BROWN SHADOW (A.MIG-0912)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)------Flat Rust (4675AP)
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)--------
Cobalt Blue (H35)Cobalt Blue (C80)------------------------
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
Green (H6)Green (C6)Green (X5)Black Green (70.980)--------sea green (solid matt) (32162)Brunswick Green (Gloss) (3)--------
Bright Green/Daytona Green (H26)Bright Green/Daytona Green (C66)------SIGNAL GREEN (A.MIG-0054)----emerald green (solid matt) (32161)Emerald (Gloss) (2)--------
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
