HMM Saber Tiger Schwalz Ver. English Manual & Color Guide

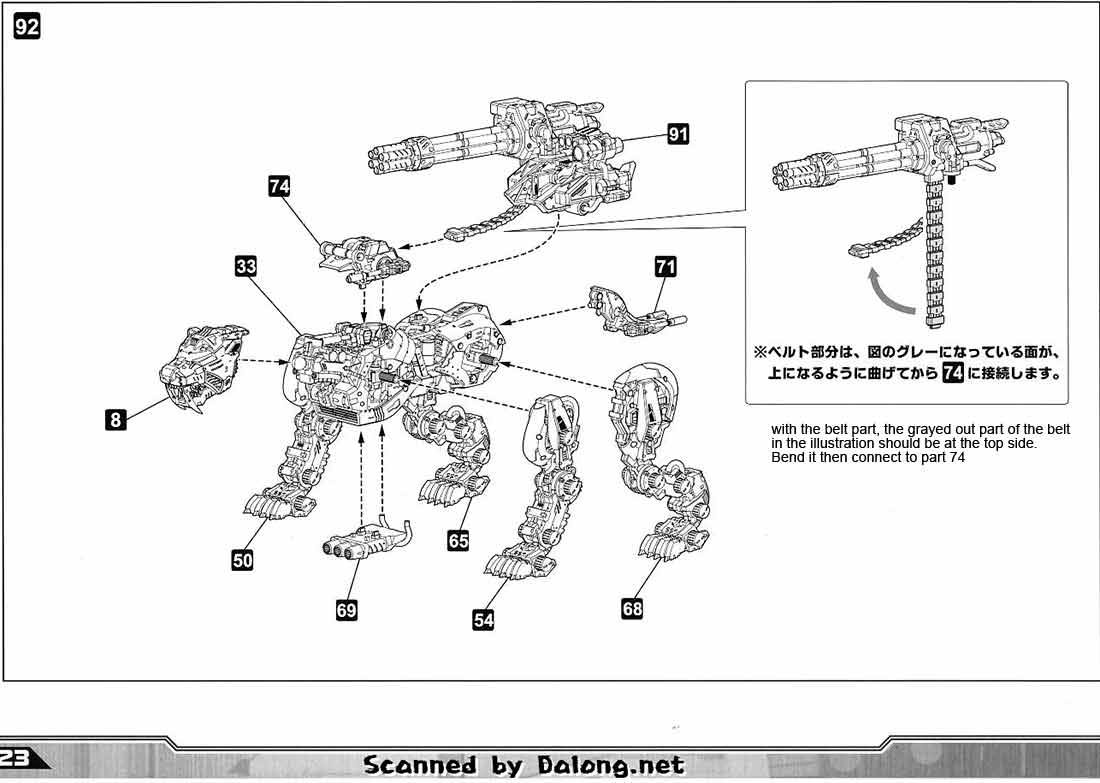

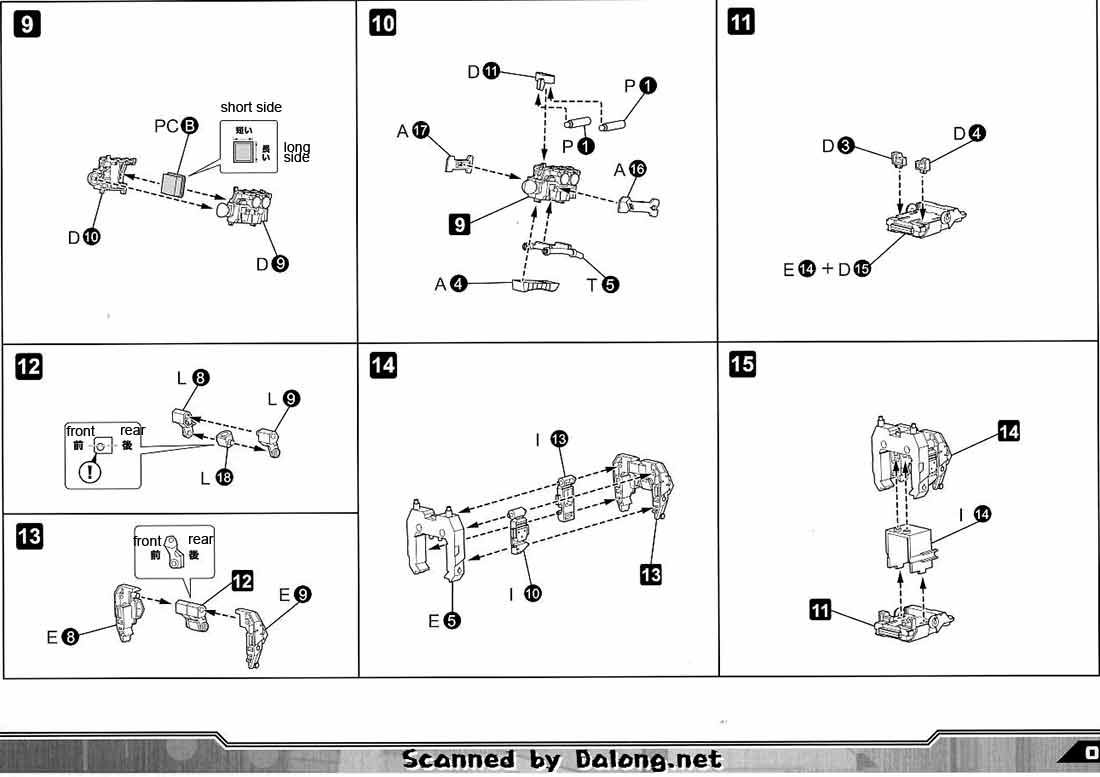

1/72 HMM Saber Tiger Schwalz Ver. Construction Manual & Color Guide

From Zoids anime series, Karl Schwalz's Saber Tiger gets released by Kotobukiya as a 1/72 scale Highend Master Model kit in 2009. This Zoid comes equipped with a back mounted Gatling gun, Triple Barrel cannon at the chest 20 mm beam gun at its left flank, linear laser at its tail, strike laser claws and fangs.

The 1/72 Saber Tiger Schwalz is selling for $ at Amazon, 4710 yen at Amiami, 5440 yen at HobbyLink Japan, 5870 yen at Hobby Search

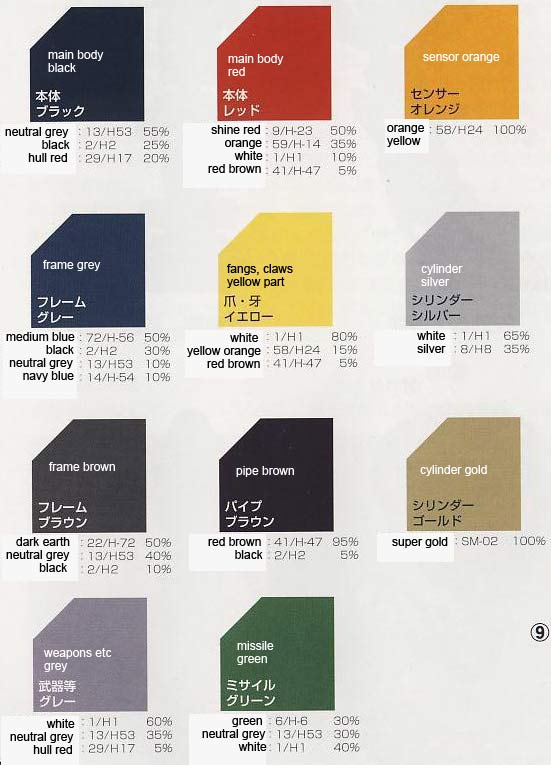

Color Guide DescriptionPaint Ratios
main body black partNeutral Gray (H53)(55%) + Black (H2)(25%) + Cocoa Brown (H17)(20%)
frame gray partMedium Blue/Intermediate Blue (H56)(50%) + Black (H2)(30%) + Neutral Gray (H53)(10%) + Navy Blue (H54)(10%)
frame brown partDark Earth (H72)(50%) + Neutral Gray (H53)(40%) + Black (H2)(10%)
weapons etc gray partWhite (H1)(60%) + Neutral Gray (H53)(35%) + Cocoa Brown (H17)(5%)
main body red partShine Red (H23)(50%) + Orange (H14)(35%) + White (H1)(10%) + Red Brown (H47)(5%)
frangs, claws, yellow partWhite (H1)(80%) + Orange Yellow (H24)(15%) + Red Brown (H47)(5%)
pipe brown partRed Brown (H47)(95%) + Black (H2)(5%)
missile green partGreen (H6)(30%) + Neutral Gray (H53)(30%) + White (H1)(40%)
sensor orange partOrange Yellow (H24)(100%)
cylinder silver partWhite (H1)(65%) + Silver (H8)(35%)
cylinder gold partSuper Metallic Super Gold (SM02)(100%)
Disclaimer





Construction Manual & Color Guide was translated to English from the Japanese Manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this older post.

1/72 HMM Saber Tiger Schwalz Ver. Construction Manual & Color Guide 1/72 HMM Saber Tiger Schwalz Ver. Construction Manual & Color Guide 1/72 HMM Saber Tiger Schwalz Ver. Construction Manual & Color Guide 1/72 HMM Saber Tiger Schwalz Ver. Construction Manual & Color Guide

1/72 HMM Saber Tiger Schwalz Ver. Construction Manual & Color Guide 1/72 HMM Saber Tiger Schwalz Ver. Construction Manual & Color Guide 1/72 HMM Saber Tiger Schwalz Ver. Construction Manual & Color Guide 1/72 HMM Saber Tiger Schwalz Ver. Construction Manual & Color Guide

1/72 HMM Saber Tiger Schwalz Ver. Construction Manual & Color Guide 1/72 HMM Saber Tiger Schwalz Ver. Construction Manual & Color Guide 1/72 HMM Saber Tiger Schwalz Ver. Construction Manual & Color Guide 1/72 HMM Saber Tiger Schwalz Ver. Construction Manual & Color Guide

1/72 HMM Saber Tiger Schwalz Ver. Construction Manual & Color Guide 1/72 HMM Saber Tiger Schwalz Ver. Construction Manual & Color Guide 1/72 HMM Saber Tiger Schwalz Ver. Construction Manual & Color Guide

Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Cocoa Brown (H17)Hull Red (C29)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)RED BROWN SHADOW (A.MIG-0912)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)------Flat Rust (4675AP)
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Navy Blue (H54)Navy Blue (C14)Navy Blue (AS8)Dark Sea Blue (70.898)Steel Blue (71.087)SEA BLUE (A.MIG-0227)Graublau – Grey Blue (RC208)Grey-Blue (HTK-_171)--Navy Blue (Matte) (77)--RAL5008 Graublau (X264)--Flat Non Specular Sea Blue (4604AP)
Dark Earth (H72)Dark Earth (C22)Flat Earth (XF52)English Uniform (70.921)Dark Earth (71.029)MEDIUM BROWN (A.MIG-0070)RAF Dark Earth (RC287)Dark Earth (HTK-_009)Earth Brown (solid matt) (32187)Dark Earth (Matte) (29)Dark Earth ANA617 (F) (2054)RAF Dark Earth BS450 (X002)RAF Dark Earth FS 30118 (UA547)Flat Field Drab (4708AP)
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Red Brown (H47)Red Brown (C41)Red Brown (XF64)Flat Brown (70.984)Hull Red (71.039)ROTBRAUN (A.MIG-0014)S.C.C. 1A Brown (RC034)S.C.C. No. 1A Dark Brown (HTK-_077)--German Camouflage Red Brown (Matte) (160)Root Braun RAL 8012 (SG) (2152)--SCC 1A Very Dark Brown (UA274)Flat Earth Red (4707AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Green (H6)Green (C6)Green (X5)Black Green (70.980)--------sea green (solid matt) (32162)Brunswick Green (Gloss) (3)--------
Silver (H8)Silver (C8)Flat Aluminium (XF16)Silver (Metallic) (70.997)Silver RLM01 (Metallic) (71.063)MATT ALUMINUM (A.MIG-0194)Aluminium (Metallic) (RC020)--sliver (solid metallic) (32190)Silver (metallic) (11)Aluminum (F) (1781)--Matt Natural Metal FS37178 (LC24)Metal. Gloss Silver (4678AP)
--Super Metallic Super Gold (SM02)------------------------
