Sunday, October 31, 2010

HG RGM-89 Jegan English Manual & Color Guide

Bandai 1/144 High Grade HGUC RGM-89 Jegan English Color Guide and Manual

RGM-89 Jegan from the Char's Counterattack anime made into a 1/144 High Grade model kit by Bandai. The Jegan takes over from the venerable GM as the mass produced mobile suit for the Earth Federation forces. The Stark Jegan, a variant of the Jegan can be seen in the currently showing Gundam Unicorn OVA.

The HGUC RGM-89 Jegan is selling for 1099 yen at Amiami, 1050 yen at HobbyLink Japan, 1050 yen at HWJapan

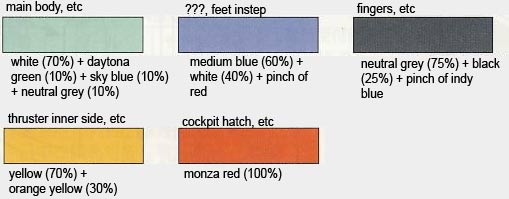

Color Guide DescriptionPaint Ratios
HG Jegan main body etcWhite (H1)(70%) + Bright Green/Daytona Green (H26)(10%) + Sky Blue (H25)(10%) + Neutral Gray (H53)(10%)
HG Jegan thruster inner side, etcYellow (H4)(70%) + Orange Yellow (H24)(30%)
HG Jegan feet, instep etcMedium Blue/Intermediate Blue (H56)(60%) + White (H1)(40%) + Red (H3)(small dose)
HG Jegan cockpit hatch etcMonza Red/Red Madder (H86)(100%)
HG Jegan fingers etcNeutral Gray (H53)(75%) + Black (H2)(25%) + Bright Blue/Indy Blue (H15)(small dose)
Disclaimer






Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Bright Green/Daytona Green (H26)Bright Green/Daytona Green (C66)------SIGNAL GREEN (A.MIG-0054)----emerald green (solid matt) (32161)Emerald (Gloss) (2)--------
Sky Blue (H25)Sky Blue (C34)Sky Blue (X14)------------Mediterranean Blue (Gloss) (48)--------
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)------Gloss Yellow (4642AP)
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)--------
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)------------------------
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)--------

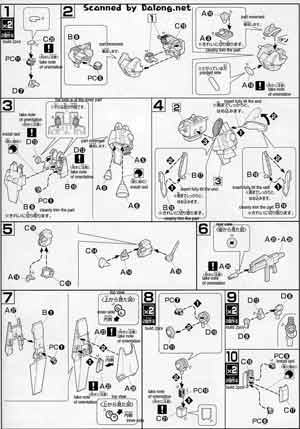

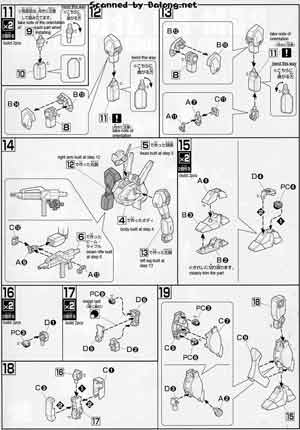

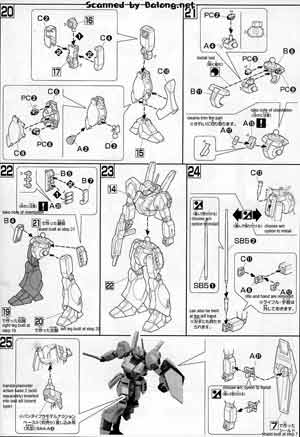

Construction Manual and Color Guide for the High Grade RGM-89 Jegan was translated to English from the Japanese manual posted at Dalong's Gunpla review site. Comprehensive review of the Jegan can also be found at Dalong's site.
