MG Qubeley Mk-II Elpeo Puru ver English Manual & Color Guide

MG AMX-004-2 Qubeley Mk-II Elpeo Puro ver Construction Manual

Elpeo Puru's Qubeley Mk II from the Gundam ZZ anime series that came after Zeta Gundam. Flown by Newtype Elpeo Puru which was originally based on the Qubeley of Haman Karn. Notable and distinct offensive features of the Qubeley are the funnels which fly out and can be controlled telepathically by Newtypes using the built in psycommu system. No matter what they say about the Qubeley though, it still looks like a bug to me...hehehe

Manual was translated to English from the Japanese manual posted at Dalong. Color Guide for the Qubeley II of Elpeo Puru can be found here.

Color Guide DescriptionPaint Ratios
quebeley mk ii elpeo puru custom body pink parts Shine Red (H23)(20%) + Purple (H39)(10%) + White (H1)(10%) + Pink (H19)(60%)
quebeley mk ii elpeo puru custom frame gray RLM75 Gray Violet/RLM 75 Gray (H69)(60%) + Dark Gray (1) (H82)(35%) + Purple (H39)(5%)
quebeley mk ii elpeo puru custom body black parts Black (H2)(100%)
quebeley mk ii elpeo puru custom body, saber blue gray parts Blue Gray (H42)(50%) + Bright Blue/Indy Blue (H15)(40%) + Purple (H39)(10%)
quebeley mk ii elpeo puru custom funnel purple red parts Wine Red/Maroon (H43)(50%) + Purple (H39)(45%) + Pink (H19)(5%)
quebeley mk ii elpeo puru custom body blue part Blue (H5)(50%) + Midnight Blue (H55)(30%) + Purple (H39)(10%) + White (H1)(10%)
quebeley mk ii elpeo puru custom mono eye Flourescent Pink (C174)(100%)
elpeo puru skin Flesh/Pale Brown (H44)(90%) + Pink (H19)(10%) + White (H1)(small dose)
elpeo puru hair orange part Orange (H14)(30%) + White (H1)(50%) + Yellow (H4)(20%)
elpeo puru plain clothes purple parts Purple (H39)(70%) + Wine Red/Maroon (H43)(20%) + Red (H3)(10%)
elpeo puru plain clothes black parts Black (H2)(80%) + Cocoa Brown (H17)(15%) + Violet (H49)(5%)
elpeo puru plain clothes pink parts Pink (H19)(100%)
elpeo puru plain clothes arm band Shine Red (H23)(100%)
elpeo puru plain clothes shoes Purple (H39)(70%) + Wine Red/Maroon (H43)(20%) + Dark Gray (1) (H82)(10%)
elpeo puru pajamas light pink parts Pink (H19)(85%) + White (H1)(10%) + Violet (H49)(5%)
elpeo puru pajamas pink sleeve parts Pink (H19)(75%) + Wine Red/Maroon (H43)(25%)
Disclaimer






Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelLife ColorItaleri
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)------
Purple (H39)Purple (C67)Purple (X16)Purple (70.959)--PURPLE (A.MIG-0127)------Purple (Gloss) (68)------
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)----Gloss White (4696AP)
Pink (H19)Pink (C63)Pink (X17)Old Rose (70.944)----------Pink (Gloss) (200)------
RLM75 Gray Violet/RLM 75 Gray (H69)RLM75 Gray Violet (C37)Dark Gray (XF24)Basalt Grey (70.869)Grey Violet RLM75 (71.259)GRAUVIOLETT (A.MIG-0254)RLM 75 (RC279)Grey-Violet (HTK-_007)dark grey (solid silk matt) (32378)Extra Dark Sea Grey (Satin) (123)Grauviolett RLM75 (SG) (2085)Grauviolett RLM 75 (UA508)--
Dark Gray (1) (H82)Dark Gray(1) (C31)------FS 36293 (A.MIG-0236)--------------
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)----Gloss Black (4695AP)
Blue Gray (H42)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)French Mirage Blue (70.900)IDF Blue (71.113)FRENCH BLUE (A.MIG-0062)----Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)----Flat Non Specular Interm. Blue (4639AP)
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)------
Wine Red/Maroon (H43)Wine Red/Maroon (C100)--Red (70.926)--------Red (32132)Crimson (Gloss) (20)------
Blue (H5)Blue (C5)Royal Blue (X3)Dark Prussian Blue (70.899)Blue (71.004)----Ultramarine Blue (HTK-_272)--Midnight Blue (Gloss) (15)------
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)Non Specular Sea Blue FS35042 (UA044)--
--Flourescent Pink (C174)----------------------
Flesh/Pale Brown (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)SAND BROWN (A.MIG-0026)----brown (solid silk matt) (32185)Flesh (Matte) (61)----Flat Light Flesh (4390AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Yellow (H4)Yellow (C4)Flat Yellow (XF3)Flat Yellow (70.953)Medium Yellow (71.002)YELLOW (A.MIG-0048)----yellow (solid matt) (32112)Yellow (Gloss) (69)----Gloss Yellow (4642AP)
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)Red RLM23 (71.003)RED (A.MIG-0049)--Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)------
Cocoa Brown (H17)Hull Red (C29)Hull Red (XF9)Hull Red (70.985)Mahogany (71.036)RED BROWN SHADOW (A.MIG-0912)--Mahogany Brown (HTK-_130)reddish brown (solid matt) (32137)Wine (Matte) (73)----Flat Rust (4675AP)
Violet (H49)--Purple (X16)Violet (70.960)--VIOLET (A.MIG-0126)------Purple (Gloss) (68)------

For the meaning of the symbols found in the kit, check out this past post.

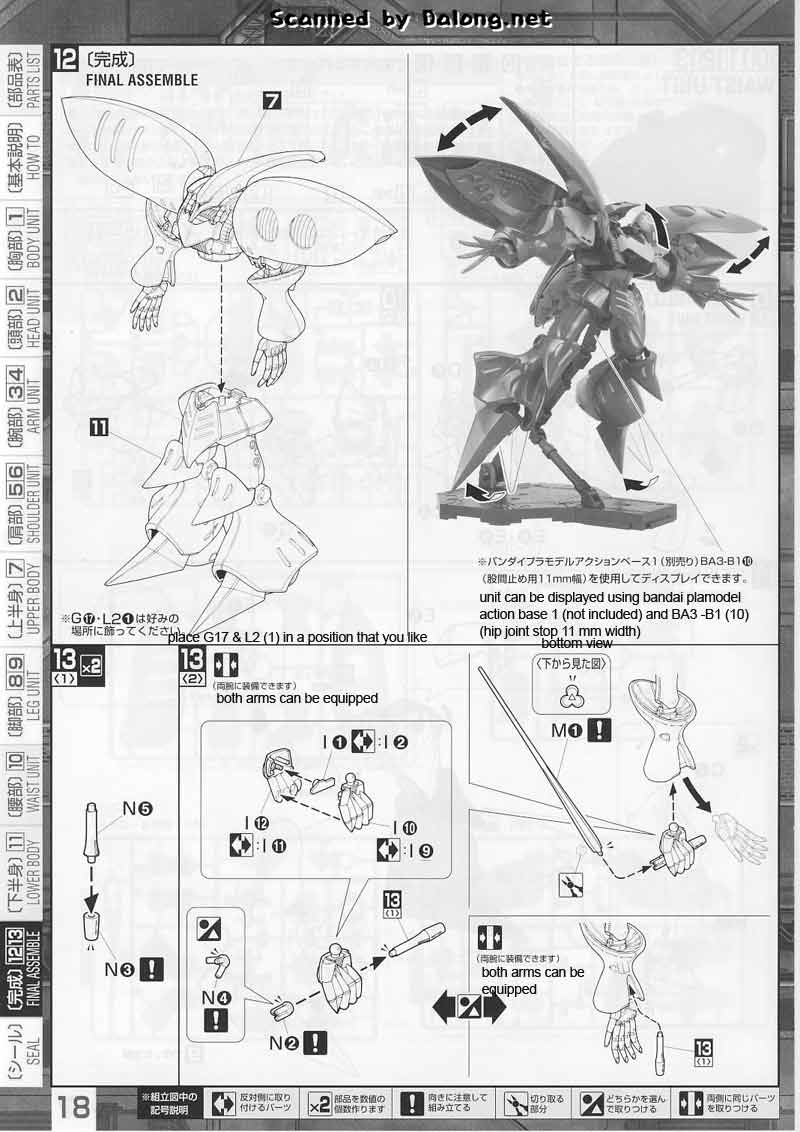

MG AMX-004-2 Qubeley Mk-II Elpeo Puru ver Construction Manual MG AMX-004-2 Qubeley Mk-II Elpeo Puru ver Construction Manual MG AMX-004-2 Qubeley Mk-II Elpeo Puru ver Construction Manual MG AMX-004-2 Qubeley Mk-II Elpeo Puru ver Construction Manual
