HG GN-X III ESF Type English Manual & Color Guide

HG GN-X III ESF Type English Translation Color Guide & Manual

Released in 2009 by Bandai was the High Grade 1/144 GN-X III ESF Type from Gundam 00 Season 2. In Gundam 00 Season 2, there was a couple of years that had passed since the end of Gundam 00 Season 1. By that time the different earth governments had united and from the foundation of the GN-X evolved the GN-X III which became their standard frontline mobile suit.

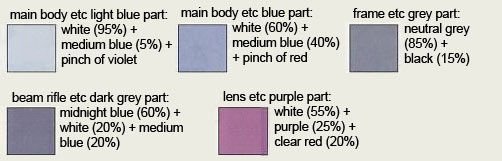

Color Guide


Color Guide DescriptionPaint Ratios
main body etc light blue partWhite (H1)(95%) + Medium Blue/Intermediate Blue (H56)(5%) + Violet (H49)(small dose)
beam rifle etc dark gray partMidnight Blue (H55)(60%) + White (H1)(20%) + Medium Blue/Intermediate Blue (H56)(20%)
main body etc blue partWhite (H1)(60%) + Medium Blue/Intermediate Blue (H56)(40%) + Red (H3)(small dose)
lens etc purple partWhite (H1)(55%) + Purple (H39)(25%) + Clear Red (H90)(20%)
frame etc gray partNeutral Gray (H53)(85%) + Black (H2)(15%)
Disclaimer


Available at these Online Shops:




Similar GN-X




Related Products




1/144 HG GN-X III ESF Type's Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla Review site.

Instruction Manual




HG GN-X III ESF Type English Translation Color Guide & Manual HG GN-X III ESF Type English Translation Color Guide & Manual HG GN-X III ESF Type English Translation Color Guide & Manual HG GN-X III ESF Type Color Guide & Manual
