1/72 VF-31J Siegfried (Hayate Immelmann Use) English Manual & Color Guide

1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide

1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide

1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide

1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide

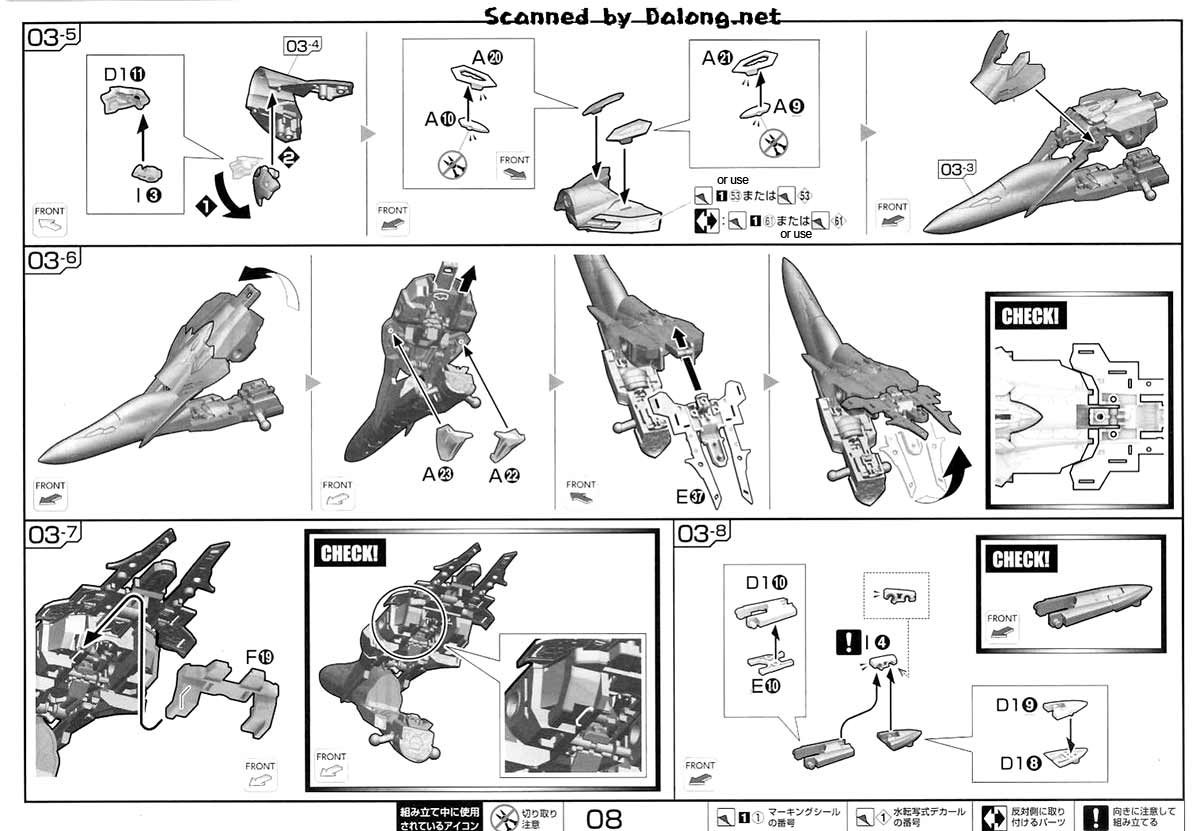

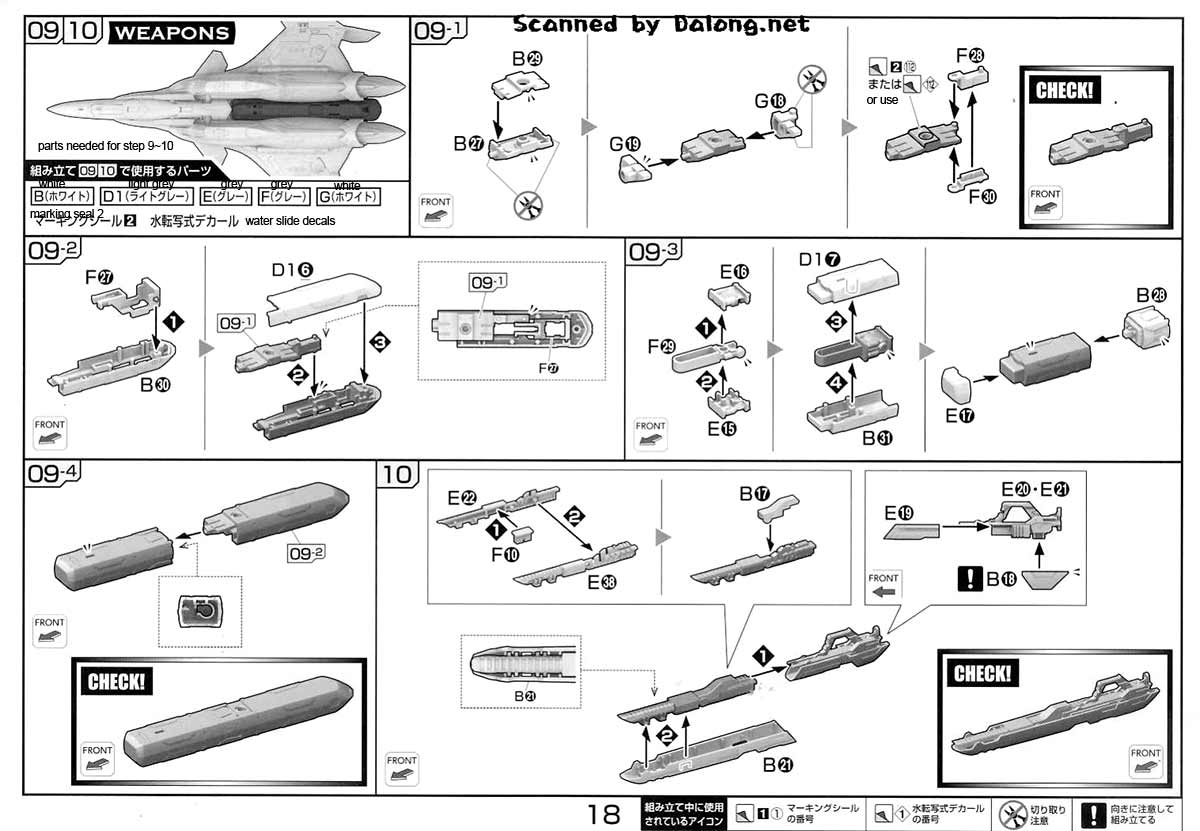

Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.

1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide
1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide
1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide
1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide
1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide
1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide
1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide1/72 VF-31J Siegfried (Hayate Immelmann Use) Construction Manual & Color Guide

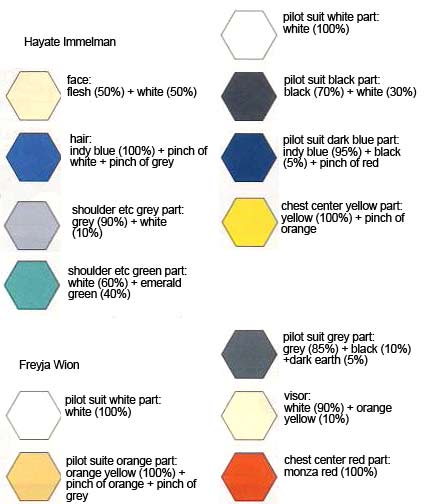

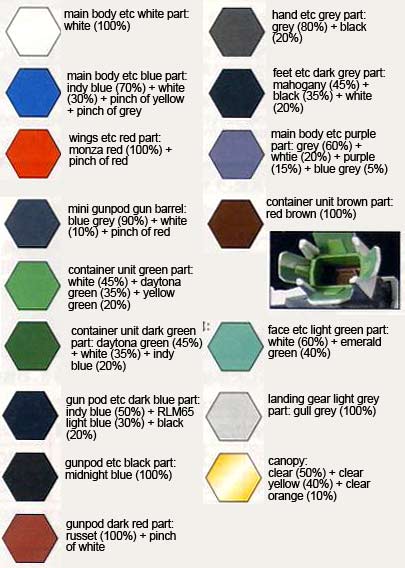

Paints Used & Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirRevell EnamelRevell AcrylicHumbrol EnamelHumbrol Acrylic
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--black (solid matt) (32107)black (Gloss) (36107)Black (Gloss) (21)Black (Gloss) (21)
Blue Gray (H42)Intermediate Blue/Medium Blue (C72)--Intermediate Blue (70.903)--Greyish Blue (solid matt) (32179)Greyish Blue (solid matt) (36179)Intermediate Blue (Matte) (144)--
Bright Blue/Indy Blue (H15)Indy Blue/Bright Blue (C65)Blue (X4)Dark Blue (70.930)------198French Blue (Gloss) (14)
Clear (H30)Clear (C46)Clear (X22)Glossy Varnish (70.510)--Clear (solid gloss) (32101)Clear (Gloss) (36101)Varnish (Gloss) (35)Varnish (Gloss) (35)
Clear Orange (H92)Clear Orange (C49)--------------
Clear Yellow (H91)Clear Yellow (C48)--------------
Dark Earth (H72)Dark Earth (C22)Flat Earth (XF52)English Uniform (70.921)Dark Earth (71.029)Earth Brown (solid matt) (32187)Earth Brown (solid matt) (36187)Dark Earth (Matte) (29)Dark Earth (Matte) (29)
Daytona Green/Bright Green (H26)Daytona Green/Bright Green (C66)------emerald green (solid matt) (32161)Emerald Green (Gloss) (36161)Emerald (Gloss) (2)Emerald (Gloss) (2)
Emerald Green (H46)----------------
Flesh (H44)Flesh (C51)Flat Flesh (XF15)Cork Brown (70.843)Skin Tone (71.076)brown (solid silk matt) (32185)Brown (solid matt) (36185)Flesh (Matte) (61)Leather (Matte) (62)
Gray (H22)Neutral Gray (C13)--Neutral Grey (70.992)--3217136171Dark Admiralty Grey (Gloss) (5)--
Gull Gray/Light Gull Gray (H51)Light Gull Gray/Gull Gray (C11)--------------
Mahogany (H84)Mahogany (C42)Hull Red (XF9)Cavalry Brown (70.982)Mahogany (71.036)reddish brown (solid matt) (32137)reddish brown (solid matt) (36137)Wine (Matte) (73)73
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--------Midnight Blue (Gloss) (15)--
Monza Red/Red Madder (H86)Monza Red/Red Madder (C68)--------------
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)--orange (solid matt) (32130)orange (Gloss) (36130)Orange (Gloss) (18)--
Orange Yellow (H24)Orange Yellow (C58)--------------
Purple (H39)Purple (C67)Purple (X16)--------Purple (Gloss) (68)--
Red (H3)Red (C3)Red (X7)Carmine Red (70.908)--fiery red (solid matt) (32131)Fiery Red (Gloss) (36131)Bright Red (Gloss) (19)Bright Red (Gloss) (19)
Red Brown (H47)Red Brown (C41) Red Brown (XF64)Flat Brown (70.984)Hull Red (71.039)----German Camouflage Red Brown (Matte) (160)--
RLM65 Light Blue (H67)RLM65 Light Blue (C115)Light Blue (XF23)Pale Blue (70.906)Pale Blue (71.008)----Aircraft Blue (Matte) (65)Aircraft Blue (Matte) (65)
Russet / Azuki (H33)Russet/Azuki (C81)----------Brown (Satin) (133)--
White (H1)White (C1)White (X2)Gloss White (70.842)--white (solid gloss) (32104)white (Gloss) (36104)White (Gloss) (22)White (Gloss) (22)
Yellow (H4)Yellow (C4)Lemon Yellow (X8)Flat Yellow (70.953)Medium Yellow (71.002)yellow (solid matt) (32112)yellow (Gloss) (36112)Yellow (Gloss) (69)Yellow (Gloss) (69)
Yellow Green (H16)Yellow Green/Roman Green (C64)Light Green (X15)Lime Green (70.827)--3216036160Lime (Gloss) (38)--
