MG Gundam Double X English Manual & Color Guide

MG Gundam Double X Construction Manual & Color Guide

From After War Gundam comes the Double X Gundam that was recently released by Bandai as a 1/100 Master Grade model kit. Aside from this master grade version an earlier high grade version was also released.

The 1/100 Master Grade Gundam Double X is selling for $ at Amazon.

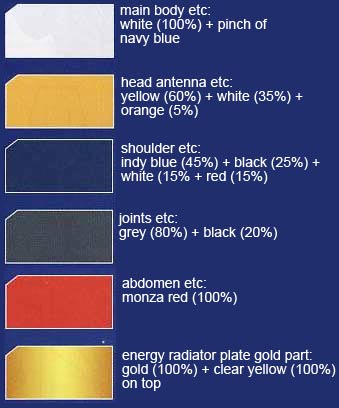

Color Guide DescriptionPaint Ratios
main body etcWhite (H1)(100%) + Navy Blue (H54)(small dose)
head antenna etcYellow (H4)(60%) + White (H1)(35%) + Orange (H14)(5%)
shoulder etcBright Blue/Indy Blue (H15)(45%) + Black (H2)(25%) + White (H1)(15%) + Red (H3)(15%)
joints etcGray/Nezumi (H22)(80%) + Black (H2)(20%)
abdomen etcMonza Red/Red Madder (H86)(100%)
energy radiator plate gold partGold (H9)(100%) as a base and as a top coat Clear Yellow (H91)(100%)

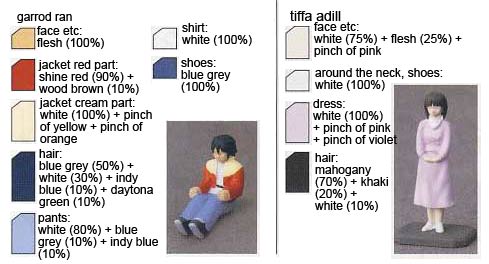

garrod ran faceFlesh/Pale Brown (H44)(100%)
garrod ran jacket red partShine Red (H23)(90%) + Wood Brown (H37)(10%)
garrod ran jacket cream partWhite (H1)(100%) + Yellow (H4)(small dose) + Orange (H14)(small dose)
garrod ran hairBlue Gray (H42)(50%) + White (H1)(30%) + Bright Blue/Indy Blue (H15)(10%) + Bright Green/Daytona Green (H26)(10%)
garrod ran pantsWhite (H1)(80%) + Blue Gray (H42)(10%) + Bright Blue/Indy Blue (H15)(10%)
garrod ran shirtWhite (H1)(100%)
garrod ran shoesBlue Gray (H42)(100%)
tiffa adill face etcWhite (H1)(75%) + Flesh/Pale Brown (H44)(25%) + Pink (H19)(small dose)
tiffa adill around the neck, shoes etcWhite (H1)(100%)
tiffa adill dressWhite (H1)(100%) + Pink (H19)(small dose) + Violet (H49)(small dose)
tiffa adill hairMahogany (H84)(70%) + Khaki (H81)(20%) + White (H1)(10%)
Disclaimer


Available at these Online Shops:

Amazon


Related Products





Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit review site. For the meaning of the symbol found in the model kit's manual kindly refer to this post.

MG Gundam Double X Construction Manual & Color Guide MG Gundam Double X Construction Manual & Color Guide MG Gundam Double X Construction Manual & Color Guide MG Gundam Double X Construction Manual & Color Guide MG Gundam Double X Construction Manual & Color Guide MG Gundam Double X Construction Manual & Color Guide MG Gundam Double X Construction Manual & Color Guide MG Gundam Double X Construction Manual & Color Guide MG Gundam Double X Construction Manual & Color Guide MG Gundam Double X Construction Manual & Color Guide MG Gundam Double X Construction Manual & Color Guide MG Gundam Double X Construction Manual & Color Guide MG Gundam Double X Construction Manual & Color Guide MG Gundam Double X Construction Manual & Color Guide MG Gundam Double X Construction Manual & Color Guide

Paint Conversion Table:  (Disclaimer| How to Use | Sitemap)


White
(H1)
Aqueous Hobby Color
White
(C1)
Mr. Color
White
(X2)
Tamiya Color Acrylic Paint
Gloss White
(70.842)
Vallejo Model Color
White (Gloss)
(22)
Humbrol Enamel
White (Gloss)
(22)
Humbrol Acrylic
white (Gloss)
(36104)
Revell Aqua Color Acrylic
white (solid gloss)
(32104)
Revell Email Enamel
SATIN WHITE
(A.MIG-0047)
Ammo Acrylics
Gloss White
(4696AP)
Italeri
White
(X-2)
Tamiya Enamel
White (Lacquer Paint)
(LP2)
Tamiya Lacquer Paint
Pure White
(TS26)
Tamiya Color Spray Paints

Black
(H2)
Aqueous Hobby Color
Black
(C2)
Mr. Color
Black
(X1)
Tamiya Color Acrylic Paint
Glossy Black
(70.861)
Vallejo Model Color
Black (Gloss)
(21)
Humbrol Enamel
Black (Gloss)
(21)
Humbrol Acrylic
black (Gloss)
(36107)
Revell Aqua Color Acrylic
black (solid matt)
(32107)
Revell Email Enamel
SATIN BLACK
(A.MIG-0032)
Ammo Acrylics
Gloss Black
(4695AP)
Italeri
Black
(X-1)
Tamiya Enamel
Black (Lacquer Paint)
(LP1)
Tamiya Lacquer Paint
Semi Gloss Black
(C92)
Mr. Color
Semi-Gloss Black
(X18)
Tamiya Color Acrylic Paint
Semi Gloss Black
(X-18)
Tamiya Enamel
Semi Gloss Black (Lacquer Paint)
(LP5)
Tamiya Lacquer Paint
Semi Gloss Black
(TS29)
Tamiya Color Spray Paints
Black
(TS14)
Tamiya Color Spray Paints

Red
(H3)
Aqueous Hobby Color
Red
(C3)
Mr. Color
Red
(X7)
Tamiya Color Acrylic Paint
Carmine Red
(70.908)
Vallejo Model Color
Red RLM23
(71.003)
Vallejo Model Air
Bright Red (Gloss)
(19)
Humbrol Enamel
Bright Red (Gloss)
(19)
Humbrol Acrylic
Fiery Red (Gloss)
(36131)
Revell Aqua Color Acrylic
fiery red (solid matt)
(32131)
Revell Email Enamel
RED
(A.MIG-0049)
Ammo Acrylics
Traffic Red
(HTK-_103)
Hataka

Yellow
(H4)
Aqueous Hobby Color
Yellow
(C4)
Mr. Color
Flat Yellow
(XF3)
Tamiya Color Acrylic Paints (Flat)
Flat Yellow
(70.953)
Vallejo Model Color
Medium Yellow
(71.002)
Vallejo Model Air
Yellow (Gloss)
(69)
Humbrol Enamel
Yellow (Gloss)
(69)
Humbrol Acrylic
yellow (Gloss)
(36112)
Revell Aqua Color Acrylic
yellow (solid matt)
(32112)
Revell Email Enamel
YELLOW
(A.MIG-0048)
Ammo Acrylics
Gloss Yellow
(4642AP)
Italeri
Yellow
(69.004)
Vallejo Mecha Color
Lemon Yellow
(X8)
Tamiya Color Acrylic Paint
Deep Yellow
(70.915)
Vallejo Model Color
Lemon Yellow
(X-8)
Tamiya Enamel
Pure Yellow (Lacquer Paint)
(LP8)
Tamiya Lacquer Paint
Yellow
(TS16)
Tamiya Color Spray Paints
MS Yellow(Federation Mobile Suit Yellow)
(UG03)
Gundam Color

Gold
(H9)
Aqueous Hobby Color
Gold
(C9)
Mr. Color
Gold Leaf
(X12)
Tamiya Color Acrylic Paint
Gold (Metallic)
(70.996)
Vallejo Model Color
Gold (Metallic)
(71.066)
Vallejo Model Air
Gold (metallic)
(16)
Humbrol Enamel
Gold (metallic)
(16)
Humbrol Acrylic
Gold (solid metallic)
(36194)
Revell Aqua Color Acrylic
gold (solid metallic)
(32194)
Revell Email Enamel
GOLD
(A.MIG-0198)
Ammo Acrylics
Metal. Gloss Gold
(4671AP)
Italeri

Orange
(H14)
Aqueous Hobby Color
Orange
(C59)
Mr. Color
Orange
(X6)
Tamiya Color Acrylic Paint
Clear Orange
(70.956)
Vallejo Model Color
Orange
(71.083)
Vallejo Model Air
Orange (Gloss)
(18)
Humbrol Enamel
luminous orange (solid matt)
(36125)
Revell Aqua Color Acrylic
luminous orange (solid matt)
(32125)
Revell Email Enamel
Orange (Gloss)
(1527)
Testors Model Master Enamel
Matt Orange FS32246
(LC05)
Lifecolor
ORANGE
(A.MIG-0129)
Ammo Acrylics
Orange
(RC009)
AK Real Color
Pure Orange
(HTK-_704)
Hataka
Flat Orange
(4302AP)
Italeri
orange (Gloss)
(36130)
Revell Aqua Color Acrylic
orange (solid matt)
(32130)
Revell Email Enamel
Gloss Orange
(4682AP)
Italeri

Bright Blue/Indy Blue
(H15)
Aqueous Hobby Color
Bright Blue/Indy Blue
(C65)
Mr. Color
Blue
(X4)
Tamiya Color Acrylic Paint
Dark Blue
(70.930)
Vallejo Model Color
French Blue (Gloss)
(14)
Humbrol Enamel
French Blue (Gloss)
(14)
Humbrol Acrylic
Blue (Gloss)
(36152)
Revell Aqua Color Acrylic
blue (solid matt)
(32152)
Revell Email Enamel
MEDIUM BLUE
(A.MIG-0103)
Ammo Acrylics
Gloss French Blue
(4659AP)
Italeri
Ultramarine
(70.839)
Vallejo Model Color
Lufthansa Blue RAL 5022
(198)
Humbrol Enamel
Flat Blue
(XF8)
Tamiya Color Acrylic Paints (Flat)

Pink
(H19)
Aqueous Hobby Color
Pink
(C63)
Mr. Color
Pink
(X17)
Tamiya Color Acrylic Paint
Old Rose
(70.944)
Vallejo Model Color
Pink (Gloss)
(200)
Humbrol Enamel

Gray/Nezumi
(H22)
Aqueous Hobby Color
Neutral Gray
(C13)
Mr. Color
Neutral Gray
(XF53)
Tamiya Color Acrylic Paints (Flat)
Neutral Grey
(70.992)
Vallejo Model Color
Light Gray
(71.050)
Vallejo Model Air
Grey Primer (Matte)
(1)
Humbrol Enamel
Dark Grey (Gloss)
(32171)
Revell Email Enamel
GREY
(A.MIG-0059)
Ammo Acrylics
Flat Dark Gray
(4754AP)
Italeri
Dark Admiralty Grey (Gloss)
(5)
Humbrol Enamel

Shine Red
(H23)
Aqueous Hobby Color
Shine Red
(C79)
Mr. Color
Red
(X7)
Tamiya Color Acrylic Paint
Scarlet
(70.817)
Vallejo Model Color
Red RLM23
(71.003)
Vallejo Model Air
Bright Red (Gloss)
(19)
Humbrol Enamel
Scarlet (Matte)
(60)
Humbrol Acrylic
Fiery Red (Gloss)
(36131)
Revell Aqua Color Acrylic
fiery red (solid matt)
(32131)
Revell Email Enamel
RED
(A.MIG-0049)
Ammo Acrylics
Signal Red
(RC005)
AK Real Color
Traffic Red
(HTK-_103)
Hataka
Shine Red
(N23)
Acrysion
Red
(69.008)
Vallejo Mecha Color
Signal Red (Satin)
(174)
Humbrol Enamel
Scarlet (Matte)
(60)
Humbrol Enamel
Arrow Red
(238)
Humbrol Enamel
Red Arrows Red BS537
(X014)
Xtracolor
BS Signal Red
(HTK-_276)
Hataka
MS Red(Federation Mobile Suit Red)
(UG04)
Gundam Color

Bright Green/Daytona Green
(H26)
Aqueous Hobby Color
Bright Green/Daytona Green
(C66)
Mr. Color
Emerald (Gloss)
(2)
Humbrol Enamel
Emerald (Gloss)
(2)
Humbrol Acrylic
Emerald Green (Gloss)
(36161)
Revell Aqua Color Acrylic
emerald green (solid matt)
(32161)
Revell Email Enamel
SIGNAL GREEN
(A.MIG-0054)
Ammo Acrylics

Wood Brown
(H37)
Aqueous Hobby Color
Wood Brown
(C43)
Mr. Color
Sand Brown
(71.034)
Vallejo Model Air
Brown (Matte)
(186)
Humbrol Enamel
Brown (solid matt)
(36185)
Revell Aqua Color Acrylic
brown (solid silk matt)
(32185)
Revell Email Enamel
Earth Red FS30117 (F)
(4707)
Testors Model Master Acrylic
Military Brown FS30117
(1701)
Testors Model Master Enamel
Earth Red FS30117
(UA306)
Lifecolor
CLAY BROWN
(A.MIG-0079)
Ammo Acrylics
No.8 Earth Red
(RC031)
AK Real Color
Earth Red
(HTK-_213)
Hataka
Flat Wood
(4673AP)
Italeri
US Earth Red
(71.293)
Vallejo Model Air

Blue Gray
(H42)
Aqueous Hobby Color
Intermediate Blue/Medium Blue
(C72)
Mr. Color
Medium Blue
(XF18)
Tamiya Color Acrylic Paints (Flat)
French Mirage Blue
(70.900)
Vallejo Model Color
IDF Blue
(71.113)
Vallejo Model Air
Intermediate Blue (Matte)
(144)
Humbrol Enamel
Greyish Blue (solid matt)
(36179)
Revell Aqua Color Acrylic
Greyish Blue (solid matt)
(32179)
Revell Email Enamel
FRENCH BLUE
(A.MIG-0062)
Ammo Acrylics
Intermediate Blue
(N56)
Acrysion
Flat Non Specular Interm. Blue
(4639AP)
Italeri

Flesh/Pale Brown
(H44)
Aqueous Hobby Color
Flesh
(C51)
Mr. Color
Flat Flesh
(XF15)
Tamiya Color Acrylic Paints (Flat)
Cork Brown
(70.843)
Vallejo Model Color
Skin Tone
(71.076)
Vallejo Model Air
Flesh (Matte)
(61)
Humbrol Enamel
Leather (Matte)
(62)
Humbrol Acrylic
Brown (solid matt)
(36185)
Revell Aqua Color Acrylic
brown (solid silk matt)
(32185)
Revell Email Enamel
SAND BROWN
(A.MIG-0026)
Ammo Acrylics
Flesh
(N44)
Acrysion
Flat Light Flesh
(4390AP)
Italeri
Flat Flesh
(XF-15)
Tamiya Enamel
Flat Flesh (Lacquer Paint)
(LP66)
Tamiya Lacquer Paint
Desert Yellow
(70.977)
Vallejo Model Color
Camouflage Brown
(71.117)
Vallejo Model Air
Pale Sand
(70.837)
Vallejo Model Color
LIGHT SKIN TONE
(A.MIG-0115)
Ammo Acrylics
Pale Sand
(RC018)
AK Real Color
Leather (Matte)
(62)
Humbrol Enamel
Flat Skin Tone Tint Base - Light
(4601AP)
Italeri
Flat Skin Tone Warm Tint
(4603AP)
Italeri
Flat Flesh 2
(TS77)
Tamiya Color Spray Paints
flesh (solid matt)
(36135)
Revell Aqua Color Acrylic
flesh (solid silk matt)
(32135)
Revell Email Enamel

Violet
(H49)
Aqueous Hobby Color
Purple
(X16)
Tamiya Color Acrylic Paint
Violet
(70.960)
Vallejo Model Color
Purple (Gloss)
(68)
Humbrol Enamel
VIOLET
(A.MIG-0126)
Ammo Acrylics
Violet
(N49)
Acrysion

Navy Blue
(H54)
Aqueous Hobby Color
Navy Blue
(C14)
Mr. Color
Dark Sea Blue
(70.898)
Vallejo Model Color
Steel Blue
(71.087)
Vallejo Model Air
Navy Blue (Matte)
(77)
Humbrol Enamel
Navy Blue (Matte)
(77)
Humbrol Acrylic
Greyish Blue (solid matt)
(36179)
Revell Aqua Color Acrylic
Greyish Blue (solid matt)
(32179)
Revell Email Enamel
Flat Sea Blue FS35042
(1718)
Testors Model Master Enamel
Non Specular Sea Blue FS35042
(UA044)
Lifecolor
SEA BLUE
(A.MIG-0227)
Ammo Acrylics
Graublau – Grey Blue
(RC208)
AK Real Color
Grey-Blue
(HTK-_171)
Hataka
RAL5008 Graublau
(X264)
Xtracolor
Navy Blue
(N54)
Acrysion
Flat Non Specular Sea Blue
(4604AP)
Italeri
Titan Dark Blue
(69.022)
Vallejo Mecha Color
Field Blue
(XF50)
Tamiya Color Acrylic Paints (Flat)
Grey Blue
(71.005)
Vallejo Model Air
Titan's Blue 1
(UG16)
Gundam Color

Khaki
(H81)
Aqueous Hobby Color
Khaki
(C55)
Mr. Color
Khaki
(XF49)
Tamiya Color Acrylic Paints (Flat)
Green Brown
(70.879)
Vallejo Model Color
Camouflage Grey Green
(71.116)
Vallejo Model Air
Khaki (Matte)
(26)
Humbrol Enamel
Khaki (Matte)
(26)
Humbrol Acrylic
Olive Brown (solid matt)
(36186)
Revell Aqua Color Acrylic
Olive Brown (solid matt)
(32186)
Revell Email Enamel
Africa Khakibraun RAL 7008 '41 (F)
(2098)
Testors Model Master Enamel
Graugrün Khakibraun RAL 7008
(UA212)
Lifecolor
GRAUGRÜN
(A.MIG-0005)
Ammo Acrylics
Graugrün – Grey Green
(RC053)
AK Real Color
Khaki Grey
(HTK-_304)
Hataka
RAL7008 Khakibraun
(X804)
Xtracolor
Khaki
(N81)
Acrysion
nato olive (solid matt)
(36146)
Revell Aqua Color Acrylic
nato olive (solid matt)
(32146)
Revell Email Enamel
olive grey (solid matt)
(36166)
Revell Aqua Color Acrylic
olive grey (solid matt)
(32166)
Revell Email Enamel

Mahogany
(H84)
Aqueous Hobby Color
Mahogany
(C42)
Mr. Color
Hull Red
(XF9)
Tamiya Color Acrylic Paints (Flat)
Hull Red
(70.985)
Vallejo Model Color
Mahogany
(71.036)
Vallejo Model Air
Wine (Matte)
(73)
Humbrol Enamel
reddish brown (solid matt)
(36137)
Revell Aqua Color Acrylic
reddish brown (solid matt)
(32137)
Revell Email Enamel
DARK TRACKS
(A.MIG-0035)
Ammo Acrylics
Mahogany Brown
(HTK-_130)
Hataka
Flat Rust
(4675AP)
Italeri
Dark Rust
(70.302)
Vallejo Panzer Aces
Hull Red
(71.039)
Vallejo Model Air
SCC 1A Very Dark Brown
(UA274)
Lifecolor
S.C.C. 1A Brown
(RC034)
AK Real Color
S.C.C. No. 1A Dark Brown
(HTK-_077)
Hataka

Monza Red/Red Madder
(H86)
Aqueous Hobby Color
Monza Red/Red Madder
(C68)
Mr. Color

Clear Yellow
(H91)
Aqueous Hobby Color
Clear Yellow
(C48)
Mr. Color
Clear Yellow
(X24)
Tamiya Color Acrylic Paint
Clear Yellow
(RC507)
AK Real Color
Clear Yellow
(X-24)
Tamiya Enamel
Clear Yellow (Lacquer Paint)
(LP69)
Tamiya Lacquer Paint
