HG Gundam Double X English Manual & Color Guide

HG Gundam Double X Construction Manual & Color Guide

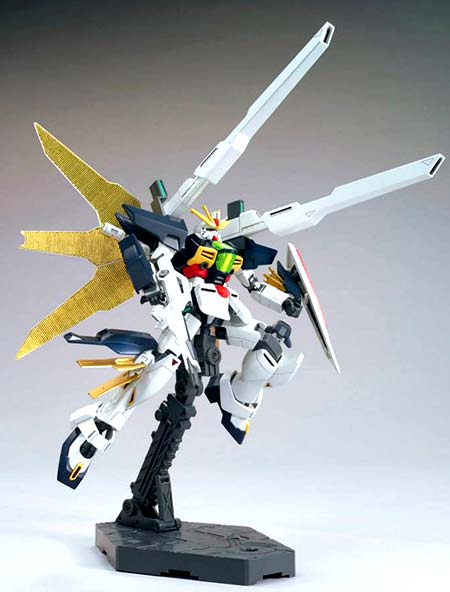

Released last October by Bandai was the Gundam Double X from the Gundam After War series. This particular model kit was of the 1/144 High Grade variety.

The 1/144 HG Gundam Double X is selling for $ at Amazon, 1240 yen at Amiami, 1360 yen at HobbyLink Japan

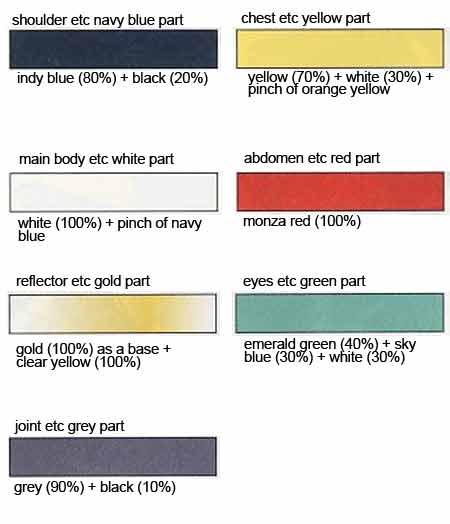

Color Guide DescriptionPaint Ratios
shoulder etc navy blue partBright Blue/Indy Blue (H15)(80%) + Black (H2)(20%)
main body etc white partWhite (H1)(100%) + Navy Blue (H54)(small dose)
reflector etc gold partGold (H9)(100%) as a base and as a top coat Clear Yellow (H91)(100%)
joints etc gray partGray/Nezumi (H22)(90%) + Black (H2)(10%)
chest etc yellow partYellow (H4)(70%) + White (H1)(30%) + Orange Yellow (H24)(small dose)
abdomen etc red partMonza Red/Red Madder (H86)(100%)
eyes etc green partEmerald Green (H46)(40%) + Sky Blue (H25)(30%) + White (H1)(30%)
Disclaimer


Available at these Online Shops:




Related Products

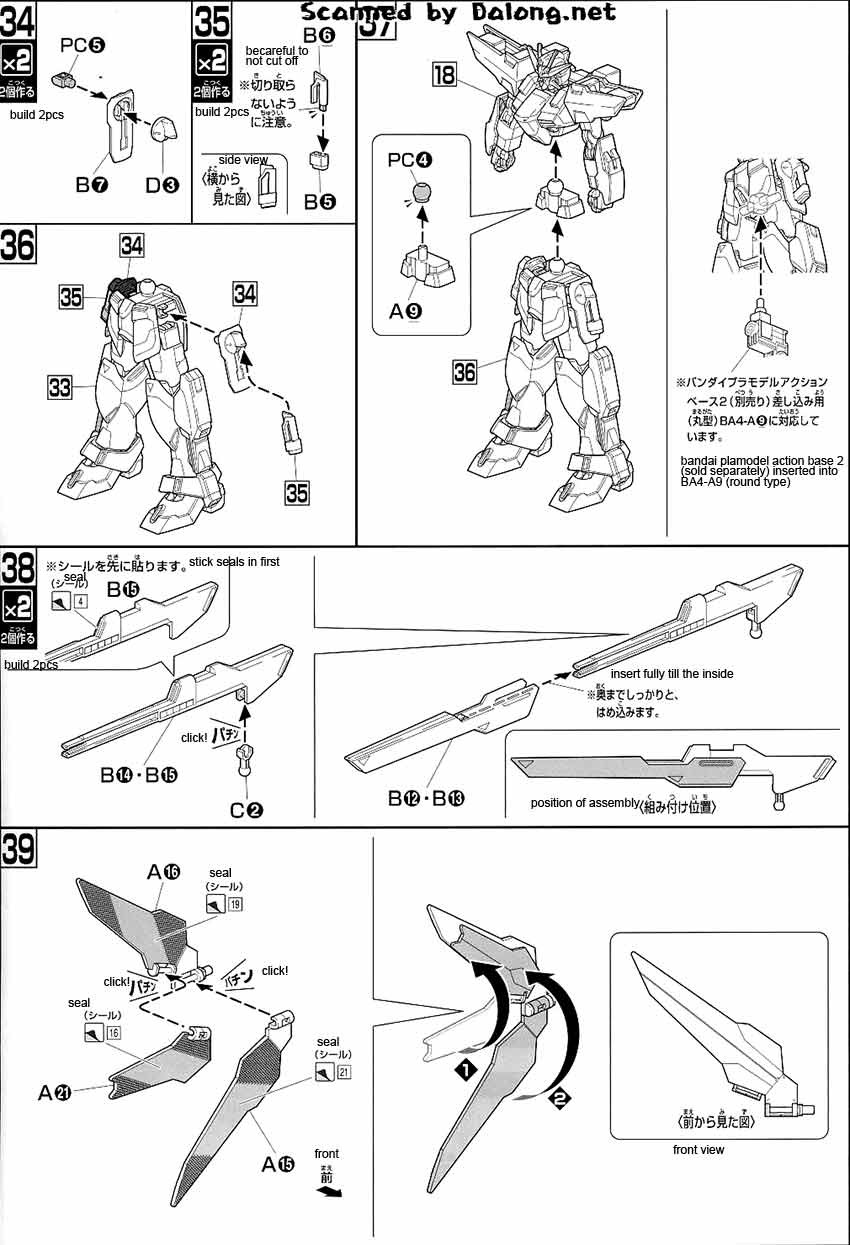

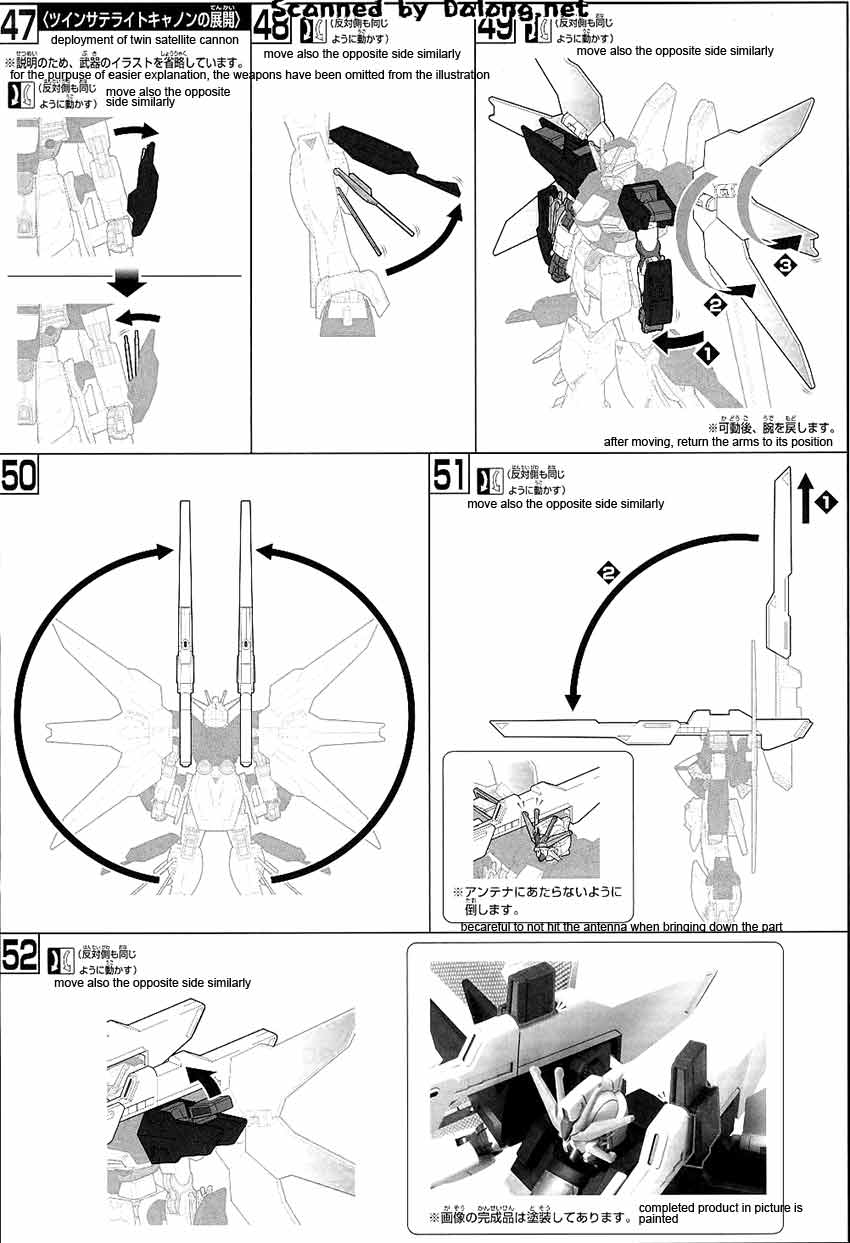

Construction Manual & Color Guide for the 1/144 High Grade Gundam Double X was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site.

HG Gundam Double X Construction Manual & Color Guide HG Gundam Double X Construction Manual & Color Guide HG Gundam Double X Construction Manual & Color Guide HG Gundam Double X Construction Manual & Color Guide

HG Gundam Double X Construction Manual & Color Guide HG Gundam Double X Construction Manual & Color Guide


Paint Conversion Table:  (Disclaimer| How to Use | Sitemap)


White
(H1)
Aqueous Hobby Color
White
(C1)
Mr. Color
White
(S1)
Mr. Color Spray
White
(X2)
Tamiya Color Acrylic Paint
Gloss White
(70.842)
Vallejo Model Color
White (Gloss)
(22)
Humbrol Enamel
White (Gloss)
(22)
Humbrol Acrylic
white (Gloss)
(36104)
Revell Aqua Color Acrylic
white (solid gloss)
(32104)
Revell Email Enamel
SATIN WHITE
(A.MIG-0047)
Ammo Acrylics
WHITE
(N1)
Acrysion
Gloss White
(4696AP)
Italeri
White
(X-2)
Tamiya Enamel
White (Lacquer Paint)
(LP2)
Tamiya Lacquer Paint
Pure White
(TS26)
Tamiya Color Spray Paints
Black
(H2)
Aqueous Hobby Color
Black
(C2)
Mr. Color
Black
(S2)
Mr. Color Spray
Black
(X1)
Tamiya Color Acrylic Paint
Glossy Black
(70.861)
Vallejo Model Color
Black (Gloss)
(21)
Humbrol Enamel
Black (Gloss)
(21)
Humbrol Acrylic
black (Gloss)
(36107)
Revell Aqua Color Acrylic
black (solid matt)
(32107)
Revell Email Enamel
SATIN BLACK
(A.MIG-0032)
Ammo Acrylics
BLACK
(N2)
Acrysion
Gloss Black
(4695AP)
Italeri
Black
(X-1)
Tamiya Enamel
Black (Lacquer Paint)
(LP1)
Tamiya Lacquer Paint
Semi Gloss Black
(C92)
Mr. Color
Semi-Gloss Black/Semi-Gross Black
(S92)
Mr. Color Spray
Semi-Gloss Black
(X18)
Tamiya Color Acrylic Paint
Semi Gloss Black
(X-18)
Tamiya Enamel
Semi Gloss Black (Lacquer Paint)
(LP5)
Tamiya Lacquer Paint
Semi Gloss Black
(TS29)
Tamiya Color Spray Paints
Black
(TS14)
Tamiya Color Spray Paints

Yellow
(H4)
Aqueous Hobby Color
Yellow
(C4)
Mr. Color
Yellow
(S4)
Mr. Color Spray
Flat Yellow
(XF3)
Tamiya Color Acrylic Paints (Flat)
Flat Yellow
(70.953)
Vallejo Model Color
Medium Yellow
(71.002)
Vallejo Model Air
Yellow (Gloss)
(69)
Humbrol Enamel
Yellow (Gloss)
(69)
Humbrol Acrylic
yellow (Gloss)
(36112)
Revell Aqua Color Acrylic
yellow (solid matt)
(32112)
Revell Email Enamel
YELLOW
(A.MIG-0048)
Ammo Acrylics
YELLOW
(N4)
Acrysion
Gloss Yellow
(4642AP)
Italeri
Yellow
(69.004)
Vallejo Mecha Color
Lemon Yellow
(X8)
Tamiya Color Acrylic Paint
Deep Yellow
(70.915)
Vallejo Model Color
Sun Yellow
(72.006)
Vallejo Game Color
Sun Yellow
(72.706)
Vallejo Game Air
Lemon Yellow
(X-8)
Tamiya Enamel
Pure Yellow (Lacquer Paint)
(LP8)
Tamiya Lacquer Paint
Yellow
(TS16)
Tamiya Color Spray Paints
MS Yellow(Federation Mobile Suit Yellow)
(UG03)
Gundam Color
DEEP YELLOW
(AK11045)
AK 3rd Gen Acrylics
Lemon Yellow
(70.952)
Vallejo Model Color
Lemon (Matte)
(99)
Humbrol Enamel
Lemon (Matte)
(99)
Humbrol Acrylic
Bright Yellow (G)
(2717)
Testors Model Master Enamel
LEMON YELLOW
(AK11047)
AK 3rd Gen Acrylics

Gold
(H9)
Aqueous Hobby Color
Gold
(C9)
Mr. Color
Gold
(S9)
Mr. Color Spray
Gold Leaf
(X12)
Tamiya Color Acrylic Paint
Gold (Metallic)
(70.996)
Vallejo Model Color
Gold (Metallic)
(71.066)
Vallejo Model Air
Gold (metallic)
(16)
Humbrol Enamel
Gold (metallic)
(16)
Humbrol Acrylic
Gold (solid metallic)
(36194)
Revell Aqua Color Acrylic
gold (solid metallic)
(32194)
Revell Email Enamel
GOLD
(A.MIG-0198)
Ammo Acrylics
GOLD
(N9)
Acrysion
Metal. Gloss Gold
(4671AP)
Italeri
Polished Gold
(72.055)
Vallejo Game Color
Polished Gold
(72.755)
Vallejo Game Air
Glorious Gold
(72.056)
Vallejo Game Color
Glorious Gold
(72.756)
Vallejo Game Air
GOLD
(AK11191)
AK 3rd Gen Acrylics

Bright Blue/Indy Blue
(H15)
Aqueous Hobby Color
Bright Blue/Indy Blue
(C65)
Mr. Color
Bright Blue
(S65)
Mr. Color Spray
Blue
(X4)
Tamiya Color Acrylic Paint
Dark Blue
(70.930)
Vallejo Model Color
French Blue (Gloss)
(14)
Humbrol Enamel
French Blue (Gloss)
(14)
Humbrol Acrylic
Blue (Gloss)
(36152)
Revell Aqua Color Acrylic
blue (solid matt)
(32152)
Revell Email Enamel
MEDIUM BLUE
(A.MIG-0103)
Ammo Acrylics
BRIGHT BLUE
(N15)
Acrysion
Gloss French Blue
(4659AP)
Italeri
Magic Blue
(72.021)
Vallejo Game Color
Magic Blue
(72.721)
Vallejo Game Air
Ultramarine
(70.839)
Vallejo Model Color
Lufthansa Blue RAL 5022
(198)
Humbrol Enamel
Flat Blue
(XF8)
Tamiya Color Acrylic Paints (Flat)
blue (solid matt)
(36156)
Revell Aqua Color Acrylic
blue (solid silk matt)
(32156)
Revell Email Enamel
French Blue
(2715)
Testors Model Master Enamel
DEEP BLUE
(AK11182)
AK 3rd Gen Acrylics

Gray/Nezumi
(H22)
Aqueous Hobby Color
Neutral Gray
(XF53)
Tamiya Color Acrylic Paints (Flat)
Neutral Grey
(70.992)
Vallejo Model Color
Light Gray
(71.050)
Vallejo Model Air
Grey Primer (Matte)
(1)
Humbrol Enamel
Dark Grey (Gloss)
(32171)
Revell Email Enamel
GREY
(A.MIG-0059)
Ammo Acrylics
Flat Dark Gray
(4754AP)
Italeri
GRAPHITE
(AK11019)
AK 3rd Gen Acrylics
Dark Admiralty Grey (Gloss)
(5)
Humbrol Enamel
RLM Gray
(XF22)
Tamiya Color Acrylic Paints (Flat)

Orange Yellow
(H24)
Aqueous Hobby Color
Orange Yellow
(C58)
Mr. Color
Orange Yellow
(S58)
Mr. Color Spray
Light Orange
(70.911)
Vallejo Model Color
Orange Rust
(71.130)
Vallejo Model Air
LIGHT RUST
(A.MIG-0039)
Ammo Acrylics
Signal Orange
(HTK-_133)
Hataka
Orange Yellow
(N24)
Acrysion
Orange Fire
(72.008)
Vallejo Game Color
Orange Fire
(72.708)
Vallejo Game Air
VOLCANIC YELLOW
(AK11042)
AK 3rd Gen Acrylics

Sky Blue
(H25)
Aqueous Hobby Color
Sky Blue
(C34)
Mr. Color
Sky Blue
(S34)
Mr. Color Spray
Sky Blue
(X14)
Tamiya Color Acrylic Paint
Mediterranean Blue (Gloss)
(48)
Humbrol Enamel
Sky Blue
(N25)
Acrysion
DUCAT BLUE
(AK11177)
AK 3rd Gen Acrylics
Andrea Blue
(70.841)
Vallejo Model Color
Emerald Green
(H46)
Aqueous Hobby Color
Emerald
(70.838)
Vallejo Model Color
INTERIOR TURQUOISE GREEN
(A.MIG-0223)
Ammo Acrylics
Emerald Green
(N46)
Acrysion
EMERALD GREEN
(AK11144)
AK 3rd Gen Acrylics

Navy Blue
(H54)
Aqueous Hobby Color
Navy Blue
(C14)
Mr. Color
Navy Blue
(S14)
Mr. Color Spray
Dark Sea Blue
(70.898)
Vallejo Model Color
Steel Blue
(71.087)
Vallejo Model Air
Navy Blue (Matte)
(77)
Humbrol Enamel
Navy Blue (Matte)
(77)
Humbrol Acrylic
Greyish Blue (solid matt)
(36179)
Revell Aqua Color Acrylic
Greyish Blue (solid matt)
(32179)
Revell Email Enamel
Flat Sea Blue FS35042
(1718)
Testors Model Master Enamel
Non Specular Sea Blue FS35042
(UA044)
Lifecolor
SEA BLUE
(A.MIG-0227)
Ammo Acrylics
Graublau – Grey Blue
(RC208)
AK Real Color
Grey-Blue
(HTK-_171)
Hataka
RAL5008 Graublau
(X264)
Xtracolor
Navy Blue
(N54)
Acrysion
Flat Non Specular Sea Blue
(4604AP)
Italeri
Titan Dark Blue
(69.022)
Vallejo Mecha Color
Field Blue
(XF50)
Tamiya Color Acrylic Paints (Flat)
Grey Blue
(71.005)
Vallejo Model Air
Titan's Blue 1
(UG16)
Gundam Color
DARK SEA BLUE
(AK11190)
AK 3rd Gen Acrylics
Sea Blue
(XF17)
Tamiya Color Acrylic Paints (Flat)
Blue Grey (Matte)
(79)
Humbrol Enamel
Blue Grey (Matte)
(79)
Humbrol Acrylic
Dust grey (solid matt)
(36177)
Revell Aqua Color Acrylic
Dust grey (solid matt)
(32177)
Revell Email Enamel

Monza Red/Red Madder
(H86)
Aqueous Hobby Color
Monza Red/Red Madder
(C68)
Mr. Color
Red Madder
(S68)
Mr. Color Spray
Red Madder
(N86)
Acrysion
Dark Vermillion
(70.947)
Vallejo Model Color
Scarlet (Matte)
(60)
Humbrol Enamel
Scarlet (Matte)
(60)
Humbrol Acrylic
Red
(RC006)
AK Real Color
VERMILLION
(AK11090)
AK 3rd Gen Acrylics

Clear Yellow
(H91)
Aqueous Hobby Color
Clear Yellow
(C48)
Mr. Color
Clear Yellow
(S48)
Mr. Color Spray
Clear Yellow
(X24)
Tamiya Color Acrylic Paint
Clear Yellow
(RC507)
AK Real Color
Clear Yellow
(N91)
Acrysion
Clear Yellow
(X-24)
Tamiya Enamel
Clear Yellow (Lacquer Paint)
(LP69)
Tamiya Lacquer Paint
CLEAR YELLOW
(AK11217)
AK 3rd Gen Acrylics
Transparent Yellow (Transparent)
(70.937)
Vallejo Model Color
