RE 1/100 Gundam Mk-III English Manual & Color Guide

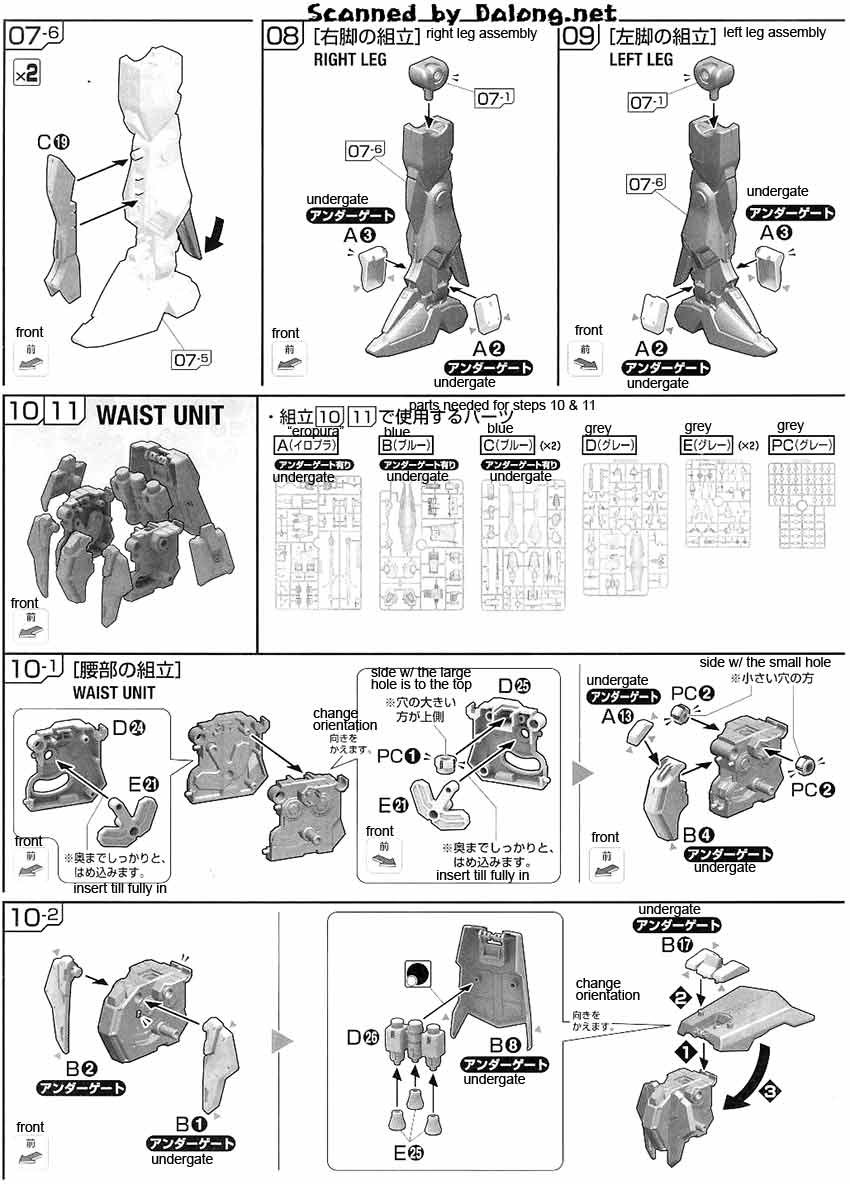

RE 1/100 Gundam Mk-III Construction Manual & Color Guide

The latest release by Bandai for their Reborn One Hundred 1/100 line is the Gundam Mk-III. The Gundam Mk-III came from out Zeta Gundam Mobile Suit Variations.

The 1/100 RE Gundam Mk-III is selling for $ at Amazon

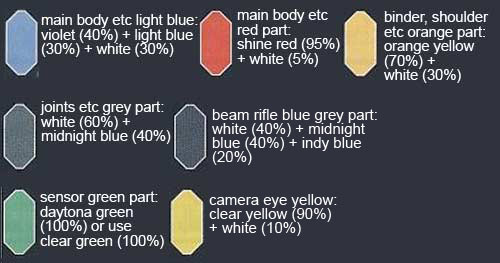

Color Guide DescriptionPaint Ratios
main body etc light blue partViolet (H49)(40%) + Light Blue/mizu (H45)(30%) + White (H1)(30%)
joints etc gray partWhite (H1)(60%) + Midnight Blue (H55)(40%)
sensor green partBright Green/Daytona Green (H26)(100%) or use Clear Green (H94)(100%)
main body etc red partShine Red (H23)(95%) + White (H1)(5%)
beam rifle blue gray partWhite (H1)(40%) + Midnight Blue (H55)(40%) + Bright Blue/Indy Blue (H15)(20%)
camera eye yellow partClear Yellow (H91)(90%) + White (H1)(10%)
binder, shoulder etc orange partOrange Yellow (H24)(70%) + White (H1)(30%)
Disclaimer


Construction Manual & Color Guide for the 1/100 RE Gundam Mk-III was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the model kit's manual, kindly refer to this post.

RE 1/100 Gundam Mk-III Construction Manual & Color Guide RE 1/100 Gundam Mk-III Construction Manual & Color Guide RE 1/100 Gundam Mk-III Construction Manual & Color Guide RE 1/100 Gundam Mk-III Construction Manual & Color Guide RE 1/100 Gundam Mk-III Construction Manual & Color Guide RE 1/100 Gundam Mk-III Construction Manual & Color Guide





Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelLife ColorItaleri
Violet (H49)--Purple (X16)Violet (70.960)--VIOLET (A.MIG-0126)------Purple (Gloss) (68)------
Light Blue/mizu (H45)----Sky Blue (70.961)AII SV. Gol Light Blue (71.317)SKY LINE BLUE A II (A.MIG-0224)Air Superiority Blue (RC239)Air Superiority Blue (HTK-_155)--Sea Blue (Gloss) (47)--Air Superiority Blue FS35450 (UA037)Gloss Light Blue (4650AP)
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)----Gloss White (4696AP)
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)Non Specular Sea Blue FS35042 (UA044)--
Bright Green/Daytona Green (H26)Bright Green/Daytona Green (C66)------SIGNAL GREEN (A.MIG-0054)----emerald green (solid matt) (32161)Emerald (Gloss) (2)------
Clear Green (H94)Clear Green (C138)Clear Green (X25)Transparent Green (Transparent) (70.936)--CRYSTAL GREEN (A.MIG-0092)Clear Green (RC505)----Green (Clear) (1325)------
Shine Red (H23)Shine Red (C79)Red (X7)Scarlet (70.817)Red RLM23 (71.003)RED (A.MIG-0049)Signal Red (RC005)Traffic Red (HTK-_103)fiery red (solid matt) (32131)Bright Red (Gloss) (19)------
Bright Blue/Indy Blue (H15)Bright Blue/Indy Blue (C65)Blue (X4)Dark Blue (70.930)--MEDIUM BLUE (A.MIG-0103)------French Blue (Gloss) (14)------
Clear Yellow (H91)Clear Yellow (C48)Clear Yellow (X24)------Clear Yellow (RC507)------------
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)----------
