HG Gouf Ignited (Yzak Jule) English Manual & Color Guide

HG Gouf Ignited (Yzak Jule) Construction Manual & Color Guide

Released in 2007 by Bandai was the Gouf Ignited of Yzak Jule from Gundam Seed Destiny as a 1/144 High Grade model kit. I still can't get myself to like Yzak Jule, despite his depiction in Gundam Seed Destiny. He will still be the same stuck up pain in the arse guy in Gundam Seed for me.

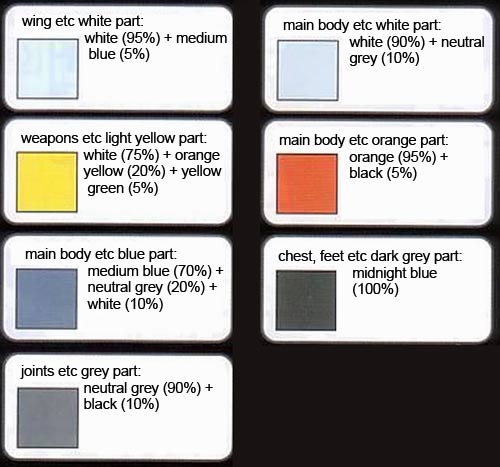

Color Guide DescriptionPaint Ratios
wing etc white partWhite (H1)(95%) + Medium Blue/Intermediate Blue (H56)(5%)
weapons etc light yellow partWhite (H1)(75%) + Orange Yellow (H24)(20%) + Yellow Green/Roman Green/Le Mans Green (H16)(5%)
main body etc blue partMedium Blue/Intermediate Blue (H56)(70%) + Neutral Gray (H53)(20%) + White (H1)(10%)
joints etc gray partNeutral Gray (H53)(90%) + Black (H2)(10%)
main body etc white partWhite (H1)(90%) + Neutral Gray (H53)(10%)
main body etc orange partOrange (H14)(95%) + Black (H2)(5%)
chest, feet etc dark gray partMidnight Blue (H55)(100%)
Disclaimer






Construction Manual & Color Guide was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site.

HG Gouf Ignited (Yzak Jule) Construction Manual & Color Guide HG Gouf Ignited (Yzak Jule) Construction Manual & Color Guide HG Gouf Ignited (Yzak Jule) Construction Manual & Color Guide HG Gouf Ignited (Yzak Jule) Construction Manual & Color Guide


Paints Used & Paint Conversion Equivalents:


Disclaimer
Aqueous Hobby ColorMr. ColorTamiyaVallejo Model ColorVallejo Model AirAMMO by Mig JimenezAK Real ColorHatakaRevell EnamelHumbrol EnamelModel Master EnamelXtracolorLife ColorItaleri
White (H1)White (C1)White (X2)Gloss White (70.842)--SATIN WHITE (A.MIG-0047)----white (solid gloss) (32104)White (Gloss) (22)------Gloss White (4696AP)
Medium Blue/Intermediate Blue (H56)Intermediate Blue/Medium Blue (C72)Medium Blue (XF18)Intermediate Blue (70.903)Intermediate Blue (71.299)FRENCH BLUE (A.MIG-0062)Intermediate Blue (RC235)Intermediate Blue (HTK-_027)Greyish Blue (solid matt) (32179)Intermediate Blue (Matte) (144)Intermediate Blue FS35164 (1720)--Non Specular Intermediate Blue FS 35164 (UA045)--
Orange Yellow (H24)Orange Yellow (C58)--Light Orange (70.911)Orange Rust (71.130)LIGHT RUST (A.MIG-0039)--Signal Orange (HTK-_133)------------
Yellow Green/Roman Green/Le Mans Green (H16)Yellow Green/Roman Green (C64)Light Green (X15)Lime Green (70.827)--GREEN BASE (A.MIG-0916)------Lime (Gloss) (38)--------
Neutral Gray (H53)Neutral Gray (C13)Neutral Gray (XF53)Neutral Grey (70.992)Aggressor Gray (71.274)NEUTRAL GRAY (A.MIG-0239)Aggressor Grey (RC248)Aggressor Grey (HTK-_157)--US Compass Grey (Satin) (128)Aggressor Gray FS36251 (1794)FS16251 Medium Grey (X132)Light Grey FS36251 (UA034)--
Black (H2)Black (C2)Black (X1)Glossy Black (70.861)--SATIN BLACK (A.MIG-0032)----black (solid matt) (32107)Black (Gloss) (21)------Gloss Black (4695AP)
Orange (H14)Orange (C59)Orange (X6)Clear Orange (70.956)Orange (71.083)ORANGE (A.MIG-0129)Orange (RC009)Pure Orange (HTK-_704)orange (solid matt) (32130)Orange (Gloss) (18)Orange (Gloss) (1527)--Matt Orange FS32246 (LC05)Flat Orange (4302AP)
Midnight Blue (H55)Midnight Blue (C71)Royal Blue (X3)--USN Sea Blue (71.295)--Sea Blue (RC257)Semi-Gloss Sea Blue (HTK-_006)----Flat Sea Blue FS35042 (1718)--Non Specular Sea Blue FS35042 (UA044)--
